Conductor: Flexible Aluminium
-
Insulation: XLPE X-90
-
Sheath: PVC 5V-90
-
Conductor Type: 1C/2C+E/3C+E/4C+E
-
Rated Voltage Uo/U (Um): 0.6/1 kV
-
Operating temperature: -40°C ~ +90°C
-
Standards
AS/NZS 5000.1
AS/NZS IEC 60332-1
AS/NZS 3808
AS/NZS IEC60332-3-24
AS/NZS 1125
Application

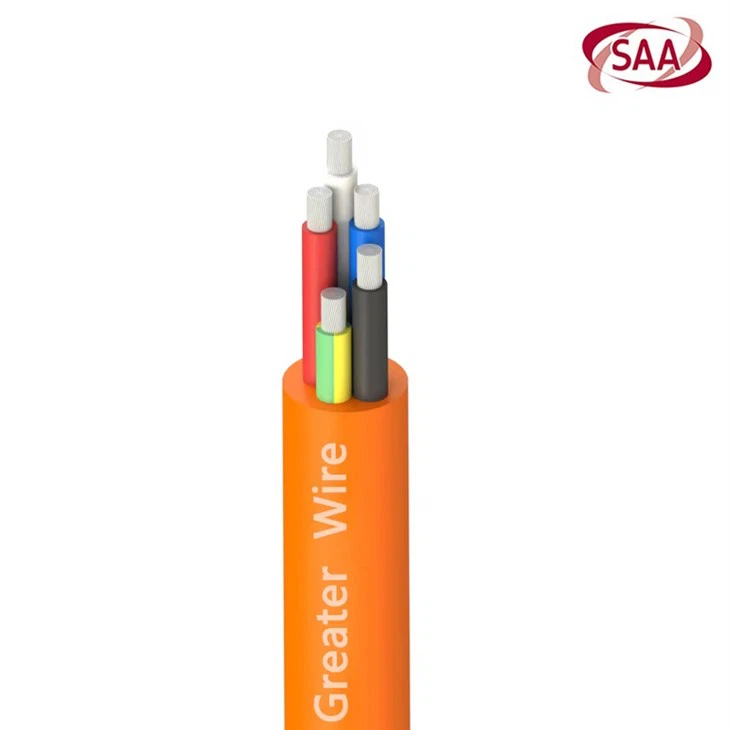

0.6/1kV Aluminum Orange Circular Cable is Suitable for use in power distribution networks, including industrial plants, commercial buildings, and residential complexes. It is commonly used in fixed installations where flexibility, thermal resistance, and durability are essential. This cable can be used for wiring in electrical panels, switchboards, and substation connections. The cable is ideal for both indoor and outdoor applications, thanks to the UV resistance provided by its PVC sheath, ensuring its ability to withstand exposure to sunlight without degradation.
Feature
0.6/1kV Aluminum Orange Circular Cable is designed to provide reliable and efficient electrical power distribution in various industrial and commercial applications. It features a flexible aluminum conductor and is insulated with XLPE (Cross-Linked Polyethylene), which provides enhanced thermal and mechanical performance. The outer sheath is made from PVC (Polyvinyl Chloride), offering protection against physical damage and environmental factors. The cable is rated for 0.6/1kV, making it suitable for use in low-voltage power distribution systems
Certification
Our products have passed SAA certifications. Certification number: SAA250307. These documents are verifiable via the official SAA portal. Our company has a corresponding certification for each region. We have more than 10 years of experience in foreign trade export, exporting to more than 90 countries around the world, and we are familiar with the wire and cable specifications and standards of many countries.
Package
Production Line
Dongguan Greater Wire & Cable Co., Ltd. was established in 1995, it is a professional wire and cable manufacturer. Our company has advanced production equipment and production technology, complete testing equipment, and strong product technology strength. After years of hard work and the support of clients from all over the World, our company has developed rapidly and won a high honor and share in overseas markets. The company has passed the ls09001 quality management system certification, National high tech enterprise certification, National Specialization, and special new enterprise certification.
Case
Partner
FAQ
Q: Is it okay to use aluminum wire instead of copper?
Q: Is orange circ UV rated?
Hot Tags: 0.6/1kv aluminum orange circular cable, China 0.6/1kv aluminum orange circular cable manufacturers, suppliers, factory, SAA Australia Flat 2C E Electrical TPS Cable, USE 2 XHHW XHHW 2 XLPE Insulation Copper Wire, spt cable, Solar Cable 1500V H1Z2Z2 K TUV UL EN 50618 Solar PV Cable, Kabel H05RR F, nm-b
|
Conductor Size (mm2) |
Conductor Diameter (mm) |
Insulation Thickness (mm) |
Conductor Earth Size (mm2) |
Conductor Earth Size (mm2) |
Min. Bending Radius(mm) |
Approx. weight (kg/km) |
Maximum D.C. Resistance of conductor at 20°C (Ω/km) |
Reactance at 50Hz (Ω/km) |
|
| During Installation | After Installation | ||||||||
| 16 | 5.4 | 0.7 | 16 | 22.0 | 330 | 264 | 565.7 | 1.91 | 0.0889 |
| 25 | 6.8 | 0.9 | 25 | 26.8 | 402 | 322 | 800.5 | 1.20 | 0.0888 |
| 35 | 8.5 | 0.9 | 35 | 31.8 | 477 | 382 | 1105.0 | 0.868 | 0.0861 |
| 50 | 9.9 | 1.0 | 50 | 36.4 | 546 | 437 | 1447.9 | 0.641 | 0.0859 |
| 70 | 11.7 | 1.1 | 70 | 42.2 | 633 | 506 | 1934.7 | 0.443 | 0.0854 |
| 95 | 13.5 | 1.1 | 95 | 47.4 | 711 | 569 | 2478.9 | 0.320 | 0.0839 |
| 120 | 15.1 | 1.2 | 120 | 52.6 | 789 | 631 | 3062.6 | 0.253 | 0.0837 |
| 150 | 17.3 | 1.4 | 150 | 60 | 902 | 721 | 3854.1 | 0.206 | 0.0835 |
| 185 | 18.9 | 1.6 | 185 | 65.8 | 987 | 790 | 4676.9 | 0.164 | 0.0832 |
| 240 | 21.5 | 1.7 | 240 | 73.9 | 1109 | 887 | 5915.3 | 0.125 | 0.0830 |
