Name: China SAA Approved 1.5 mm Single Double Insulated Cable For Building Wiring Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314382429

Description

Technical Parameters

Certification

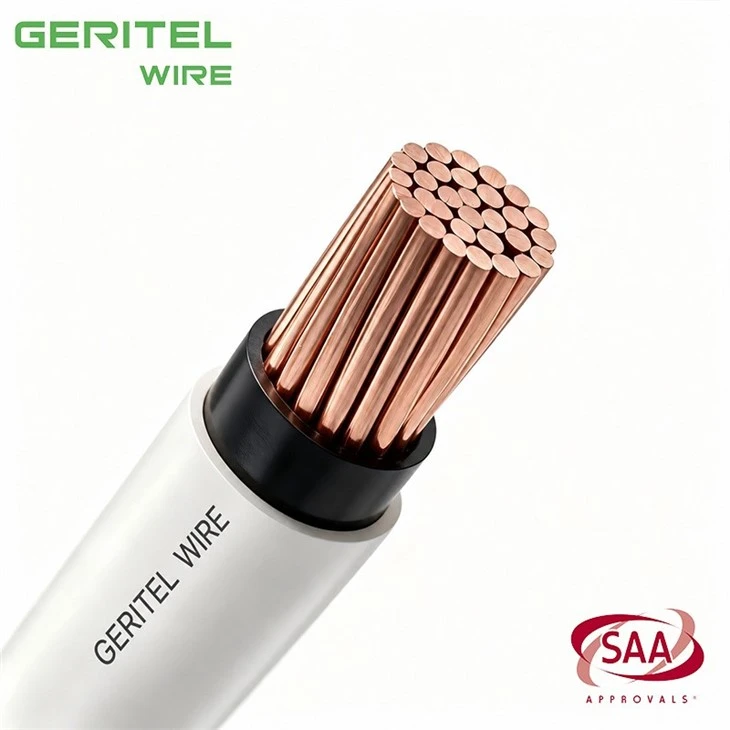

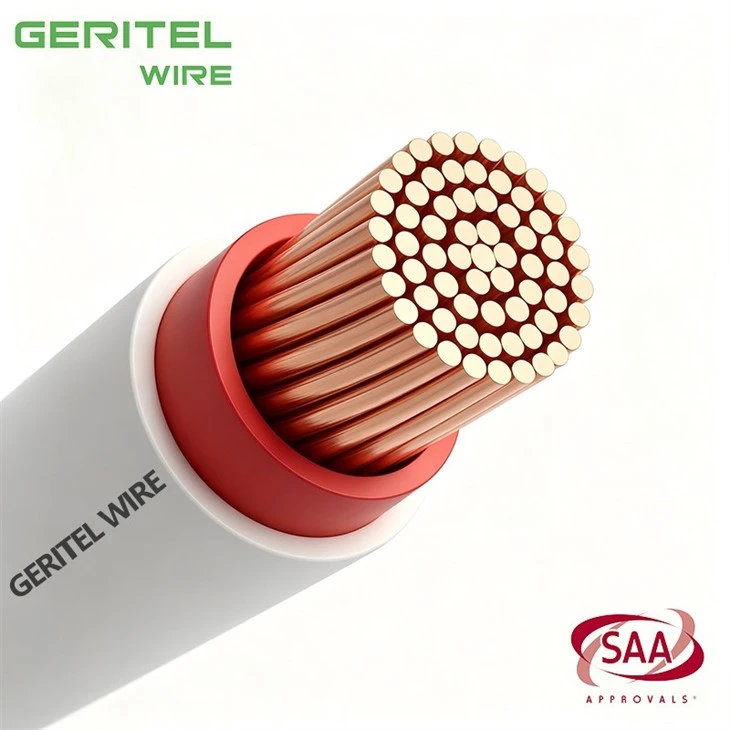

1.5mm SDI cable

PRODUCT REAL SHOT

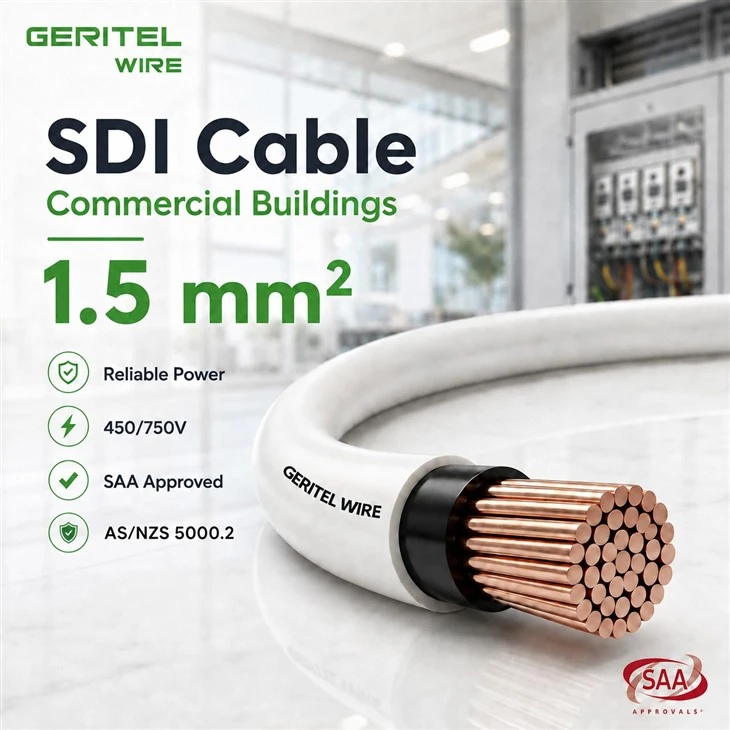

1.5 mm² Switchboard Wiring Cable for Lighting and Distribution Panels

For commercial lighting, switchboard interconnections and protected fixed circuits, GERITEL WIRE offers a practical single-core construction built around stranded annealed copper. V-90 PVC insulation surrounds the conductor and an additional PVC sheath provides the second protective layer used in SDI cable design. This page targets buyers searching for 1.5 mm² SDI electrical cable, 1.5 mm² commercial lighting cable and 1.5 mm² SAA approved cable, while explaining the product in language familiar to electricians, panel builders and electrical wholesalers. The cable is aligned with AS/NZS 5000.2 and supported by SAA approval SAA-241265-EA. It is intended for fixed installations with suitable mechanical protection, and final use should be verified against circuit design and local requirements.

PRODUCT SPECIFICATIONS

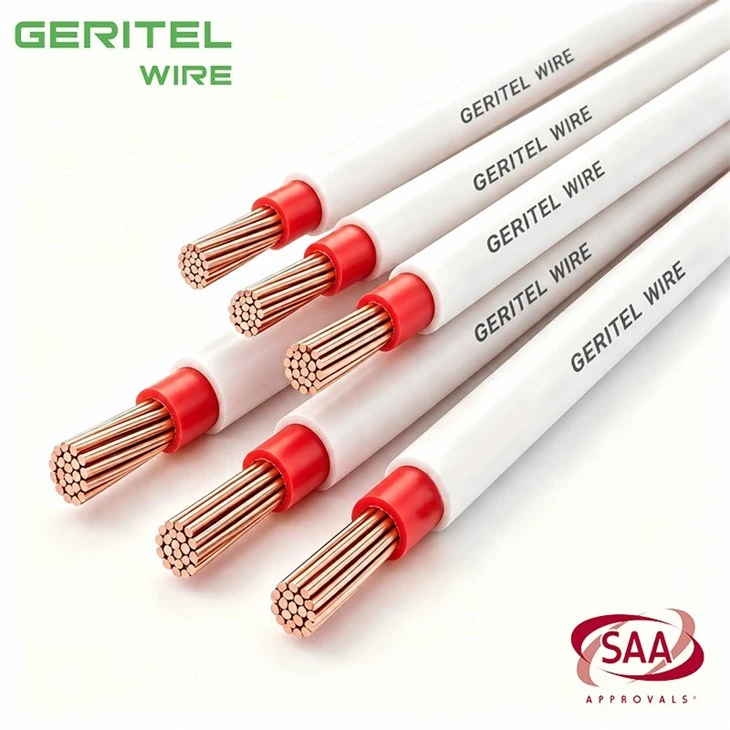

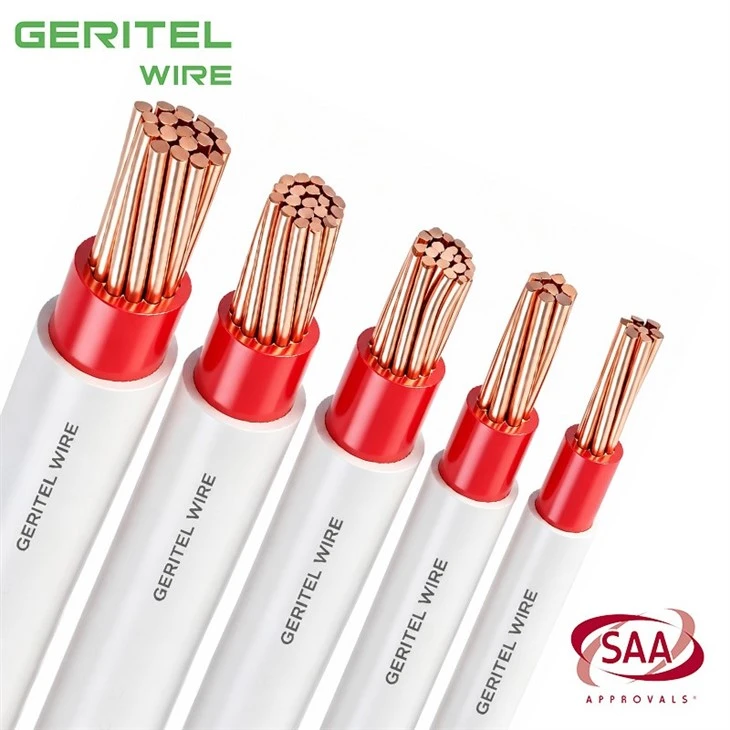

1.5mm single double insulated cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

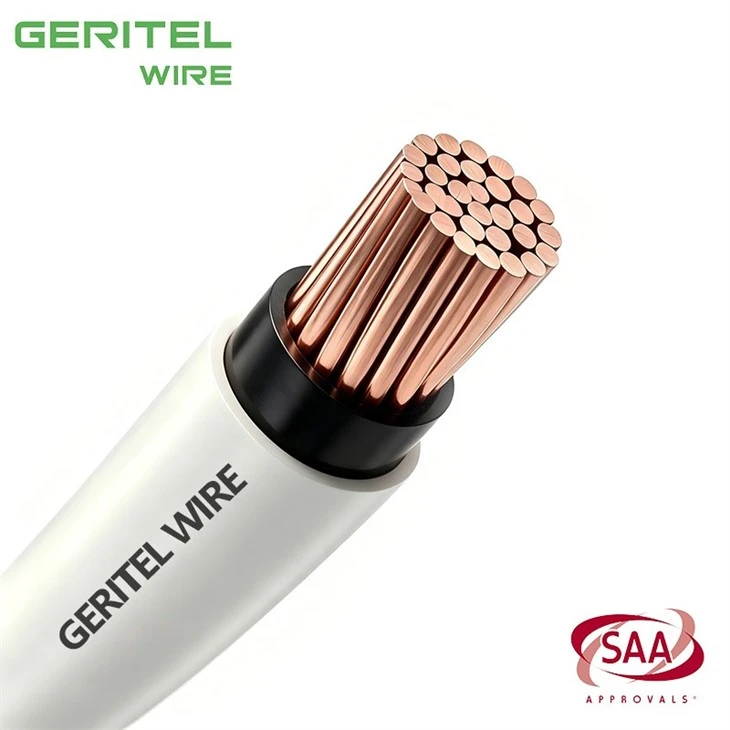

1.5mm single core double insulated cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

1.5mm white sheath double insulated cable

CUSTOMER PHOTOS

1.5mm fixed wiring SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can you provide wooden reels for export?

Wooden-reel packing can be discussed for sea freight and larger cable quantities. For export reel SDI cable, GERITEL WIRE's advantage is factory-level coordination: packaging, identification, reel type and shipment planning can be discussed before production. Buyers should include destination, preferred lengths, quantity by size and any pallet/reel restrictions in the RFQ so the packing proposal matches the project.

Can cable reels be labelled by project or circuit?

Project labels, size identification and packing lists can be discussed to simplify warehouse and site handling. For project labelled cable reels, GERITEL WIRE's advantage is factory-level coordination: packaging, identification, reel type and shipment planning can be discussed before production. Buyers should include destination, preferred lengths, quantity by size and any pallet/reel restrictions in the RFQ so the packing proposal matches the project.

Can GERITEL WIRE make custom drum lengths?

Custom production lengths may be possible depending on size, order quantity and manufacturing planning. For custom length SDI cable, GERITEL WIRE's advantage is factory-level coordination: packaging, identification, reel type and shipment planning can be discussed before production. Buyers should include destination, preferred lengths, quantity by size and any pallet/reel restrictions in the RFQ so the packing proposal matches the project.

How should SDI cable be stored before installation?

Store it dry, protected from direct sunlight, chemicals, impact and deformation, with reels supported correctly. For SDI cable storage, GERITEL WIRE's advantage is factory-level coordination: packaging, identification, reel type and shipment planning can be discussed before production. Buyers should include destination, preferred lengths, quantity by size and any pallet/reel restrictions in the RFQ so the packing proposal matches the project.
