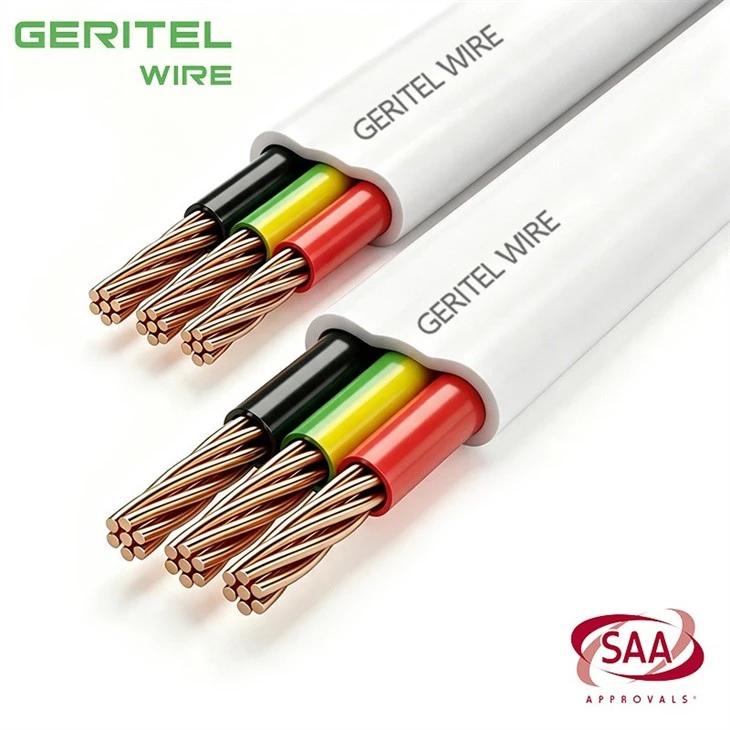

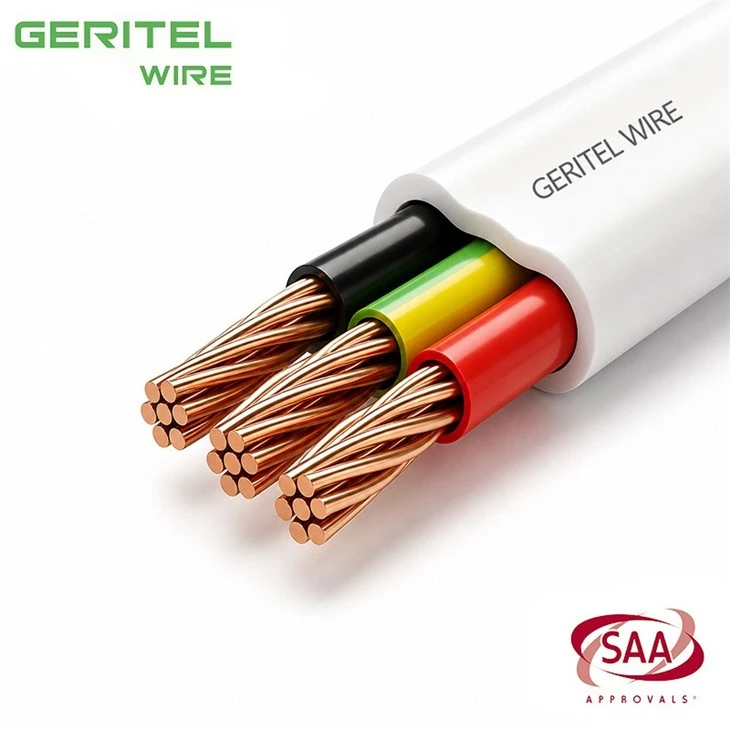

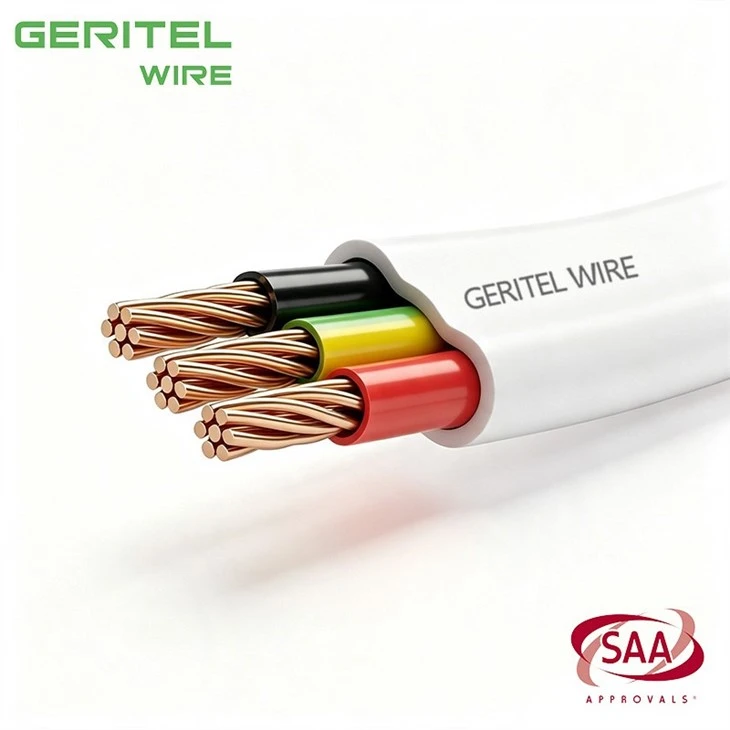

Battery Energy Storage Container Wiring Cable with Copper Conductors and PVC Sheath

For projects sourcing BESS container auxiliary wiring cable, the focus is reliable fixed installation, clear construction and repeatable project supply. It uses copper conductors with V-90 PVC insulation and a PVC sheath; relevant 450/750V constructions can be supplied to AS/NZS 5000.2. In BESS containers, use it for auxiliary AC services such as lighting or selected HVAC/service circuits-not battery DC, PV string or main power links. Related search terms include battery energy storage container wiring cable and flat TPS cable for BESS auxiliary circuits. For modular buildings, RV production and capsule accommodation, GERITEL WIRE provides OEM identification and stable batch delivery. Final selection should follow the project specification and applicable local wiring rules.

PRODUCT SPECIFICATIONS

twin and earth TPS cable copper conductor type

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

twin and earth TPS cable PVC insulated type

PACKAGING

twin and earth TPS cable fixed power and lighting use

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

twin with earth cable AS/NZS 5000.2 compliant

Epping Forest District Council Modular Homes

twin with earth cable copper conductor type

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

twin with earth cable PVC insulated type

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

twin with earth cable fixed power and lighting use

GLOBAL CERTIFICATIONS

T&E flat cable V90 version

CUSTOMER PHOTOS

T&E flat cable AS/NZS 5000.2 compliant

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

T&E flat cable fixed power and lighting use

2 core earth flat cable 450/750V version

2 core earth flat cable AS/NZS 5000.2 compliant

2 core earth flat cable copper conductor type

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

2 core earth flat cable PVC insulated type

FAQ

Can holiday cabins use Flat TPS Cable?

Yes, where the cabin is wired as a fixed building and the cable is installed in protected routes. Transportable cabins may need additional consideration for movement. For a purchasing team, the relevant product phrases are holiday cabin flat TPS cable and holiday cabin wiring cable; use them to find options, then verify the construction against the project. GERITEL WIRE focuses on matching the cable to the actual circuit rather than making broad application claims that could mislead installers. Always verify the ordered model, cable size and installation method before energizing the circuit.

Is Flat TPS Cable suitable for tiny-house ceiling wiring?

It can be routed through protected ceiling cavities when the installation method, thermal insulation and current capacity are checked for the specific tiny-house design. Distributor catalogs may use phrases such as tiny house flat TPS cable and ceiling space TPS cable, so matching the product marking and technical file is important. GERITEL WIRE supports buyers with technical clarification, OEM marking, export packing and repeat-order planning. The safest purchasing approach is to match the product construction to the circuit function and installation environment.

Can Flat TPS Cable be used under the floor of a capsule unit?

Only where the route is dry, protected and not exposed to abrasion or service damage. Underfloor areas with moisture or movement may need conduit or a different cable system. Buyers searching the market may encounter capsule house wiring cable and protected location TPS cable; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.

Can I use Flat TPS Cable behind decorative wall panels in a pod hotel?

Yes, if the route remains accessible or protected as required and fastening does not damage the sheath. Screw zones and panel joints should be planned carefully. In international sourcing, useful equivalent search terms include pod accommodation wiring cable and flat fixed wiring cable, but final approval should be based on the technical specification. If the project has special installation or certification requirements, GERITEL WIRE can review them before quotation to reduce later changes. The electrician or project engineer should confirm final cable selection for the actual installation.
