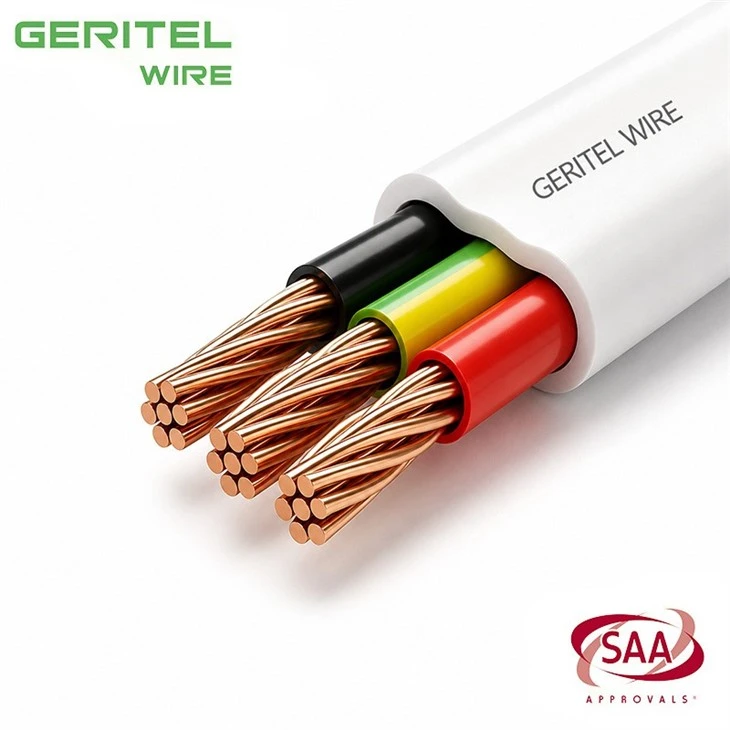

Mobile Home Electrical Wiring Cable with V-90 PVC Insulation for Fixed Installation

This mobile home TPS cable page targets fixed power and lighting work where installers value a flat profile and consistent cable construction. It uses copper conductors with V-90 PVC insulation and a PVC sheath; relevant 450/750V constructions can be supplied to AS/NZS 5000.2. For Mobile homes, use should be limited to suitable fixed AC sections under the applicable mobile-premises rules; it is not a 12/24V battery lead. Related search terms include mobile home electrical wiring cable and fixed building wire for mobile homes. GERITEL WIRE supplies prefab-home factories, RV builders and capsule-house projects with direct-factory service and export support. Final size, core configuration and installation method should follow the project drawings and local electrical rules.

PRODUCT SPECIFICATIONS

solar inverter rooms power wiring cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto A5/NZ5 5000.2
Approvals	A5/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125Can also be operated at temperatures up to 90°Cwhen not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black Sheath: 3V-90PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Black	1.0	7/0.42	1.26	0.6	6.4	4.2	6.6	4.3	5.2	15
Red,Black	1.5	7/0.50	1.56	0.6	7.1	4.5	7.3	4.6	6.4	20
Red,Black	2.5	7/0.67	2.0	0.7	8.7	5.4	8.9	5.5	10	20
Red,Black	4	7/0.85	2.6	0.8	10.4	6.3	10.7	6.5	15	25
Red,Black	6	7/1.04	3.1	0.8	11.5	6.9	11.9	7.1	20	30
Red,Black	10	7/1.35	4.1	1	14.2	8.4	15.0	8.8	31	35
Red,Black	16	7/1.70	5.1	1	16.7	9.7	17.3	10.0	45	40
TWIN ACTIVE FLAT PVC
Red, White	1.0	7/0.42	1.26	0.6	6.4	4.2	11.7	4.3	5.2	15
Red, White	1.5	7/0.50	1.56	0.6	7.1	4.5	12.8	4.6	6.4	20
Red, White	2.5	7/0.67	2.0	0.7	8.7	5.4	15.8	5.5	10	20
Red, White	4	7/0.85	2.6	0.8	10.4	6.3	18.3	6.5	15	25
Red, White	6	7/1.04	3.1	0.8	11.5	6.9	20.1	7.1	20	30
Red, White	10	7/1.35	4.1	1.0	14.2	8.4	25.8	8.8	31	35
Red, White	16	7/1.70	5.1	1.0	16.7	9.7	17.3	10.0	45	40
