Name: China Solar Inverter Room Wiring Cable Supplier For Solar Inverter Rooms Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312632875

Description

Technical Parameters

Certification

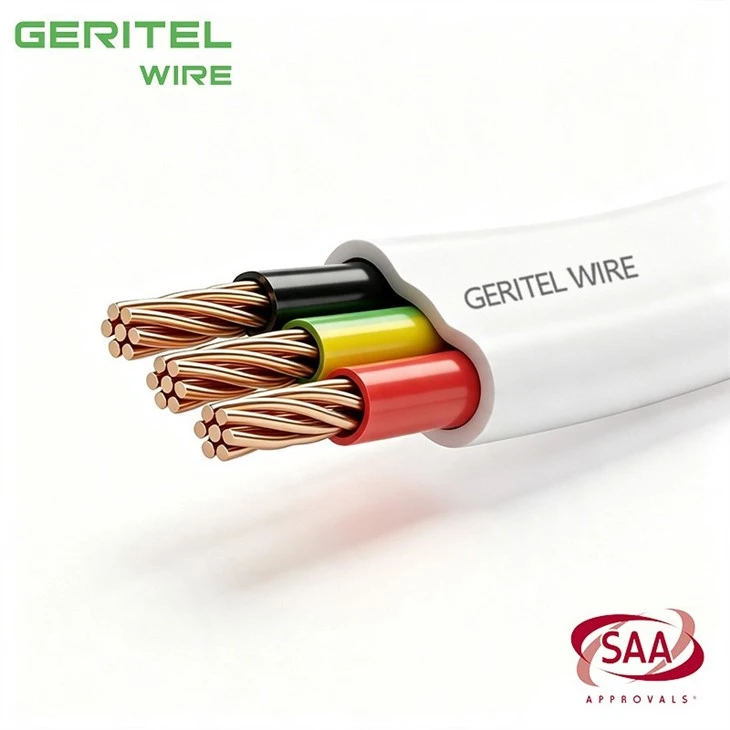

3C+E building cable PVC insulated type

PRODUCT REAL SHOT

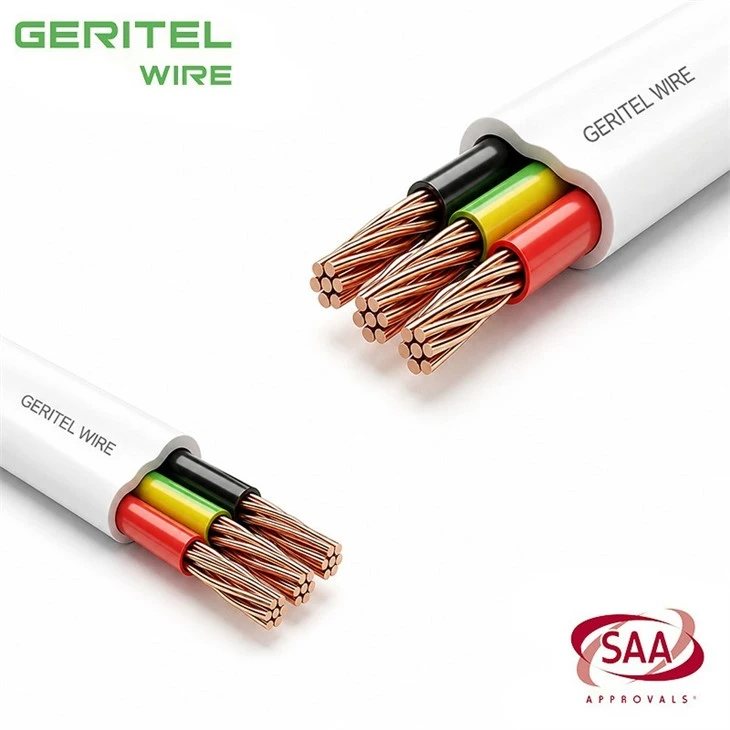

3C+E building cable copper conductor type

3C+E building cable fixed power and lighting use

flat mains cable wire

Solar Inverter Room Fixed Wiring Cable for Solar inverter rooms Power and Lighting Circuits

solar inverter room wiring cable is designed for buyers who need a compact fixed-wiring cable for repeat building and project installations. Copper conductors, V-90 PVC insulation and a PVC sheath provide a dependable fixed-wiring platform, including suitable 450/750V options. In Solar inverter rooms, use it for auxiliary AC services such as lighting or selected HVAC/service circuits-not battery DC, PV string or main power links. Related search terms include solar inverter room fixed wiring cable and flat TPS cable for inverter room services. GERITEL WIRE supports integrated housing, caravans and capsule accommodation with OEM printing and repeat project supply. Final selection should follow the project specification and applicable local wiring rules.

PRODUCT SPECIFICATIONS

flat mains cable for Australia

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

flat mains cable for New Zealand

PACKAGING

Roll

Plastic Reel

flat mains cable AS/NZS 5000.2 compliant

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

flat mains cable fixed power and lighting use

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

TPS flat cable manufacturer

CUSTOMER PHOTOS

TPS flat cable supplier

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Does Flat TPS Cable work in cold-climate modular cabins?

The product information for this range identifies a minimum operating temperature of 0°C, so colder environments need specific review rather than assuming standard TPS is suitable. Distributor catalogs may use phrases such as modular cabin wiring cable and V90 TPS cable, so matching the product marking and technical file is important. GERITEL WIRE supports buyers with technical clarification, OEM marking, export packing and repeat-order planning. The safest purchasing approach is to match the product construction to the circuit function and installation environment.

Is Flat TPS Cable suitable for tropical resort cabins?

Indoor protected wiring may be suitable, but high ambient temperature, humidity, insects, corrosion around hardware and outdoor exposure should be considered in the full system design. Buyers searching the market may encounter resort cabin wiring cable and PVC sheathed flat cable; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.

Do capsule-house projects need low-smoke halogen-free cable instead of TPS?

Some projects or jurisdictions may require low-smoke halogen-free or enhanced fire-performance cable. Standard PVC TPS should not be substituted where the specification calls for LSZH. In international sourcing, useful equivalent search terms include Flat TPS Cable and LSZH building cable, but final approval should be based on the technical specification. If the project has special installation or certification requirements, GERITEL WIRE can review them before quotation to reduce later changes. The electrician or project engineer should confirm final cable selection for the actual installation.

How can GERITEL WIRE support capsule-house factories?

GERITEL WIRE can supply repeat cable sizes, OEM sheath marking, project packaging and export documents to simplify procurement across identical cabin modules. Related catalog descriptions include capsule house wiring cable supplier and flat TPS cable factory; the correct choice still depends on the ordered model and application. For project orders, GERITEL WIRE can align cable size, core arrangement, packaging and documentation with the approved BOM. Clear technical confirmation before purchase helps reduce rework, approval delays and site substitutions.
