Name: China Violet Flat TPS Cable With V-90 PVC Insulation Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312108053

Description

Technical Parameters

Certification

non-migratory flat cable factory supplier

PRODUCT REAL SHOT

non-migratory flat cable China manufacturer

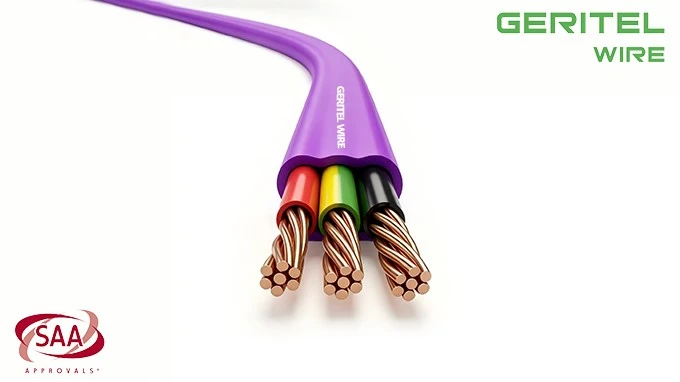

non-migratory flat cable export supplier

non-migratory flat cable OEM manufacturer

non-migratory flat cable private label supplier

3V-90 Non-Migratory Sheath for 450/750V Fixed Wiring

For projects that require recognizable non-migratory TPS construction for fixed internal wiring, GERITEL WIRE provides V-90 PVC core insulation, a 3V-90 non-migratory outer sheath and plain annealed copper conductors. Typical installations include wall cavities, roof spaces, transportable buildings and internal cable routes. The description naturally includes V-90 PVC non-migratory cable, violet non-migratory TPS cable and non-migratory fixed wiring cable to cover different product and buying searches. Size schedules, marking, packing and compliance information can be checked before production, helping distributors and contractors source the right cable more efficiently.

PRODUCT SPECIFICATIONS

non-migratory flat cable project supplier

Application

Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

SPECIFICATIONS
Approvals	AS/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Minimum bending radius	6x0D during install 4x0D once installed
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black,Green/Yellow Sheath: 3V-90PVC Colour: Purple
Installation conditions	In free air In conduit In trench In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40

CERTIFICATIONS

non-migratory flat cable electrical wholesaler supply

PACKAGING

non-migratory flat cable distributor supply

Roll

Small Wooden Reel

Plastic Reel

APPLICATION

non-migratory flat cable wholesale New Zealand

Capsule Accommodation

non-migratory flat cable bulk supplier New Zealand

Prefabricated Housing

purple flat TPS cable wholesale Australia

Recreational Vehicle Wiring

CASE

purple flat TPS cable bulk supplier Australia

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

purple flat TPS cable China manufacturer

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

purple flat TPS cable private label supplier

polystyrene insulation non-migratory TPS cable

purple TPS cable for polystyrene insulation

non-migratory cable for polystyrene insulation

GLOBAL CERTIFICATIONS

flat TPS cable for polystyrene insulation

CUSTOMER PHOTOS

twin and earth cable for polystyrene insulation

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

polystyrene wall panels non-migratory TPS cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

purple TPS cable for polystyrene wall panels

non-migratory cable for polystyrene wall panels

flat TPS cable for polystyrene wall panels

twin and earth cable for polystyrene wall panels

polystyrene roof panels non-migratory TPS cable

purple TPS cable for polystyrene roof panels

non-migratory cable for polystyrene roof panels

flat TPS cable for polystyrene roof panels

twin and earth cable for polystyrene roof panels

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Do I still need a licensed electrician when using purple TPS in EPS?

Yes. Selecting a compatible cable does not remove the requirements for correct circuit design, installation, testing and certification. The key point is that purple TPS cable for fixed wiring is a fixed-wiring product with a defined 450/750V construction, not a universal cable for every environment. GERITEL WIRE can review the project material and application information before recommending the ordered construction. The installer still needs to check route, mechanical protection, thermal conditions and local code requirements.

Can I use ordinary white TPS if it only touches EPS at one point?

Even limited direct contact can be a concern because migration depends partly on contact area and temperature; the safer approach is to follow the cable/panel manufacturer's approved method. A good specification should state exactly where non-migratory TPS for polystyrene contact will be installed and what material it may contact. GERITEL WIRE can arrange samples for structure and material confirmation before bulk purchasing. This helps avoid substituting standard TPS where non-migratory performance is required and also prevents overclaiming compatibility with unverified panel or foam materials.

Is polystyrene contact the only reason to use purple TPS?

No. The same non-migratory concept is relevant to several specified polymer materials and to applications such as caravans, cold rooms and transportable buildings. When comparing suppliers, do not judge purple non-migratory flat cable only by price or purple colour. Ask for the ordered-size datasheet, cable marking, applicable certificate references and packing details. GERITEL WIRE can keep size, marking and packaging specifications consistent across repeat project orders. This gives contractors and distributors a clearer basis for technical approval and repeat purchasing.

How can a contractor prove the cable is suitable for EPS contact?

Use the cable marking, manufacturer datasheet and relevant compliance documentation for the exact ordered construction; colour by itself is not enough. For this type of project, SAA approved non-migratory TPS cable should be selected from a documented construction rather than by sheath colour alone. GERITEL WIRE can provide the construction drawing and ordered-size datasheet before approval. Final installation and circuit design should follow the applicable local wiring rules and be checked by a licensed electrical professional.
