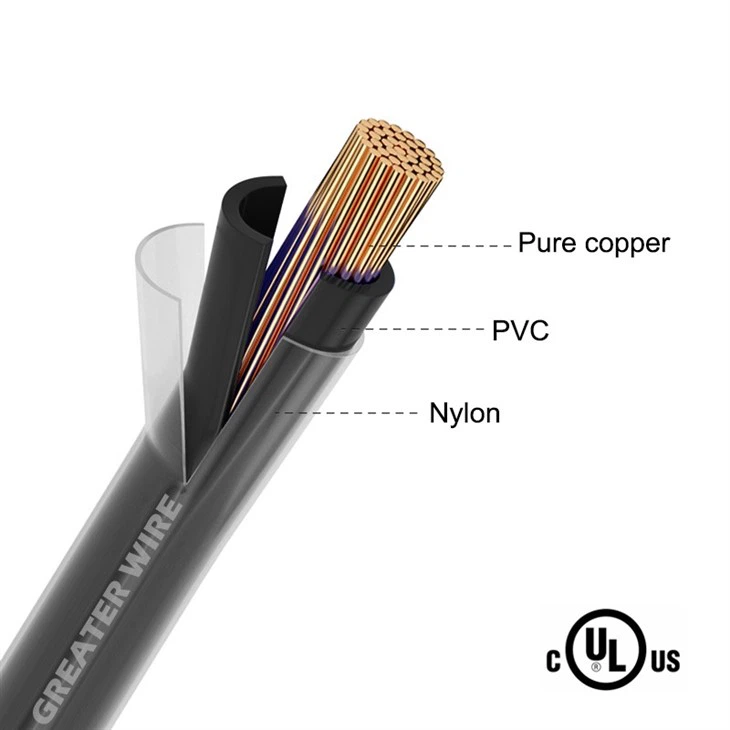

T90 Nylon cables are constructed with annealed (soft) copper conductors and insulated with a durable, heat- and moisture-resistant thermoplastic PVC insulation.
A tough nylon jacket is applied over the insulation for added mechanical protection and chemical resistance.
Sizes from AWG 14 (19 strands) to AWG 4/0 (19 strands) utilize combination unilay stranding for enhanced flexibility and conductor integrity, while larger stranded sizes use compressed stranding.
T90 Nylon cables are available in a variety of standard colors, including black, white, red, blue, green, yellow, brown, orange, and gray, allowing for easy phase and circuit identification.
Application
T90 Nylon cables are primarily designed for use in conduit or raceways, as well as for exposed wiring in dry or damp indoor environments. With a voltage rating of up to 600 volts, they are suitable for residential, commercial, and light industrial wiring applications. These cables are built to perform reliably in a range of conditions, with a maximum operating temperature of 90°C in dry locations and 75°C in wet or damp areas. For cold weather use, T90 Nylon cables can be installed and handled down to -10°C, with continuous operation possible at temperatures as low as -25°C. Always refer to the Canadian Electrical Code Part 1 for specific installation requirements and guidance.
Standards
- T90 Nylon Cable is manufactured to meet or exceed a variety of industry standards.
- These cables conform to ASTM specifications and are fully certified under CSA Standard C22.2 No. 75 (File LL90458).
- They are designed in accordance with the Canadian Electrical Code and are compliant with the -25°C Cold Bend Test, making them suitable for cold climate installations.
- Cables also carry a CSA FT-1 flame test rating, indicating flame resistance for use in confined spaces.
- They are both CSA and c(UL) listed, providing assurance of safety and quality for use throughout Canada and the United States.
Certification
T90 Nylon cables are fully certified to CSA Standard C22.2 No. 75, confirming their compliance with Canada's stringent electrical safety and performance requirements. Approved under CSA file number LL90458, T90 Nylon cables are suitable for use in a wide range of building wiring applications across residential, commercial, and institutional projects. Compliance with CSA standards guarantees that the product is recognized under the Canadian Electrical Code, giving contractors and engineers the confidence to specify and install T90 cables in code-compliant systems.

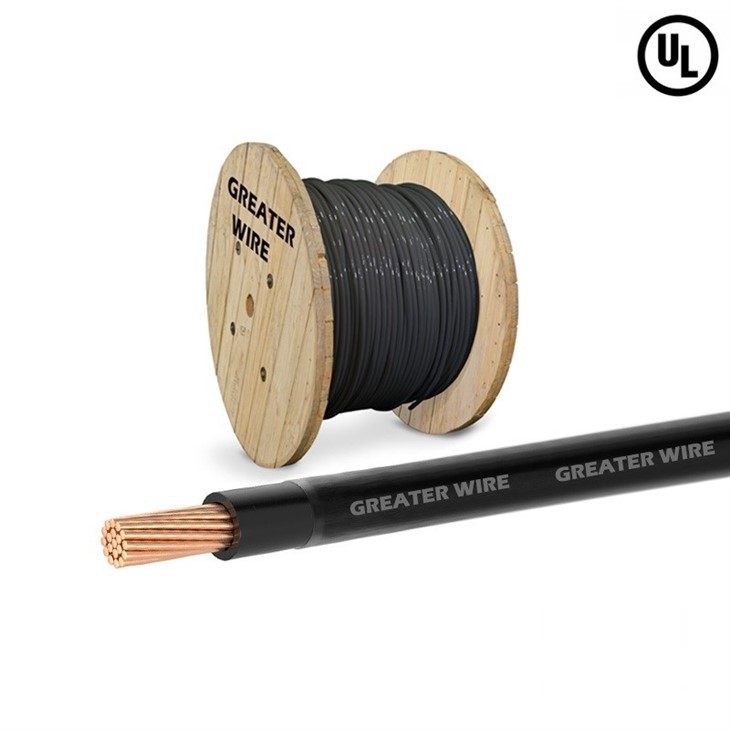

Package
Production Line
Greater Wire Manufacturer is a trusted and experienced producer of T90 Nylon cables, with over 30 years of expertise in the wire and cable industry. We have perfected advanced production processes that result in precise conductor stranding, uniform insulation thickness, and superior nylon jacketing. Our factories are equipped with advanced extrusion and quality control systems to maintain tight tolerances and consistent performance from batch to batch. This technical precision enables our cables to meet stringent CSA standards. Our deep technical knowledge and export experience make us a trusted wire and cable partner for our customers in Canada and the global market.
Case
Partner
FAQ
Q: Is thhn wire the same as T90?
Q: What is the difference between T90 and TW75?
RWU90 is suitable for outdoor or underground installations, offering direct burial capability and sunlight resistance.
Hot Tags: t90 nylon cable 600v, China t90 nylon cable 600v manufacturers, suppliers, factory, silicone insulated wire, australia cable, SPT 1 SPT 2 Wire, hook up wire, HO5RN F Cable, H07ZZ F Cable
| AWG Size | Insulation Thickness | Jacket Thickness | Approximate Diameter | Net Weight | ||||
| in. | mm. | in. | mm. | in. | mm. | LB/MFT | KG/KM | |
| 14(1) | 0.015 | 0.380 | 0.004 | 0.100 | 0.102 | 2.590 | 15 | 23 |
| 12(1) | 0.015 | 0.380 | 0.004 | 0.100 | 0.119 | 3.020 | 23 | 24 |
| 10(1) | 0.020 | 0.510 | 0.004 | 0.100 | 0.150 | 3.810 | 37 | 55 |
| 14(19) | 0.015 | 0.380 | 0.004 | 0.100 | 0.109 | 2.770 | 16 | 23 |
| 12(19) | 0.015 | 0.380 | 0.004 | 0.100 | 0.128 | 3.250 | 24 | 36 |
| 10(19) | 0.020 | 0.510 | 0.004 | 0.100 | 0.161 | 4.090 | 38 | 57 |
| 8(19) | 0.030 | 0.760 | 0.005 | 0.130 | 0.213 | 5.410 | 63 | 93 |
| 6(19) | 0.030 | 0.760 | 0.005 | 0.130 | 0.249 | 6.320 | 95 | 141 |
| 4(19) | 0.040 | 1.020 | 0.006 | 0.150 | 0.318 | 8.080 | 152 | 227 |
| 3(19) | 0.040 | 1.020 | 0.006 | 0.150 | 0.346 | 8.790 | 189 | 281 |
| 2(19) | 0.040 | 1.020 | 0.006 | 0.150 | 0.378 | 9.600 | 234 | 349 |
| 1(19) | 0.050 | 1.270 | 0.007 | 0.180 | 0.435 | 11.000 | 299 | 446 |
| 1/0 (19) | 0.050 | 1.270 | 0.007 | 0.180 | 0.474 | 12.000 | 372 | 553 |
| 2/0 (19) | 0.050 | 1.270 | 0.007 | 0.180 | 0.518 | 13.200 | 462 | 687 |
| 3/0 (19) | 0.050 | 1.270 | 0.007 | 0.180 | 0.568 | 14.400 | 575 | 856 |
| 4/0 (19) | 0.050 | 1.270 | 0.007 | 0.180 | 0.624 | 15.800 | 718 | 1068 |
| 250(37) | 0.060 | 1.520 | 0.008 | 0.200 | 0.694 | 17.600 | 851 | 1266 |
| 350 (37) | 0.060 | 1.520 | 0.008 | 0.200 | 0.797 | 20.200 | 1174 | 1747 |
| 500(37) | 0.060 | 1.520 | 0.008 | 0.200 | 0.926 | 23.500 | 1655 | 2462 |
