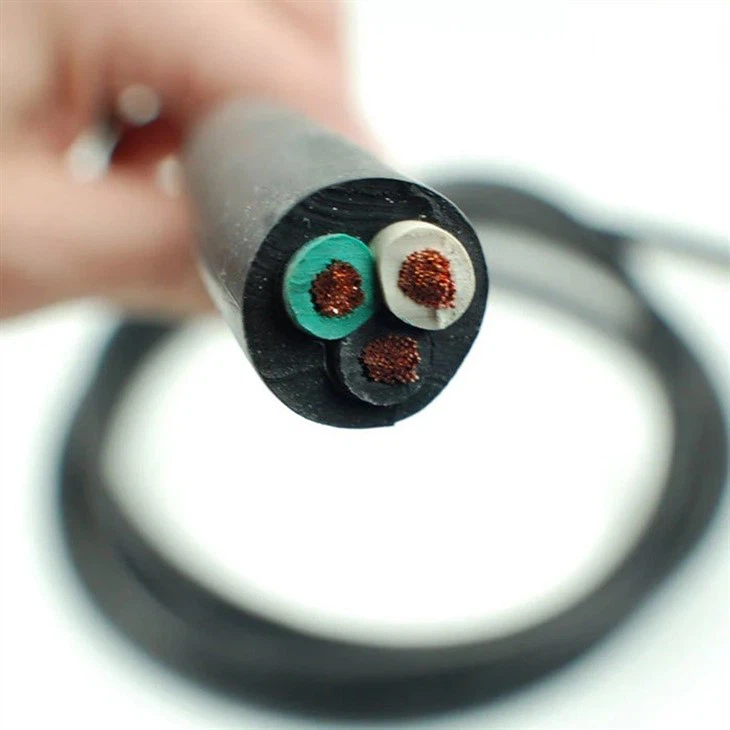

SJOO Cable

Conductors: Bare Copper
Insulation: Ethylene Propylene Diene Monomer (EPDM)
Jacket: Chlorinated Polyethylene (CPE)
Voltage: 300V
Max Conductor Temperature: 105°C
Performance Characteristics: UV Resistant / Oil Resistant I
Bend Radius (Static): 6x Cable O.D.
Bend Radius (Dynamic): 8x Cable O.D.
Standard: CSA 22.2 No. 49 / FT-2 Flame Rating

Application

SJOO cable is ideal for use in environments that require flexibility, durability, and protection from harsh conditions. The jacket provides excellent protection against pulling, twisting, and mechanical stress. This cable is particularly suitable for industrial environments, construction sites, and outdoor environments where it must withstand oil, ozone, abrasion, impact, and various chemicals. The all-weather flexibility makes it an excellent choice for temporary or permanent installations that need to withstand extreme weather conditions, making it a preferred solution for machinery, heavy equipment, and power distribution systems in harsh environments.

Certification

Our products have achieved various prestigious international certifications, including SAA, UL, TUV, EU CPR, CE, ROHS, and others.

Our company has targeted certificates for various countries and regions. We have been engaged in foreign trade for more than 10 years, exporting to more than 90 countries around the world, and are familiar with the standards of many countries.

Package

SJOO cable package

Factory

Dongguan Greater Wire & Cable Co., Ltd. was established in 1995, it is a professional wire and cable manufacturer. Our company has advanced production equipment and production technology, complete testing equipment, and strong product technology strength. After years of hard work and the support of clients from all over the World, our company has developed rapidly and won a high honor and share in overseas markets. The company has passed the ls09001 quality management system certification, National high tech enterprise certification, national specialization, and special new enterprise certification.

Case

HO7RN-F Cable Manufacturer

Partner

greater wire Partner

FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer, offering full control over your order from start to finish. From initial design to final delivery, we ensure every step meets the highest standards.

Q: What's your Minimum Order Quantity?

A: The cable is supplied in 100 meters lengths. However, due to its heavy weight, we recommend ordering a suitable quantity to minimize high freight costs.

Hot Tags: sjoo cable, China sjoo cable manufacturers, suppliers, factory, multicore flexible cable, xlpe power cable, 300V CSA VW 1 UL1007 Hook Up Wire, aerial parallel cable, High Temp Ultra Flexible Silicone Insulated Wire, silicone insulated wire

SJOO

Gauge	Number of Conductors	Stranding	Insulation Thickness (mm)	Insulation Thickness (inches)	Jacket Thickness (mm)	Jacket Thickness (inches)	Nominal Diameter (mm)	Nominal Diameter (inches)	Weight Per 1000ft
18	2	41/0.16	0.760	0.030	0.760	0.030	7.500	0.295	46
18	3	41/0.16	0.760	0.030	0.760	0.030	7.900	0.311	60
18	4	41/0.16	0.760	0.030	0.760	0.030	8.600	0.339	72
18	5	41/0.16	0.760	0.030	0.760	0.030	9.400	0.370	85
16	2	65/0.16	0.760	0.030	0.760	0.030	8.100	0.319	56
16	3	65/0.16	0.760	0.030	0.760	0.030	8.600	0.339	72
16	4	65/0.16	0.760	0.030	0.760	0.030	9.200	0.362	89
16	5	65/0.16	0.760	0.030	0.760	0.030	10.300	0.406	105
14	2	41/0.254	0.760	0.030	0.760	0.030	8.800	0.346	75
14	3	41/0.254	0.760	0.030	0.760	0.030	9.400	0.370	100
14	4	41/0.254	0.760	0.030	0.760	0.030	10.300	0.406	128
14	5	41/0.254	0.760	0.030	0.760	0.030	11.400	0.449	160
12	2	65/0.254	0.760	0.030	1.140	0.045	10.800	0.425	108
12	3	65/0.254	0.760	0.030	1.140	0.045	11.800	0.465	136
12	4	65/0.254	0.760	0.030	1.140	0.045	12.300	0.484	177
12	5	65/0.254	0.760	0.030	1.140	0.045	13.600	0.535	207
10	2	104/0.254	1.140	0.045	1.520	0.060	14.600	0.575	190
10	3	104/0.254	1.140	0.045	1.520	0.060	15.400	0.606	236
10	4	104/0.254	1.140	0.045	1.520	0.060	16.900	0.665	296
10	5	104/0.254	1.140	0.045	1.520	0.060	19.500	0.768	349
