22awg UL 3135 Silicone Insulated Wire

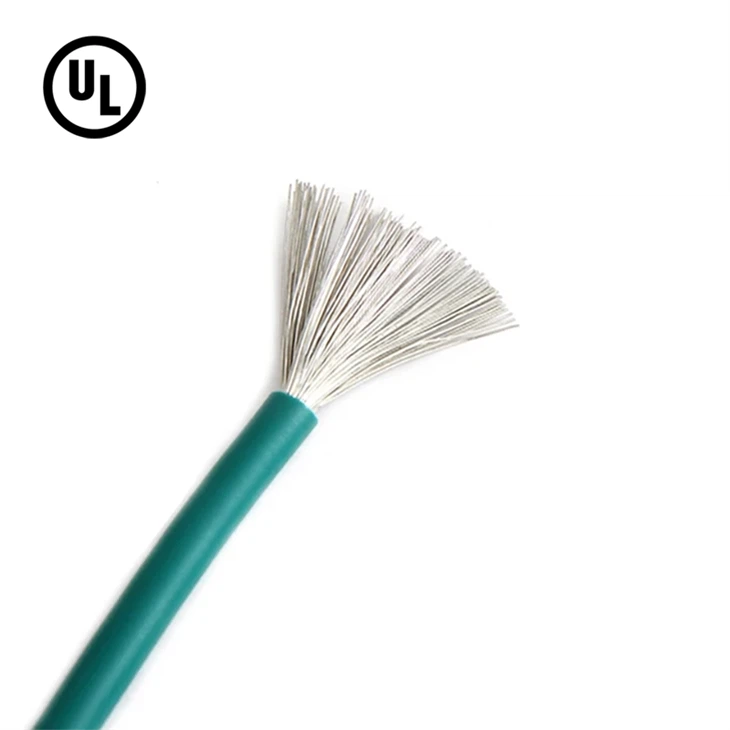

22 AWG UL 3135 Silicone Insulated Wire is a high-performance wire. This wire features tinned or bare copper, stranded or solid copper conductors, consisting of 17 0.16 mm core strands with a wire diameter of 0.76 mm. Its insulation is silicone rubber, which offers excellent high-temperature resistance, rated at 200°C and 600V, making it suitable for high-temperature applications. The cable has passed the UL FT2 horizontal flame test and demonstrates excellent fire resistance. With a maximum resistance of 59.4 Ω/km at 20°C, this wire is ideal for applications requiring reliability, safety, and long-term performance in harsh environments.
Application
It can be used in a wide range of applications.
Military Systems
Automotive Components
Aerospace
Home Appliances
Heaters
Ovens
Certification
UL 3135 cable has successfully obtained UL certification, meeting stringent international electrical safety and performance standards. This certification demonstrates the cable's superior high-temperature resistance, insulation performance, and flame retardancy, ensuring its safe and reliable use in various home appliances, lighting equipment, and industrial control systems. With UL certification, our cables can directly enter international markets such as the US and Europe, providing customers worldwide with guaranteed quality.
Package
Our Package
Silicone wire can be packaged in rolls upon request
Large quantities of silicone wire are packaged on pallets.
Silicone wire can also be packaged in boxes
Production Line
Dongguan Greater Wire & Cable Co., Ltd. is a professional UL3135 wire manufacturer. We not only possess advanced production equipment and automated processing lines, ensuring a stable output of high-precision, highly consistent products, but also maintain a rigorous quality control system that ensures stringent quality control from raw material inspection to finished product testing. Furthermore, our experienced engineering team offers customized designs and technical support tailored to each customer's application needs, offering flexible configurations of wire gauge, color, length, and packaging. With a comprehensive international logistics system and responsive after-sales service, we have provided efficient and reliable supply solutions to numerous overseas customers.
Professional team
Our experienced team provides comprehensive technical support, from product selection to customized solutions.
7x24 hours online
We offer 24/7 online support to respond to customer inquiries and technical questions.
50,000M²
Factory
Area
30+Years
Production
Experience
50+Servings
Product
Certifications
80+Countries
Export
Experience
customer
With over 10 years of export experience and a deep understanding of the international market, our products have been successfully exported to over 80 countries and regions worldwide, with customers across the Americas, Europe, Asia, Africa, and the Middle East. With consistent quality and a comprehensive service system, we have earned the long-term trust and partnership of customers worldwide and established an extensive and robust global customer network. Whether serving multinational corporations, large-scale engineering contractors, or local distributors, we provide customized wire and cable solutions tailored to your needs.
FAQ
Q: Besides silicone wire, what other products do you offer?
A: We also offer a variety of high-performance wire types, including hook-up wire, rubber cable, welding cable, building wire, and solar cable. Please contact us for more information.
Q: How do you ensure product quality?
A: Our factory is ISO 9000 certified, and our wires and cables comply with international and regional standards, including UL, TUV, ISO, and IEC certifications, meeting industry safety requirements.
Q: What are your delivery times and logistics options?
A: For items in stock, we can ship quickly within 3 days. For custom orders, we can typically complete production and arrange delivery within 15 days.
We offer a variety of shipping methods, including express, air, sea, and land transport, tailored to customer needs and the specifics of the goods. We can flexibly meet delivery requirements for different regions and order quantities.
Hot Tags: 22awg ul 3135 silicone insulated wire, China 22awg ul 3135 silicone insulated wire manufacturers, suppliers, factory
| Conductor | Insulation | Maximum Resistance at 20°C (Ω/km) | |||
| AWG | No./mm | Diamater | Thickness (mm) |
Diamater (mm) |
|
| 26 | 7/0.16 | 0.48 | 0.76 | 2.10 | 150 |
| 24 | 11/0.16 | 0.61 | 0.76 | 2.20 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.76 | 2.35 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.76 | 2.55 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.76 | 2.80 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 14.6 |
| 14 | 41/0.254 | 1.87 | 0.76 | 3.50 | 8.96 |
| 12 | 65/0.254 | 2.36 | 0.76 | 4.00 | 5.64 |
