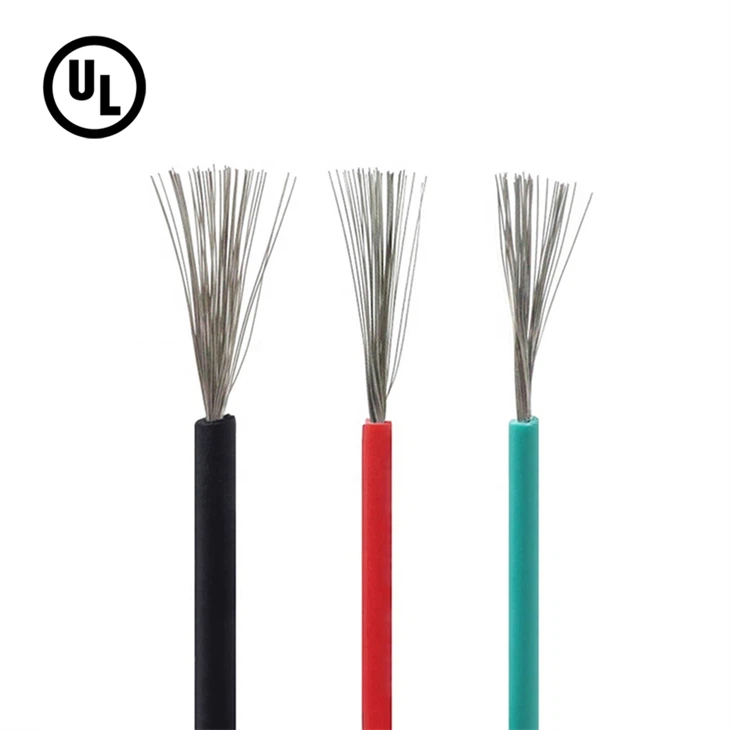

600V UL3512 Wire 200℃ Silicone Rubber Wire
600V UL3512 wire 200°C silicone rubber wire features tinned or bare annealed copper conductors ranging from 0.3–250 mm². Available in stranded or solid construction, it offers excellent conductivity and flexibility. The outer layer is made of high-temperature resistant silicone rubber insulation, capable of continuous operating temperatures up to 200°C. It also exhibits excellent aging, ozone, and chemical resistance, ensuring long-term, stable operation. Rated at 600 V, this cable complies with UL3512 standards and has passed the UL VW-1 and cUL FT1 vertical flame tests, demonstrating excellent flame retardancy and safety.
Application
Application
Lighting
Suitable for wiring in high-temperature areas of lamps such as stage lights, searchlights, and drying lamps, ensuring resistance to melting and brittleness when lit at high temperatures.
Household Appliances
Withstands the high-temperature radiation and cyclical heating in the baking area, preventing insulation aging and cracking, thereby extending the lifespan of home appliances.
Heaters
Heaters generate constant high temperatures during operation. UL3512 insulation offers uniform thickness, making it easy to strip and route cables within the confined space inside heaters.
3D Printer
Used for high-temperature wiring near print heads, heated beds, or CNC spindles, ensuring high-precision operation regardless of temperature.
Laboratory Equipment
Suitable for use in laboratory instruments and chemical reaction equipment. Silicone rubber insulation resists corrosion from oil, acids, alkalis, and other chemical media.
Automotive Engine
Installed in high-temperature areas around the engine, they withstand sustained heat, oil mist, and vibration, ensuring safe operation of the vehicle's electrical systems.
Certification
UL3512 Wire is UL certified. Its conductor is made of high-purity annealed copper, tinned for enhanced resistance to oxidation and corrosion. It maintains excellent conductivity even under prolonged heating conditions. The outer layer is made of high-quality silicone rubber insulation, which inherently offers excellent high-temperature resistance and can withstand operating temperatures up to 200°C. It also exhibits excellent flexibility and aging resistance, making it less susceptible to cracking due to thermal expansion and contraction. Silicone rubber also possesses naturally high insulation resistance and arc resistance, significantly reducing the risk of leakage and breakdown.
UL3512 VS. UL3135
| Feature | UL3512 | UL3135 |
|---|---|---|
| Insulation Material | Silicone Rubber | Silicone Rubber |
| Temperature Rating | -60°C to +200°C | -60°C to +200°C |
| Rated Voltage | 600V (AC) | 600V (AC) |
| Conductor Material | Tinned Copper | Tinned Copper |
| Electrical Performance | Good electrical insulation properties | Superior electrical insulation, suitable for higher-performance electrical equipment |
| Flexibility | High flexibility, suitable for bending and stretching | High flexibility, suitable for bending and stretching |
| External Protection | No additional external protective layer | No additional external protective layer |
| Standard Certifications | UL 758, UL 1581, UL 2556 | UL 758, UL 1581, UL 2556 |
| Mechanical Performance | Good tensile and bending strength | Good tensile and bending strength |
| Application | Suitable for household appliances, industrial equipment, automotive, electrical equipment, etc. | Suitable for electronic devices, automotive, electrical equipment, especially in high-performance electrical environments |
| Cost | Relatively lower, suitable for general high-temperature electrical connections | Higher cost, suitable for environments requiring superior electrical performance |
Package
Our Package
Silicone rubber wire can be packaged in rolls upon request
Large quantities of silicone rubber cable are packaged on pallets.
Silicone rubber wire can also be packaged in boxes
Production Line
Dongguan Greater Wire & Cable Co., Ltd. is a professional silicone rubber wire manufacturer with over 30 years of experience in wire and cable production. We specialize in the research and development, and manufacturing of high-temperature conductors. Our silicone rubber cables are widely used in high-temperature environments such as home appliances, industrial equipment, automotive wiring harnesses, and lighting systems. Greater Wire utilizes a comprehensive automated production line and a strict quality management system. From high-purity tinned copper conductors to premium silicone rubber insulation, we rigorously control the quality of all raw materials. Our products offer excellent conductivity, heat resistance, and aging resistance. We have obtained numerous international certifications, including UL and cUL, and can provide global customers with high-quality silicone rubber wire that meets international standards. We also support custom production in a variety of specifications, colors, and colors. With a professional technical team and 24/7 online support, we can provide customers with one-stop solutions from selection and proofing to mass production. We are a trustworthy wire and cable partner.
Technology and Quality
We strictly adhere to international standards and maintain comprehensive control from raw material inspection to finished product testing.
Global Supply and Service
We export our products to over 80 countries worldwide and are familiar with local certification and import and export procedures.
50,000M²
Factory
Area
30+Years
Production
Experience
50+Servings
Product
Certifications
80+Countries
Export
Experience
FAQ
Q: What is silicone rubber wire
A: Silicone rubber cable is essentially silicone cable, not an ordinary rubber cable. Its insulation is made of silicone rubber, a specialty rubber. In the industry, silicone rubber cable is generally classified as silicone cable rather than general-purpose rubber cable.
Q: What are the types of hook-up wire?
A: Hook-up wire types mainly differ by insulation material: PVC, Teflon, silicone rubber, or XLPE
Q: Which Is Safer, Teflon Or Silicone Wire?
A: PTFE (Teflon) wire is safer for high-heat and chemically harsh environments, while silicone rubber wire is safer for flexible, vibration-prone, or low-temperature applications.
Hot Tags: 600v ul3512 wire 200℃ silicone rubber wire, China 600v ul3512 wire 200℃ silicone rubber wire manufacturers, suppliers, factory
| UL Style & Cul Type | Conductor | Insulation Thickness | Overall Dimeter | Stand Put-up | Conductor Resistance at 20℃ | ||
| AWG | Construction | ||||||
| No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | ||
| UL3512 CUL AWM I A (Stranded) |
22 | 7/0.25 | 0.76 | 2.30 | 2000 | 610 | 59.4 |
| 17/0.16 | 0.76 | 2.30 | 2000 | 610 | |||
| 20 | 7/0.31 | 0.76 | 2.50 | 2000 | 610 | 36.7 | |
| 21/0.178 | 0.76 | 2.50 | 2000 | 610 | |||
| 18 | 7/0.39 | 0.76 | 2.71 | 2000 | 610 | 23.2 | |
| 34/0.178 | 0.76 | 2.71 | 2000 | 610 | |||
| 16 | 7/0.50 | 0.76 | 3.05 | 1000 | 305 | 14.6 | |
| 26/0.25 | 0.76 | 3.05 | 1000 | 305 | |||
| 14 | 37/0.26 | 0.76 | 3.42 | 1000 | 305 | 8.96 | |
| 41/0.25 | 0.76 | 3.42 | 1000 | 305 | |||
| 12 | 45/0.32 | 0.76 | 4.00 | 1000 | 305 | 5.64 | |
| 65/0.25 | 0.76 | 4.00 | 1000 | 305 | |||
