Name: China UPS Battery Busbar Connection Cable With 95mm2 Stranded Copper Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 309015653

Description

Technical Parameters

Certification

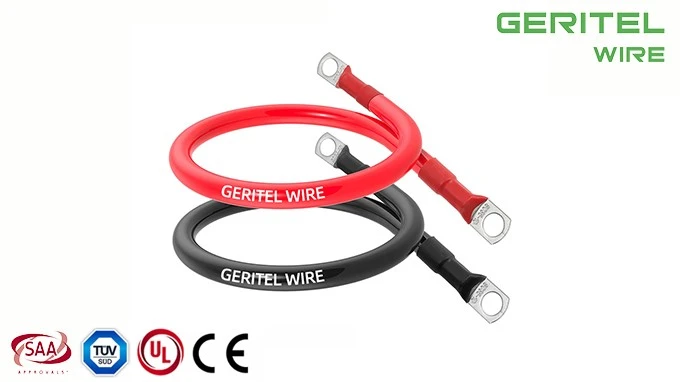

95mm2 battery cable

PRODUCT REAL SHOT

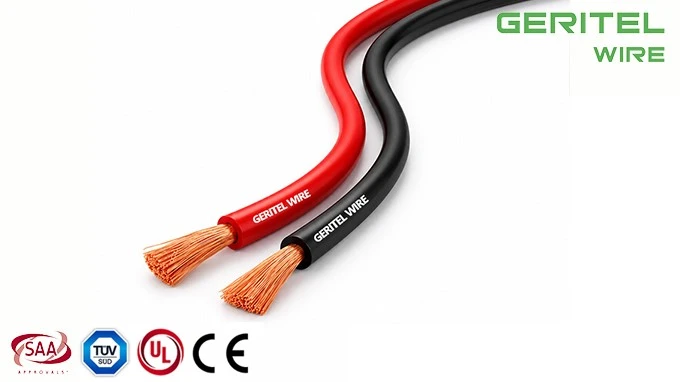

95mm battery cable

UPS and BESS Connections in 95mm2

The GERITEL WIRE 95mm2 battery cable is a BESS battery cable for protected UPS banks, battery racks, busbar feeders and high-power inverter systems. Fine-stranded Class 5 copper provides the flexibility needed to form controlled bends between heavy equipment, while PVC insulation gives clear polarity identification and an economical installation solution. GERITEL WIRE can manufacture red and black cable, custom lengths, drum packaging and pre-terminated assemblies with specified copper lugs and heat shrink. Project engineers should verify current, fault level, voltage drop, fuse coordination, cable support, bend radius and terminal dimensions before final approval.

PRODUCT SPECIFICATIONS

95mm2 copper battery cable

Application

GERITEL WIRE H05V-K & H07V-K cable has been specially designed for installations that reguire a flexible cable due to the complex nature of their layout.
This cable is especially suitable for domestic wiring.
It may also be used for eguipment wiring,distributors,cabinets and tighting.

SPECIFICATIONS
Conductor	Electrolytic annealed copper, class 5 (flexible) according to EN60228 and IEC 60228.
Insulation	Extra sliding flexible polyvinyl chloride type TI1 according to EN50363-3
Thermal performance	Maximum conductor temperature: 70°C. Maximum short-circuit temperature: 160°C (max. 5 s).Minimum installation and handling temperature: 5°C.Minimum service temperature: -40°C (fixed and protectedinstallations).
Fire performance	Flame non-propagation according to EN 60332-1/IEC 60332-1. Reaction to fire CPR: Eca according to EN 50575. Reduced halogen emission. Chlorine < 15%.
Mechanical performance	Minimum bending radius: 5x cable diameter.
Environmental performance	Chemical & Oil resistance: Acceptable.
Installation conditions	In conduit.
Other	Meter by meter marking. (from 10 mm2 onwards).

Cross-section (mm2)	Diameter (mm)	Weight (kg/km)	In conduit 2 cond. (A)	In conduit 3 cond. (A)	Voltage drop (V/A·km)


1x1.5	2.9	19	17.5	15.5	31.9
1x2.5	3.6	30	24	21	19.2
1x4	4.1	44	32	28	11.9
1x6	4.6	61	41	36	7.92
1x10	5.9	105	57	50	4.58
1x16	7.0	160	76	68	2.90
1x25	8.7	245	101	89	1.87
1x35	9.9	335	125	110	1.33
1x50	11.8	480	151	134	0.926
1x70	13.5	655	192	171	0.653
1x95	15.6	865	232	207	0.494
1x120	17.3	1.095	269	239	0.386
1x150	19.2	1.380	-	275	0.310
1x185	21.5	1.675	-	314	0.254
1x240	24.5	2.210	-	370	0.192
1x300	26.9	2.795	-	430	0.153

CERTIFICATIONS

95mm2 PVC battery cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Automotive Battery Connection

Industrial Battery Bank/BESS/UPS Connection

Solar Battery & Inverter System

CASE

Holes Bay Battery Energy Storage

Lāwaʻi Solar and Energy Storage

Moss Landing Utility-Scale Battery Energy Storage

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

450/750V PVC battery cable

CUSTOMER PHOTOS

450/750V flexible copper cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

H07V-K industrial DC cablebattery cable for engine ground

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Should battery cable lugs be crimped or soldered?

For most professional battery cable assemblies, correctly selected battery cable lugs and an engineered crimp are preferred because solder can wick into the strands and create a stiff transition that is vulnerable to vibration. Requirements may vary by equipment or standard. GERITEL WIRE recommends following the lug manufacturer's process and can supply flexible battery cable with consistent conductor dimensions to improve crimp repeatability.

How do I choose the correct stud hole size for a battery cable lug?

The lug stud hole must match the battery post, busbar or equipment stud, while the barrel must match the conductor size and strand type. A battery cable lug that is correct for 2 AWG may still have the wrong hole diameter. GERITEL WIRE requests both cable size and terminal drawing when quoting assemblies, helping avoid loose hardware, oversized holes and poor contact area.

Can I use a lug designed for a larger cable size?

Using an oversized lug barrel can produce an incomplete crimp, high resistance and pull-out risk. The cable lug for battery cable should match the conductor area and stranding, not just the insulation diameter. GERITEL WIRE can provide conductor and finished OD data so the customer can select the correct lug and die, or review a supplied termination specification before production.

Do battery cable terminals need adhesive-lined heat shrink?

Adhesive-lined heat shrink is useful when moisture, salt, chemicals or vibration could reach the battery cable terminal. It seals the cable-to-lug transition and adds strain relief, but it does not repair a poor crimp. GERITEL WIRE can match insulation color and cable OD to the customer's heat-shrink system and can discuss sealed assembly requirements based on drawings and environmental tests.
