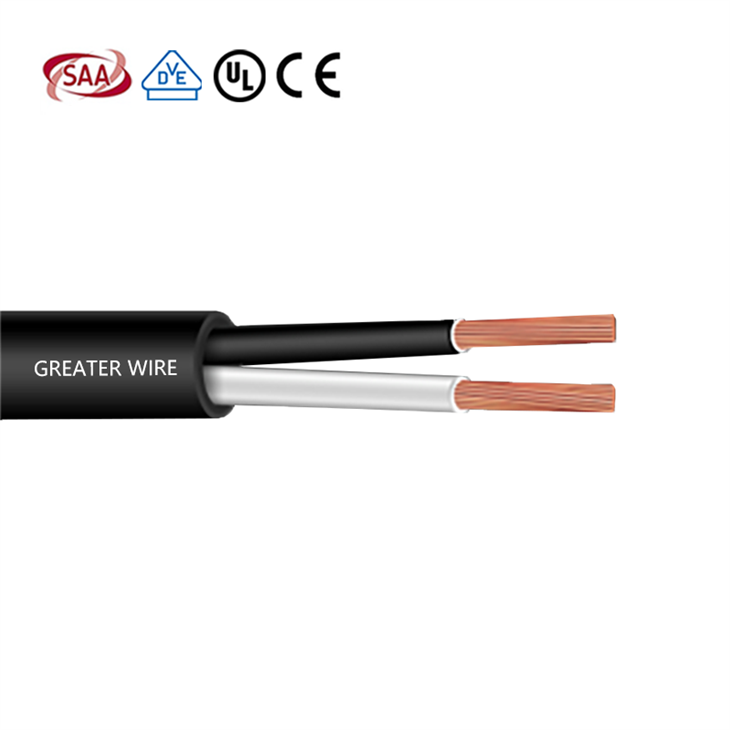

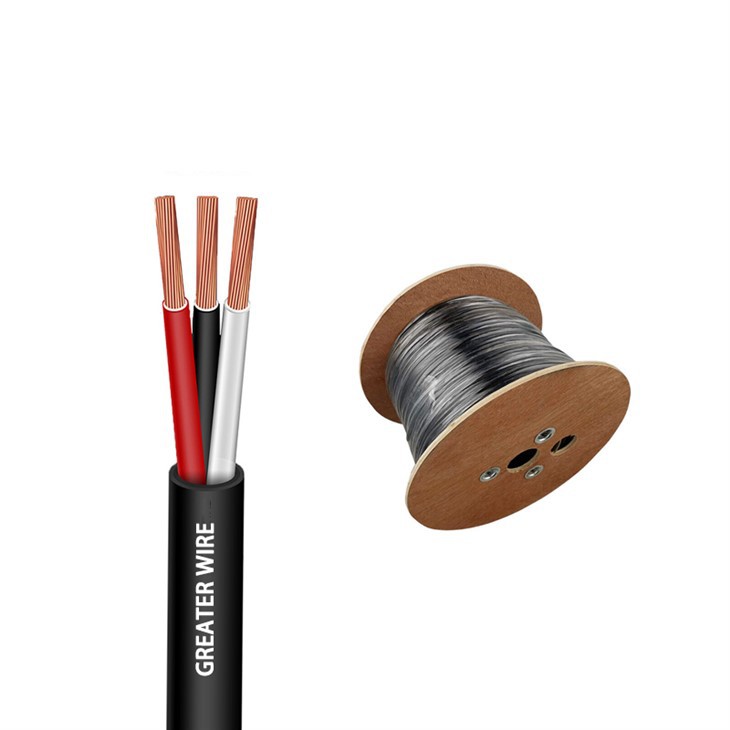

Royal Cord Wire

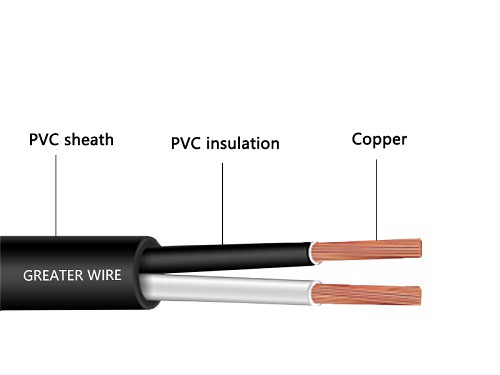

Conductor: Two, three, or four soft-drawn bunched/ropelay copper conductors
Insulation: Polyvinyl Chloride (PVC) Lead Free
Jacket: Polyvinyl Chloride (PVC) Lead Free
Voltage: 300 Volts(0.75 mm²-3.5 mm²);600 Volts (5.5 mm²-30 mm²)
Maximum Temperature: 60°C
Reference Specification: PNS 163

UL62

PEC

ICEA specification

Application

Royal cord wire is a versatile and durable cable designed for low-voltage electrical systems. It is commonly used as portable cable, emergency wire, or for internal building wiring in circuits with voltage ratings up to 300 volts (for sizes ranging from 0.75 mm² to 3.5 mm²) and 600 volts (for sizes ranging from 5.5 mm² to 30 mm²). With a maximum temperature rating of 60°C, royal cord ensures safe and efficient performance even under demanding conditions.

Feature

Royal cord wire is a flexible bundle/rope of two, three or four copper conductors that provide excellent conductivity and flexibility. The insulation and jacket are encased in a durable lead-free polyvinyl chloride (PVC) outer layer for additional protection against abrasion and environmental factors. Complies with industry standards such as PNS 163, UL62, PEC and ICEA specifications and is suitable for typical low voltage circuits.

Certification

Royal cord wire has successfully passed the BPS certification. The cable uses lead-free polyvinyl chloride (PVC) insulation and sheath, which not only ensures the safety of electrical connections, but also meets environmental protection requirements. Its soft tensile stranded copper conductor excels in high flexibility and excellent conductivity, and is suitable for electrical equipment that requires frequent bending and movement. The cable has passed a variety of tests and obtained certification to ensure that it meets international requirements in terms of safety, performance and environmental adaptability.

Package

royal cord wire package

Factory

Dongguan Greater Wire & Cable Co., Ltd. was established in 1995, it is a professional wire and cable manufacturer. Our company has advanced production equipment and production technology, complete testing equipment, and strong product technology strength. After years of hard work and the support of clients from all over the World, our company has developed rapidly and won a high honor and share in overseas markets. The company has passed the ls09001 quality management system certification, National high tech enterprise certification, national specialization, and special new enterprise certification.

Case

wire and cable Company cases

Partner

greater wire Partner

FAQ

Q: What is royal cord for?

A: Royal cord is a type of electrical cable commonly used for low-voltage applications that require flexibility and durability. Its design and material composition make it suitable for a variety of environments where mobility, portability, or frequent bending is necessary.

Q: Is Royal cord weatherproof?

A: Royal cord is not typically weatherproof. It is designed for indoor use and is often used in portable and emergency electrical applications and is not specifically designed to withstand outdoor elements such as moisture, UV exposure, or extreme temperatures.

Q: Is Royal cord submersible?

A: No, Royal cords are not submersible. The polyvinyl chloride (PVC) insulation and jacket provide protection against general abrasion and low humidity environments, but are not designed for prolonged exposure to water or operation underwater.

Hot Tags: royal cord wire, China royal cord wire manufacturers, suppliers, factory, 250 440V Ordinary Duty Multicore Flexible Cable, HO7V2 K 90 PVC, ul standard xhhw xhhw 2 cable, single core cable, High Temp Ultra Flexible Silicone Insulated Wire, 300 300V 2 3 4 Core H03VV F Cable

royal cord wire

2 Conductors: Black, White 3 Conductors: Black, White, Red 4 Conductors: Black, White, Red, Green
Size / Nom.Areas of Conductor	Size /Nom. Area of Conductor	No.& Diameter Conductor	Approx.Over Diameter of conductor	Max.Conductor Resistance	Ampacity (A)		Test oltage	Stan dard Length
AWG	mm2	No./mm	mm	Ohm/km	A	B	Volts	m
18	0.75	30/0.18	1.1	23.52	7	10	2000	75
16	1.25	50/0.18	1.5	14.11	10	13	2000	75
14	2	37/0.26	1.8	9.14	15	18	3000	75
12	3.5	65/0.26	2.4	5.2	20	25	3000	75
10	5.5	104/0.26	3	3.25	25	30	3000	75
8	8	7/22/0.26	4.2	2.24	35	40	4000	75
6	14	7/38/0.26	5.5	1.3	45	55	4000	75
4	22	7/60/0.26	6.8	0.82	60	70	4000	75
2	30	7/81/0.26	8	0.62	80	95	4000	75

Size /Nom.Areas of Conductor	Size /Nom.Area of Conductor	2 conductors		3 conductors		4 conductors
Size /Nom.Areas of Conductor	Size /Nom.Area of Conductor	Approx. overall diameter	Approx. weight	Approx. overall diameter	Approx. weight	Approx. overall diameter	Approx. weight
AWG	mm2	mm	kg/km	mm	kg/km	mm	kg/km
18	0.75	8.4	75	8.8	92	9.5	111
16	1.25	9.2	93	9.68	117	10.5	143
14	2	12.4	165	13.05	295	14.14	250
12	3.5	14.4	235	15.14	295	16.39	361
10	5.5	15.6	293	16.44	377	17.84	467
8	8	20.2	511	21.32	632	24	823
6	14	23.6	744	24.92	926	27.92	1200
4	22	27	1030	28.52	1296	31.7	1663
2	30	30	1292	31.71	1648	35.35	2130
