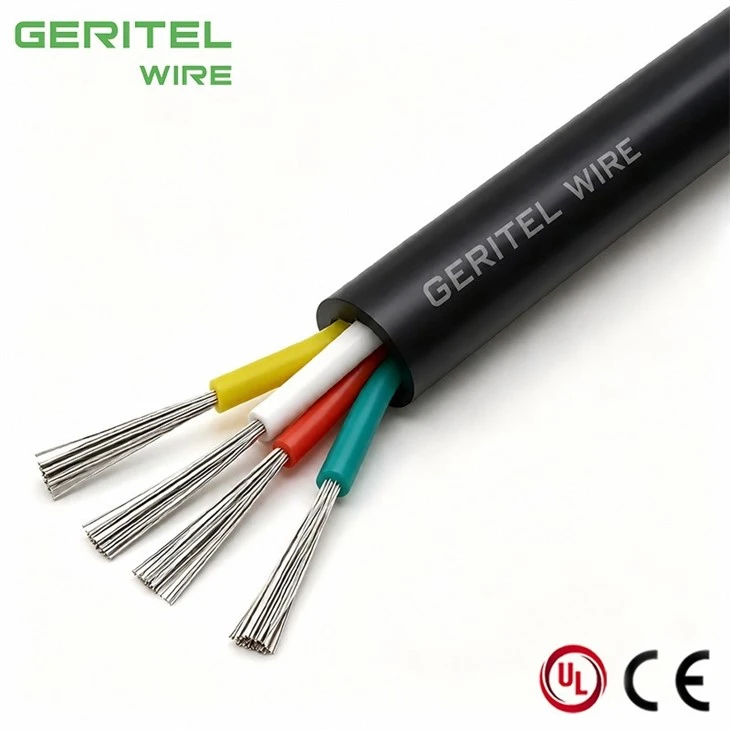

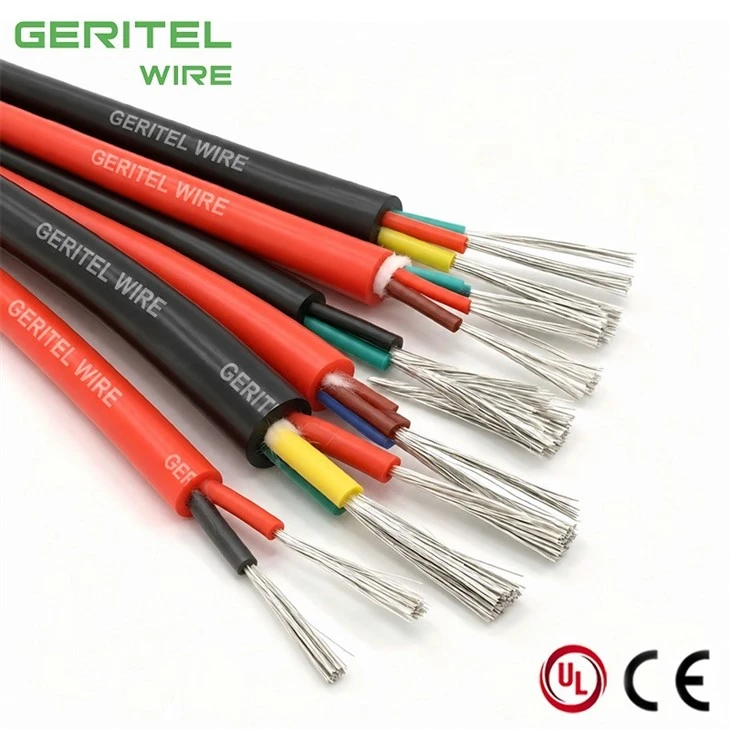

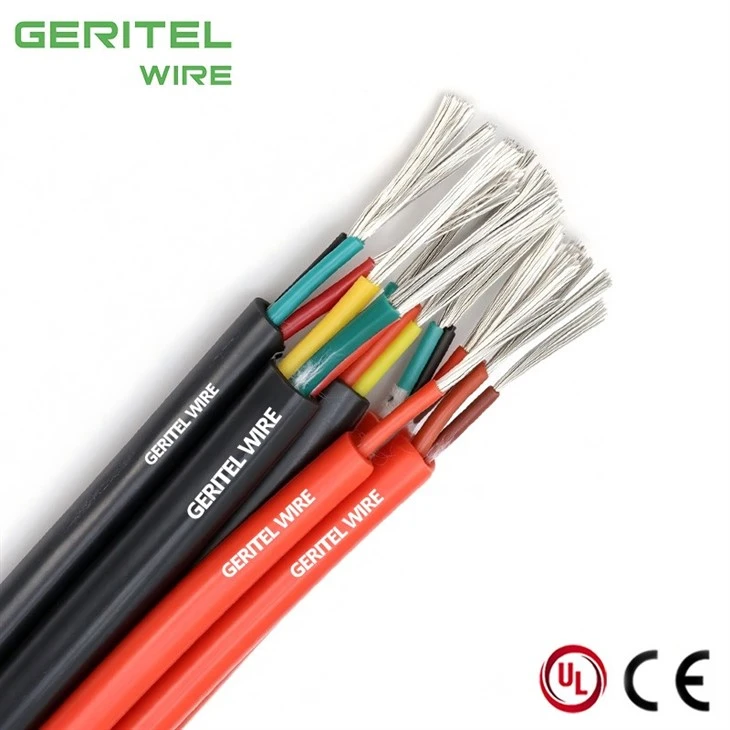

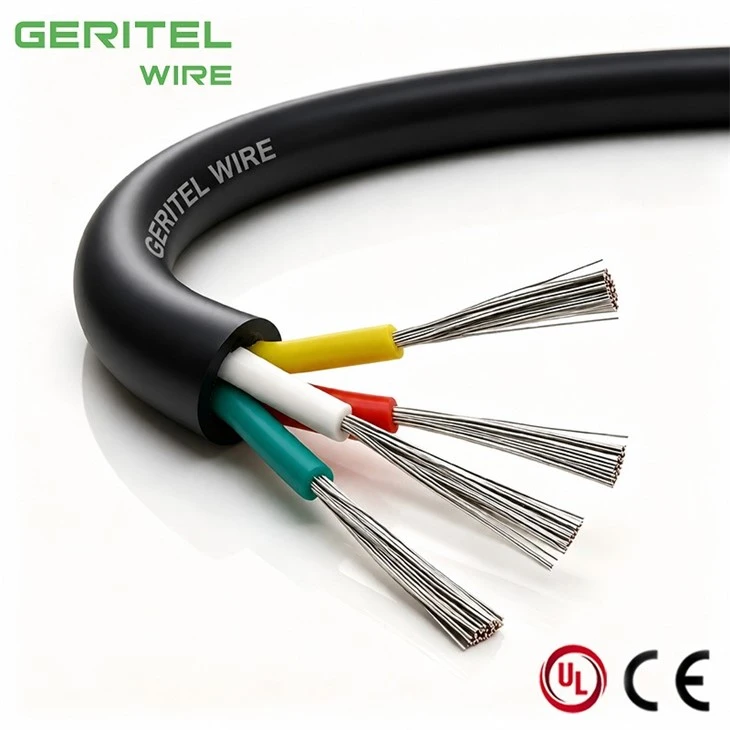

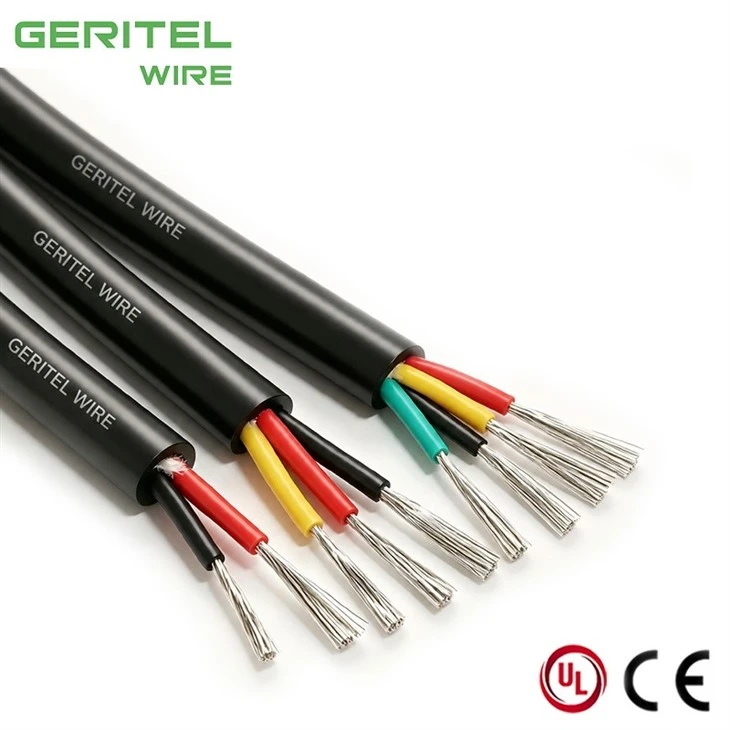

PRODUCT REAL SHOT
IEC 60332 Silicone Cable with Class 5 Tinned Copper Construction
PRODUCT SPECIFICATIONS
Applications
This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.
| SPECIFICATIONS | |
| Voltage Rating Uo/U | 300/500V |
| Temperature Rating | Fixed:-60°C to +200°C |
| Minimum Bending Radius |
Fixed: 5 x overall diameter Flexed: 15 x overall diameter |
| Conductor | Class 5 flexible Stranded Tinned Copper |
| Insulation | Silicone rubber |
| Outer Sheath | Silicone Rubber |
| Core ldentification |
3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow |
| Sheath Colour | Red,Black |
DIMENSIONS
| NO. OF CORES |
|||
|
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
|
| 3 | 0.75 | 6.8 | 66 |
| 3 | 1 | 7.4 | 78 |
| 3 | 1.5 | 8 | 98 |
| 3 | 2.5 | 9.7 | 152 |
| 3 | 4 | 11.5 | 249 |
| 3 | 6 | 14.2 | 352 |
| 4 | 0.75 | 7.8 | 84 |
| 4 | 1 | 8 | 95 |
| 4 | 1.5 | 8.8 | 122 |
| 4 | 2.5 | 10.6 | 189 |
| 4 | 4 | 13 | 330 |
| 4 | 6 | 16.2 | 429 |
| 4 | 10 | 21.4 | 710 |
| 4 | 16 | 24 | 1014 |
| 4 | 25 | 29.3 | 1460 |
| 4 | 35 | 33 | 2044 |
| 4 | 50 | 34 | 2990 |
| 5 | 0.75 | 8.5 | 101 |
| 5 | 1 | 8.8 | 116 |
| 5 | 1.50 | 9.6 | 148 |
| 5 | 2.5 | 11.6 | 229 |
| 5 | 4 | 15 | 359 |
| 5 | 6 | 17.7 | 564 |
| 5 | 10 | 22.5 | 900 |
| 5 | 16 | 26.9 | 1206 |
| 5 | 35 | 36.7 | 2850 |
| 7 | 0.75 | 9.6 | 158 |
| 7 | 1 | 10 | 177 |
| 7 | 1.5 | 10.9 | 232 |
| 7 | 2.5 | 13.2 | 348 |
| 7 | 4 | 16.2 | 487 |
| 7 | 6 | 19.3 | 685 |
| 12 | 0.75 | 11.1 | 178 |
| 12 | 1.5 | 14.8 | 332 |
| 12 | 2.5 | 18 | 530 |
| 18 | 0.75 | 13.3 | 260 |
| 18 | 1.5 | 17.6 | 510 |
| 24 | 1.5 | 20.2 | 635 |
| 25 | 0.75 | 15.6 | 370 |
CERTIFICATIONS
PACKAGING
Roll
Plastic Reel
Small Wooden Reel
APPLICATION
Industrial Control Cabinet Wiring
CASE
Northern Steel High-Temperature Control Upgrade Project
OceanStar Marine Electrical Retrofit Project
PolarFresh Industrial Refrigeration Expansion Project
