Name: China THW Cable For Shopping Malls Retail Centers And Commercial Complexes Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 315726996

Description

Technical Parameters

Certification

data center electrical UL 83 THW wire

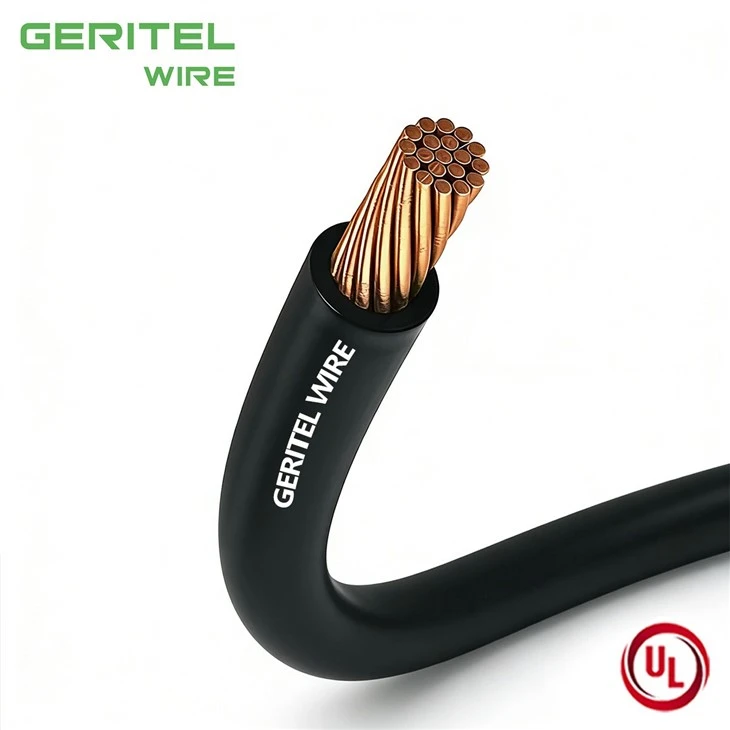

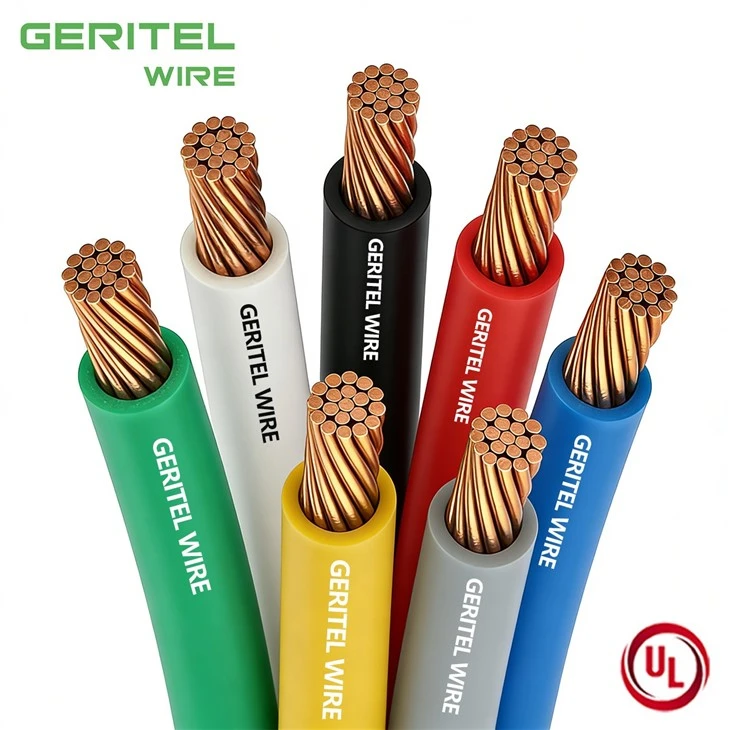

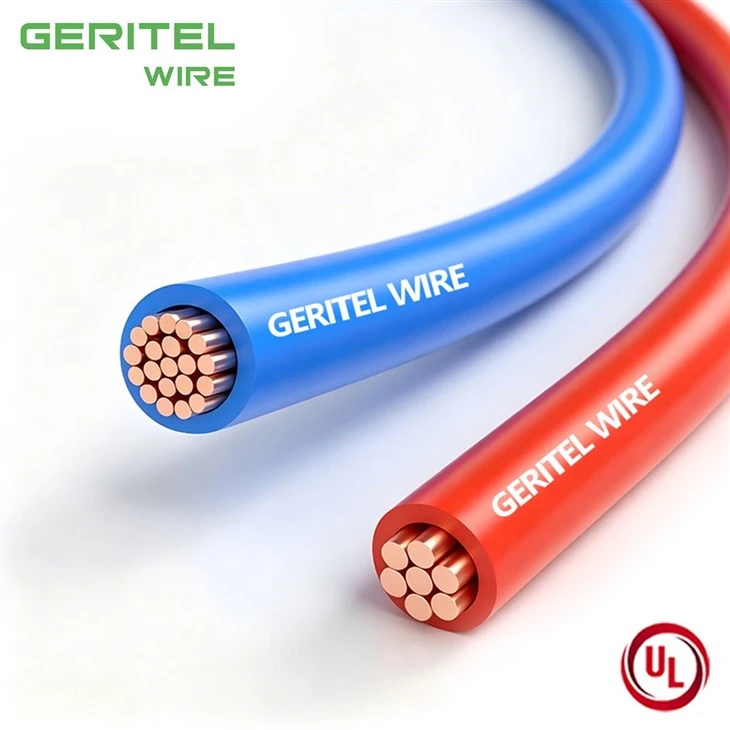

PRODUCT REAL SHOT

data center electrical UL83 building wire

data center electrical thermoplastic high heat resistant wire

data center electrical water resistant building wire

data center electrical PVC insulated wire

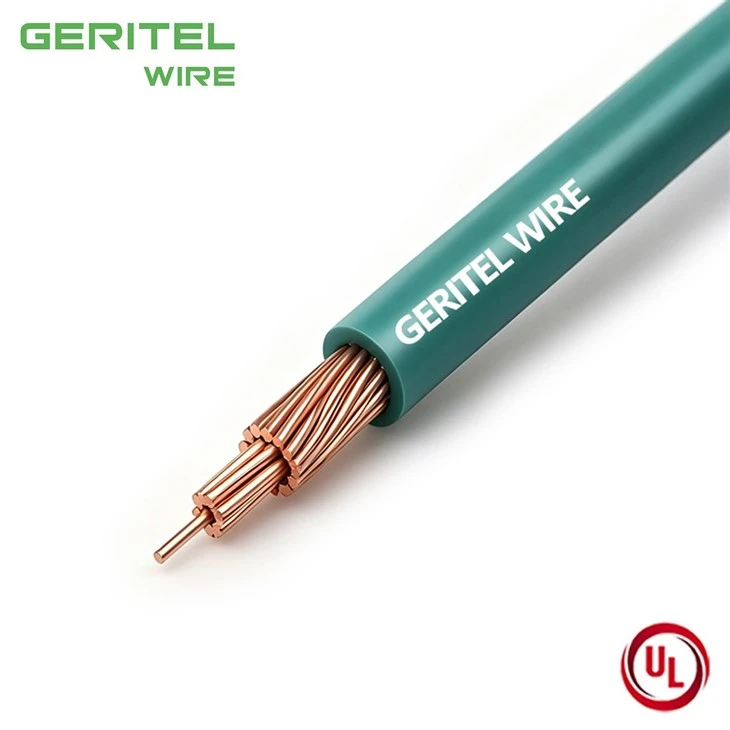

Flexible building wiring for high traffic commercial facilities

Shopping malls and retail centers require electrical distribution across tenant spaces, corridors, service rooms and common areas. GERITEL WIRE THW Cable for Shopping Malls uses stranded copper for dependable conductivity and PVC insulation for 600V fixed wiring in suitable conduit and raceway systems. This Retail Building Wire can serve branch circuits, feeder circuits and panel connections according to the project design. The stranded construction helps installation teams route conductors through complex commercial layouts, while multiple colors support clear circuit organization. For large projects, GERITEL WIRE can provide meter marking, reel packing and coordinated production, helping contractors manage material across multiple zones and construction phases.

PRODUCT SPECIFICATIONS

data center electrical PVC insulated cable

Application and Description

The THW conductor is suitable for most current wiring solutions for residential, commercial and industrial environments. It is used in service entrance, feeders and branch circuits for permanent installations.THWconductors in sizes 14 AWG to 1000 Kcmil (MCM) can be installed in conduits and other raceways.The temperature of installation shall not exceed 75°C(THW), not exceed 90°C(THW-2).

SPECIFICATIONS
Conductor	Bare annealed copper conductor, solid or stranded
Insulation	PVC 75°C insulation
Color	upon request, black is preferable
Technical Compliances	ASTM B3, B8 UL 83 - Thermoplastic-Insulated Wires and Cables UL 1581 - Electrical Wires, Cables and Flexible Cords

AWG or kcmil	Strand	Nominal Insulation Thickness		Nominl Overall Diameter		Cable Weight
AWG or kcmil	Strand	Inch	mm	Inch	mm	Lbs/kft	kg/km
14	1	0.030	0.76	0.169	4.3	22	33
12	1	0.030	0.76	0.189	4.8	32	47
10	1	0.030	0.76	0.213	5.4	46	68
8	1	0.045	1.14	0.240	6.1	67	100
6	1	0.060	1.52	0.276	7	101	151
14	7	0.030	0.76	0.177	4.5	24	36
12	7	0.030	0.76	0.201	5.1	34	50
10	7	0.030	0.76	0.228	5.8	49	73
8	7	0.045	1.14	0.291	7.4	79	118
6	7	0.060	1.52	0.335	8.5	117	174
4	7	0.060	1.52	0.386	9.8	172	256
2	7	0.080	2.03	0.445	11.3	263	391
1	19	0.080	2.03	0.531	13.5	339	505
1/0	19	0.080	2.03	0.575	14.6	418	622
2/0	19	0.080	2.03	0.622	15.8	515	767
3/0	19	0.080	2.03	0.677	17.2	638	950
4/0	37	0.080	2.03	0.740	18.8	792	1179
250	37	0.095	2.14	0.823	20.9	943	1404
300	37	0.095	2.14	0.882	22.4	1118	1664
350	37	0.095	2.14	0.937	23.8	1292	1923
400	37	0.095	2.14	0.984	25	1465	2180
500	61	0.095	2.14	1.079	27.4	1810	2694
600	61	0.110	2.79	1.197	30.4	2178	3241
700	61	0.110	2.79	1.272	32.3	2521	3751
750	61	0.110	2.79	1.307	33.2	2693	4007
800	61	0.110	2.79	1.343	34.1	2863	4260
900	61	0.110	2.79	1.409	35.8	3205	4769
1000	61	0.110	2.79	1.472	37.4	3538	5265

CERTIFICATIONS

data center electrical single conductor building wire

PACKAGING

Plastic Reel

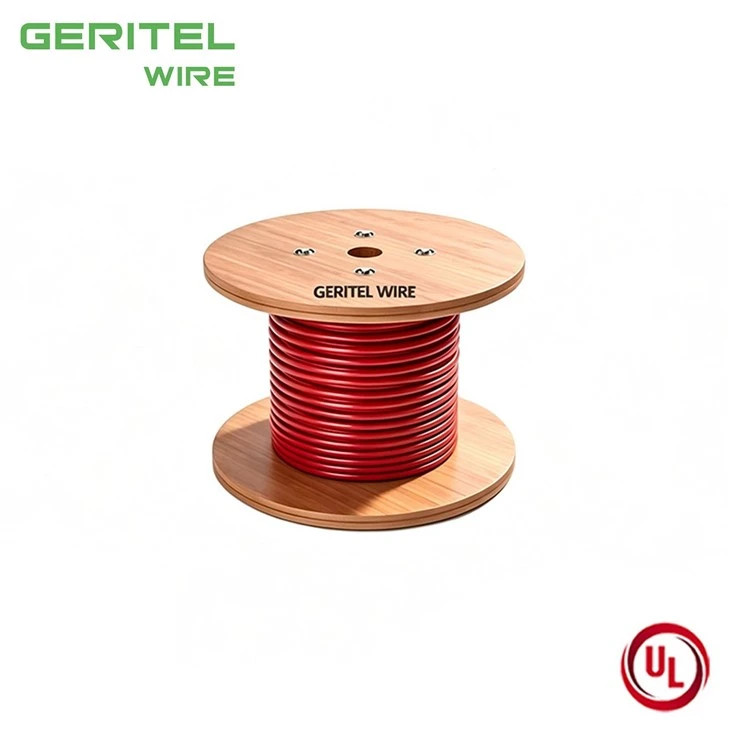

Small Wooden Reel

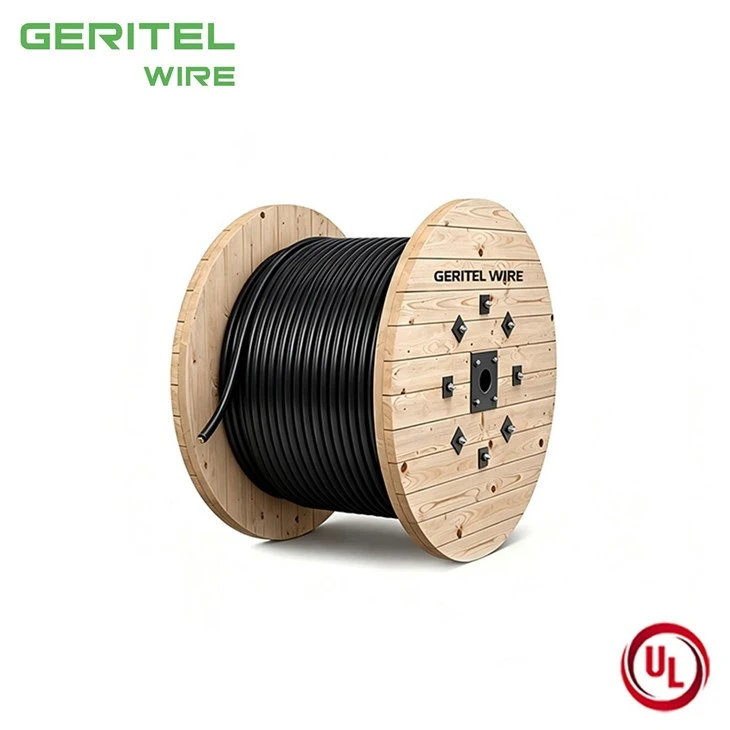

Large Wooden Reel

APPLICATION

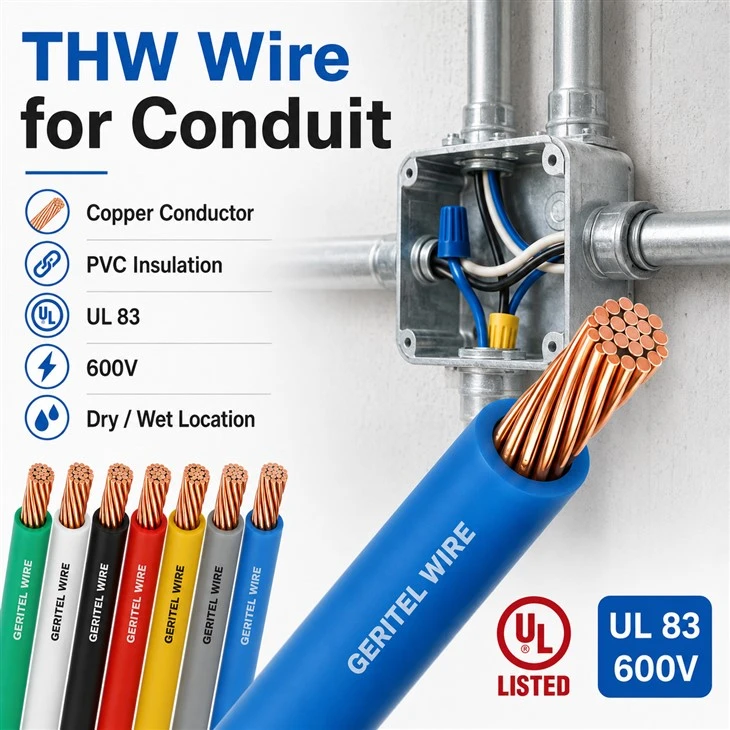

Commercial Building Conduit and Junction Box Installation

Industrial Control Panel and Power Distribution Wiring

Residential Commercial Distribution Panel Wiring

CASE

data center industrial UL83 building wire

KBANK Muangthong Thani

data center industrial thermoplastic high heat resistant wire

MAHANAKHON

data center industrial water resistant building wire

Terminal 21 Korat

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

data center industrial PVC insulated wire

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

data center industrial PVC insulated cable

data center industrial single conductor building wire

GLOBAL CERTIFICATIONS

data center commercial 600V THW wire

CUSTOMER PHOTOS

integrated house electrical wiring thermoplastic high heat resistant wire

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

data center commercial UL83 building wire

data center commercial thermoplastic high heat resistant wire

data center commercial water resistant building wire

data center commercial PVC insulated wire

data center commercial PVC insulated cable

data center commercial single conductor building wire

data center residential THW copper cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What should contractors consider before purchasing THW building wire before bulk purchasing?

Customers choose GERITEL WIRE THW Cable because it combines stable conductivity, consistent manufacturing quality and dependable installation performance. The PVC Insulated Wire supports professional electrical projects with reliable supply capability.

What should contractors consider before purchasing THW building wire during project planning?

The UL83 Building Wire features high quality materials and controlled production processes. With Stranded Copper Wire performance, it is suitable for conduit systems, building wiring and various power distribution applications.

What should contractors consider before purchasing THW building wire when selecting a manufacturer?

GERITEL WIRE focuses on supplying certified electrical solutions. The Electrical Building Wire uses reliable construction methods and helps contractors achieve safe and efficient installation results with THW Cable.

What should contractors consider before purchasing THW building wire in commercial construction?

GERITEL WIRE provides professional THW Wire solutions manufactured with quality copper conductor and durable PVC insulation. The 600V Building Wire is designed for reliable electrical performance in residential, commercial and industrial applications.
