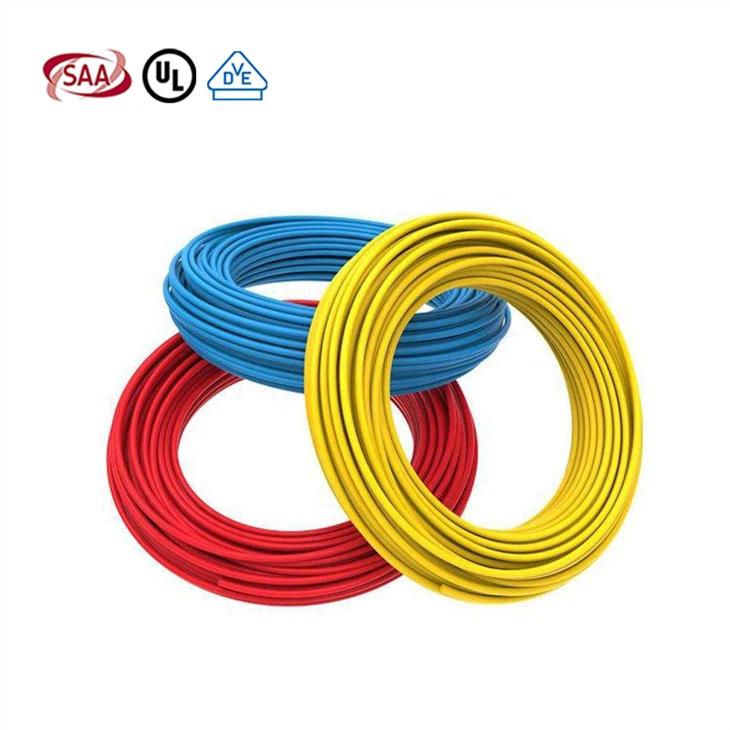

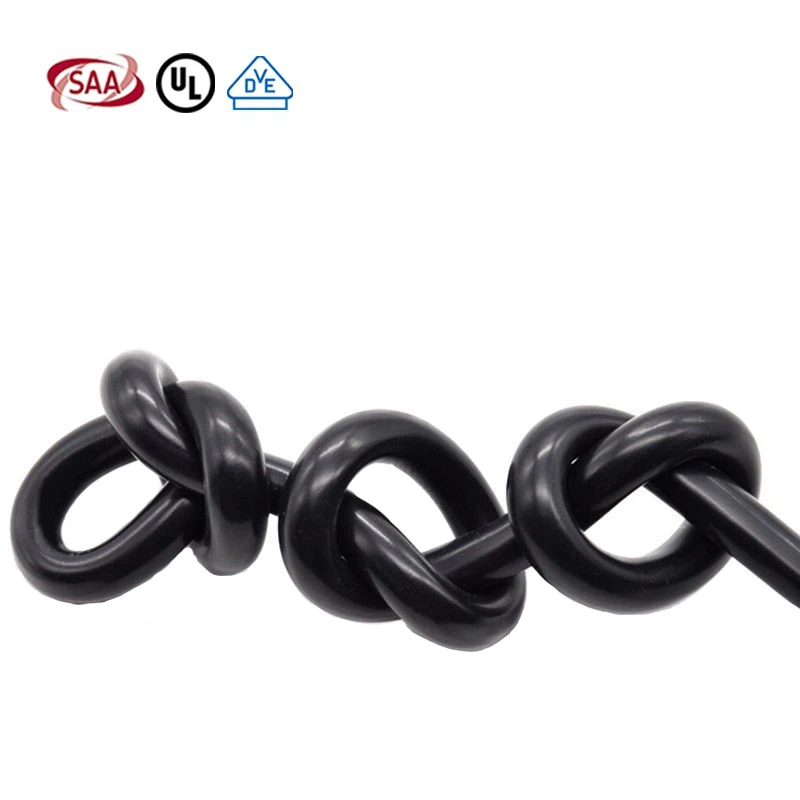

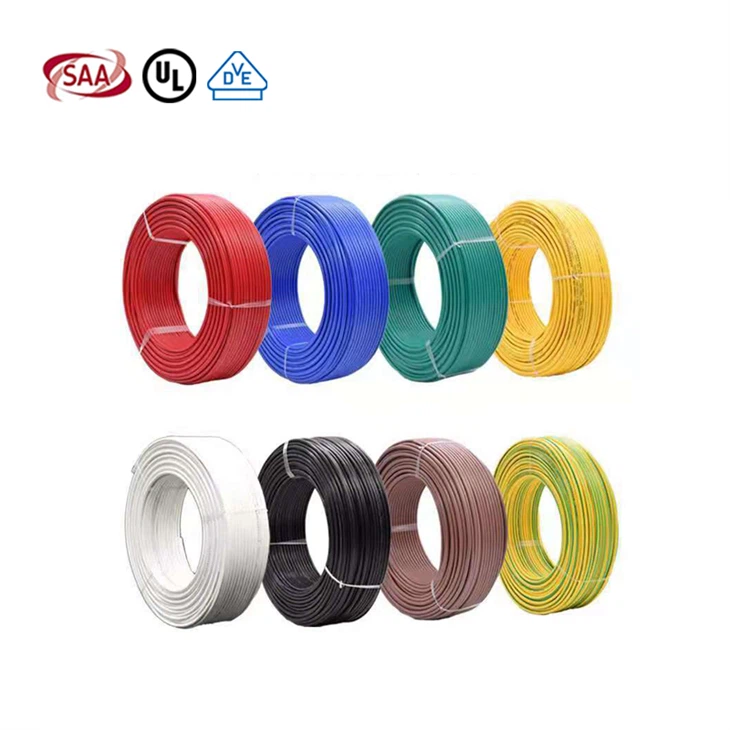

Single-core flexible cable is a flexible conductor, typically made of copper, which allows for easy bending and installation in various applications, which is insulated with PVC (Polyvinyl Chloride), meeting the standards set by AS/NZS 5000.1. The rated voltage is 0.6/1kv. Flexible cable is certified by SAA, ensuring compliance with Australian and New Zealand electrical safety standards.
Application
Single core flexible cable is used to connect various components in industrial machinery where flexibility is essential due to movement or vibration. It can also be used in household appliances with flexible wiring, such as vacuum cleaners, power tools and washing machines. It is suitable for wiring in vehicles, ships and other transportation systems, as well as in solar installations, wind turbines and other renewable energy systems, where it is used to connect panels, batteries and inverters where high flexibility is required.
Feature
● Standards: AS/NZS 5000.1

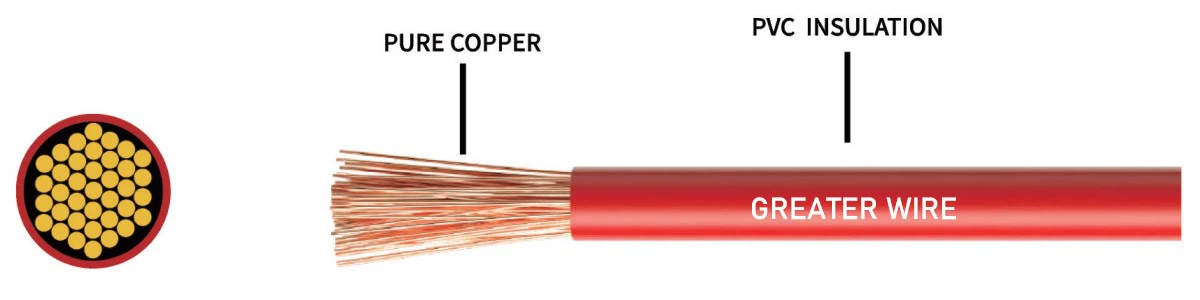

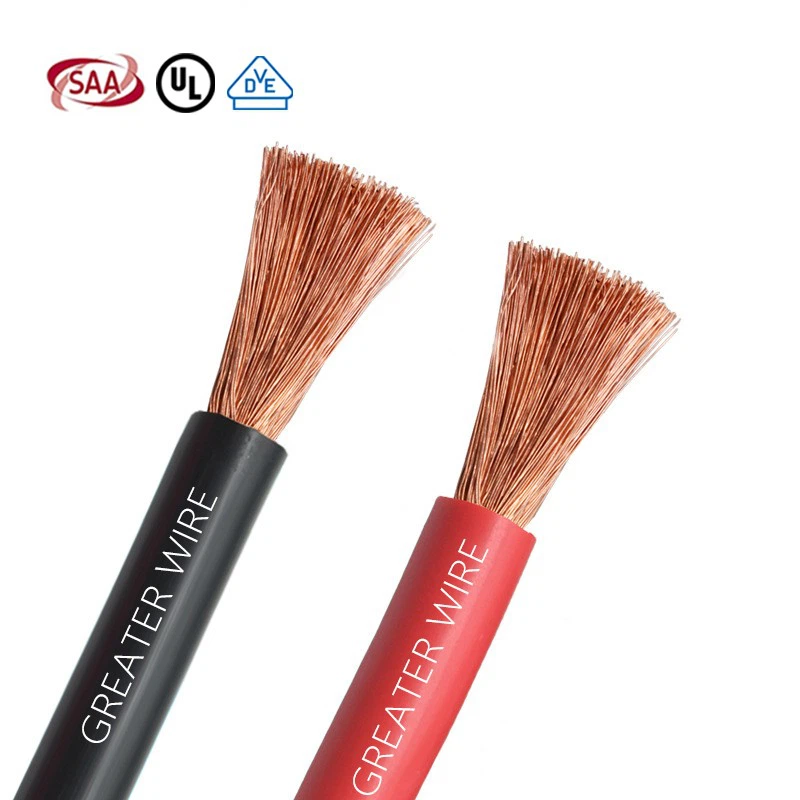

● Conductor: Flexible bunched annealed copper conductor to AS/NZS 1125 (Class 5)
● Insulation: V-90 PVC
● Max operating temperature: +90°C
● Operating temperature: 0 °C
● Chemical exposure: occasionally
● Mechanical impact: light
● Water exposure: Occasional density
● Solar radiation and weather exposure: Sometimes
● Certification: SAA
Certification
Our products have achieved various prestigious international certifications, including SAA, UL, TUV, EU CPR, CE, ROHS, and others.
Package
Production Line
Greater Wire & Cable factory has state-of-the-art production equipment, including advanced extruders and insulation wire equipment. This ensures a precise and efficient manufacturing process. Utilizing automated systems for braiding and coating wires improves the consistency and quality of cable production. Strict quality control procedures are supported by advanced testing equipment. This ensures that each cable product meets high performance, reliability and safety standards. We are committed to fulfilling our environmental responsibilities, using facilities and processes that meet environmental standards and following a path of sustainable development. Cable products undergo comprehensive quality control measures to verify performance, the factory is ISO 9001 certified, and wires and cables are certified by SAA, IEC, UL and CE. Our factory offers extensive customization capabilities to meet specific customer requirements.
Case
Partner
FAQ
Q: What is single core flexible cable?
Q: What is a typical application for single core flexible cables?
Q: What is single core cable?
Hot Tags: 0.6/1kv single core flexible cable, China 0.6/1kv single core flexible cable manufacturers, suppliers, factory, HO5RN F Cable, Super Flexible Welding Cable, multicore rubber cable, aerial parallel cable, ul thhn wire, 250 440V Ordinary Duty Multicore Flexible Cable
| Conductor | Cable | ||||
|
Nominal C.S.A. mm2 |
Nominal Diameter mm |
Nominal Insulation Thickness mm |
Overall Diameter | Approx. Mass kg/100 m |
|
| Minimum mm |
Maximum mm |
||||
| 1 | 1.3 | 0.8 | 2.9 | 3 | 1.6 |
| 1.5 | 1.5 | 0.8 | 3.1 | 3.2 | 2 |
| 2.5 | 2 | 0.8 | 3.6 | 3.7 | 3 |
| 4 | 2.7 | 1 | 4.6 | 4.7 | 5.4 |
| 6 | 3.5 | 1 | 5.4 | 5.6 | 8 |
| 10 | 4.2 | 1 | 6.1 | 6.3 | 11 |
| 16 | 5.3 | 1 | 7.2 | 7.4 | 16 |
| 25 | 6.7 | 1.2 | 8.9 | 9.1 | 25 |
| 35 | 7.9 | 1.2 | 10.1 | 10.3 | 34 |
| 50 | 9.5 | 1.4 | 12.1 | 12.3 | 49 |
| 70 | 11.3 | 1.4 | 13.9 | 14.2 | 67 |
| 95 | 13.0 | 1.6 | 16.0 | 16.2 | 89 |
| 120 | 14.7 | 1.6 | 17.6 | 17.9 | 112 |
| 150 | 16.5 | 1.8 | 19.8 | 20.2 | 140 |
| 185 | 18.2 | 2 | 21.9 | 22.2 | 170 |
| 240 | 20.9 | 2.2 | 25 | 25.4 | 223 |
| 300 | 23.5 | 2.4 | 27.9 | 28.4 | 279 |
| 400 | 26.9 | 2.6 | 31.7 | 32.4 | 365 |
