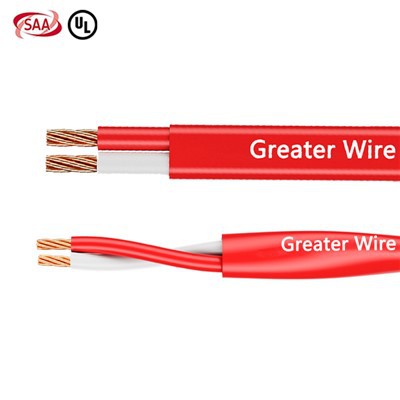

The Australian 1.50mm 2 Core Twisted Screened TPS Fire Alarm Cable is a specially designed fire alarm cable that combines "Twisted" and "Screened" technologies to enhance the performance and anti-interference ability of Twisted Screened TPS Fire Alarm Cable in fire alarm systems. Twisted Screened TPS Fire Alarm Cable comply with Australian safety standards and have fire-resistant, flame-retardant, and high anti-interference capabilities, making them suitable for high demand fire alarm systems.

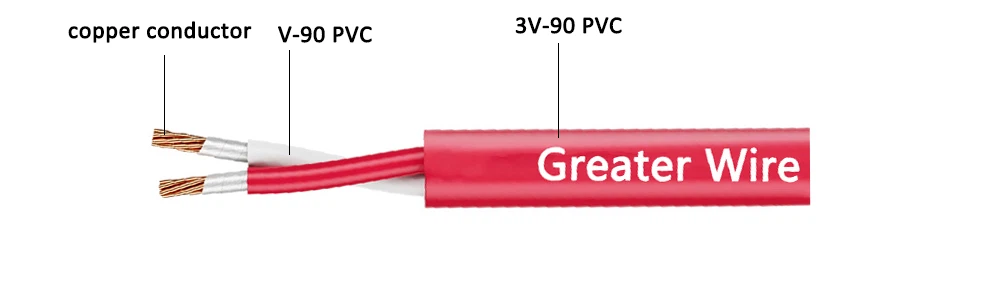

The wires inside the Twisted Screened TPS Fire Alarm Cable are twisted together to wrap two or more wires together. This design helps reduce electromagnetic interference (EMI) and improve the stability and reliability of signal transmission
The function of the shielding layer is to further enhance the anti-interference ability of theTwisted Screened TPS Fire Alarm Cable and prevent external electromagnetic interference or high-frequency noise from affecting signal transmission.
Application
In industrial environments, the shielding layer of Twisted Screened TPS Fire Alarm Cable can effectively prevent external electromagnetic interference, making them suitable for use in industrial environments with strong electromagnetic interference, such as factories and heavy industrial areas, ensuring the reliability of fire alarm systems.
In complex wiring within buildings with multiple devices and complex electrical systems, the shielding characteristics of TTwisted Screened TPS Fire Alarm Cable can prevent signal interference and ensure clear and error free fire alarm signals.
In hospitals and data centers, the requirements for fire alarm systems are particularly high, and it is necessary to ensure that the alarm system can work normally in any situation. Twisted Screened TPS Fire Alarm Cable have excellent anti-interference properties and are very suitable for use in environments with high electrical system requirements.
Feature
● Double insulated red outer sheath marked as "fire alarm cable"
● ActivFire certified
● Best Environmental Practice PVC v 2.0 certified - Bureau Veritas
● 250/250V voltage rating
● Sheath:3V-90 PVC
● Red and white cores
● Normal Operating Temperature: +90°c
● Minimum Operating Temperature: 0°c
● ELV/LV markings as per AS/NZS 1670:2018
● WSX1 Mechanical protection to AS/NZS 3013 & complying with AS1670.1.2018
● AS/CA S008 compliant
●Independently certified & licensed to meet Green Building Code of Australia / Green Star requirements
● Certification: SAA
Certification
Twisted Screened TPS fire alarm cable, as a type of control cable, needs to comply with AS/NZS 5000.2: standard to ensure that the electrical performance, heat resistance, and mechanical properties of Twisted Screened TPS fire alarm cable can meet normal use and fire environment requirements
Twisted Screened TPS fire alarm cable is designed according to Australian standard AS 3013, which requires it to continue transmitting signals in case of fire and maintain a certain fire resistance time. The outer sheath of Twisted Screened TPS fire alarm cable must be able to resist high temperatures and prevent flame spread.
The Australian Twisted Screened TPS fire alarm cable not only needs to comply with the above standards, but also must be certified by SAA to ensure that the Twisted Screened TPS fire alarm cable meets Australia's electrical safety standards, including electrical withstand voltage, fire resistance, and physical protection performance. This certification indicates that Twisted Screened TPS fire alarm cable have undergone comprehensive safety testing and are suitable for high reliability locations such as commercial buildings and industrial environments.
Package
Our 1.50mm 2 Core TPS Fire Alarm Cable packaging standard is 100 meters per roll, packaged with rubber trays, and the 1.50mm 2 Core TPS Fire Alarm Cable stacked on a pallet every 180 rolls. In general, a 20FT container can hold 10 pallets 1.50mm 2 Core TPS Fire Alarm Cable, which is 1800 rolls of 1.50mm 2 Core TPS Fire Alarm Cable. We can also package according to customer requirements, such as 200 meters per roll or 500 meters per roll, but we have minimum order quantity requirements for different tps electrical cable.
Company Introduction
The Greater Wire factory is dedicated to producing Twisted Screened TPS fire alarm cables that meet Australian standards, and is committed to providing high-performance cable solutions for fire alarm systems. Our products are widely used in key areas such as commercial buildings, industrial facilities, public transportation, and high-rise buildings, ensuring that the fire alarm system can continuously and stably transmit signals in the event of a fire.
The factory strictly follows Australian standards AS 3013 and AS/NZS 5000.2, using high-quality materials to produce cables, ensuring their excellent fire resistance, flame retardancy, and anti-interference ability. The Twisted Screened design effectively improves the anti electromagnetic interference performance of Twisted Screened TPS Fire Alarm Cable , ensuring that the signal transmission of fire alarm systems is not affected by external interference.
We have advanced production equipment and strict quality control system. All products have passed multiple international certifications such as RCM certification and SAA certification, meeting Australia's electrical safety and fire protection requirements. The Twisted Screened TPS Fire Alarm Cable of the factory comply with ISO 9001 quality management system certification, ensuring that every cable has excellent performance and high reliability.
customer
As a professional electrical cable export manufacturer, my clients are located in various regions around the world, and we are familiar with the wire and cable standards of different countries. The main sales markets for TPS CABLE, orange circular cable are Australia, New Zealand, Papua New Guinea, and THHN wire,MC cable,nm b cable is mainly sold in American countries such as the United States and Canada. We not only have agents and electrical engineers in many countries, but also have a professional technical team to provide technical support.
Partner
FAQ
Q: What is the maximum operating temperature of Australian Twisted Screened TPS fire alarm cable?
Q: What types of buildings are Australian Twisted Screened TPS fire alarm cable suitable for?
Q: What is the conductor material of Australian Twisted Screened TPS fire alarm cable?
Hot Tags: twisted screened tps fire alarm cable 1.50mm 2 core, China twisted screened tps fire alarm cable 1.50mm 2 core manufacturers, suppliers, factory, HO7V-U, 0 6 1KV Single Core Flexible Cable, tuv solar cable, 0 6 1KV Heavy Duty Multicore Flexible Cable, sdi cable, 300V CSA VW 1 UL1007 Hook Up Wire
| No. of Cores | Cross Section (mm2) | Copper Wire Diameter (mm) | Approx Overall Diameter (mm) | Drum Length | Resistance (Ω/km) | Capacitance(pF/m) | Inductance (uH/m) |
| 2 | 0.75 | 0.37 | 9.8 | 250m, 500m | 23.4 | 55 | 0.87 |
| 2 | 1.00 | 0.42 | 10 | 250m, 500m | 18.0 | 46 | 0.8 |
| 2 | 1.50 | 0.52 | 10.3 | 250m, 500m | 11.9 | 48 | 0.75 |
