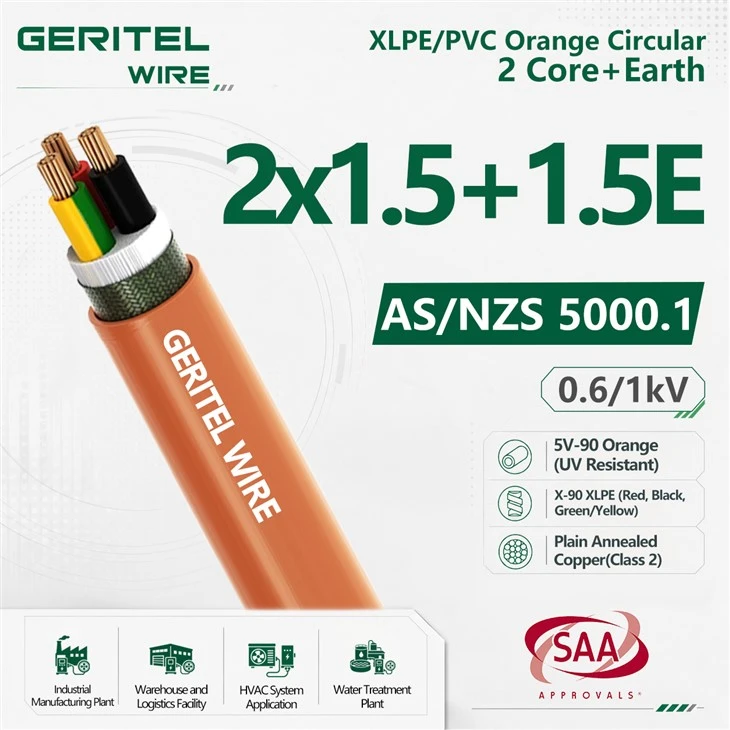

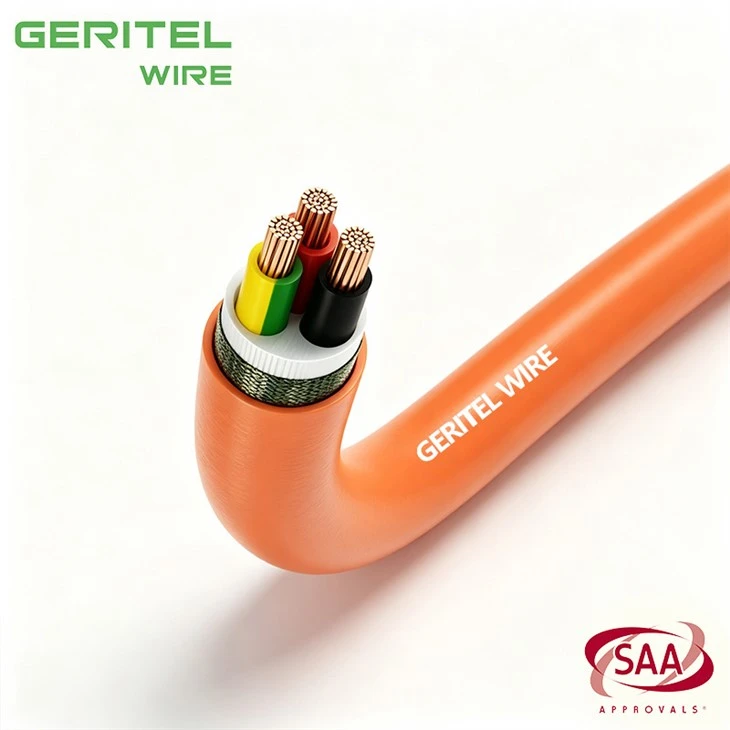

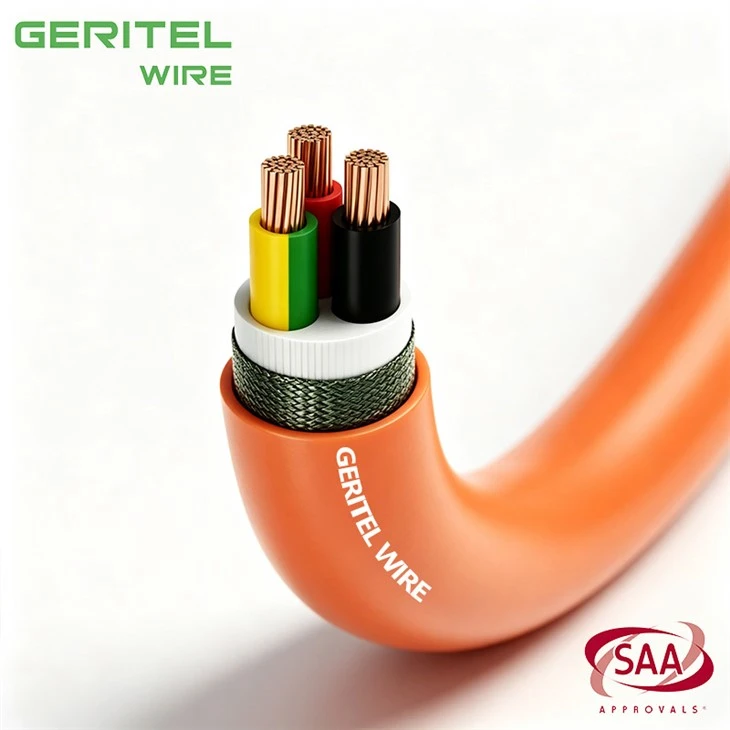

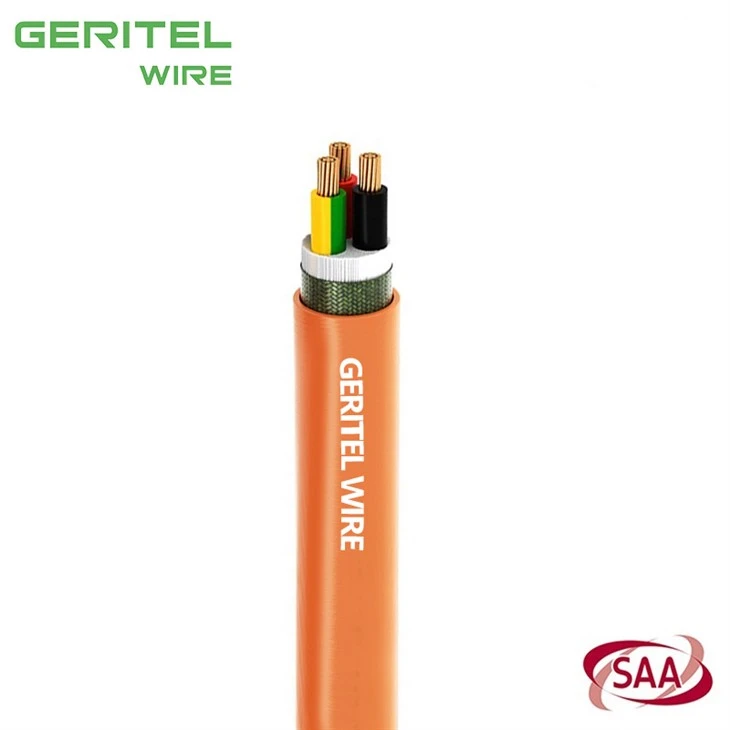

2 x 1.5mm² + 1.5mm² Earth Australian Orange Circular Cable – Light-Duty 2C+E Power and Control Cable

This Australian-standard orange circular cable features two 1.5mm² XLPE insulated cores plus a 1.5mm² earth conductor, all enclosed in a durable orange PVC sheath. Designed for 0.6/1kV applications, this cable provides reliable power distribution and control wiring for light-duty industrial and commercial installations. The XLPE insulation offers superior thermal performance, allowing continuous operation at 90°C, while the orange PVC sheath provides excellent UV resistance for outdoor applications. AS/NZS 5000.1 compliant and SAA approved, this cable is ideal for manufacturing plant control circuits, HVAC systems, and water treatment facility wiring. The compact 2C+E design simplifies installation in tight spaces while maintaining compliance with Australian electrical standards.

PRODUCT SPECIFICATIONS

2 core and earth xlpe cable

Product Description

Suitable for mains, submains and subcircuits unenclosed, in conduit, buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage and where out of balance currents may require a neutral equal in size to the active. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed installations only, in accordance with AS/NZS 5000.1 PVC Best practice guidelines - GBCA
Behaviour in flame and fire	Flame Retardant
Temperature range	Maximum operating temperature: +90℃ Minimum operating temperature: -15°C
Minimum bending radius	Diameter 25.0 mm and below: Installed cables: 4D During installation: 6D Greater than 25.0 mm: Installed cables: 6D During installation: 9D
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 (Class 2). Insulation: X-90 XLPE Colour: Red, White, Blue, Black, Green/yellow Sheath： 5V-90 PVC Colour: Orange
Installation conditions	Industrial equipment In free air In conduit Machines Min. installation temperature: -0°C In trench In ground with protection Induct External building

XLPE/PVC Orange Circular 4 Core+Earth

Core x cross- section mm²	Conductor No.		Nominal insulation thickness		Nominal sheath thickness mm	Approx. Overall Diameter in (mm)	Approx. Weight kg/km
	phase	earth	phase mm	earth mm
	phase	earth	phase mm	earth mm
2x1.5+1x1.5E	7	7	0.7	0.5	1.8	9.8	114
2x2.5+1x2.5E	7	7	0.7	0.6	1.8	11.1	159
2x4+1x2.5E	7	7	0.7	0.6	1.8	11.9	196
2x6+1x2.5E	7	7	0.7	0.6	1.8	12.9	242
2x10+1x4E	7	7	0.7	0.7	1.8	14.9	352
2x16+1x6E	7	7	0.7	0.7	1.8	16.9	501
2x25+1x6E	7	7	0.7	0.7	1.8	20.2	714
2x35+1x10E	7	7	0.7	0.7	1.8	22.0	948
2x50+1x16E	19	7	1.0	0.7	1.8	24.8	1268
2x70+1x25E	19	7	1.1	0.9	1.8	28.4	1788

Conductor Size mm²	Min. Bending Radius mm	Unenclosed Spaced (A)	Unenclosed Touching (A)	Unenclosed partially surrounded by themal insulation (A)	Enclosed partially surrounded by themal insulation (A)	Buried direct (A)	Underground Wiring Enclosure (A)


1.5	45	24	22	18	16	24	24
2.5	50	34	31	25	23	34	34
4	55	45	42	33	29	45	45
6	60	57	53	42	37	56	56
10	70	78	73	58	51	75	75
16	75	104	97	78	66	132	98
25	90	140	131	105	88	170	128
35	100	173	162	129	106	205	154
50	170	211	197	158	130	244	185
70	190	268	250	200	160	300	228

CERTIFICATIONS

2 core earth power cable 0.6/1kv

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment Power Supply

Warehouse Electrical Distribution

Water Treatment Pump System

CASE

Mondelēz Manufacturing & Distribution Facility

Portside Distribution Centre

Western Sydney Recycled Water Scheme

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

earth conductor orange circular power cable

saa approved xlpe pvc orange circular cable

australian compliant orange circular cable

GLOBAL CERTIFICATIONS

saa approval number orange cable

CUSTOMER PHOTOS

australian certified power cable supplier

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

orange circular cable current rating chart

orange circular cable standards australia

2 x 1.5mm2 + 1 x 1.5mm2 earth orange circular cable

2.5mm2 2 core and earth orange circular cable

4mm2 orange circular power cable 0.6/1kv

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

6mm2 orange circular power cable 0.6/1kv

FAQ

Why is the earth conductor the same size as the phase conductors in this cable?

The 1.5mm² earth conductor is sized to match the phase conductors for adequate fault current capacity. This ensures that under fault conditions, the earth conductor can carry the required current without overheating.

Can this cable be used for lighting circuits?

Yes, 2 x 1.5mm² + 1.5mm² earth is commonly used for lighting circuits and small power applications in industrial and commercial settings.

What does the orange sheath indicate?

The orange sheath identifies the cable as being suitable for general power and control applications in industrial environments. It also provides UV resistance for outdoor installations.

Is this cable suitable for cable tray installation?

Yes, the orange circular construction with XLPE insulation and PVC sheath makes this cable suitable for cable tray, conduit, and direct burial installations where approved.
