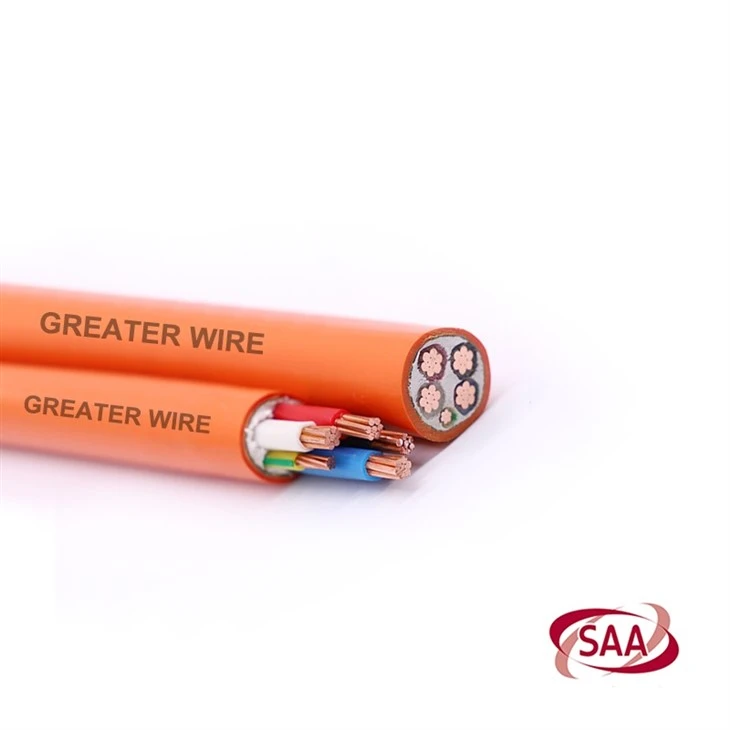

25mm Orange Circular Cable is available with PVC or XLPE insulation and is suitable for a variety of industrial and electrical applications. The cable has an installation temperature range of -25℃ to 75℃ for PVC insulation, a maximum long-term operating temperature of 90℃, and an installation temperature of -40℃ to 90℃ for XLPE insulation. During operation, the cable surface temperature can remain stable in the range of -25℃ to 90℃, ensuring reliable operation in a variety of environmental conditions. During installation, the minimum bending radius of the cable is 18 times the outer diameter of the cable, and 12 times the outer diameter of the cable after installation to ensure that the cable is not damaged and maintains good electrical and mechanical properties.
Application
25mm orange round cable is particularly suitable for places that require high safety and fire resistance, such as power stations, subways, tunnels, high-rise buildings, large industrial mining enterprises, oil fields, coal mines, etc. These places usually require densely distributed cable systems, and the fire resistance of this cable can effectively reduce the risks brought by fire and provide reliable power guarantee for important facilities. In addition, the durability and stability of the cable also ensure efficient power transmission in long-term use, and it is particularly suitable for environments requiring high mechanical strength and chemical resistance.
Feature
Type of conductor: Stranded copper
Conductor Type: 2C+E/3C+E/4C+E
Insulation: X-90 insulation/V-90 insulation
Sheath: 5V-90 sheath
Rated Voltage Uo/U (Um): 0.6/1 kV( X-90 insulation),
450/750V(5V-90 insulation)
Standard: AS/NZS 5000.1 (X-90 Insulated),
AS/NZS 5000.2 (V-90 insulation)
Certification
Orange Circular Cable has passed the SAA certification, X-90 Insulated cable certificate number: SAA-240462-EA/SAA240463; V-90 insulation cable certificate number: SAA-241265-EA. Supports real-time verification on the official website, open and transparent information, and quality is well documented! As a pass to enter the Australian market, SAA certification is not only a basic threshold, but also a hard-core guarantee of cable safety and performance.
Package
Production Line
Greater Wire was established in 1995 as a professional and experienced manufacturer specializing in the cable industry. With over 30 years of production expertise, we are dedicated to delivering reliable and high-performance cable solutions to global markets. Our product range strictly complies with a wide array of international standards and certifications, including SAA, TUV, VDE, UL, cUL, FCC, SGS, RoHS, CE, CB, and more. At Greater Wire, we are driven by a commitment to continuous innovation, superior quality, and customer satisfaction. Whether for industrial, commercial, or residential applications, we strive to provide cable products that meet the highest safety and performance benchmarks.
Case
Partner
FAQ
Q: How can we guarantee quality?
Q: Is logo printing an option for the cables?
Hot Tags: 25mm orange circular cable, China 25mm orange circular cable manufacturers, suppliers, factory, australia cable, SAA Orange Circular Cable, orange circular cable
| Single Core | ||||||
| Conductor | Cable | Min installed bending radius(a)mm | ||||
|
Nominal C.S.A. |
Number and diameter of wires No/mm | Nominal insulation thickness mm |
Overall diameter mm | Approx. mass kg/100m | ||
| Minimum mm | Maximum mm | |||||
| 25 | 7/2.12 | 0.9 | 10.9 | 11.4 | 32 | 45 |
| 35 | 7/2.50 | 0.9 | 12.0 | 12.6 | 42 | 50 |
| 50 | 19/1.80 | 1.0 | 13.5 | 14.1 | 55 | 55 |
| 70 | 19/2.14 | 1.1 | 15.4 | 16.0 | 74 | 65 |
| 95 | 19/2.50 | 1.1 | 17.5 | 18.2 | 102 | 75 |
| 120 | 37/2.01 | 1.2 | 19.3 | 20.0 | 126 | 80 |
| 150 | 37/2.24 | 1.4 | 21.4 | 22.2 | 154 | 90 |
| 185 | 37/2.50 | 1.6 | 23.6 | 24.4 | 192 | 100 |
| 240 | 61/2.25 | 1.7 | 26.6 | 27.4 | 248 | 165 |
| 300 | 61/2.52 | 1.8 | 29.3 | 30.3 | 309 | 180 |
| 400 | 61/2.85 | 2.0 | 32.8 | 33.8 | 391 | 200 |
| 500 | 61/3.20 | 2.2 | 34.6 | 35.5 | 492 | 215 |
| 630 | 61/3.62 | 2.4 | 39.0 | 40.0 | 628 | 240 |
| 2 Core and Earth (2C+E) | ||||||
| Conductor | Cable | Min installed bending radius(a)mm | ||||
|
Nominal C.S.A. |
Number and diameter of wires No/mm | Nominal insulation thickness mm |
Overall diameter mm | Approx. mass kg/100m | ||
| Minimum mm | Maximum mm | |||||
| 1.5 | 7/0.52 | 0.7 | 9.6 | 10.4 | 15 | 42 |
| 2.5 | 7/0.67 | 0.7 | 10.8 | 11.7 | 20 | 47 |
| 4 | 7/0.85 | 0.7 | 11.6 | 12.5 | 25 | 50 |
| 6 | 7/1.04 | 0.7 | 12.6 | 13.6 | 30 | 54 |
| 10 | 7/1.35 | 0.7 | 14.4 | 15.4 | 42 | 62 |
| 16 | 7/1.70 | 0.7 | 16.8 | 17.7 | 55 | 71 |
| 3 Core and Earth (3C+E) | ||||||
| Conductor | Cable | Min installed bending radius(a)mm | ||||
|
Nominal C.S.A. |
Number and diameter of wires No/mm | Nominal insulation thickness mm |
Overall diameter mm | Approx. mass kg/100m | ||
| Minimum mm | Maximum mm | |||||
| 25 | 7/2.12 | 0.9 | 21.6 | 22.6 | 104 | 90 |
| 35 | 7/2.50 | 0.9 | 24.2 | 25.3 | 137 | 150 |
| 50 | 19/1.80 | 1.0 | 27.4 | 28.7 | 185 | 170 |
| 70 | 19/2.14 | 1.1 | 32.1 | 33.3 | 256 | 200 |
| 95 | 19/2.50 | 1.1 | 36.0 | 37.3 | 339 | 220 |
| 120 | 37/2.01 | 1.2 | 40.1 | 41.4 | 425 | 250 |
| 150 | 37/2.24 | 1.4 | 44.8 | 46.3 | 528 | 280 |
| 185 | 37/2.50 | 1.6 | 50.4 | 51.9 | 669 | 310 |
| 240 | 61/2.25 | 1.7 | 56.9 | 58.5 | 872 | 350 |
| 300 | 61/2.52 | 1.8 | 63.0 | 64.8 | 1089 | 390 |
| 4 Core and Earth (4C+E) | ||||||
| Conductor | Cable | Min installed bending radius(a)mm | ||||
|
Nominal C.S.A. |
Number and diameter of wires No/mm | Nominal insulation thickness mm |
Overall diameter mm | Approx. mass kg/100m | ||
| Minimum mm | Maximum mm | |||||
| 16 | 7/1.70 | 0.7 | 19.59 | 21.6 | 87.2 | 85 |
| 25 | 7/2.12 | 0.9 | 24.0 | 25.1 | 132 | 150 |
| 35 | 7/2.50 | 0.9 | 26.8 | 28.1 | 175 | 170 |
| 50 | 19/1.80 | 1.0 | 30.8 | 32.2 | 237 | 190 |
| 70 | 19/2.14 | 1.1 | 36.1 | 37.3 | 328 | 220 |
| 95 | 19/2.50 | 1.1 | 40.6 | 42.1 | 439 | 250 |
| 120 | 37/2.01 | 1.2 | 45.3 | 46.7 | 550 | 280 |
| 150 | 37/2.24 | 1.4 | 50.7 | 52.3 | 684 | 310 |
| 185 | 37/2.50 | 1.6 | 57.0 | 58.6 | 862 | 350 |
| 240 | 61/2.25 | 1.7 | 64.4 | 66.2 | 1127 | 400 |
| 300 | 61/2.52 | 1.8 | 71.3 | 73.3 | 1407 | 440 |
