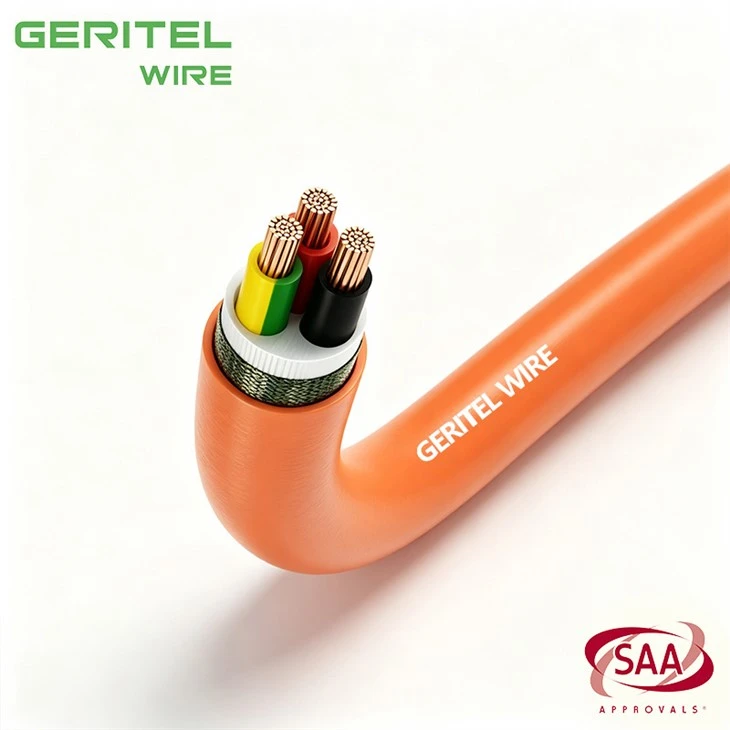

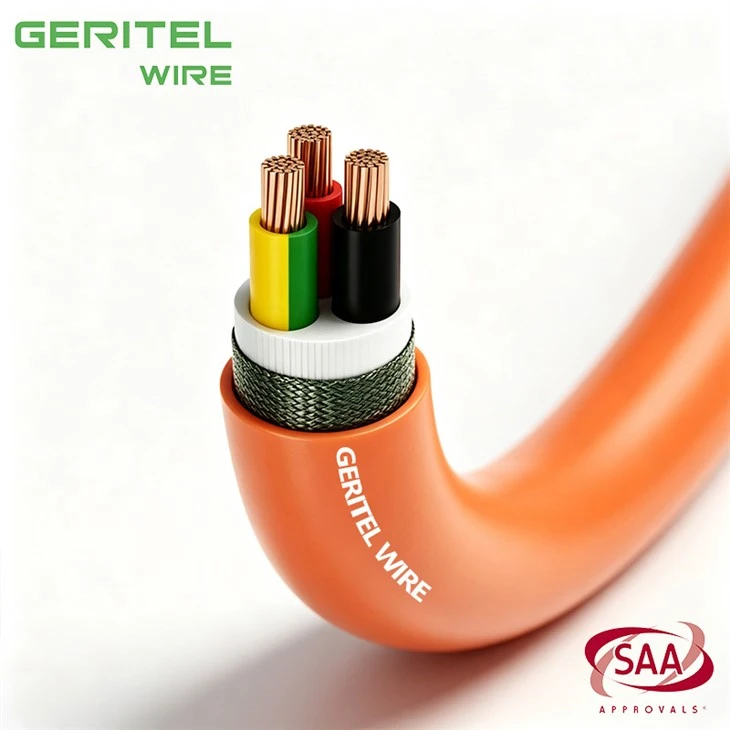

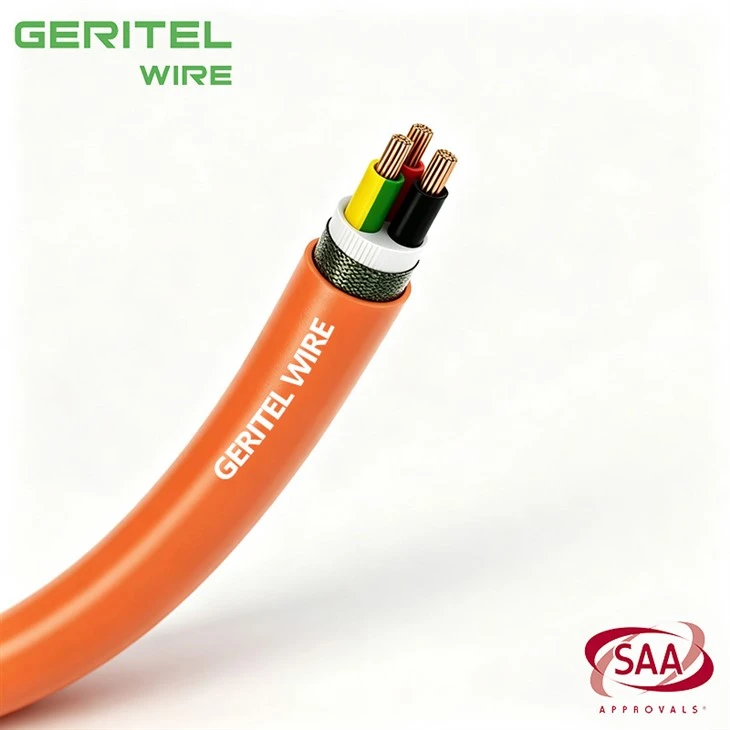

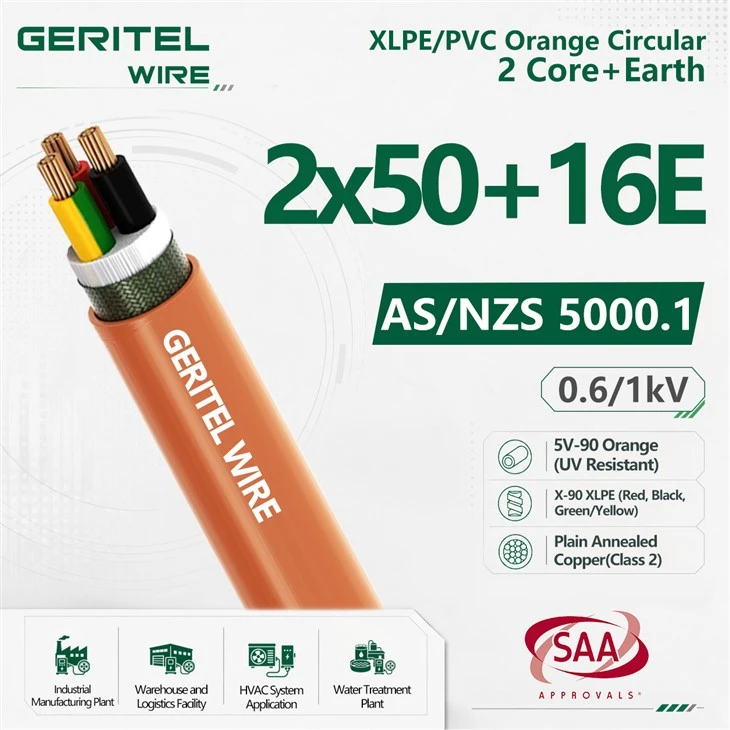

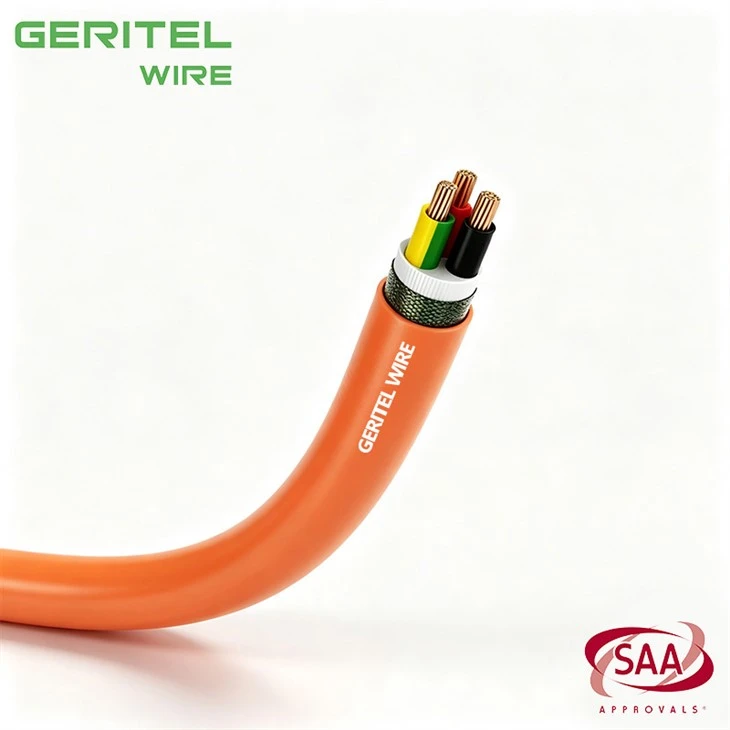

2 x 50mm² + 16mm² Earth Orange Circular Cable – High-Capacity 2C+E Cable for Large Industrial Mains Supply
PRODUCT SPECIFICATIONS
Product Description
Suitable for mains, submains and subcircuits unenclosed, in conduit, buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage and where out of balance currents may require a neutral equal in size to the active. Suitable where space is at a premium and/or where conditions of overload may occur.
| SPECIFICATIONS | |
| Approvals | Suitable for fixed installations only, in accordance with AS/NZS 5000.1 PVC Best practice guidelines - GBCA |
| Behaviour in flame and fire | Flame Retardant |
| Temperature range |
Maximum operating temperature: +90℃ Minimum operating temperature: -15°C |
| Minimum bending radius |
Diameter 25.0 mm and below: Installed cables: 4D Greater than 25.0 mm: |
| Resistance to | Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional |
| Cable design |
Conductor: Plain annealed copper conductor to AS/NZS 1125 (Class 2). X-90 XLPE 5V-90 PVC Colour: Orange |
| Installation conditions | Industrial equipment In free air In conduit Machines Min. installation temperature: -0°C In trench In ground with protection Induct External building |
XLPE/PVC Orange Circular 4 Core+Earth
|
Core x cross- section |
Conductor No. |
Nominal insulation thickness |
Nominal sheath thickness |
Approx. Overall Diameter |
Approx. Weight kg/km |
||
| phase | earth | phase mm |
earth mm |
||||
| 2x1.5+1x1.5E | 7 | 7 | 0.7 | 0.5 | 1.8 | 9.8 | 114 |
| 2x2.5+1x2.5E | 7 | 7 | 0.7 | 0.6 | 1.8 | 11.1 | 159 |
| 2x4+1x2.5E | 7 | 7 | 0.7 | 0.6 | 1.8 | 11.9 | 196 |
| 2x6+1x2.5E | 7 | 7 | 0.7 | 0.6 | 1.8 | 12.9 | 242 |
| 2x10+1x4E | 7 | 7 | 0.7 | 0.7 | 1.8 | 14.9 | 352 |
| 2x16+1x6E | 7 | 7 | 0.7 | 0.7 | 1.8 | 16.9 | 501 |
| 2x25+1x6E | 7 | 7 | 0.7 | 0.7 | 1.8 | 20.2 | 714 |
| 2x35+1x10E | 7 | 7 | 0.7 | 0.7 | 1.8 | 22.0 | 948 |
| 2x50+1x16E | 19 | 7 | 1.0 | 0.7 | 1.8 | 24.8 | 1268 |
| 2x70+1x25E | 19 | 7 | 1.1 | 0.9 | 1.8 | 28.4 | 1788 |
| Conductor Size mm² |
Min. Bending |
Unenclosed Spaced |
Unenclosed Touching (A) |
Unenclosed partially surrounded by |
Enclosed partially surrounded by themal insulation (A) |
Buried direct (A) |
Underground Wiring Enclosure (A) |
| 1.5 | 45 | 24 | 22 | 18 | 16 | 24 | 24 |
| 2.5 | 50 | 34 | 31 | 25 | 23 | 34 | 34 |
| 4 | 55 | 45 | 42 | 33 | 29 | 45 | 45 |
| 6 | 60 | 57 | 53 | 42 | 37 | 56 | 56 |
| 10 | 70 | 78 | 73 | 58 | 51 | 75 | 75 |
| 16 | 75 | 104 | 97 | 78 | 66 | 132 | 98 |
| 25 | 90 | 140 | 131 | 105 | 88 | 170 | 128 |
| 35 | 100 | 173 | 162 | 129 | 106 | 205 | 154 |
| 50 | 170 | 211 | 197 | 158 | 130 | 244 | 185 |
| 70 | 190 | 268 | 250 | 200 | 160 | 300 | 228 |
