Name: China SAA Approved SDI Cable – 450 750V V90 Single Core Supply For Australian Projects Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314971897

Description

Technical Parameters

Certification

SDI cable

PRODUCT REAL SHOT

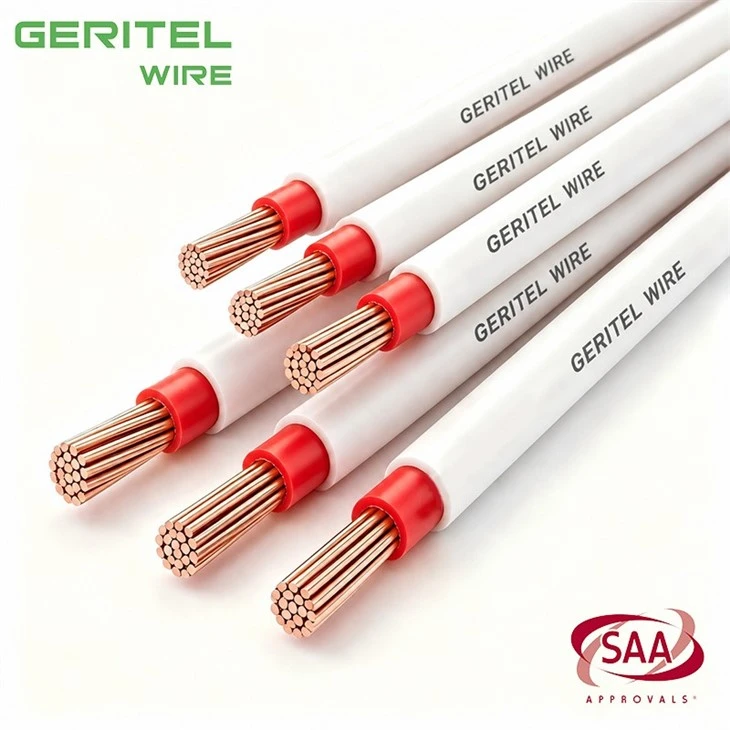

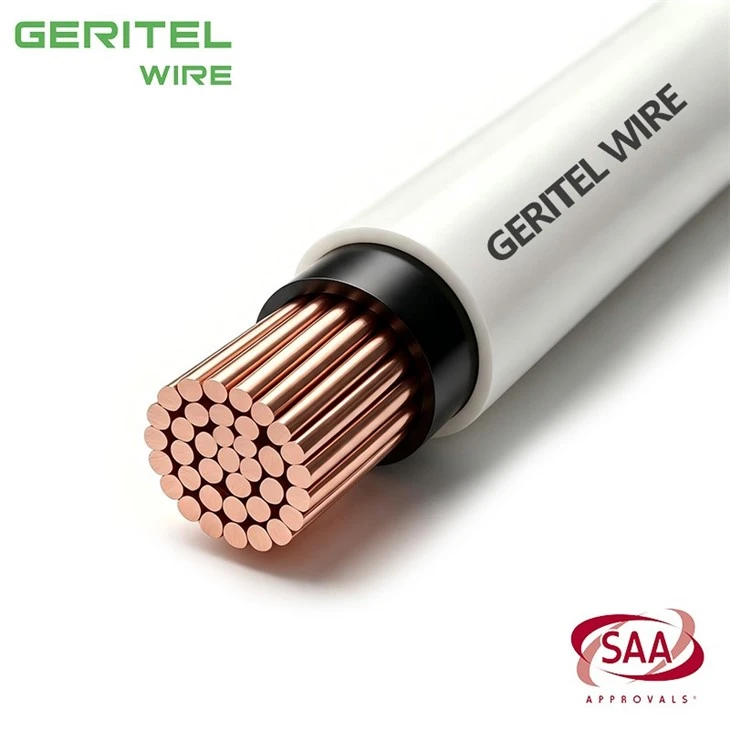

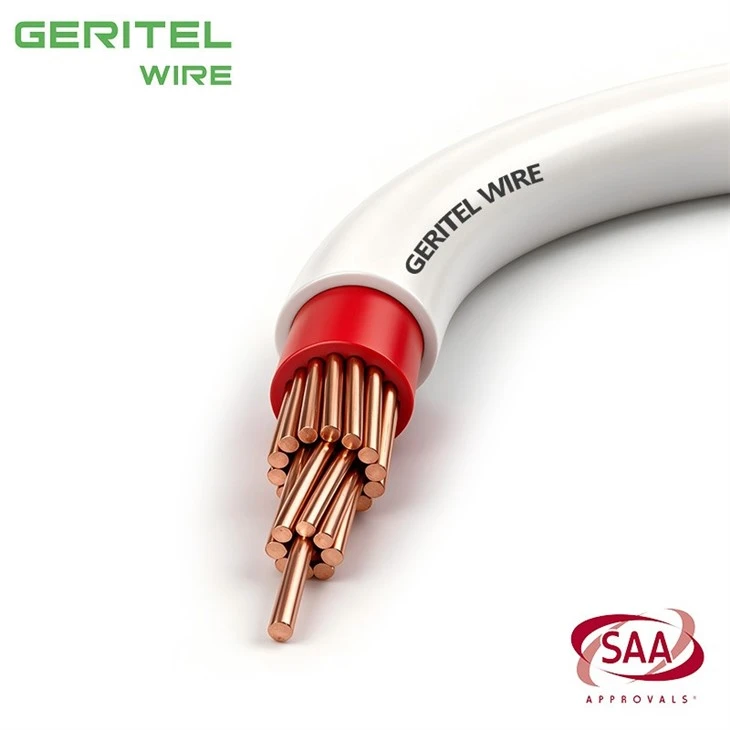

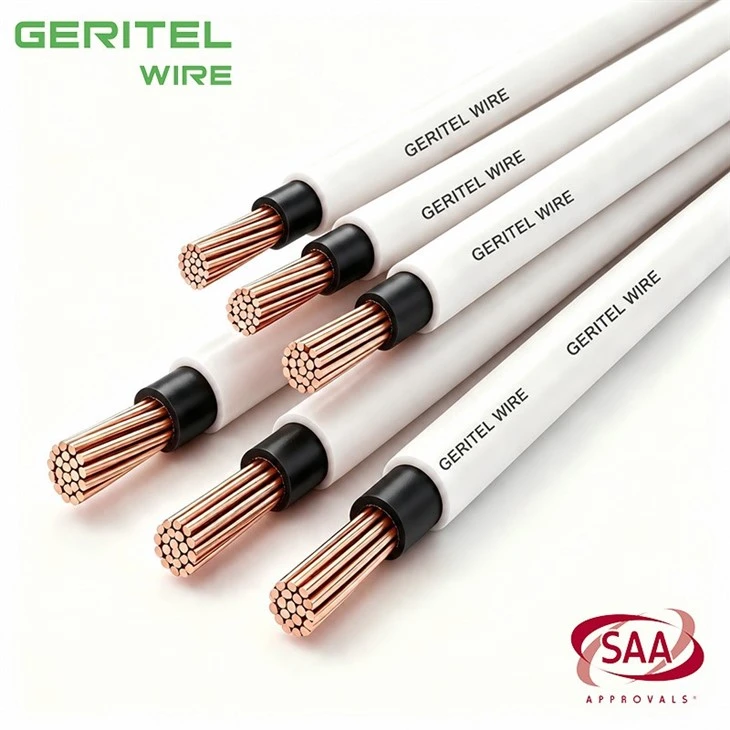

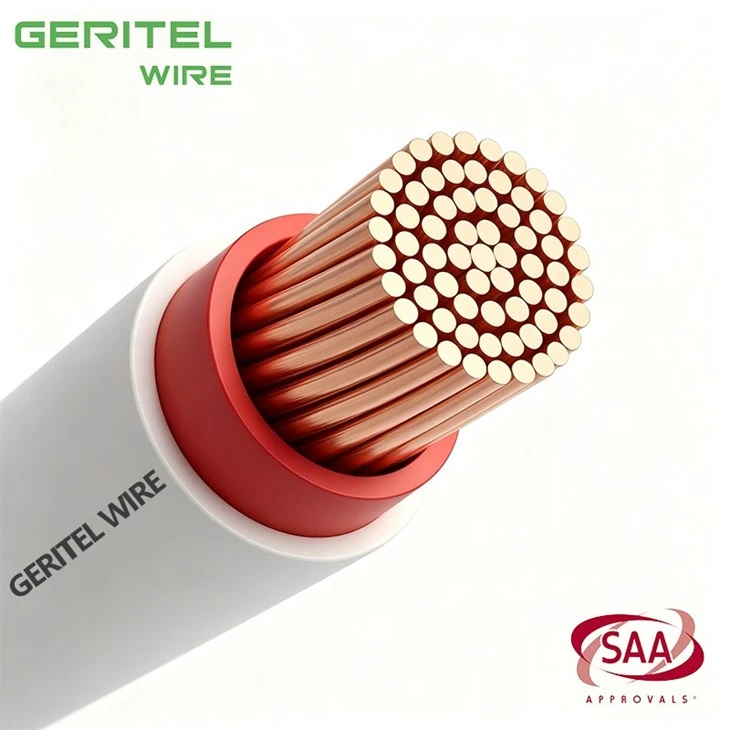

V90 PVC Insulated and PVC Sheathed Copper Cable for Australian Fixed Electrical Installations

GERITEL WIRE supplies SAA Approved SDI Cable for contractors, wholesalers and project buyers who need documented 450/750V fixed wiring for Australian installations. The construction combines a stranded annealed copper conductor, V-90 PVC insulation and a protective PVC outer sheath to support stable conductivity and clearer circuit identification. It is intended for mains, submains and subcircuits installed in free air, conduit, underground ducts or protected trenches where mechanical damage is not expected. Red or black insulation options and sizes from 1mm² to 16mm² support different project schedules. OEM printing, custom lengths, reels and export packaging are available, while certificate SAA-241265-EA helps buyers review compliance files before ordering.

PRODUCT SPECIFICATIONS

single core SDI wire

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

PVC SDI cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

single core double insulated wire

CUSTOMER PHOTOS

double insulated building cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What should I order if I need a protected single-core building wire?

A single-core SDI cable is the appropriate GERITEL product when the design calls for one copper conductor with both primary insulation and a separate outer sheath. It is intended for fixed low-voltage wiring where the cable is correctly supported and protected.

What does SDI mean in the Australian electrical market?

In Australian electrical terminology, Single Double Insulated cable describes one insulated conductor covered by an additional sheath. It is an electrical power-wiring product and should not be confused with the SDI coaxial cables used for cameras and broadcast equipment.

Which materials are used in the GERITEL SDI construction?

This PVC insulated and sheathed cable uses a plain annealed copper conductor, V-90 PVC around the conductor and a separate PVC outer layer. The two polymer layers perform different functions: electrical insulation around the copper and external protection around the insulated core.

Is the conductor aluminium or copper?

GERITEL supplies annealed copper SDI wire rather than aluminium or copper-clad aluminium for this product range. The copper construction provides dependable conductivity and termination performance when the correct size, connector and installation method are used.
