Name: China Single Core SDI Wire With V90 PVC Insulation For Fixed Building Circuits Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314972011

Description

Technical Parameters

Certification

V 90 PVC wire

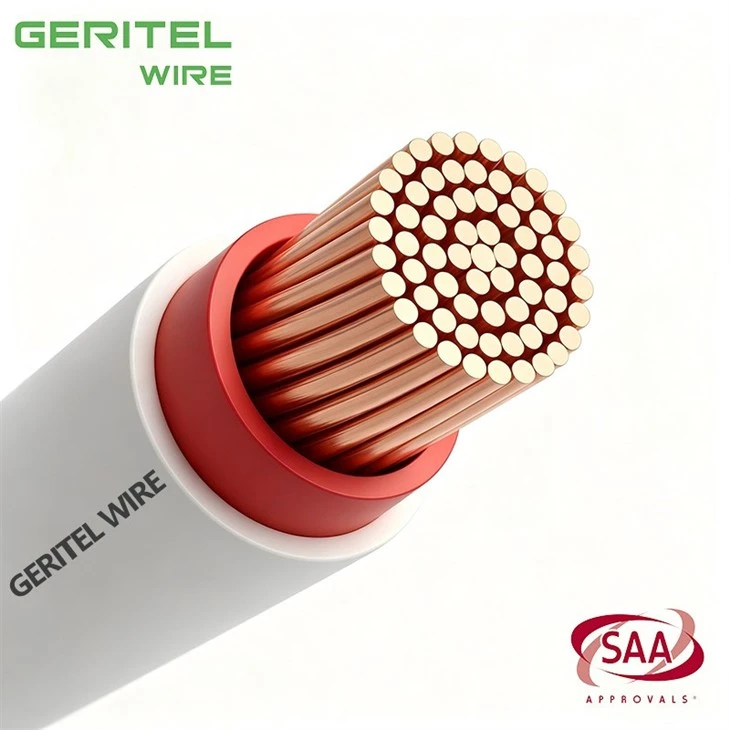

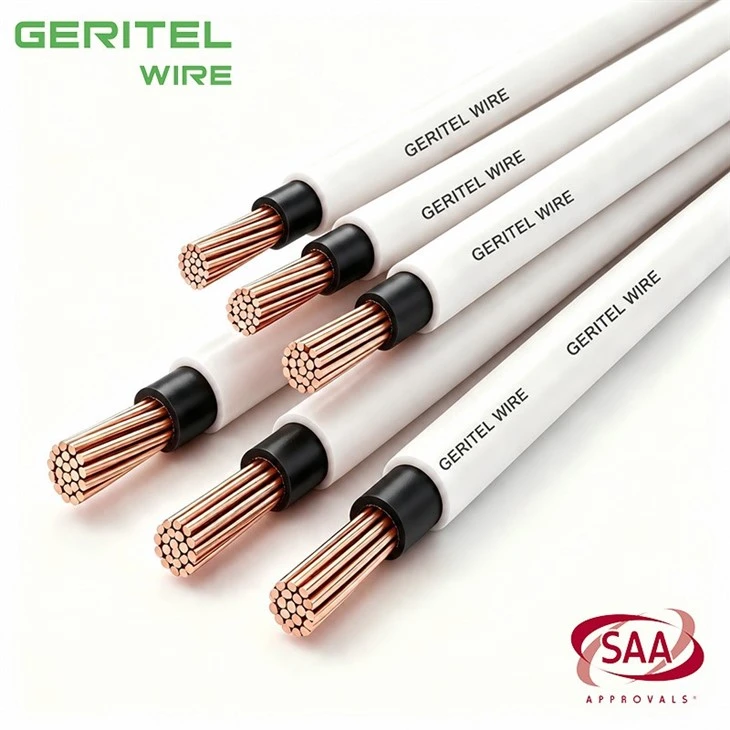

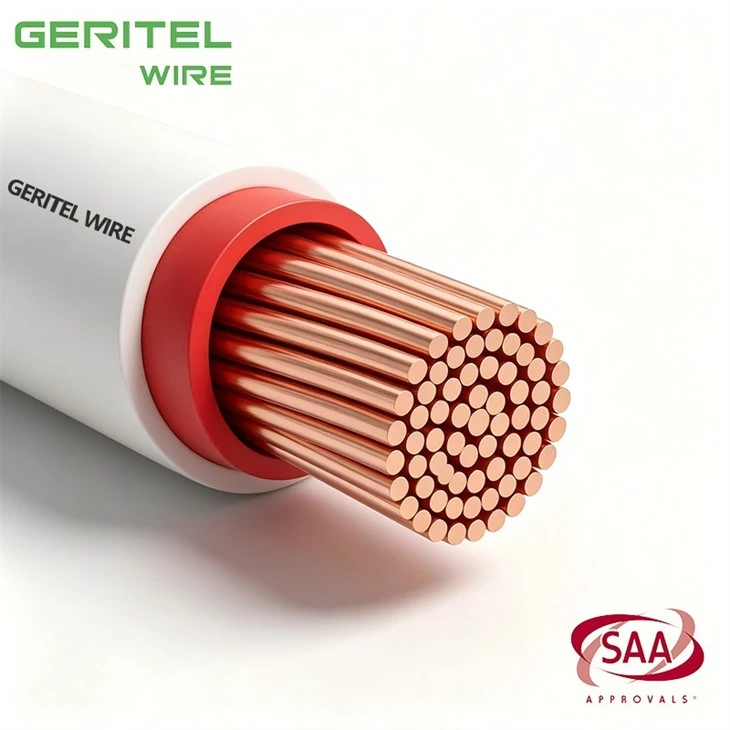

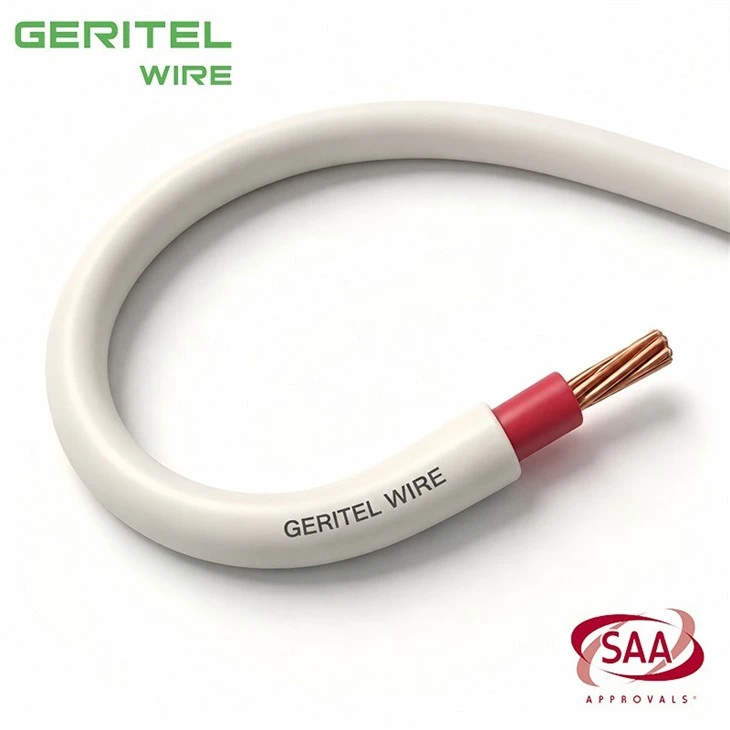

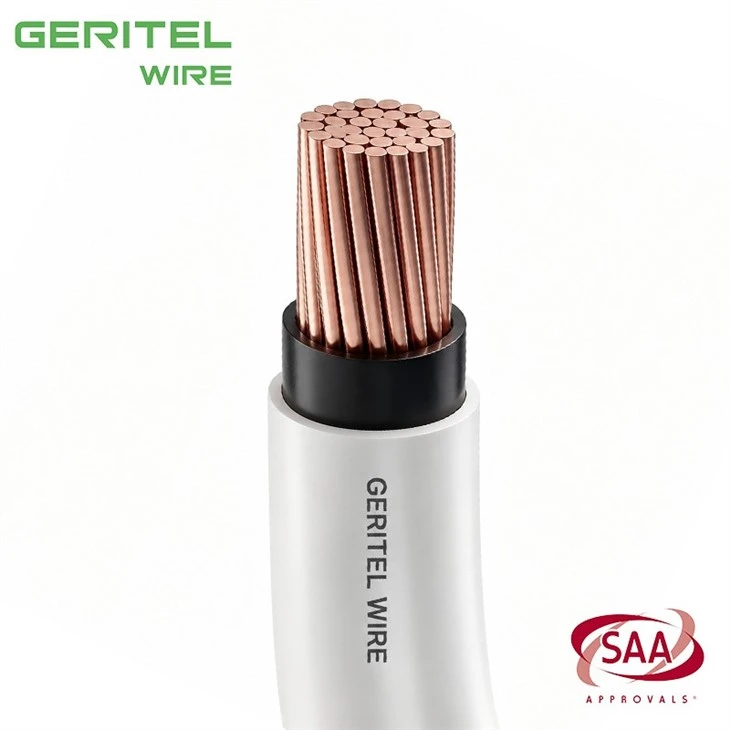

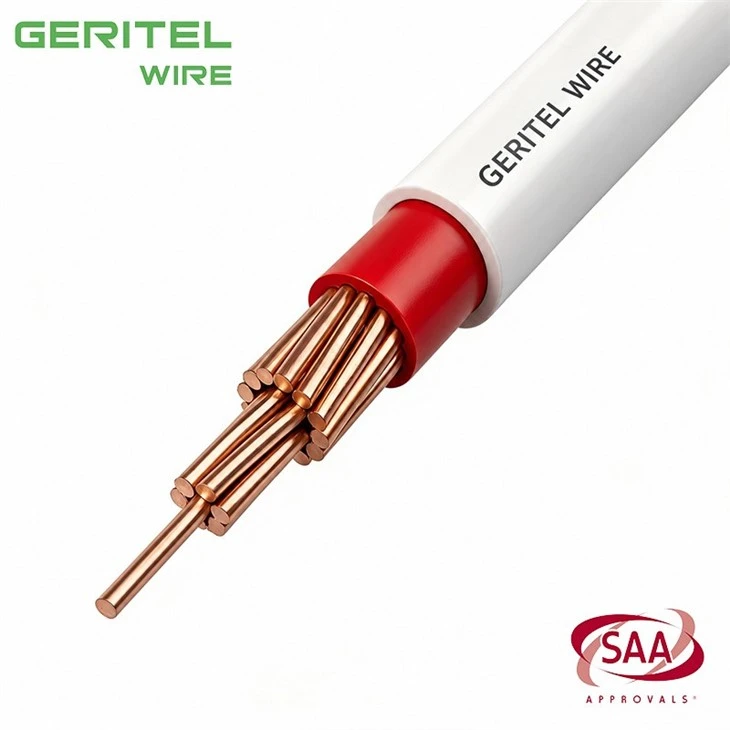

PRODUCT REAL SHOT

Double Layer PVC Protection for Residential Commercial and Light Industrial Power Circuits

When a building project needs one conductor with an additional protective layer, GERITEL WIRE Single Core SDI Wire offers a practical alternative to unsheathed building wire. A stranded annealed copper conductor provides dependable electrical performance, while V-90 PVC insulation and the white PVC sheath separate electrical insulation from external protection. This construction suits fixed mains, distribution and final circuit work in homes, offices and light industrial facilities. Installers may route the product in conduit, cable ducts or other protected wiring systems according to the project design. Red and black core identification, multiple reel lengths and OEM sheath marking can be arranged. GERITEL WIRE also supports technical confirmation, packing design and export documents for repeat supply.

PRODUCT SPECIFICATIONS

Australian building cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

Australian building wire

PACKAGING

Roll

SDI cable for Australian electrical installations

Plastic Reel

SDI cable for New Zealand electrical installations

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

SDI power wire

CUSTOMER PHOTOS

general wiring SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

450 750V PVC insulated PVC sheathed cable

450 750V PVC insulated PVC sheathed wire

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What conductor flexibility class is used?

The product uses a Class 2 stranded copper conductor designed for fixed wiring. Strand count and individual wire diameter depend on the conductor size and follow the approved construction, so GERITEL WIRE does not change the internal copper arrangement without technical review.

Which standard core colours can I choose?

The standard GERITEL range is supplied as red or black insulated SDI cable beneath a white PVC sheath. The core colour is visible at prepared terminations and supports circuit identification, but the final selection must follow the identification rules used on your project.

Why is there a white outer layer over the coloured insulation?

The white sheathed SDI wire has an additional PVC layer over the red or black insulated core. This sheath adds normal external protection and provides a clear surface for product printing and traceability; it does not turn the cable into an armoured or submersible product.

What voltage is printed on this product?

GERITEL 450/750V SDI cable is intended for suitable low-voltage fixed electrical circuits. The Uo/U rating must be matched to the installation design and local wiring rules, and it should not be substituted for a larger 0.6/1kV SDI construction.
