Name: China 6 Mm2 Single Core SDI Cable For Submains And Feeder Wiring Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314428390

Description

Technical Parameters

Certification

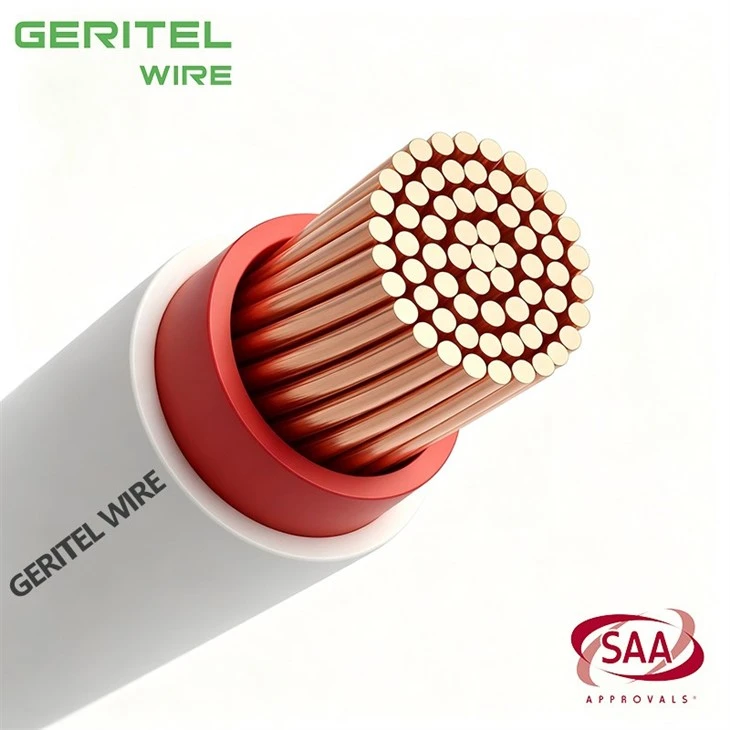

6mm SDI cable

PRODUCT REAL SHOT

6 mm² Feeder Wiring Cable for Switchboards and Building Distribution

GERITEL WIRE offers this size for protected submains, feeder routes and selected equipment circuits in residential, commercial and light-industrial projects. Its stranded annealed copper conductor provides practical handling for installation, while V-90 PVC insulation plus a PVC outer sheath gives the single-core double-insulated structure used for SDI fixed wiring. The page is optimized around 6 mm² SDI submain cable, 6 mm² switchboard feeder cable and 6 mm² stranded copper power cable to reflect how contractors and procurement teams search when planning distribution work. AS/NZS 5000.2 positioning and SAA approval SAA-241265-EA support Australian-market specification. Final circuit use must be selected according to load, voltage drop, installation method and mechanical protection requirements.

PRODUCT SPECIFICATIONS

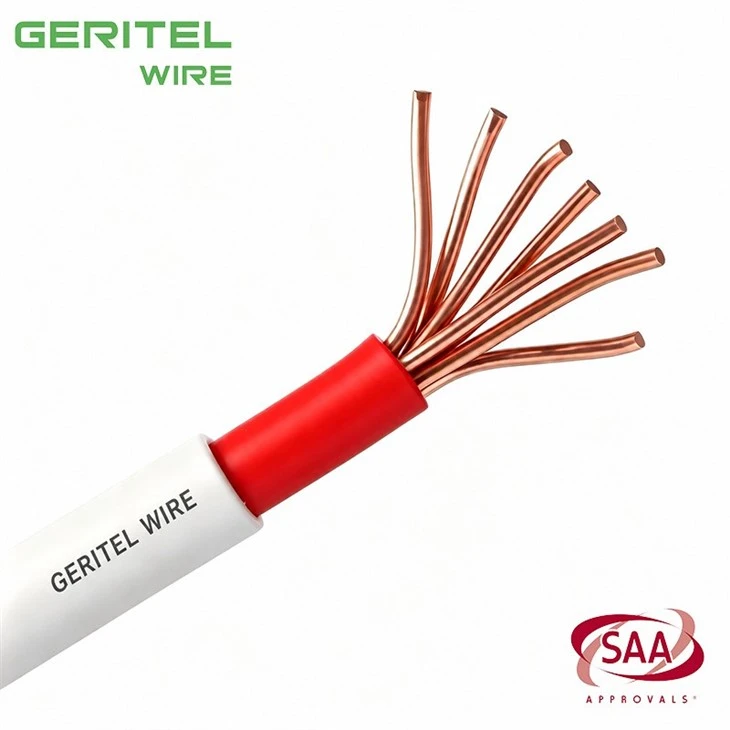

6mm single double insulated cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

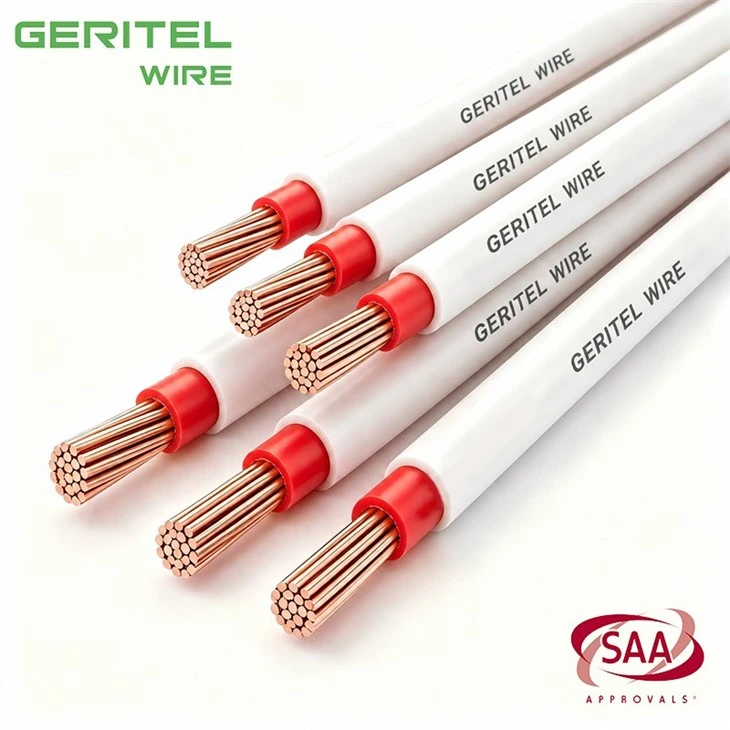

6mm single core double insulated cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

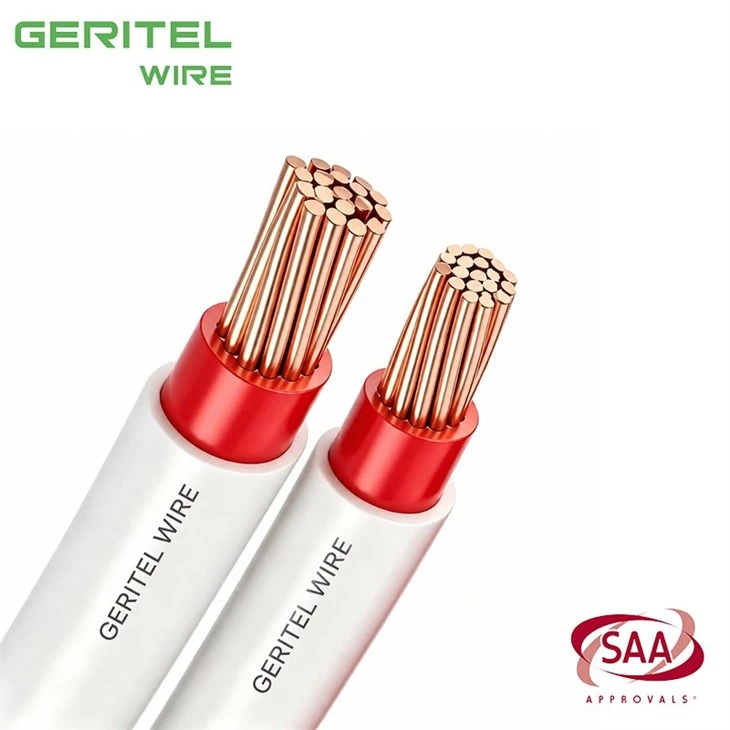

6mm white sheath double insulated cable

CUSTOMER PHOTOS

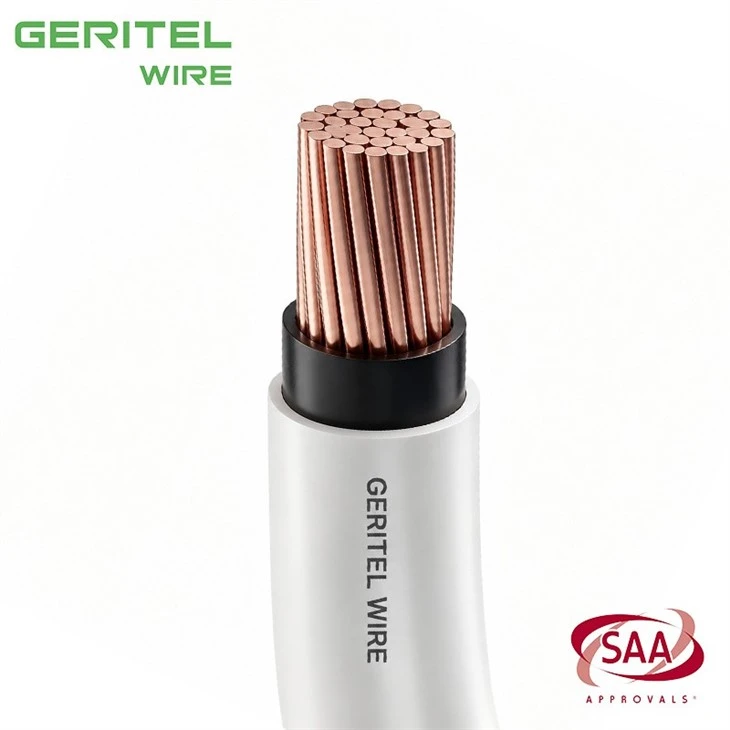

6mm fixed wiring SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can GERITEL WIRE supply multiple Australian cable types in one project?

The company offers multiple Australian-standard cable families, which can simplify consolidated project sourcing. For Australian cable project supplier, GERITEL WIRE focuses on B2B clarity before production: technical requirements, certificate scope, printing, packing and order quantities should be agreed in writing. This helps wholesalers, brand owners and contractors reduce specification changes and receiving problems later in the project.

Can you provide samples before a bulk order?

Sample availability can be discussed for construction, colour and handling review before mass production. For SDI cable sample, GERITEL WIRE focuses on B2B clarity before production: technical requirements, certificate scope, printing, packing and order quantities should be agreed in writing. This helps wholesalers, brand owners and contractors reduce specification changes and receiving problems later in the project.

Can you support repeat orders with the same specification?

Yes, repeat production can be managed against an agreed specification and approved sample/document set. For repeat SDI cable supply, GERITEL WIRE focuses on B2B clarity before production: technical requirements, certificate scope, printing, packing and order quantities should be agreed in writing. This helps wholesalers, brand owners and contractors reduce specification changes and receiving problems later in the project.

Can you help an importer review a cable specification?

GERITEL WIRE can compare requested construction and documentation with the offered product before quotation. For SDI cable technical support, GERITEL WIRE focuses on B2B clarity before production: technical requirements, certificate scope, printing, packing and order quantities should be agreed in writing. This helps wholesalers, brand owners and contractors reduce specification changes and receiving problems later in the project.

Hot Tags: 6 mm2 single core sdi cable for submains and feeder wiring, China 6 mm2 single core sdi cable for submains and feeder wiring manufacturers, suppliers, factory, SAA Approval SDI Cable, sdi cable
