10mm SDI cable

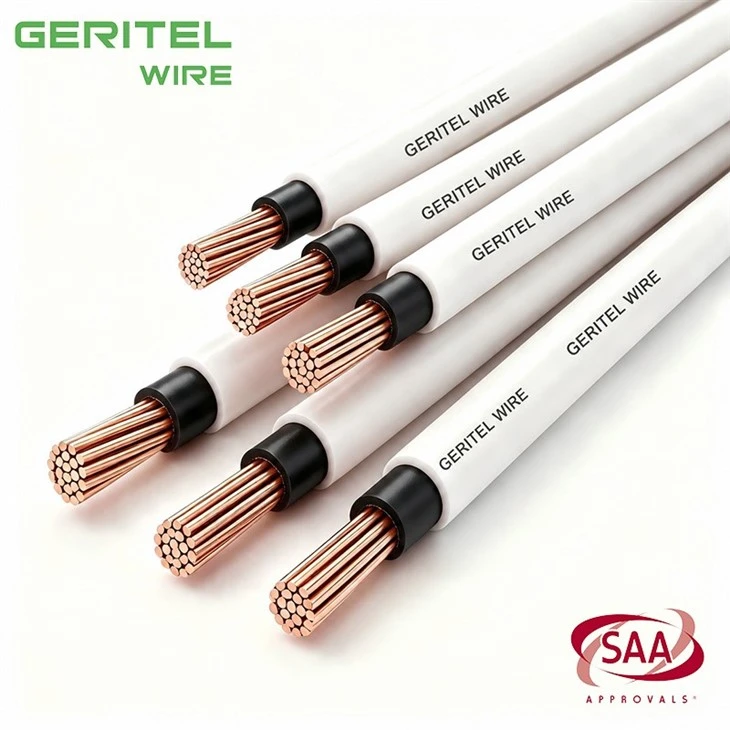

PRODUCT REAL SHOT

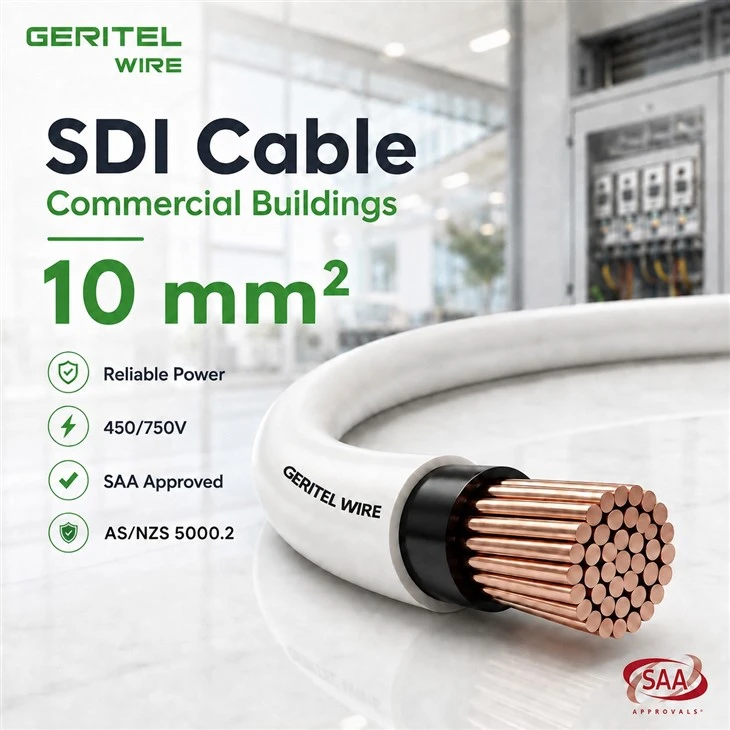

10 mm² Consumer Mains Cable for Protected Building Power Distribution

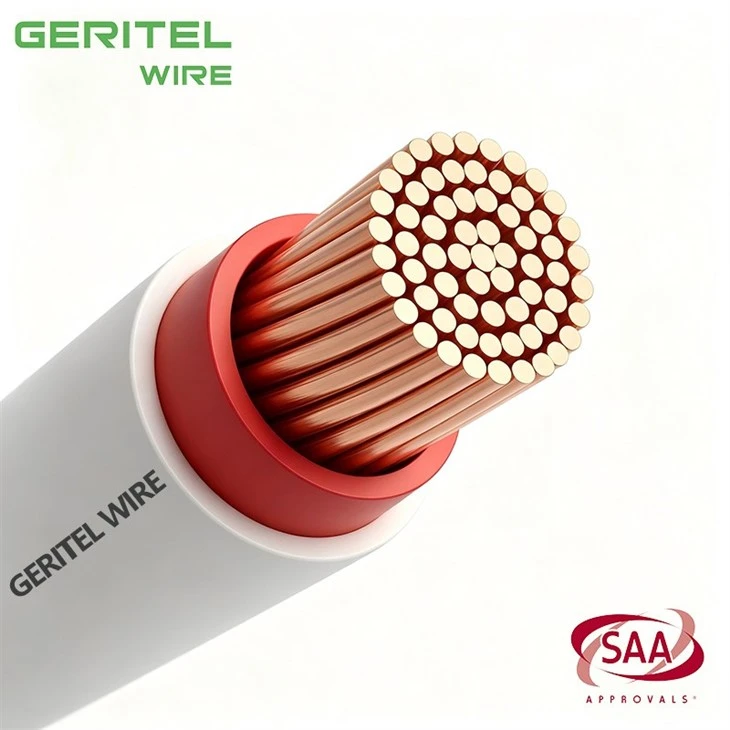

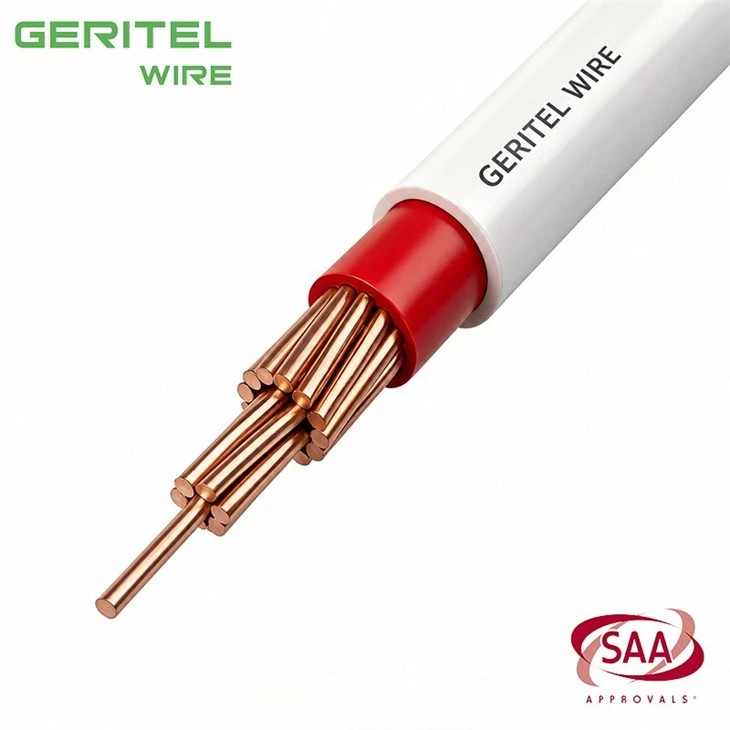

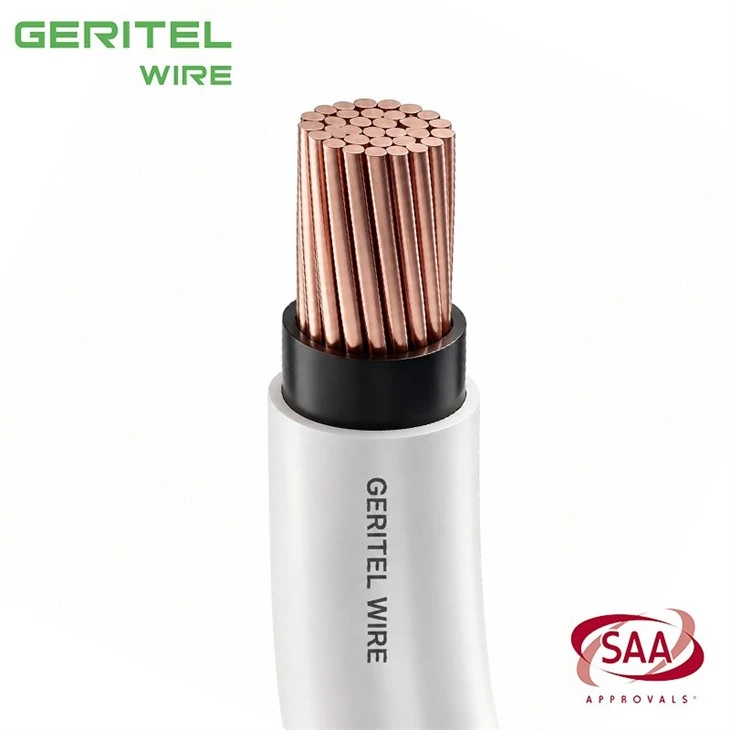

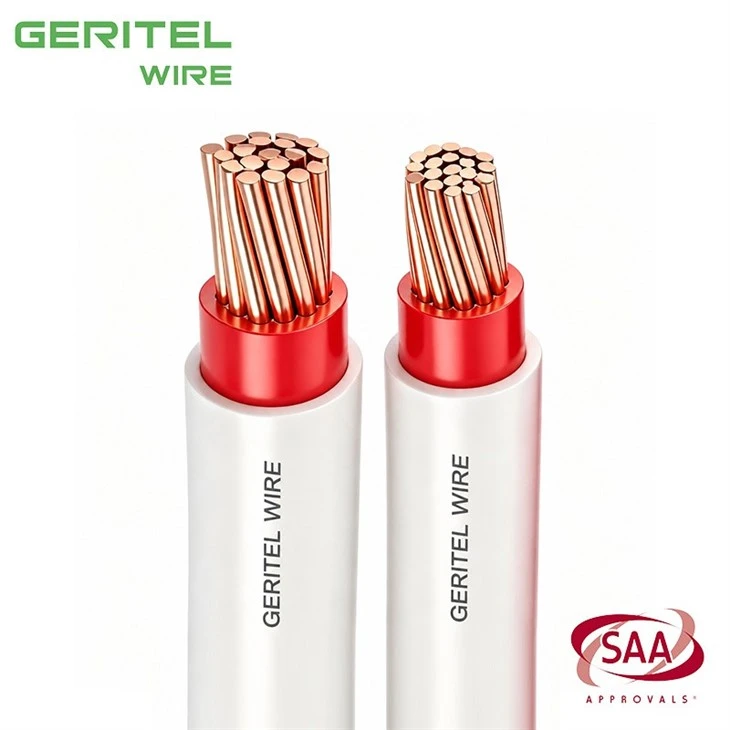

For projects moving higher current between main boards, distribution points and appropriately designed consumer-mains routes, GERITEL WIRE provides this larger SDI size with a familiar fixed-wiring construction. The conductor is stranded annealed copper, insulated with V-90 PVC and protected by a further PVC sheath to support orderly cable routing and reliable termination work. Searches for 10 mm² SDI submain cable, 10 mm² switchboard feed cable and 10 mm² single double insulated power cable are used to capture electricians, wholesalers and project buyers looking for a defined distribution solution. The product is aligned with AS/NZS 5000.2 and supported by SAA approval SAA-241265-EA. Actual suitability must be checked against design current, voltage drop, installation conditions and applicable Australian wiring requirements.

PRODUCT SPECIFICATIONS

10mm single double insulated cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

10mm single core double insulated cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

10mm white sheath double insulated cable

CUSTOMER PHOTOS

10mm fixed wiring SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What should I include in an RFQ for SDI cable?

Include conductor size, colour, voltage, standard/certificate requirement, quantity, packaging, marking and destination. For SDI cable RFQ, GERITEL WIRE focuses on B2B clarity before production: technical requirements, certificate scope, printing, packing and order quantities should be agreed in writing. This helps wholesalers, brand owners and contractors reduce specification changes and receiving problems later in the project.

What quality documents can GERITEL WIRE provide for SDI cable?

Buyers can request the product datasheet, certificate copy and available factory quality records relevant to the order. A practical SDI cable quality documents process should connect the physical cable to the approved datasheet, certificate/model information and purchase order. GERITEL WIRE can support pre-shipment document and packing checks, while the buyer should maintain traceability and stop installation if delivered construction or markings do not match the approved requirement.

How can I check that the delivered cable matches my order?

Verify reel labels, conductor size, colour, marking, length, outer diameter and the order/document references. A practical SDI cable incoming inspection process should connect the physical cable to the approved datasheet, certificate/model information and purchase order. GERITEL WIRE can support pre-shipment document and packing checks, while the buyer should maintain traceability and stop installation if delivered construction or markings do not match the approved requirement.

What should I do if the cable marking is different from my approved sample?

Stop installation and compare the delivered reel, packing list and approved specification before accepting the difference. A practical SDI cable marking verification process should connect the physical cable to the approved datasheet, certificate/model information and purchase order. GERITEL WIRE can support pre-shipment document and packing checks, while the buyer should maintain traceability and stop installation if delivered construction or markings do not match the approved requirement.
