16mm SDI cable

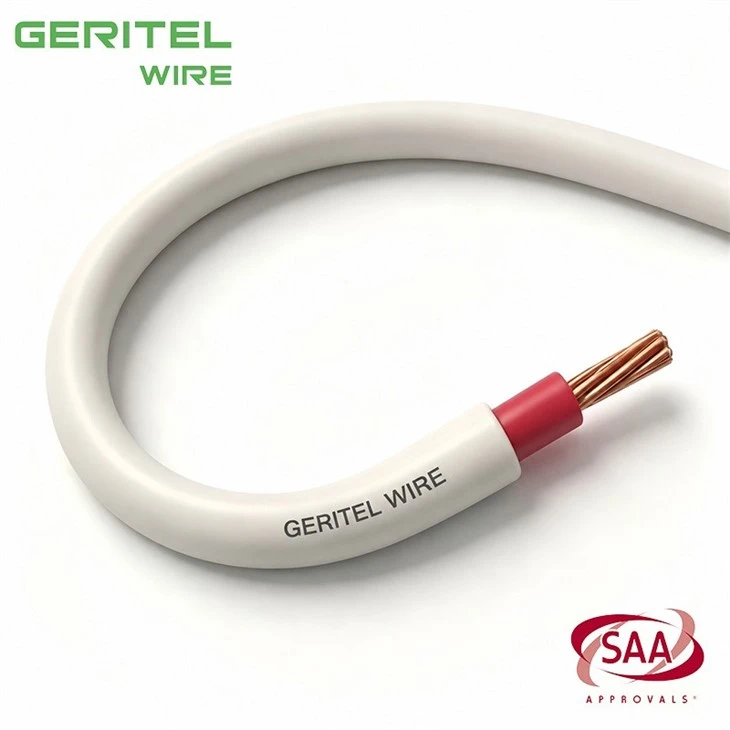

PRODUCT REAL SHOT

16 mm² Switchboard Tails Cable for Submains and Consumer-Mains Routes

GERITEL WIRE positions this size for larger protected fixed-wiring duties such as submains, switchboard tails and building distribution routes. Stranded annealed copper supports installation and termination, while V-90 PVC insulation and the additional PVC sheath provide the double-insulated SDI construction used in Australian projects. The page naturally targets 16 mm² single core power cable, 16 mm² SDI feeder cable and 16 mm² Australian standard electrical cable, helping contractors, engineers and importers reach the correct size-specific product. AS/NZS 5000.2 positioning and SAA approval SAA-241265-EA support project documentation. Final circuit rating and use must be confirmed from installation conditions, voltage drop, protective devices and local wiring rules.

PRODUCT SPECIFICATIONS

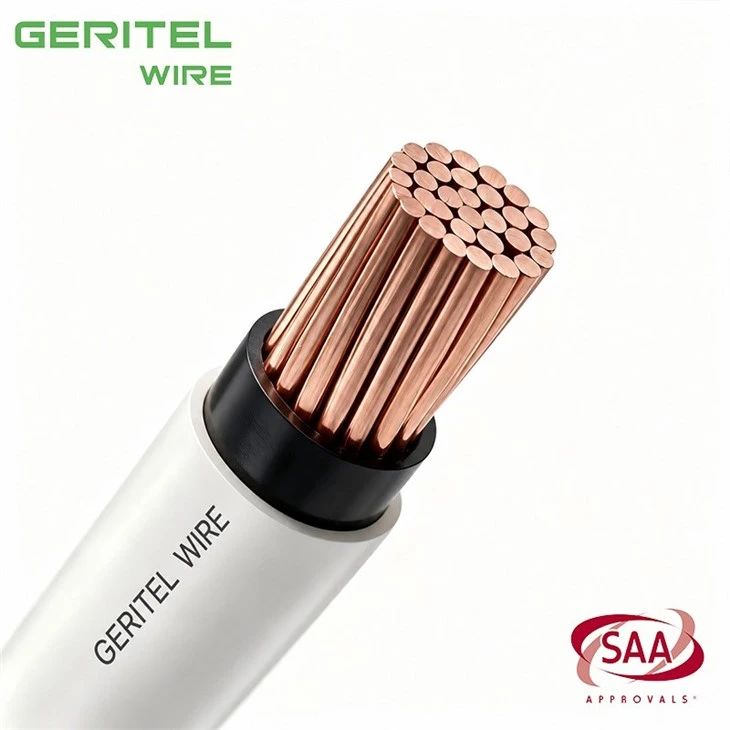

16mm single double insulated cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

16mm single core double insulated cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

16mm white sheath double insulated cable

CUSTOMER PHOTOS

16mm fixed wiring SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

How can I verify conductor size?

Use appropriate inspection methods and compare conductor construction/diameter or resistance data with the specification and standard. A practical SDI cable conductor size verification process should connect the physical cable to the approved datasheet, certificate/model information and purchase order. GERITEL WIRE can support pre-shipment document and packing checks, while the buyer should maintain traceability and stop installation if delivered construction or markings do not match the approved requirement.

What should I check before terminating the cable?

Inspect for sheath damage, crushed sections, contamination, wrong colour/size and any storage or transport damage. A practical SDI cable pre installation inspection process should connect the physical cable to the approved datasheet, certificate/model information and purchase order. GERITEL WIRE can support pre-shipment document and packing checks, while the buyer should maintain traceability and stop installation if delivered construction or markings do not match the approved requirement.

What if the cable is difficult to pull through conduit?

Check conduit fill, bends, route length, cable diameter and pulling method instead of applying excessive force. A practical SDI cable pulling problem process should connect the physical cable to the approved datasheet, certificate/model information and purchase order. GERITEL WIRE can support pre-shipment document and packing checks, while the buyer should maintain traceability and stop installation if delivered construction or markings do not match the approved requirement.

What if the outer sheath is damaged during installation?

Do not simply tape over significant damage; have the affected section assessed and replaced if the insulation system has been compromised. A practical damaged SDI cable sheath process should connect the physical cable to the approved datasheet, certificate/model information and purchase order. GERITEL WIRE can support pre-shipment document and packing checks, while the buyer should maintain traceability and stop installation if delivered construction or markings do not match the approved requirement.
