Name: China 450 750V V90 SDI Cable Designed For Low Voltage Fixed Power Installations Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314972130

Description

Technical Parameters

Certification

SAA approved 450 750V SDI wire

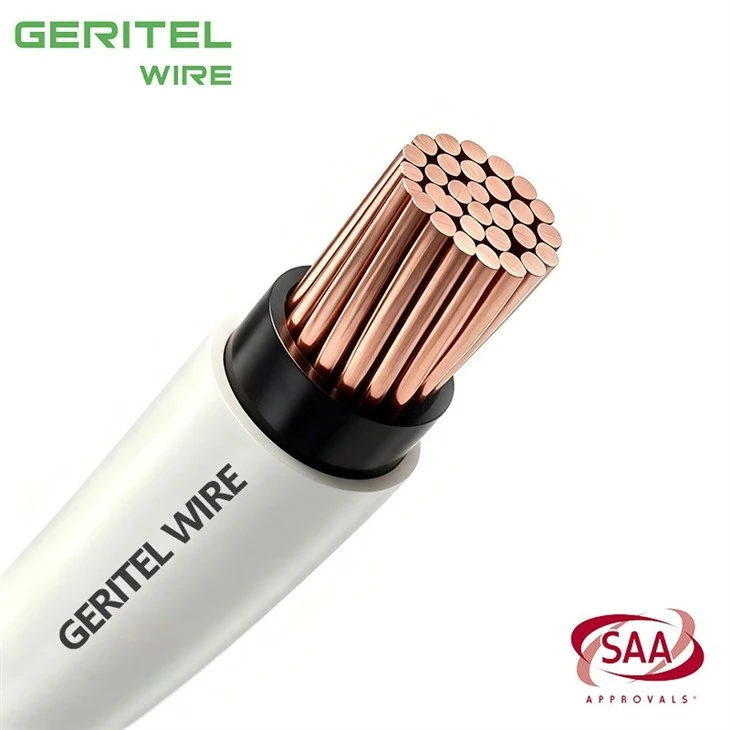

PRODUCT REAL SHOT

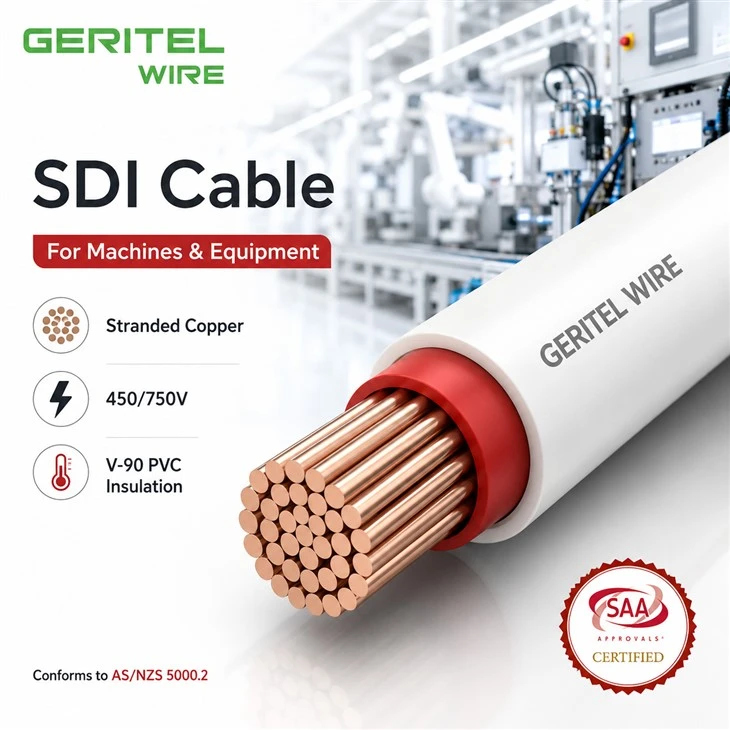

Stranded Copper Building Cable for Mains Submains Switchboards and General Distribution

The 450 750V V90 SDI Cable from GERITEL WIRE is developed for low-voltage fixed power circuits that require a single copper core with both PVC insulation and an outer sheath. Controlled stranding helps maintain conductor consistency, and uniform extrusion supports reliable insulation thickness and a clean finished surface. The cable can be selected for building mains, submains, switchboards and general distribution circuits, subject to installation conditions and local wiring rules. V-90 identifies the PVC material grade; final current rating and operating temperature must still be determined from the installation method. Available sizes, red or black insulation, custom printing, cut lengths and reel packaging allow wholesalers and contractors to match different order and project requirements.

PRODUCT SPECIFICATIONS

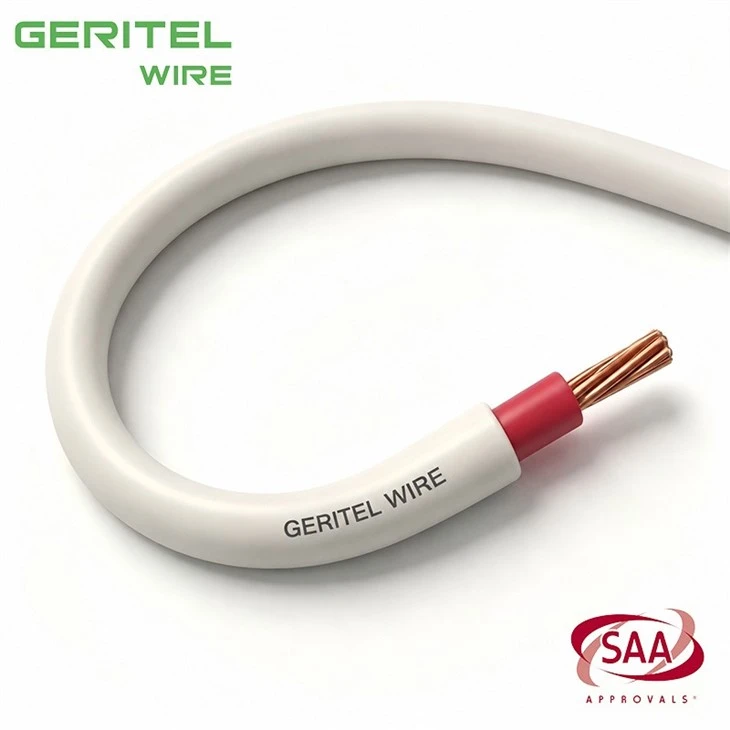

V90 insulated white PVC sheathed SDI cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

V90 insulated white PVC sheathed SDI wire

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

single conductor double insulated power cable

single conductor double insulated power wire

GLOBAL CERTIFICATIONS

230V 400V installation SDI cable

CUSTOMER PHOTOS

single core double insulate230V 400V installation SDI wire

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Which Australian and New Zealand product standard applies?

The finished product is manufactured as an AS/NZS 5000.2 cable for 450/750V fixed wiring. This reference covers the completed PVC insulated and PVC sheathed construction, while installation compliance also depends on the project design and applicable wiring rules.

What standard controls the conductor construction?

The GERITEL product uses an AS/NZS 1125 copper conductor. This conductor standard addresses construction and electrical requirements, while AS/NZS 5000.2 applies to the finished cable. Both references can be shown in the technical documentation for project review.

Does this product have third-party SAA approval?

Yes. GERITEL offers SAA approved SDI cable within the models and ratings listed on the certificate schedule. We can provide the certificate before an order so your technical team can compare the required size, voltage and marking with the approved scope.

Which approval number should I use for document checking?

The approval reference for this GERITEL product is SAA-241265-EA. Please use the complete number when reviewing the certificate or preparing an approval submission, and confirm that the conductor size and product marking on your order match the relevant schedule entry.
