Name: China Single Double Insulated Cable For Professional Electrical Projects Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314435738

Description

Technical Parameters

Certification

single core electrical cable

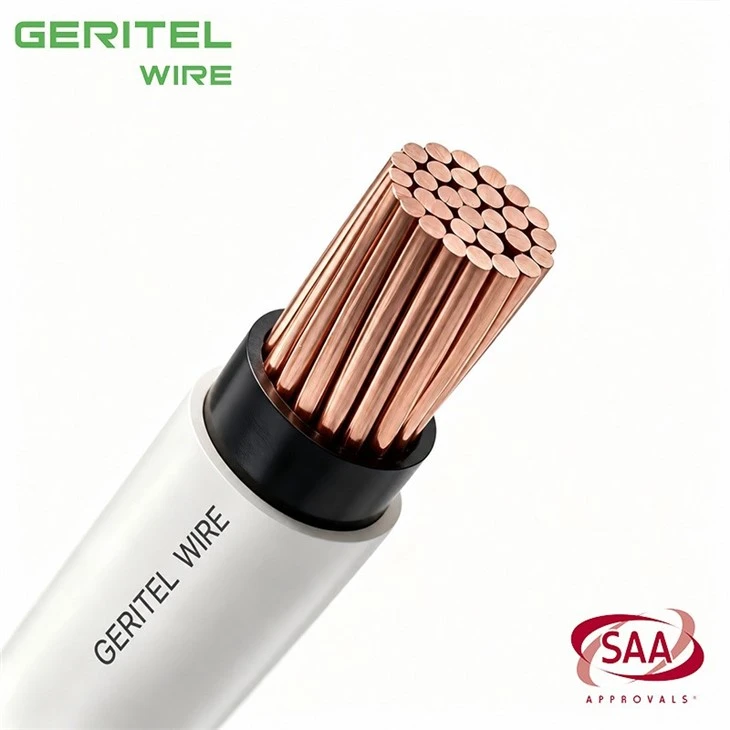

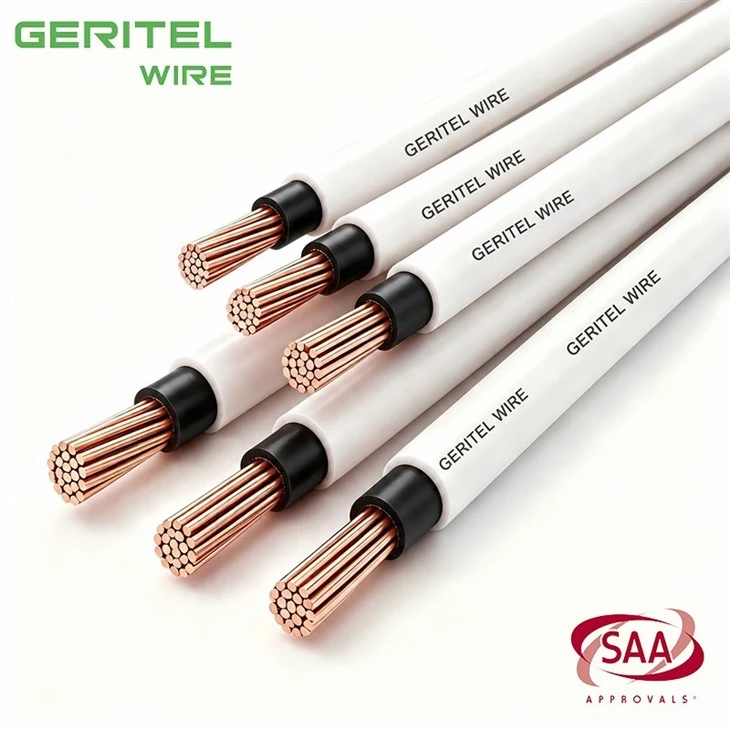

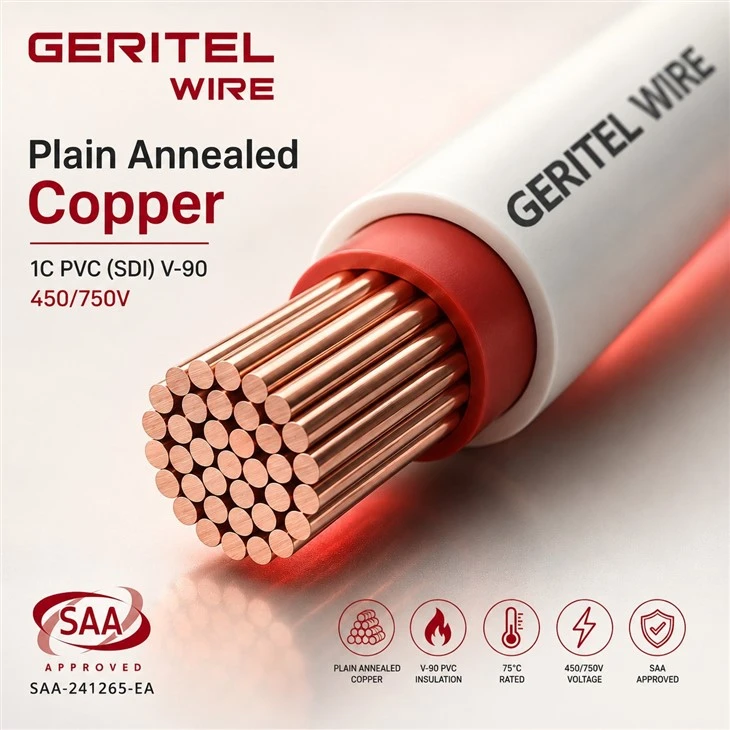

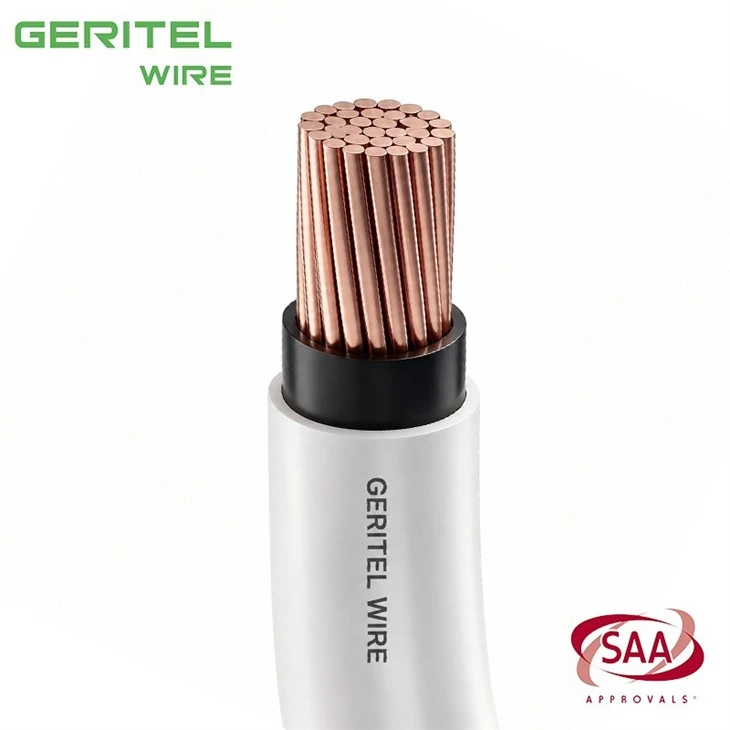

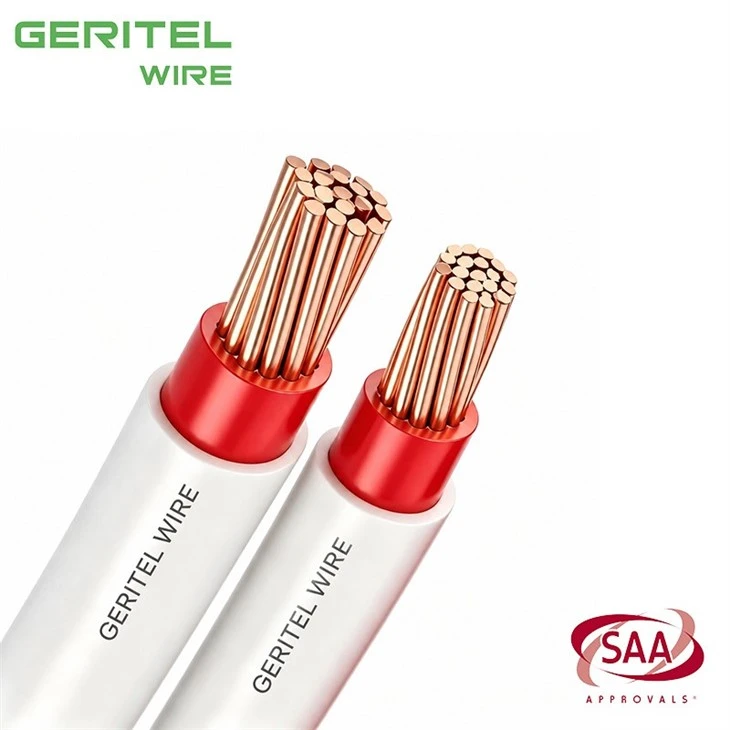

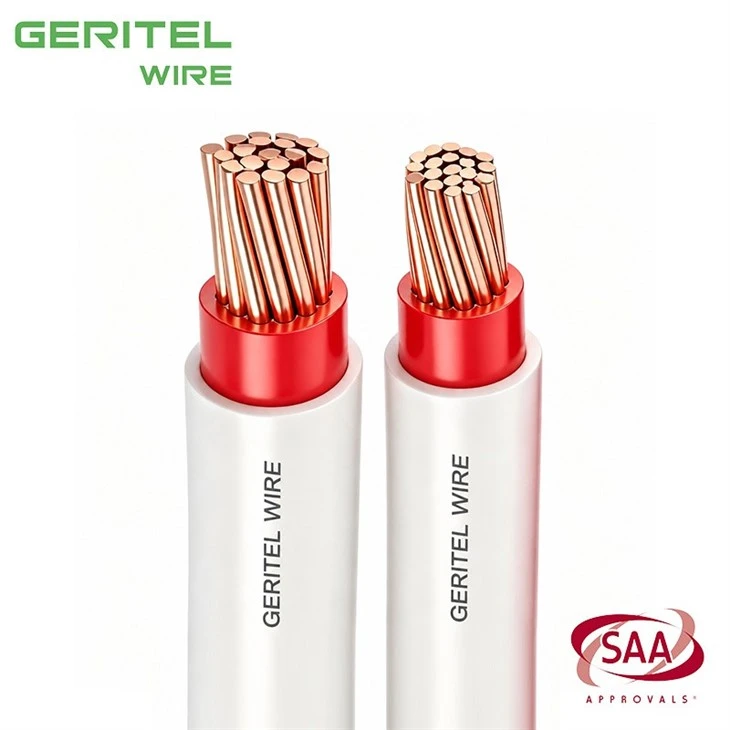

PRODUCT REAL SHOT

Single Core Double Insulated Cable Designed for Protected Installations

This GERITEL WIRE cable is designed for dependable single-core wiring in protected installation routes. An annealed stranded copper conductor is covered by V-90 PVC insulation and a second PVC protective layer. For product synonym projects, the cable supports protected fixed wiring and dependable distribution for panel builders, electricians and building-services contractors. SEO phrases such as double insulated building wire, single core power cable and V-90 PVC cable match how customers search by construction, application and supply need. Project documents can reference AS/NZS 5000.2 and SAA approval SAA-241265-EA, subject to local installation rules. The page targets real buyer intent without conductor-size terms.

PRODUCT SPECIFICATIONS

double PVC insulated wire

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

double insulated PVC cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

single core double insulated cable Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

double insulated building wire Australia

GLOBAL CERTIFICATIONS

stranded copper SDI cable Australia

CUSTOMER PHOTOS

Australian standard SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

Australian standard single double insulated cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

Australian standard single core double insulated cable

Australian standard single core PVC SDI cable

Australian standard double insulated building wire

Australian standard single core building wire

Australian standard single core power cable

Australian standard double insulated power cable

Australian standard stranded copper SDI cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is SDI cable the same as video SDI cable?

No. In Australian electrical work SDI commonly means Single Double Insulated, not Serial Digital Interface coax. The phrase electrical SDI cable is useful because overseas electricians and buyers often search by product construction or application rather than by brand name. For GERITEL WIRE, the key value is a clear 450/750V PVC/PVC single-core product with stranded copper, V-90 insulation and documented Australian-market positioning. GERITEL WIRE can support B2B buyers with product data, SAA certificate information, project quotations, export packing and repeat factory supply.

Is GERITEL WIRE SDI cable intended for low-voltage installations?

This GERITEL WIRE PVC SDI product is rated 450/750V and positioned for fixed power and lighting circuits. The phrase 450/750V SDI cable is useful because overseas electricians and buyers often search by product construction or application rather than by brand name. For GERITEL WIRE, the key value is a clear 450/750V PVC/PVC single-core product with stranded copper, V-90 insulation and documented Australian-market positioning. GERITEL WIRE can support B2B buyers with product data, SAA certificate information, project quotations, export packing and repeat factory supply.

What conductor material is used in this SDI cable?

The construction uses stranded annealed copper for reliable conductivity and practical termination. The phrase copper conductor SDI cable is useful because overseas electricians and buyers often search by product construction or application rather than by brand name. For GERITEL WIRE, the key value is a clear 450/750V PVC/PVC single-core product with stranded copper, V-90 insulation and documented Australian-market positioning. GERITEL WIRE can support B2B buyers with product data, SAA certificate information, project quotations, export packing and repeat factory supply.

Does SDI cable have an outer sheath?

Yes. The GERITEL WIRE construction shown for this product has V-90 PVC insulation plus a PVC outer protective layer. The phrase PVC sheathed SDI cable is useful because overseas electricians and buyers often search by product construction or application rather than by brand name. For GERITEL WIRE, the key value is a clear 450/750V PVC/PVC single-core product with stranded copper, V-90 insulation and documented Australian-market positioning. GERITEL WIRE can support B2B buyers with product data, SAA certificate information, project quotations, export packing and repeat factory supply.

Hot Tags: single double insulated cable for professional electrical projects, China single double insulated cable for professional electrical projects manufacturers, suppliers, factory, SAA Approval SDI Cable, sdi cable
