SAA approved single double insulated cable

PRODUCT REAL SHOT

SAA approved single core double insulated cable

PVC Insulated and Sheathed Cable for Dependable Power Circuits

Built for contractors and B2B buyers, the cable supports organized fixed wiring in modern electrical systems. Annealed copper strands sit inside V-90 PVC insulation and an outer PVC layer for neat, dependable routing. For material / construction projects, the cable supports protected fixed wiring and dependable distribution for OEM wiring teams, electrical installers and cable distributors. SEO phrases such as stranded copper SDI cable, PVC insulated electrical cable and copper building wire match how customers search by construction, application and supply need. Australian buyers can reference AS/NZS 5000.2 and SAA certificate SAA-241265-EA, with suitable mechanical protection in service. It gives procurement teams a simple path from research to quotation.

PRODUCT SPECIFICATIONS

SAA approved double insulated building wire

Applications

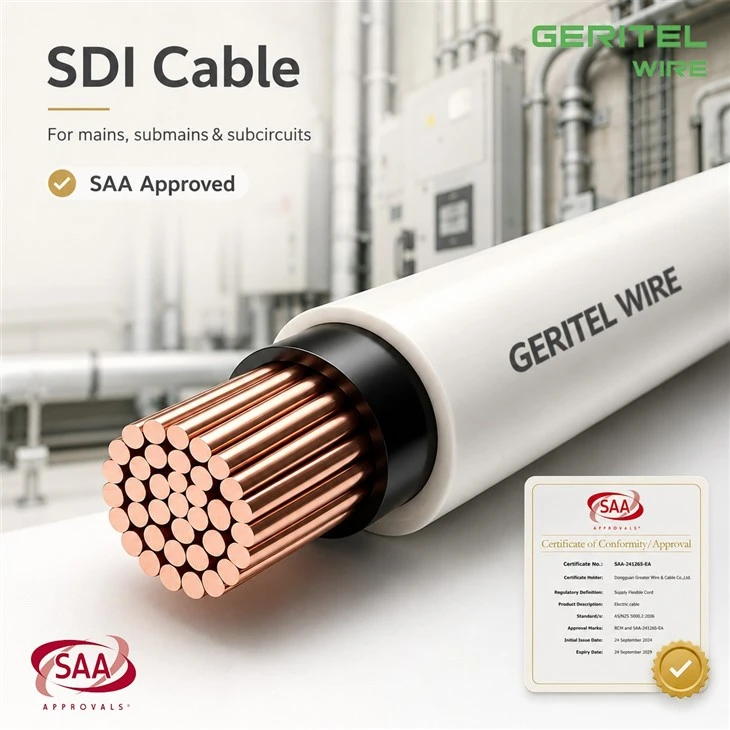

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

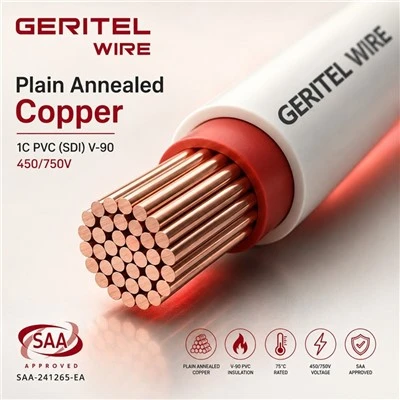

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

SAA approved single core building wire

PACKAGING

Roll

SAA approved double insulated power cable

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

SAA certified single double insulated cable

Industrial Plant & Control Cabinet Wiring

CASE

SAA certified single core double insulated cable

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

SAA certified double insulated building wire

SAA certified double insulated power cable

GLOBAL CERTIFICATIONS

AS/NZS 5000.2 SDI cable

CUSTOMER PHOTOS

AS/NZS 5000.2 single double insulated cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

AS/NZS 5000.2 single core double insulated cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

AS/NZS 5000.2 double insulated building wire

AS/NZS 5000.2 double insulated power cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

single double insulated cable for fixed wiring

FAQ

Is SDI cable flexible enough for installation work?

The stranded copper construction is easier to route and terminate than a solid single conductor of the same nominal size. The phrase stranded copper SDI cable is useful because overseas electricians and buyers often search by product construction or application rather than by brand name. For GERITEL WIRE, the key value is a clear 450/750V PVC/PVC single-core product with stranded copper, V-90 insulation and documented Australian-market positioning. GERITEL WIRE can support B2B buyers with product data, SAA certificate information, project quotations, export packing and repeat factory supply.

Who normally buys SDI cable?

Typical buyers include electrical wholesalers, contractors, panel builders, project procurement teams and importers. The phrase SDI cable supplier is useful because overseas electricians and buyers often search by product construction or application rather than by brand name. For GERITEL WIRE, the key value is a clear 450/750V PVC/PVC single-core product with stranded copper, V-90 insulation and documented Australian-market positioning. GERITEL WIRE can support B2B buyers with product data, SAA certificate information, project quotations, export packing and repeat factory supply.

What is the conductor class of GERITEL WIRE SDI cable?

GERITEL WIRE lists a Class 2 stranded copper conductor for this PVC SDI product. When evaluating Class 2 copper SDI cable, buyers should compare conductor type, insulation designation, sheath construction and the applicable standard rather than relying on the product name alone. GERITEL WIRE can provide construction data and certificate information so procurement teams can check the ordered cable against drawings and tender requirements before production.

Why is annealed copper used in SDI cable?

Annealed copper balances conductivity with enough handling flexibility for routing and termination. When evaluating annealed copper electrical cable, buyers should compare conductor type, insulation designation, sheath construction and the applicable standard rather than relying on the product name alone. GERITEL WIRE can provide construction data and certificate information so procurement teams can check the ordered cable against drawings and tender requirements before production.
