Name: China Switchboard SDI Cable For Neat And Reliable Panel Wiring Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314441637

Description

Technical Parameters

Certification

single core double insulated cable for fixed wiring

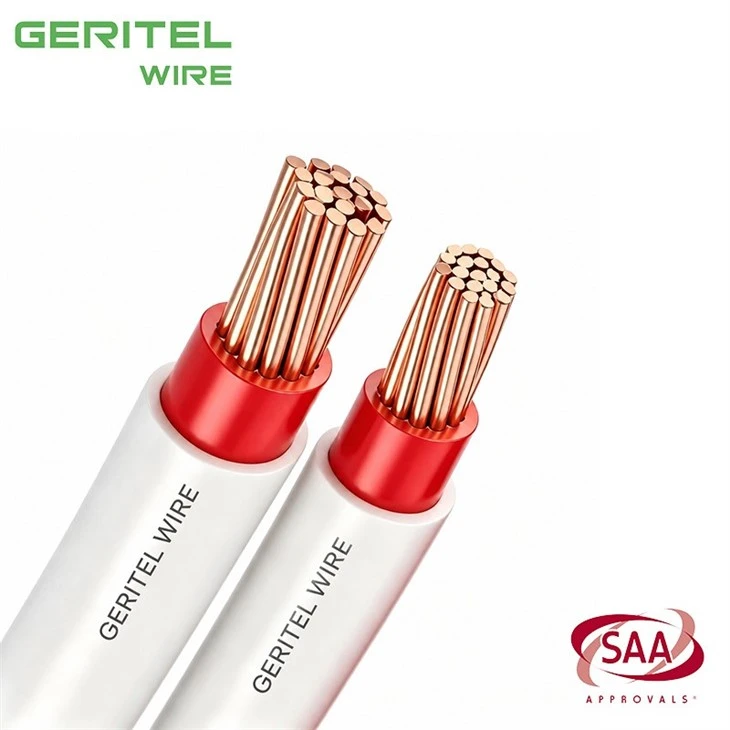

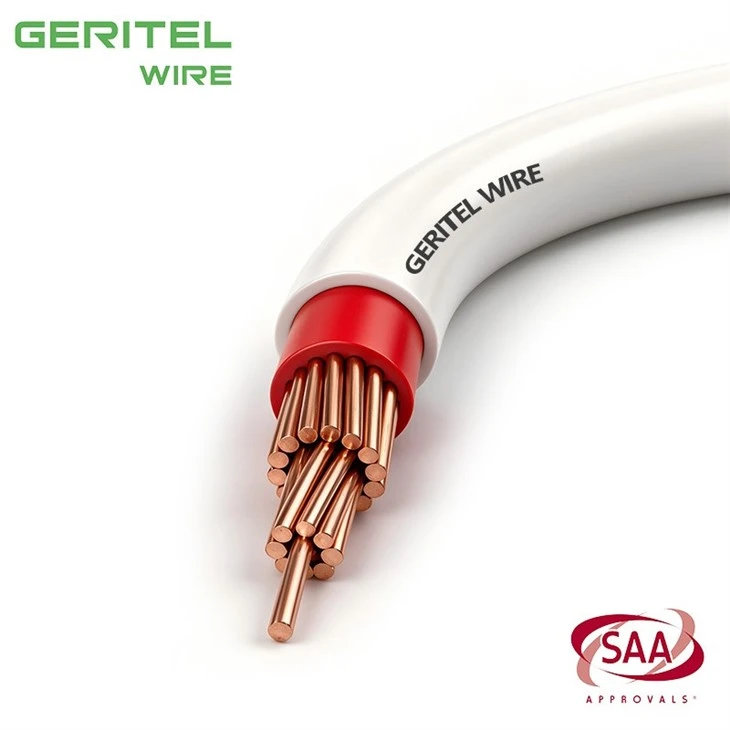

PRODUCT REAL SHOT

single core PVC SDI cable for fixed wiring

Switchboard Wiring Cable for Distribution Panels and Control Boards

GERITEL WIRE developed this cable for projects needing reliable copper performance and protected routing. The structure combines stranded copper with V-90 PVC insulation and an added PVC sheath for protected fixed wiring. For switchboard projects, the cable supports protected fixed wiring and dependable distribution for switchboard manufacturers, panel shops and commercial electricians. SEO phrases such as panel wiring cable, distribution board cable and electrical cabinet wiring cable match how customers search by construction, application and supply need. The cable is positioned for Australian fixed wiring with AS/NZS 5000.2 and SAA approval SAA-241265-EA. The wording helps separate electrical SDI intent from video-cable searches.

PRODUCT SPECIFICATIONS

single core building wire for fixed wiring

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

single core power cable for fixed wiring

PACKAGING

double insulated power cable for fixed wiring

Roll

Plastic Reel

stranded copper SDI cable for fixed wiring

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

single double insulated cable for power distribution

Electrical Distribution & Switchgear Room

single core double insulated cable for power distribution

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

single core PVC SDI cable for power distribution

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

double insulated building wire for power distribution

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

single core building wire for power distribution

single core power cable for power distribution

double insulated power cable for power distribution

stranded copper SDI cable for power distribution

GLOBAL CERTIFICATIONS

single double insulated cable for building wiring

CUSTOMER PHOTOS

single core double insulated cable for building wiring

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

single core PVC SDI cable for building wiring

double insulated building wire for building wiring

single core building wire for building wiring

single core power cable for building wiring

double insulated power cable for building wiring

stranded copper SDI cable for building wiring

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What does V-90 mean on SDI cable?

V-90 identifies the PVC insulation temperature class; it does not mean every installation may continuously run at 90°C without checking the rules. When evaluating V-90 PVC SDI cable, buyers should compare conductor type, insulation designation, sheath construction and the applicable standard rather than relying on the product name alone. GERITEL WIRE can provide construction data and certificate information so procurement teams can check the ordered cable against drawings and tender requirements before production.

Why does SDI cable use two PVC layers?

The inner PVC layer provides electrical insulation and the second PVC layer adds further protection around the individual conductor. When evaluating double PVC insulated cable, buyers should compare conductor type, insulation designation, sheath construction and the applicable standard rather than relying on the product name alone. GERITEL WIRE can provide construction data and certificate information so procurement teams can check the ordered cable against drawings and tender requirements before production.

Is the outer white layer just packaging or part of the cable?

The white outer layer is part of the cable construction, not packaging, and forms the additional protective PVC layer. When evaluating white sheath SDI cable, buyers should compare conductor type, insulation designation, sheath construction and the applicable standard rather than relying on the product name alone. GERITEL WIRE can provide construction data and certificate information so procurement teams can check the ordered cable against drawings and tender requirements before production.

Does the copper conductor need to be tinned?

For this product, plain annealed copper is the normal conductor construction; tinning is not a standard requirement unless a project specifically calls for it. When evaluating plain copper SDI cable, buyers should compare conductor type, insulation designation, sheath construction and the applicable standard rather than relying on the product name alone. GERITEL WIRE can provide construction data and certificate information so procurement teams can check the ordered cable against drawings and tender requirements before production.
