single core power distribution cable

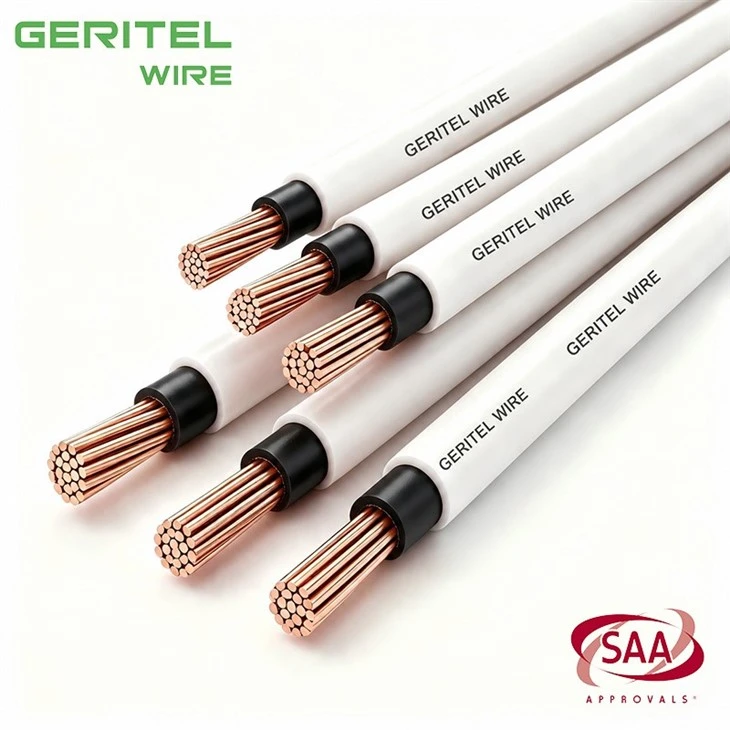

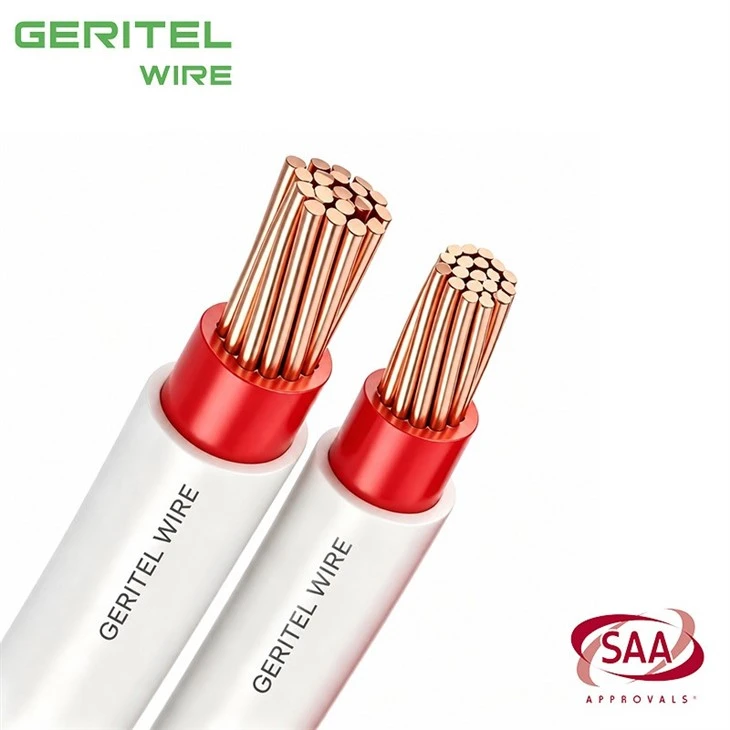

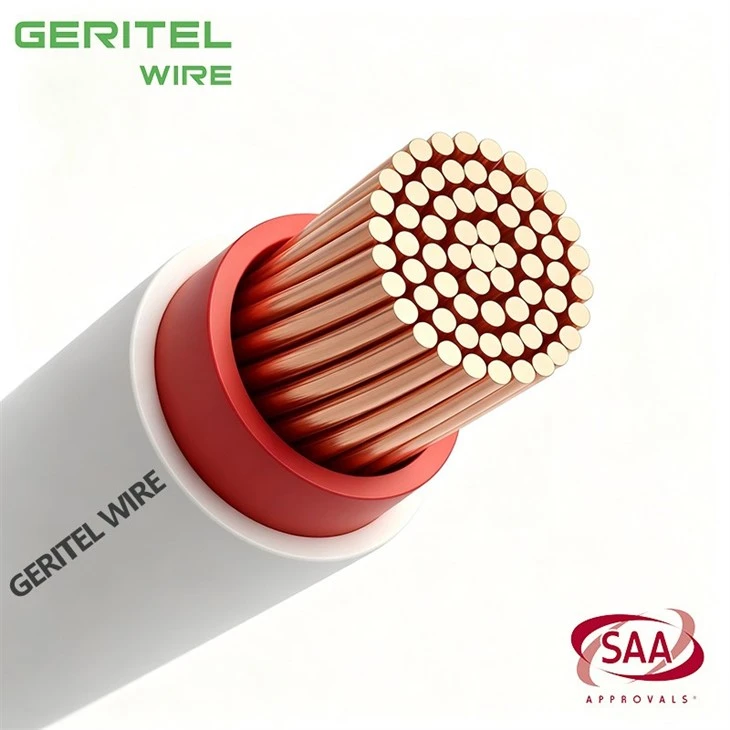

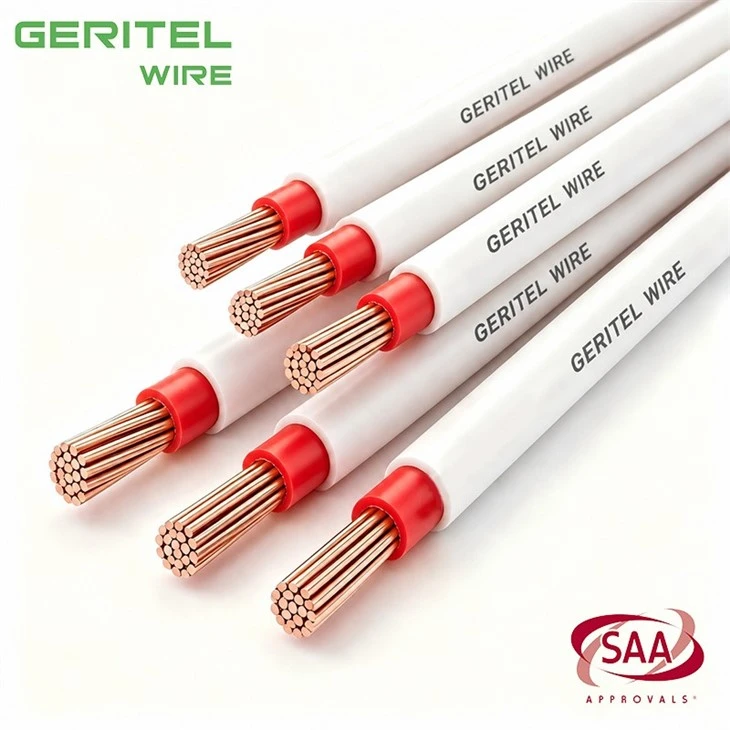

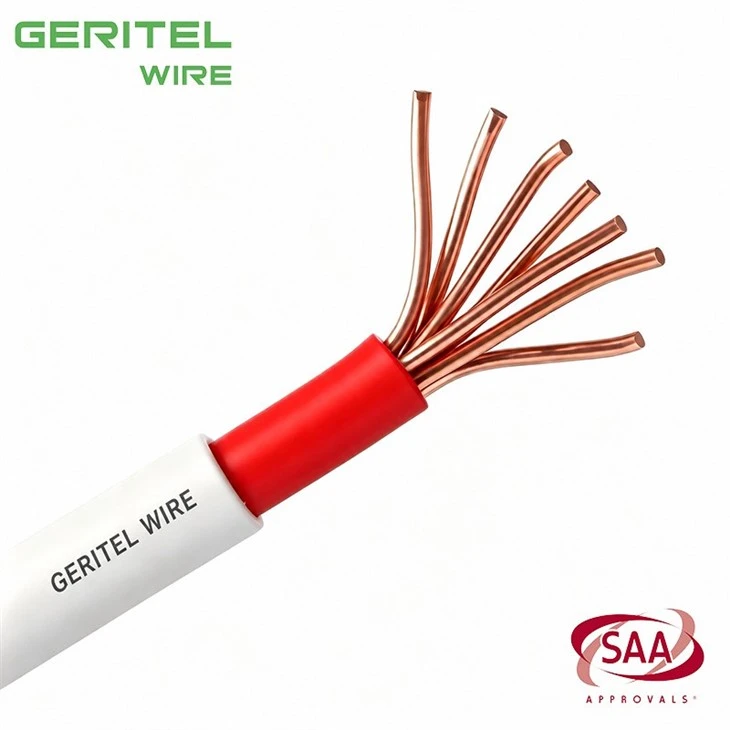

PRODUCT REAL SHOT

SAA Documented 450 750V Copper Construction for Australia and New Zealand Projects

GERITEL WIRE manufactures AS NZS 5000.2 SDI Wire for buyers supplying Australian and New Zealand fixed-wiring projects. The 450/750V construction uses stranded annealed copper, V-90 PVC insulation and a PVC outer sheath, creating a clear single-core cable design with added protection compared with an unsheathed conductor. Typical applications include residential distribution, commercial fit-outs, modular buildings, switchboards and industrial auxiliary circuits. Depending on the electrical design, it may be installed in free air, conduit, protected trenches or underground ducts where mechanical damage is controlled. Production can include red or black insulation, customized sheath printing, project lengths and export reels. Compliance documentation should be matched to the ordered model under SAA-241265-EA.

PRODUCT SPECIFICATIONS

V90 temperature rated SDI wire

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

450V 750V copper building cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Australian electrical installation SDI cable

Building Service Corridor & Underground Duct Installation

Australian electrical installation SDI wire

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

double insulated building wire for control panel wiring

single core building wire for control panel wiring

GLOBAL CERTIFICATIONS

dual layer PVC insulated copper wire

CUSTOMER PHOTOS

double insulated copper building cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

How long is the certificate shown as valid?

The supplied SDI cable certificate shows an initial issue date of 24 September 2024 and an expiry date of 24 September 2029. Certificate status and the exact model scope should be checked again when a project requires formal approval or before a new order is released.

Can the approved cable be supplied with RCM information?

RCM marked SDI wire can be discussed within the approved product scope and agreed sheath-print layout. GERITEL WIRE confirms the marking before production, while the Australian or New Zealand supplier remains responsible for the local registration and compliance obligations that apply to the sale.

How do I confirm that my requested size is covered?

Send us the conductor size, colour, voltage and required marking. We will compare the request with the certified SDI cable model schedule and confirm the applicable construction before quotation or production, rather than relying only on a logo printed on a catalogue page.

What approval paperwork can you send with my enquiry?

GERITEL can provide SDI cable certification documents such as the SAA certificate, relevant model schedule and available product data for customer review. If your project uses a vendor-document register, send the list with your enquiry and we will confirm the available files.
