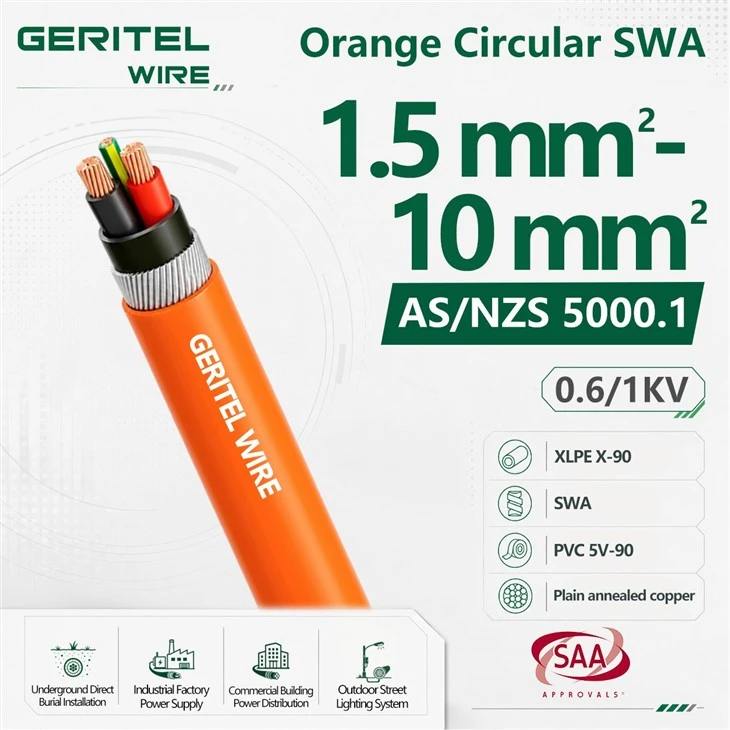

Orange Circular SWA Cable

PRODUCT REAL SHOT

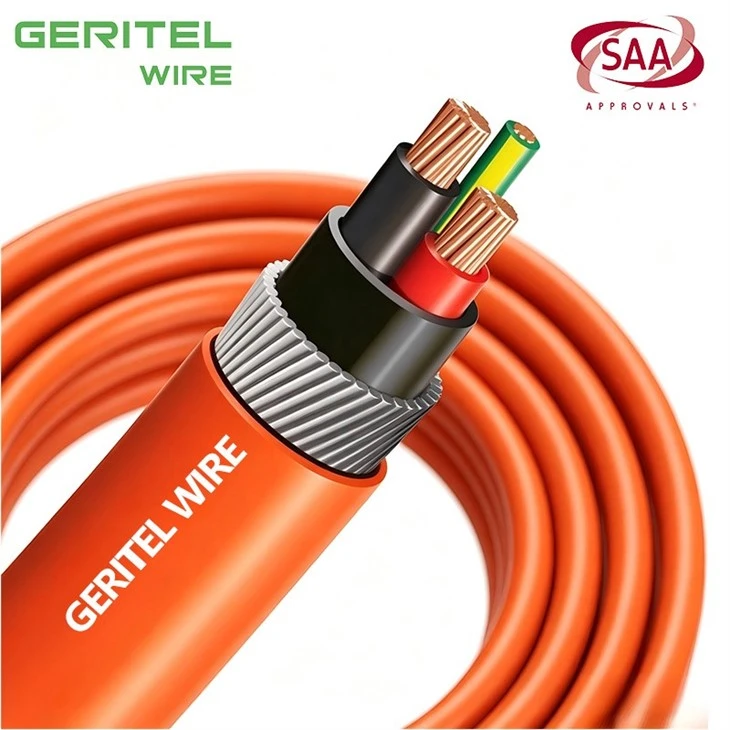

Steel Wire Armoured Orange Circular Cable

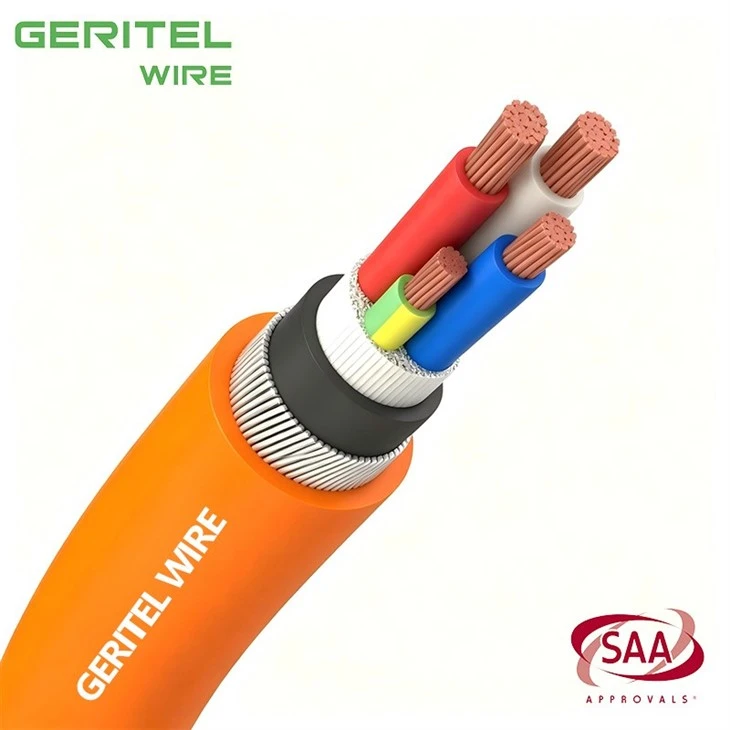

Orange Circular Steel Wire Armour Cable

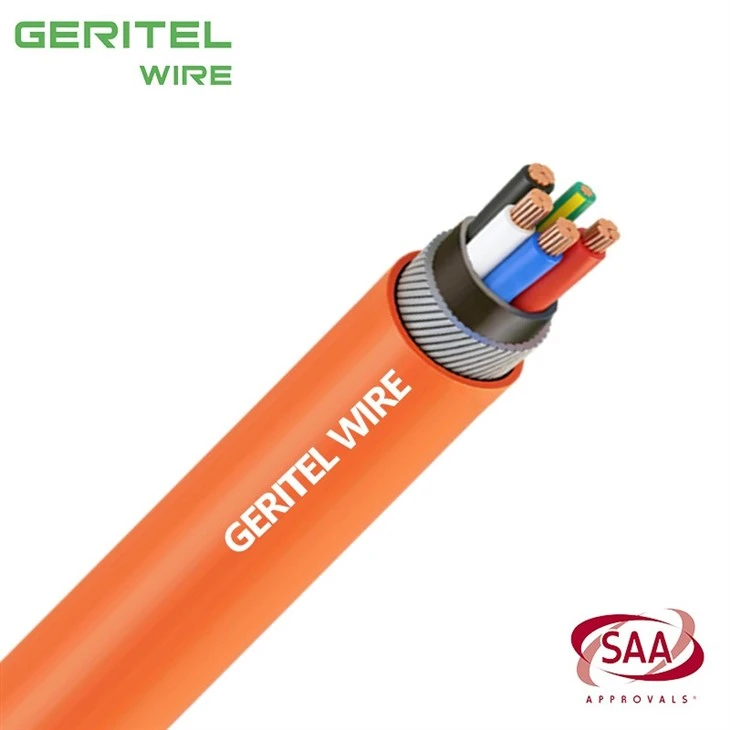

Small-Size 2C+E 3C+E and 4C+E Orange Circular SWA Cable Range

This Orange Circular SWA Cable range is designed for compact low-voltage power distribution where mechanical protection and reliable performance are required. Available in 2 Core + Earth, 3 Core + Earth, and 4 Core + Earth constructions, it covers conductor sizes from 1.5mm² to 10mm² with matched or reduced earth conductors. Copper cores, PVC insulation, steel wire armour, and a durable orange sheath make this Steel Wire Armoured Cable suitable for fixed wiring, switchboard feeds, industrial equipment, commercial buildings, outdoor circuits, cable trenches, and underground installation. It is a practical Orange Circular Armoured Power Cable solution for contractors and project buyers.

PRODUCT SPECIFICATIONS

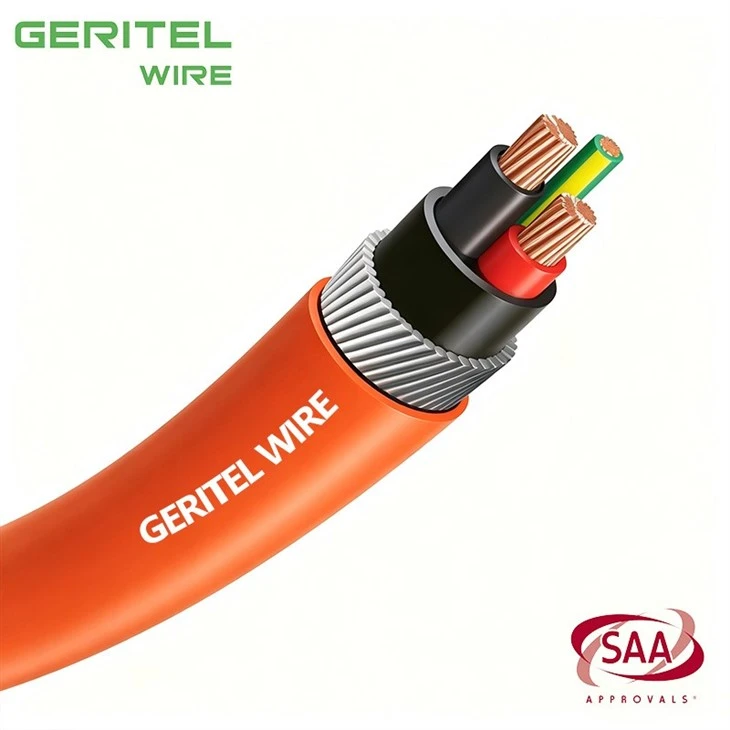

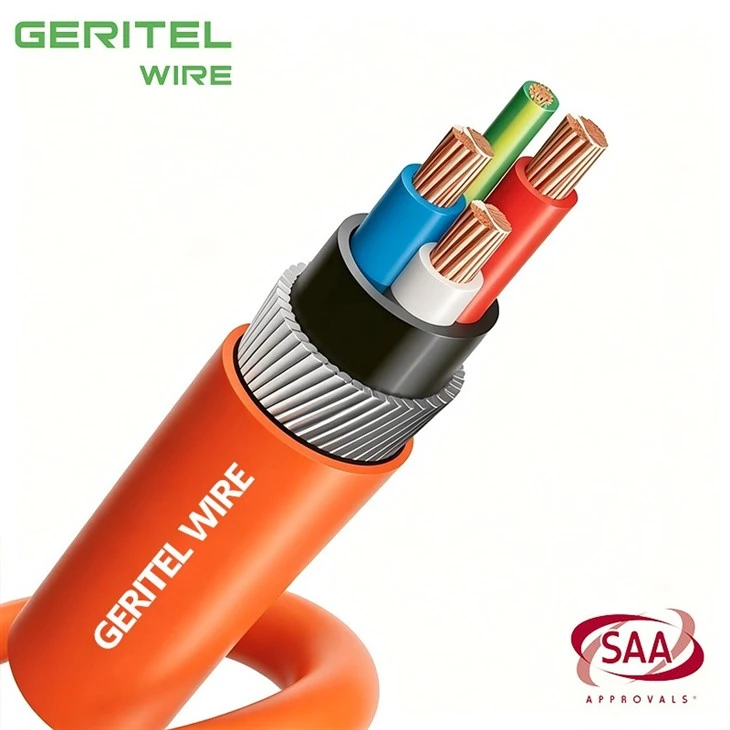

Australian Orange Circular SWA Cable

Application

Armoured power cables with reduced earth for use in mains.sub-mains and sub-circuits where enclosed in conduit,buried direct or inunderground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS
Rated Voltage Uo/U	0.6/1kV
Temperature Rating	Maximum operating temperature +90℃
Minimum Bending Radius	8x overall diameter
Conductor	Plain annealed copper
Insulation	XLPE X-90 (Cross-linked polyethylene)
Bedding	PVC 5V-90 (Polyvinyl Chloride)
Armour	SWA (Galvanised SteeIWire Armour)
Outer Sheath	PVC 5V-90 (Polyvinyl Chloride)
Core Identification	2Cores+Earth: Red, Black, Green/Yellow 3Cores+Earth: Red,White,Blue,Green/Yellow 4Cores+Earth: Red,White,Blue,Black,Green/Yellow
Sheath Colour	Orange
Standards	AS/NZS 5000.1,AS/NZS 3008,AS/NZS 1125

Core x cross- section mm²	Nominal insulation thickness mm	Nominal diameter over bedding mm	Nominal diameter over armour mm	Nominal overall diameter mm	Approx. weight kg/km


2x1.5+1.5E	0.80	8.70	10.50	14.10	370
2x2.5+1x2.5E	0.80	9.80	11.60	15.20	447
2x4+1x2.5E	1.00	11.50	13.30	16.90	546
2x6+1x2.5E	1.00	12.70	14.50	18.10	627
2x10+1x4E	1.00	14.50	17.00	20.60	904

3X1.5+1X1.5E	0.80	9.50	11.30	15.0	418
3X2.5+1X2.5E	0.80	10.90	12.70	16.3	511
3X4+1X2.5E	0.80	12.60	15.10	18.7	724
3X6+1X2.5E	1.00	13.80	16.30	20.0	840
3X10+1X4E	1.00	15.90	18.40	22.1	1080

4X1.5+1X1.5E	0.80	10.40	12.20	15.9	460
4X2.5+1X2.5E	0.80	11.90	13.70	17.3	580
4X4+1X2.5E	1.00	13.80	16.30	20.0	830
4X6+1X2.5E	1.00	15.20	17.70	21.4	970
4X10+1X4E	1.00	17.60	20.80	24.4	1390

CERTIFICATIONS

2 x 1.5mm² + 1 x 1.5mm2 Earth AS/NZS 5000.1 SWA Circular Cable

PACKAGING

2C+E 1.5mm2 Orange Circular Armoured Power Cable

Plastic Reel

2 x 2.5mm2 + 1 x 2.5mm2 Earth 0.6/1kV Orange Circular SWA Cable

Small Wooden Reel

2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable2 x 2.5mm² + 1 x 2.5mm² Earth AS/NZS 5000.1 SWA Circular Cable

Large Wooden Reel

APPLICATION

copper welding cable for battery charger

Mondelēz Manufacturing & Distribution Facility

Portside Distribution Centre

Western Sydney Recycled Water Scheme

CASE

2.5mm2 2 core + earth Orange Circular SWA Cable

Industrial Equipment Power Supply

2.5mm² 2 core + earth Steel Wire Armoured Cable

Warehouse Electrical Distribution

2C+E 2.5mm2 Orange Circular Armoured Power Cable

Water Treatment Pump System

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

600/1000V Orange Circular Armoured Cable

GLOBAL CERTIFICATIONS

PVC Bedded Steel Wire Armoured Cable

CUSTOMER PHOTOS

PVC Sheathed Orange Circular Armoured Cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

Copper Conductor Orange Circular SWA Cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

Core and Earth Orange Circular SWA Cable

3 Core and Earth Orange Circular SWA Cable

4 Core and Earth Orange Circular SWA Cable

Orange PVC Sheathed Steel Wire Armoured Cable

1.5mm2 2 core + earth Orange Circular SWA Cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

1.5mm² 2 core + earth Steel Wire Armoured Cable

FAQ

What is Orange Circular SWA Cable?

GERITEL WIRE Orange Circular SWA Cable is a copper-conductor low-voltage power cable with an orange outer sheath and steel wire armour for mechanical protection. It is commonly selected for Australian-style industrial, commercial, outdoor and submain installations. Final voltage, core count, size and installation method should be confirmed by the project electrician or engineer.

Why is this cable called Orange Circular SWA?

The name Orange Circular SWA describes the orange circular outer sheath and the steel wire armour beneath it. The term helps Australian buyers distinguish it from flat TPS, unarmoured Orange Circular and other power-cable constructions. GERITEL WIRE keeps the product marking, core configuration and standard reference clear for easier specification review.

Is Orange Circular SWA the same as ordinary Orange Circular Cable?

No. Orange Circular SWA Cable includes steel wire armour and bedding layers for added mechanical protection, while ordinary Orange Circular may be unarmoured. GERITEL WIRE provides construction drawings and datasheets so buyers can compare the exact layers instead of relying only on the orange sheath colour.

What does SWA mean in Orange Circular Cable?

SWA means steel wire armour. In Steel Wire Armoured Cable, galvanised steel wires surround the inner cable to help resist impact and installation damage. GERITEL WIRE controls armour-wire coverage, bedding and sheath dimensions and can provide samples for gland and installation trials.
