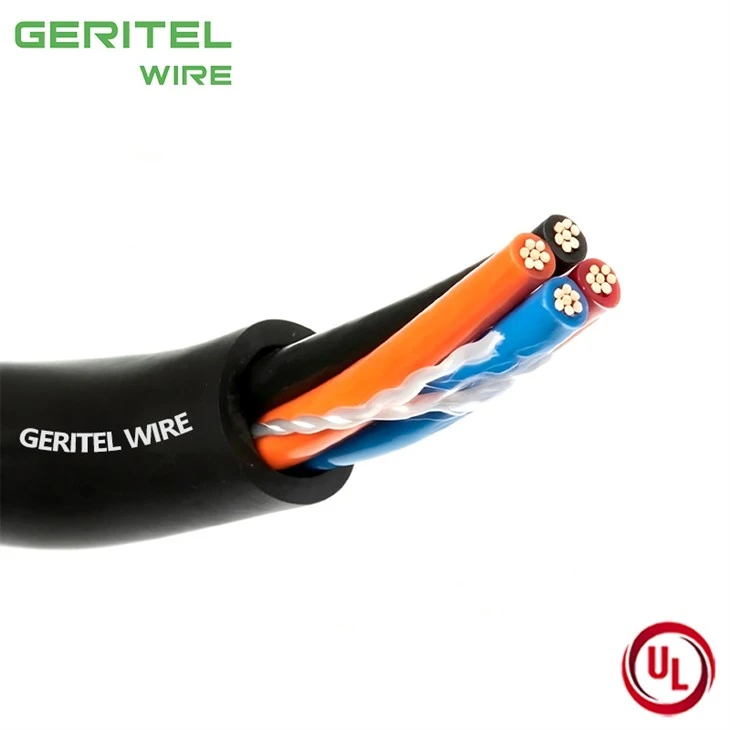

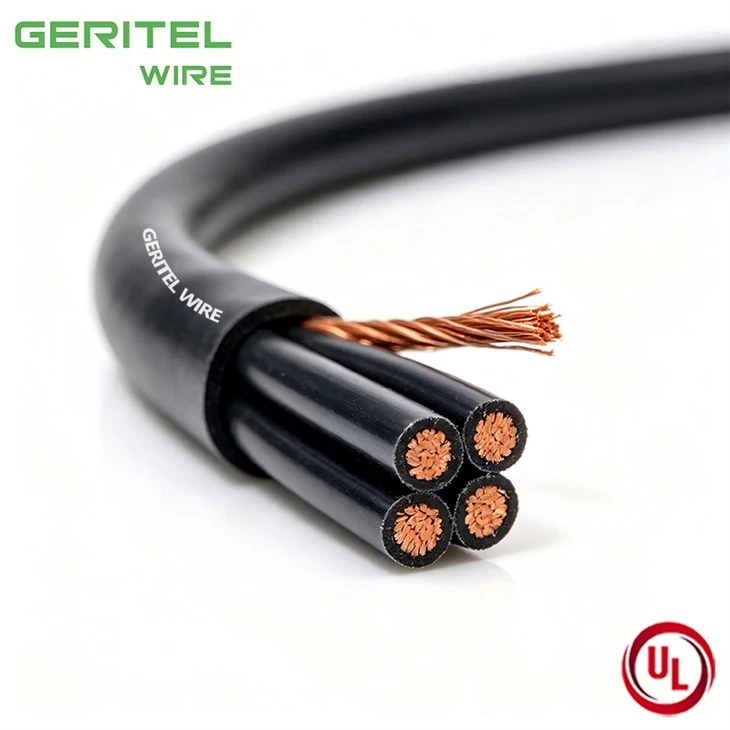

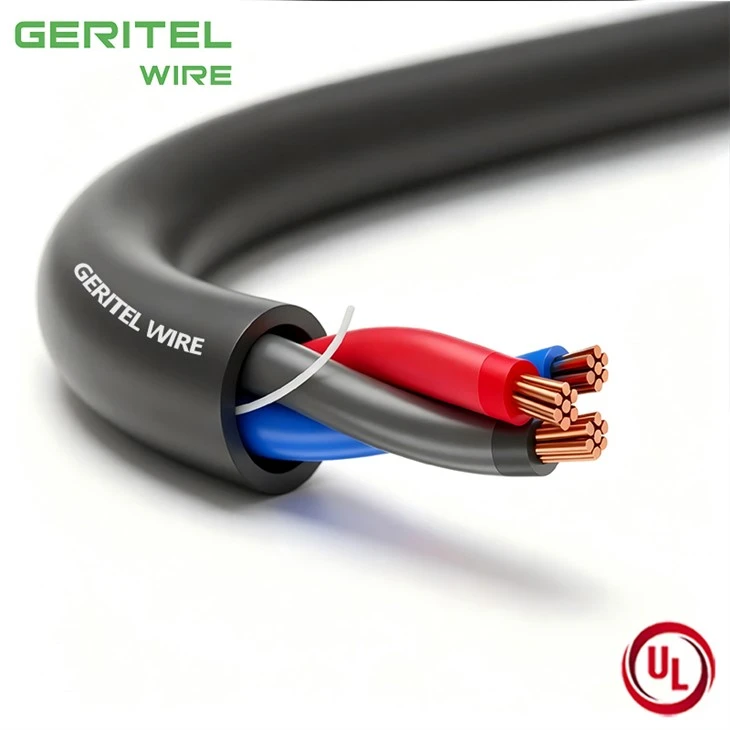

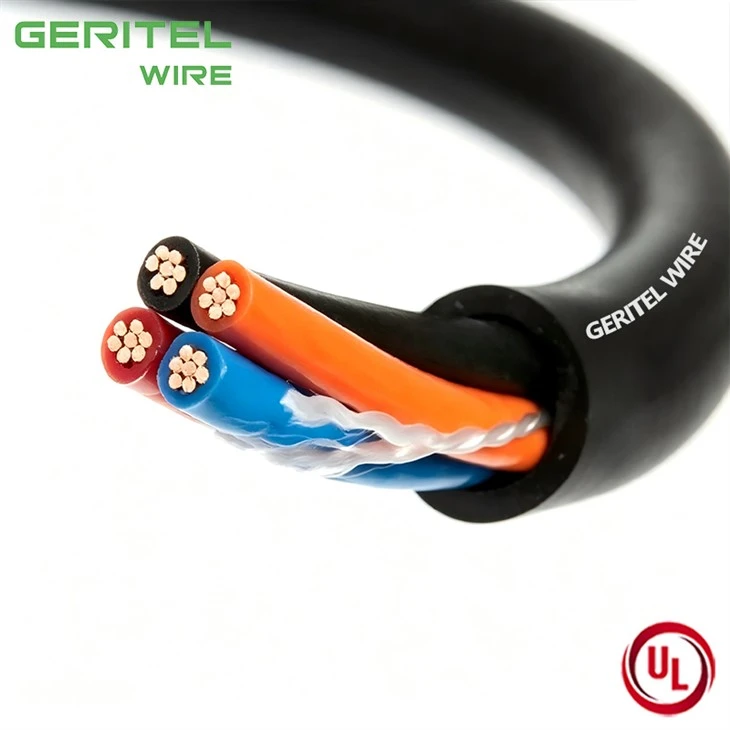

PRODUCT REAL SHOT

Reliable 10 AWG THHN Tray Cable For Industrial Power & Control Wiring

Reliable 10 AWG THHN Tray Cable for Industrial Power & Control Wiring

This 600V 10 AWG tray cable adopts high-purity stranded copper conductors with premium THHN insulation, supporting stable 90°C long-term operation for dry and damp industrial environments. Featuring durable flame-retardant, abrasion and UV-resistant PVC outer jacket, it delivers strong mechanical protection against compression and impact during tray installation. Designed for both power supply and control signal circuits, this UL-compliant tray cable ensures low power loss, stable transmission performance and long service life. It is widely used for factory automation systems, PLC cabinets, motor equipment wiring and commercial industrial low-voltage distribution projects.

PRODUCT SPECIFICATIONS

Mining Power Cable

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Power, TC-ER Direct Burial Cable consist of fully annealed bare copper Class B stranded conductors, covered with Polyvinyl Chloride (PVC) and oil and gas resistant Nylon insulation, unshielded and black PVC jacket. These cables are used in industrial power.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) use in accordance with NEC for 3 or more conductors

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 3 or 4 conductors
Conductor	Fully annealed bare copper Class B compressed strand per ASTM B8
Gauge Sizes	Available in 12 AWG through 750 kcmil
Insulation	Polyvinyl Chloride (PVC) covered with All gauges are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 4 or Method 1, Table E-1 (K-1) or E-2 (K-2); additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Ground Conductor	Uninsulated bare copper ground Optional: Insulated ground
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE XXXAWG XX/C THHN/THWN-2 PVC JKT 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BURIAL MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8 UL 83 UL1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 FT4/IEEE1202 (flame compliance) NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

TC-ER Tray Cable with THHN/THWN-2 Copper Conductors Data Sheet

Conductor Count	Conductor Size AWG/kcmil	Ground Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
3	12	12	0.020(0.51)	0.045(1.14)	0.39(9.9)	135(195)
4	12	12	0.020(0.51)	0.045(1.14)	0.43(10.8)	160 (237)
3	10	10	0.025(0.64)	0.045(1.14)	0.46(11.8)	200(291)
4	10	10	0.025(0.64)	0.045(1.14)	0.51(12.9)	240(356)
3	8	10	0.036(0.91)	0.060(1.52)	0.61(15.5)	305(453)
4	8	10	0.036(0.91)	0.060(1.52)	0.67(17.0)	380(561)
3	6	8	0.038(0.97)	0.060(1.52)	0.70(17.7)	440(652)
4	6	8	0.038(0.97)	0.060(1.52)	0.77(19.4)	550(812)
3	4	8	0.049(1.24)	0.060(1.52)	0.85(21.5)	640(952)
4	4	8	0.049(1.24)	0.080(2.03)	0.97(24.7)	850(1,260)
3	2	6	0.049(1.24)	0.080(2.03)	1.01(25.8)	980(1,455)
4	2	6	0.049(1.24)	0.080(2.03)	1.11(28.3)	1.235(1.836)
3	1	6	0.060(1.52)	0.080(2.03)	1.15(29.1)	1,210(1,800)
4	1	6	0.060(1.52)	0.080(2.03)	1.26(32.1)	1,540(2,286)
3	1/0	6	0.060(1.52)	0.080(2.03)	1.23(31.3)	1,450(2,154)
4	1/0	6	0.060(1.52)	0.080(2.03)	1.36(34.5)	1,850(2,750)
3	2/0	6	0.060(1.52)	0.080(2.03)	1.32(33.7)	1,745 (2,592)
4	2/0	6	0.060(1.52)	0.080(2.03)	1.46(37.2)	2,235(3,326)
3	3/0	4	0.060(1.52)	0.080(2.03)	1.44(36.5)	2,160(3,209)
4	3/0	4	0.060(1.52)	0.080(2.03)	1.59(40.3)	2,770(4,116)
3	4/0	4	0.060(1.52)	0.080(2.03)	1.56(39.5)	2,615(3,890)
4	4/0	4	0.060(1.52)	0.080(2.03)	1.72(43.7)	3,370(5,012)
3	250	4	0.071(1.80)	0.080(2.03)	1.71(43.4)	3,080(4581)
4	250	4	0.071(1.80)	0.110(2.79)	1.95(49.6)	4,090(6,083)
3	350	3	0.071(1.80)	0.110(2.79)	1.99(50.5)	4.265(6.340)
4	350	3	0.071(1.80)	0.110(2.79)	2.2(55.9)	5,505(8,186)
3	500	2	0.071(1.80)	0.110(2.79)	2.27(57.6)	5.850(8.701)
4	500	2	0.071(1.80)	0.110(2.79)	2.51(63.8)	7,580(11,276)
3	750	1	0.082(2.08)	0.110(2.79)	2.70(68.6)	8,535(12,700)
4	750	1	0.082(2.08)	0.140(3.56)	3.06(77.8)	11.295(16,807)
