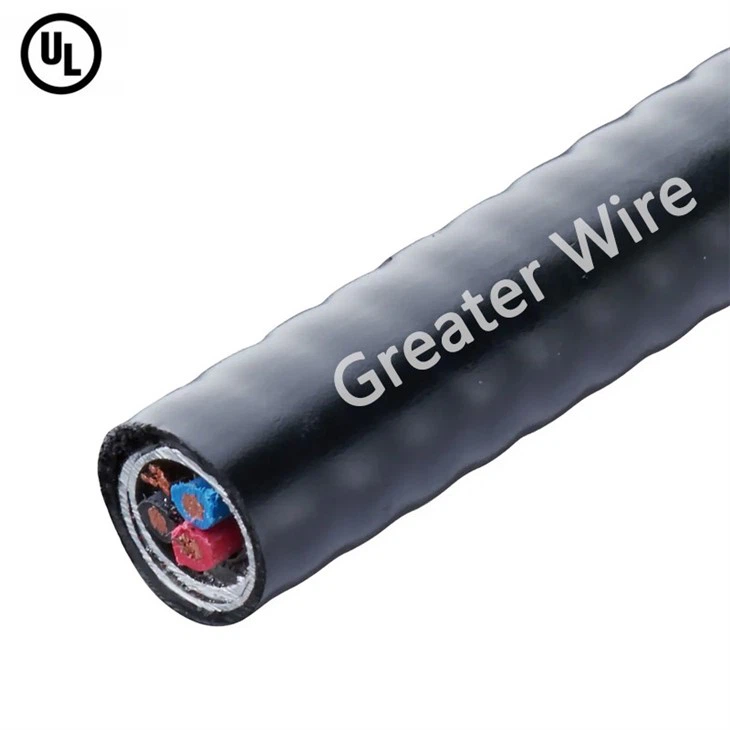

UL Type TC-ER Tray Cable Helical 600 Volts

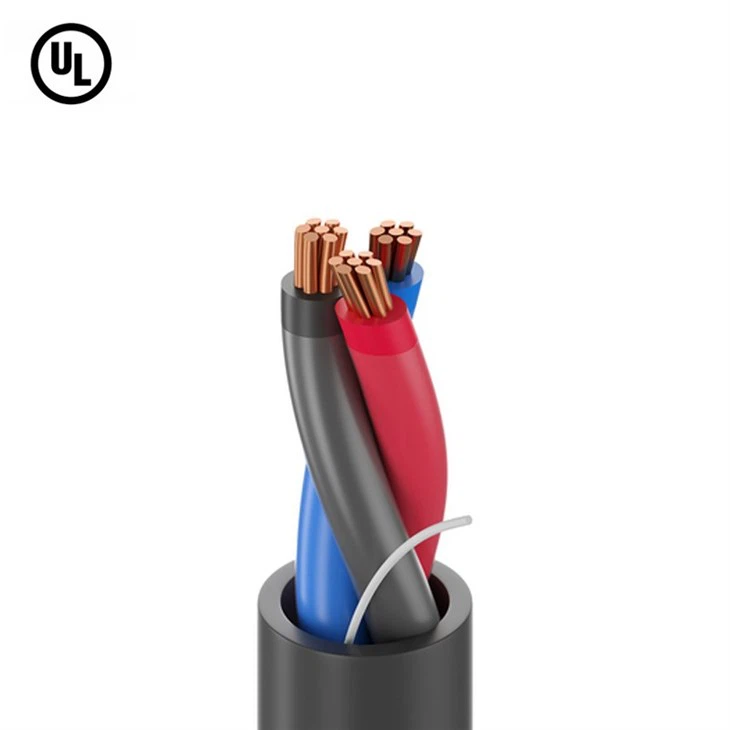

UL Type TC-ER Helical 600V tray cable is a high-performance cable designed for industrial control systems, power distribution, and mechanical equipment wiring. Its conductor uses 14 AWG to 10 AWG fully annealed standard bare copper, which meets the ASTM B8 Class B stranded structure. The cable insulation layer is made of cross-linked polyethylene (XLPE) and belongs to XHHW-2 type insulation. It has excellent heat resistance and is suitable for dry and humid environments at 90°C. The external 5 mil copper tape spiral shielding structure effectively improves the electromagnetic interference protection capability and ensures the stable transmission of signals and power.

Application

600V TC-ER tray cable is a multifunctional control and distribution cable suitable for a variety of industrial and commercial scenarios. It is designed for stable power supply and signal transmission in complex environments. The cable allows open installation without the need for additional protective casing, greatly simplifying the wiring cost and construction difficulty. It is rated at 600 volts and is suitable for industrial automation systems, control circuits, motor power supply, pump connection, lighting systems, and mechanical equipment wiring. The cable structure adopts high-conductivity annealed copper conductor, XHHW-2 grade cross-linked polyethylene insulation, spiral copper tape shielding and UV-resistant PVC sheath. It has excellent heat resistance (90°C dry and wet environment), anti-interference, oil resistance, moisture resistance, flame retardant, low temperature resistance (-40°C cold bending), and other properties. It can be used for cable trays, cable ducts, pipelines, or direct underground laying, especially suitable for electrical systems that require high reliability and long-term operation in harsh industrial environments.

Certification

TC-ER tray cables are certified by multiple authorities for their safety and reliability in industrial, commercial and harsh environments. The cables comply with UL 1277 standards and are listed as Tray Cable (TC), which is suitable for a variety of installation methods such as cable trays, conduits and ground laying. At the same time, the cables can be laid directly on walls or structures without additional metal protective tubes when meeting specific fixing requirements, greatly simplifying the installation process. The cables also pass the UL 44 (XHHW-2) insulation standard to ensure that they can operate safely up to 90°C in dry and humid environments.

Package

TC-ER cable package

Production Line

Greater Wire is a professional TC-ER tray cable manufacturer, dedicated to providing high-performance and high-safety cable solutions for industrial automation, power control, and building wiring. The TC-ER cables we produce strictly follow multiple North American standards, such as UL 1277, UL 44, UL 1581, UL 2556, IEEE 1202, and have passed the dual certification of Tray Cable (TC) and Exposed Run (ER). They can be widely used in cable trays, pipelines, wall surfaces, and direct buried environments.
With more than 30 years of experience in wire and cable manufacturing, we have advanced production equipment and a complete quality control system. We can provide customized services of UL TC-ER cables of various specifications according to customer requirements, supporting OEM and global exports. Our products have been widely used in mechanical manufacturing, automation control, electrical distribution and other engineering projects in North America, Latin America, Southeast Asia and other regions, and have won praise from customers at home and abroad.

customer

wire and cable company

Partner

greater wire Partner

FAQ

Q: What is a TCER cable rating?

A: TC-ER cable rating is safe for use in tray systems and can be exposed for short runs outside of protective conduit, thanks to its enhanced mechanical durability, flame resistance, and often sunlight and oil resistance.

Q: What is the difference between TC and TC-ER?

A: Both are tray cables, but TC-ER cables have higher structural strength and mechanical protection capabilities, meeting the NEC requirements for "exposed run". Compared with ordinary TC cables, TC-ER can replace metal conduits under certain conditions to reduce construction costs.

Q: Can TC-ER cables be buried directly in the ground?

A: Yes. TC-ER cables that comply with DIR BUR (Direct Burial) can be buried directly underground without the use of conduits and have good water resistance, corrosion resistance, and mechanical strength.

Hot Tags: ul type tc-er tray cable helical 600 volts, China ul type tc-er tray cable helical 600 volts manufacturers, suppliers, factory

TC-ER cable specification

Weights & Measurements

Cond. Size	Dia Over Cond. (1)	Insul. Thickness	Dia Over Insul. (2)	Ground	Jacket Thickness	Approx. OD (6)	Copper Weight	Approx. Weight
AWG	inches	inches	inches	No. x AWG	mils	inches	lbs./MFT	lbs./MFT
8	0.139	35	0.209	1x10	45	0.542	187	283
6	0.174	35	0.244	1x8	60	0.648	297	436
4	0.221	46	0.313	1x8	60	0.795	442	626
2	0.277	46	0.369	1x6	80	0.958	703	964
1	0.321	57	0.435	1x6	80	1.100	865	1192
1/0	0.360	57	0.474	1x6	80	1.184	1069	1432
2/0	0.404	57	0.518	1x6	80	1.279	1327	1732
3/0	0.454	57	0.568	1x4	80	1.387	1700	2156
4/0	0.510	57	0.624	1x4	80	1.508	2110	2624
250	0.558	68	0.694	1x4	80	1.659	2469	3076
350	0.661	68	0.797	1x3	110	1.942	3440	4272
500	0.789	68	0.925	1x2	110	2.218	4885	5888
600	0.866	79	1.024	1x2	110	2.432	5822	6994
750	0.968	79	1.126	1x2	110	2.652	7278	8602

Electrical and Engineering Data

Cond. Size	Min. Bending Radius	Max. Pull Tension	Resistance		Reactance	Allowable Ampacities
Cond. Size	Min. Bending Radius	Max. Pull Tension	DC @ 25℃	AC @ 90℃	@ 60Hz	60 ℃	75℃	90℃
AWG	Inches	lbs.	Ω/MFT	Ω/MFT	Ω/MFT	Amps	Amps	Amps
8	2.2	396	0.652	0.815	0.030	40	50	55
6	2.6	630	0.411	0.514	0.028	55	65	75
4	3.2	1002	0.258	0.323	0.029	70	85	95
2	3.8	1593	0.162	0.203	0.028	95	115	130
1	5.5	2009	0.129	0.162	0.028	110	130	145
1/0	5.9	2534	0.102	0.128	0.027	125	150	170
2/0	6.4	3194	0.081	0.102	0.027	145	175	195
3/0	6.9	4027	0.064	0.081	0.026	165	200	225
4/0	7.5	5078	0.051	0.064	0.026	195	230	260
250	8.3	6000	0.043	0.055	0.026	215	255	290
350	9.7	8400	0.031	0.040	0.026	260	310	350
500	13.3	12000	0.022	0.029	0.025	320	380	430
600	14.6	14400	0.018	0.025	0.025	350	420	475
750	15.9	18000	0.014	0.020	0.025	400	475	535

† Ampacities are based on Table 310.15 (B)(16) of the NEC, 2014 Edition. Ampacities of insulated conductors rated up to and including 2000 Volts,

based on ambient temperature of 30ºC (86ºF)
