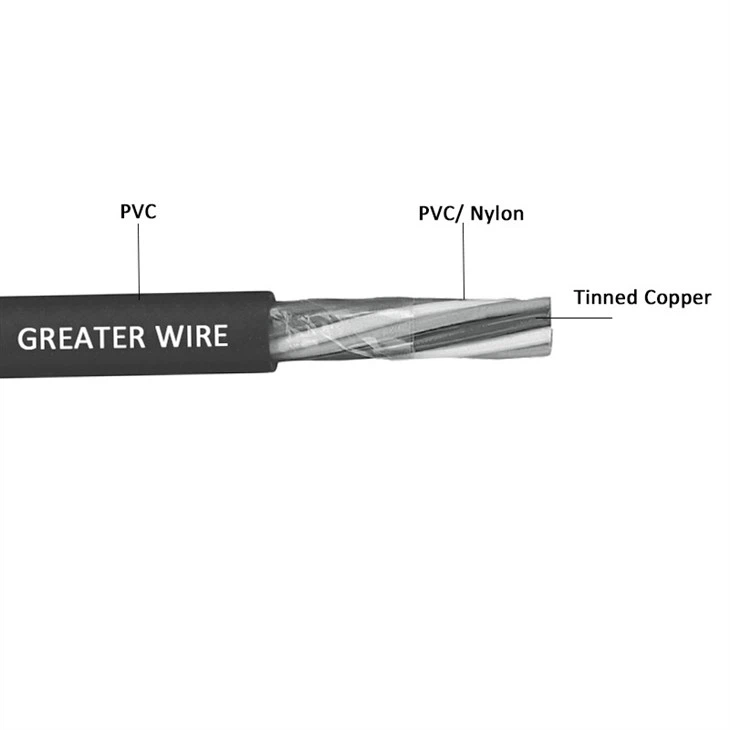

600 V Type TC-ER control cables are designed with high-performance structures for a variety of industrial control and power distribution applications. The cables consist of two or more tinned stranded copper conductors with a PVC/nylon double-layer insulation and an integral PVC jacket for excellent mechanical protection and dielectric strength. The cables are available in a variety of conductor sizes, including 18 AWG, 16 AWG, 14 AWG, 12 AWG, and 10 AWG, to flexibly meet the needs of different electrical systems.
Rated at 90°C wet and 75°C dry, the cables have excellent thermal stability and environmental adaptability. The cables are certified to UL 1277 and are listed as 600V Tray Cable – Exposed Run types, and the conductors meet the TFN standard under UL 66 and the THHN/THWN standard under UL 83. In addition, the products have passed the flame retardant tests of UL 1685, IEEE 1202, and CSA FT4, and have good fire resistance, making them suitable for industrial environments that require high safety standards.
Application
600V Type TC-ER control cable can be directly buried and has sunlight resistance, suitable for outdoor installation and harsh working conditions, and complies with RoHS environmental protection standards. It can be used for exposed laying under the conditions of NEC (National Electrical Code) guidelines, and is very suitable for factory automation systems, such as connecting automation equipment such as sensors, actuators, PLC controllers, motor control centers (MCCs) and variable frequency drives (VFDs), processing production lines, power control panels, building management systems, and mechanical equipment control power lines.
Certification
600V Type TC-ER control cable has obtained multiple authoritative UL certifications, marked with Direct Burial and Sunlight-Resistant, indicating that it can be used in outdoor or underground environments, and long-term exposure to sunlight will not reduce its performance. The cable also complies with the RoHS environmental protection directive and does not contain harmful substances such as lead and cadmium, which is a high regard for user health and environmental protection.
Package
Production Line
Greater Wire is a professional TC-ER control cable manufacturer, focusing on the research and development and production of high-performance industrial cables, with more than 30 years of experience in wire and cable manufacturing. Our cables have multiple advantages such as high temperature resistance, oil resistance, UV resistance, direct burial, and exposed laying, and can operate stably for a long time in harsh environments. All products have passed multiple international authoritative certifications such as UL, CSA, RoHS, etc., and meet the technical specifications and safety standards of the American and global markets.
customer
Partner
Hot Tags: 600v type tc-er control cable pvc/nylon insulated pvc sheath, China 600v type tc-er control cable pvc/nylon insulated pvc sheath manufacturers, suppliers, factory
| Cond. Size (Strand.) | Number of Cond. | Nominal Insulation (Mils) | Nominal Jacket Thickness (Mils) | Approx. O.D. (Inches) | Approx. Net Weight (Lbs/1000 Ft) |
| 18(7/W) | 2 Flat | 20 | 45 | .150 x .285 | 36 |
| 18(7/W) | 3 | 20 | 45 | 0.285 | 46 |
| 18(7/W) | 4 | 20 | 45 | 0.310 | 56 |
| 18(7/W) | 5 | 20 | 45 | 0.335 | 65 |
| 18(7/W) | 7 | 20 | 45 | 0.360 | 82 |
| 16(7/W) | 2 Flat | 20 | 45 | .200 x .310 | 42 |
| 16(7/W) | 2 | 20 | 45 | 0.300 | 50 |
| 16(7/W) | 3 | 20 | 45 | 0.315 | 60 |
| 16(7/W) | 4 | 20 | 45 | 0.340 | 74 |
| 16(7/W) | 5 | 20 | 45 | 0.370 | 97 |
| 16(7/W) | 7 | 20 | 45 | 0.400 | 111 |
| 16(7/W) | 9 | 20 | 45 | 0.460 | 141 |
| 16(7/W) | 12 | 20 | 45 | 0.505 | 178 |
| 14(7/W) | 2 Flat | 20 | 45 | .210 x .320 | 54 |
| 14(7/W) | 3 | 20 | 45 | 0.345 | 80 |
| 14(7/W) | 4 | 20 | 45 | 0.365 | 100 |
| 14(7/W) | 5 | 20 | 45 | 0.410 | 118 |
| 14(7/W) | 7 | 20 | 45 | 0.445 | 153 |
| 14(7/W) | 9 | 20 | 45 | 0.505 | 213 |
| 14(7/W) | 12 | 20 | 45 | 0.595 | 267 |
| 12(7W) | 2 Flat | 20 | 45 | .225 x .360 | 74 |
| 12(7W) | 3 | 20 | 45 | 0.385 | 131 |
| 12(7W) | 3WG | 20 | 45 | 0.385 | 148 |
| 12(7W) | 3BWG | 20 | 45 | 0.385 | 131 |
| 12(7W) | 4 | 20 | 45 | 0.420 | 145 |
| 12(7W) | 5 | 20 | 45 | 0.445 | 165 |
| 12(7W) | 7 | 20 | 45 | 0.490 | 217 |
| 12(7W) | 9 | 20 | 45 | 0.605 | 297 |
| 12(7W) | 12 | 20 | 45 | 0.675 | 377 |
| 10(7W) | 2 Flat | 26 | 45 | .260 x .425 | 108 |
| 10(7W) | 3 | 26 | 45 | 0.450 | 191 |
| 10(7W) | 3WG | 26 | 45 | 0.450 | 191 |
| 10(7W) | 4 | 26 | 45 | 0.505 | 209 |
| 10(7W) | 5 | 26 | 60 | 0.570 | 268 |
| 10(7W) | 7 | 26 | 60 | 0.620 | 350 |
