Name: China 1.0mm Purple Non-Migratory Flat TPS Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 310330558

Description

Technical Parameters

Certification

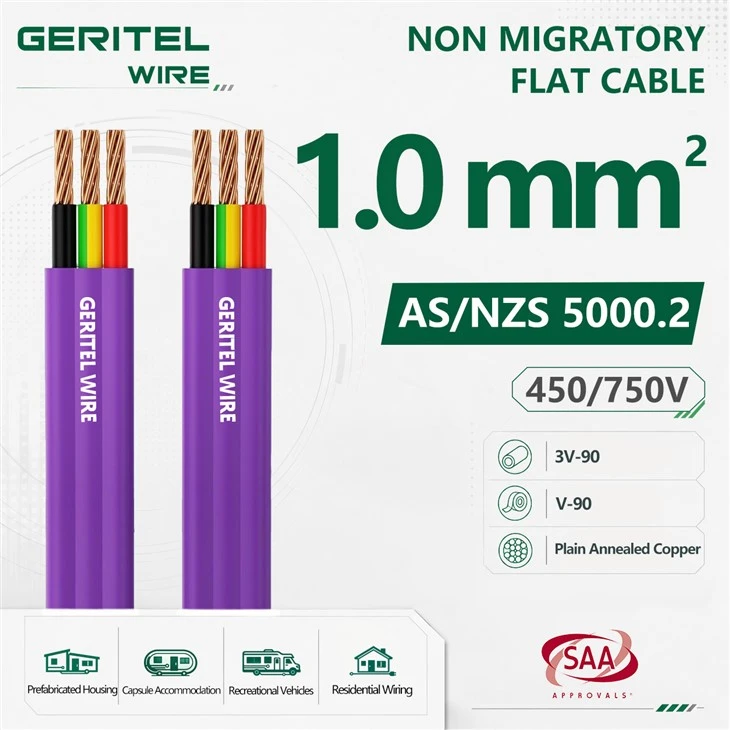

1.0mm purple non migratory TPS cable

PRODUCT REAL SHOT

16mm 3 core and earth cable

1 mm² Violet Twin and Earth Cable for Prefabricated House Lighting

GERITEL WIRE supplies 1.0mm Purple Non-Migratory Flat TPS Cable for protected fixed lighting, switching and control circuits near polymer insulation. Plain annealed copper conductors, V-90 or approved V90HT PVC insulation and a purple non-migratory 3V-90 sheath form a compact 450/750V flat cable. Designed with two working cores and an earth conductor, it can be evaluated as Violet Twin and Earth Cable for Prefabricated Houses, Non-Migratory TPS Cable for Capsule House Lighting and Purple Cable for EPS Insulated Wall Panels. GERITEL WIRE supports drawing confirmation, custom marking, samples and export packing; verify earth-core size, certificate coverage and local wiring rules before installation.

PRODUCT SPECIFICATIONS

1mm² non migratory flat TPS cable

Application

Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

Application

SPECIFICATIONS
Approvals	AS/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Minimum bending radius	6x0D during install 4x0D once installed
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black,Green/Yellow Sheath: 3V-90PVC Colour: Purple
Installation conditions	In free air In conduit In trench In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40

CERTIFICATIONS

1 mm2 purple flat TPS cable

PACKAGING

Roll

Plastic Reel

1 mm2 non migratory twin and earth cable

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

1mm² purple cable wholesale

CUSTOMER PHOTOS

purple non migratory flat TPS cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can purple TPS cable be installed against polyurethane foam?

Non-Migratory TPS Cable for Polyurethane Insulation may be suitable when the manufacturer's data specifically includes polyurethane contact. GERITEL WIRE recommends that buyers provide the panel or foam specification so the team can verify Purple Cable for Polyurethane Sandwich Panels, conductor size and installation method before quotation.

Is non-migratory cable suitable for EPS, XPS, PIR and PU sandwich panels?

Suitability depends on the exact polymer formulation and the cable manufacturer's approved compatibility list. GERITEL WIRE can review the panel data before supplying Non-Migratory Cable for Insulated Wall Panels. For projects involving several foam types, the quotation can separately identify Purple TPS Cable for Sandwich Panel Wiring and any required conduit or separation method.

Can non-migratory TPS cable contact ABS, acrylic or polycarbonate?

Some manufacturer data lists approved use with materials such as polystyrene, acrylic, ABS and polycarbonate. GERITEL WIRE can verify the requested construction for Non-Migratory Cable for ABS and Polycarbonate Contact and provide technical documents for Purple TPS Cable for Polymer Components, helping the customer avoid unsupported material claims.

Is Purple Non-Migratory TPS normally Twin and Earth cable?

A common market construction is Purple Non-Migratory Twin and Earth Cable, containing two insulated working conductors plus an earth conductor in a flat sheath. Other configurations may also exist. GERITEL WIRE clearly identifies the core arrangement and earth size for each Non-Migratory 2C+E TPS Cable quotation so buyers do not confuse it with Twin Core without earth.

Hot Tags: 1.0mm purple non-migratory flat tps cable, China 1.0mm purple non-migratory flat tps cable manufacturers, suppliers, factory, 3 Core TPS Cable, SAA Australia Flat 2C E Electrical TPS Cable, SAA Australia Flat Twin Active TPS Cable, tps cable
