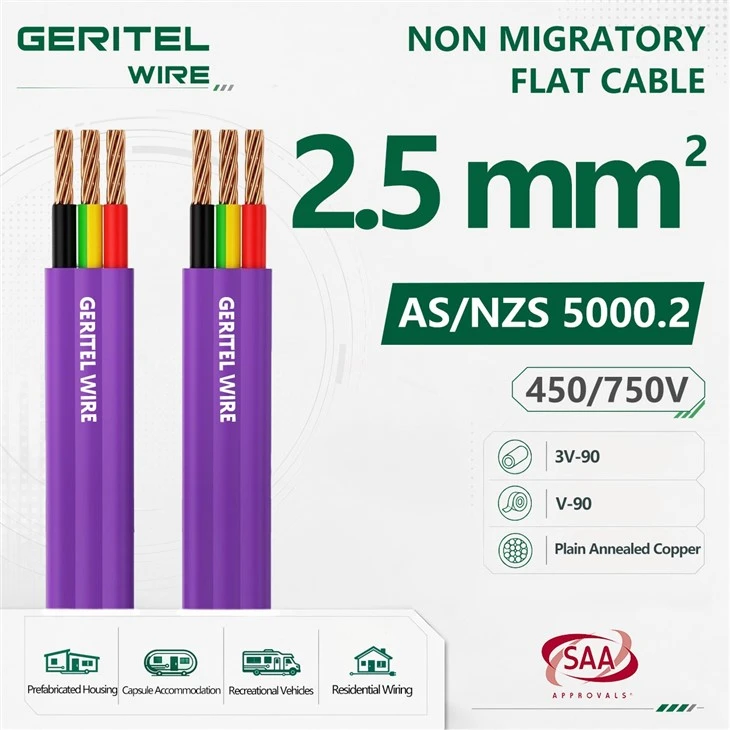

2.5mm Violet 2C+E Flat TPS Cable 450/750V

2.5mm Violet 2C+E Flat TPS Cable 450/750V
Details:
·Insulation: V-90 PVC
·Colour: Red, Black, Green/Yellow
·Sheath: 3V-90 PVC
·Colour: Purple
·Approvals: AS/NZS 5000.2
·Normal operating temperature: +90℃
·Minimum operating temperature: 0℃
Send Inquiry
Download
Description
Technical Parameters
Certification

2.5mm purple non migratory TPS cable

PRODUCT REAL SHOT



16mm2 flat TPS cable
16 mm² white TPS cable
16mm PVC flat cable

16mm 3 core and earth cable

Polystyrene-Compatible Building Cable for Container Homes
2.5mm Violet 2C+E Flat TPS Cable provides two insulated working conductors plus an earth conductor in a flat purple sheath for protected fixed power, lighting and control circuits. Plain annealed copper, V-90 insulation and a non-migratory 3V-90 PVC sheath support use where the approved cable may contact polystyrene, polyurethane or other specified polymer materials. This page can target Polystyrene-Compatible Cable for Container Houses, Non-Migratory TPS Cable for Tiny House Power Circuits and Purple Twin and Earth Cable for RV Fixed AC Wiring. GERITEL WIRE supports 100m reels, OEM printing, samples and inspection documents. Final selection requires load, voltage-drop, earthing and installation-method checks.
PRODUCT SPECIFICATIONS



2.5mm² non migratory flat TPS cable

Application



Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

Application



Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

SPECIFICATIONS
Approvals AS/NZS5000.2

Behaviour in flame

and fire

 Flame retardant
Temperature range

Normal operating temperature: +90°C

Minimum operating temperature: 0°C
Flexibility Semi-rigid
Minimum bending radius

6x0D during install

4x0D once installed
Resistance to

Chemical exposure: Occasional

Mechanical impact: Light

Water exposure: Occasional condensation

Solar radiation and

weather exposure: Occasional
Cable design

Conductor:

Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1).

Insulation: V-90 PVC
Colours: Red, Black,Green/Yellow

Sheath: 3V-90PVC

Colour: Purple
Installation conditions

In free air

In conduit

In trench

In duct

External building with protection

Insulation Colours

Conductor

Cable

Min.

installed

bending

radius(a)

mm

Nominal

C.S.A

mm²

Nominal

diameter

of wires
No/mm

Nominal

diameter

mm

Nominal

insulation

thickness

mm

Overall diameter mm

Approx.

mass

kg/100m

Minimum

Maximum
Major axis Major axis Major axis Major axis
TWIN FLAT PVC
Red,Green/Yellow,Black 1.0 7/0.42 1.26 0.6 9.5 4.3 9.6 4.4 8 20
Red,Green/Yellow,Black 1.5 7/0.50 1.56 0.6 9.8 4.5 10.1 4.6 10 20
Red,Green/Yellow,Black 2.5 7/0.67 2.0 0.7 12.1 5.4 12.4 5.5 15 20
Red,Green/Yellow,Black 4 7/0.85 2.6 0.8 13.8 6.3 14.1 6.5 19 30
Red,Green/Yellow,Black 6 7/1.04 3.1 0.8 14.9 6.9 15.3 7.1 24 30
Red,Green/Yellow,Black 10 7/1.35 4.1 1 18.9 8.4 19.6 8.8 38 35
Red,Green/Yellow,Black 16 7/1.70 5.1 1 21.8 9.7 22.5 10.0 54 40
CERTIFICATIONS



2.5 mm2 purple flat TPS cable





PACKAGING



2.5mm violet TPS cable

Roll

2.5mm² purple twin and earth cable

Plastic Reel

2.5 mm2 non migratory twin and earth cable

Small Wooden Reel

APPLICATION



2.5mm purple 2 core and earth cable
Capsule Accommodation
2.5mm² 2C+E non migratory cable
Prefabricated Housing
2.5 mm2 purple 3 core flat cable

Recreational Vehicle Wiring



CASE



2.5mm V90HT purple TPS cable

2020 Ford Transit AWD Camper Van Conversion

2.5mm² 450/750V non migratory cable

Epping Forest District Council Modular Homes

2.5 mm2 AS/NZS 5000.2 purple cable

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

2.5mm polystyrene safe TPS cable

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



2.5mm² polyurethane safe cable

2.5 mm2 purple TPS cable 100m

2.5mm non migratory cable roll

2.5mm² purple TPS cable price

2.5 mm2 non migratory cable supplier

2.5mm purple flat cable manufacturer

GLOBAL CERTIFICATIONS



2.5mm² purple cable wholesale

CUSTOMER PHOTOS


violet 2C+E TPS cable

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

non migratory 2C+E cable
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

purple 3 core flat cable
purple 3 core TPS cable
violet 3 core TPS cable
non migratory 3 core flat cable
450/750V purple TPS cable
450/750V non migratory TPS cable
V90HT purple TPS cable
V-90 non migratory cable
3V-90 non migratory sheath cable
non migratory 3V90 cable
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

AS/NZS 5000.2 purple TPS cable
FAQ



What voltage and standard are used for this product?
450/750V Non-Migratory TPS Cable is commonly offered as building cable to AS/NZS 5000.2. GERITEL WIRE can supply the relevant technical file and confirm which sizes and constructions are covered before the website or purchase order uses AS/NZS 5000.2 Purple Flat Cable approval wording.
What do V90, V90HT and non-migratory 3V90 mean?
V90HT Purple TPS Cable refers to the insulation and material designation used by some non-migratory products, while the outer sheath is identified separately in the technical data. GERITEL WIRE provides the approved material schedule for Non-Migratory 3V90 PVC Sheathed Cable, enabling consultants to check temperature and compatibility requirements rather than relying on colour alone.
What conductor material is used in Purple Flat TPS cable?
Plain Annealed Copper Non-Migratory Cable is a common market construction because annealed copper supports reliable conductivity and termination. GERITEL WIRE can confirm conductor class, strand count, insulation colours and earth-core size for each Copper Purple Flat TPS Cable sample and production drawing.
Which Purple Non-Migratory TPS cable sizes can GERITEL WIRE supply?
GERITEL WIRE can quote the Non-Migratory Flat TPS Cable Size Range in 1.0, 1.5, 2.5, 4, 6, 10 and 16 mm² according to the requested construction. Buyers should provide load, route and earth-core requirements when selecting 1mm² to 16mm² Purple TPS Cable; approval coverage should be checked separately for every size.
