Name: China 4mm Purple Flat Twin And Earth Building Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 310336070

Description

Technical Parameters

Certification

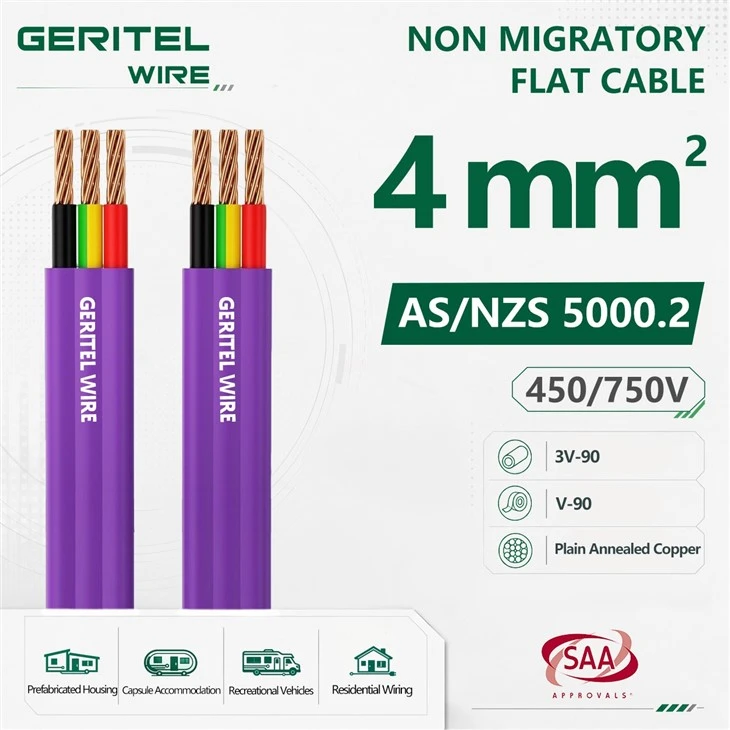

4mm purple non migratory TPS cable

PRODUCT REAL SHOT

16mm 3 core and earth cable

Non-Migratory TPS Cable for Integrated Houses and Cold Rooms

For dedicated circuits requiring a larger conductor area, the 4mm Purple Flat Twin and Earth Building Cable combines plain annealed copper, V-90 PVC insulation and a purple non-migratory 3V-90 sheath. The 450/750V flat 2C+E construction is intended for protected fixed wiring where the approved material system may contact compatible polystyrene or polyurethane insulation. Relevant applications include Non-Migratory TPS Cable for Integrated House Wiring, Purple Cable for Cold Room Electrical Circuits and Violet Flat Cable for Polyurethane Sandwich Panels. GERITEL WIRE provides specification review, custom printing, sample approval and export reel packing. The engineer must confirm current capacity, voltage drop, protection and earth continuity.

PRODUCT SPECIFICATIONS

4mm² non migratory flat TPS cable

Application

Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

Application

SPECIFICATIONS
Approvals	AS/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Minimum bending radius	6x0D during install 4x0D once installed
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black,Green/Yellow Sheath: 3V-90PVC Colour: Purple
Installation conditions	In free air In conduit In trench In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40

CERTIFICATIONS

4 mm2 purple flat TPS cable

PACKAGING

Roll

Plastic Reel

4 mm2 non migratory twin and earth cable

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

4mm² purple cable wholesale

CUSTOMER PHOTOS

AS/NZS 5000.2 non migratory cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

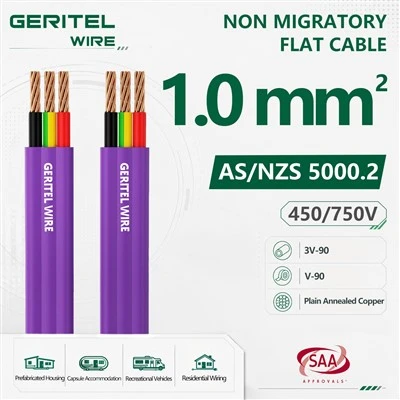

Can 1.0 mm² Purple TPS cable be used for lighting circuits?

1.0mm Purple Non-Migratory TPS Cable may be evaluated for suitable fixed lighting, switching or control circuits after current capacity, voltage drop, protection and earth size are confirmed. GERITEL WIRE can provide a sample and drawing for 1 mm² Non-Migratory Lighting Cable, but the exact certification scope must be verified before publication.

Why is 1.5 mm² non-migratory cable commonly used?

1.5mm Non-Migratory Twin and Earth Cable is commonly searched for fixed lighting and control circuits in caravans, cold rooms and insulated buildings. GERITEL WIRE supplies 1.5 mm² Purple TPS Lighting Cable with sample approval, clear sheath printing and project packaging, while the electrician confirms the actual installation rating.

Is 2.5 mm² purple TPS suitable for power circuits?

2.5mm Purple Non-Migratory TPS Cable can be considered for suitable protected fixed power, lighting or control circuits when the complete design meets current capacity, voltage-drop and earthing requirements. GERITEL WIRE can supply 2.5 mm² Violet Twin and Earth Cable samples and technical documents for modular, container, cold-room or caravan projects.

When should I choose 4 mm² or 6 mm² non-migratory cable?

4mm and 6mm Purple TPS Cable may be selected for dedicated circuits needing more conductor area or lower voltage drop than smaller sizes. GERITEL WIRE can compare project loads, cable routes and packing requirements for Large Size Non-Migratory Twin and Earth Cable, while the consultant confirms protection, derating and earth continuity.
