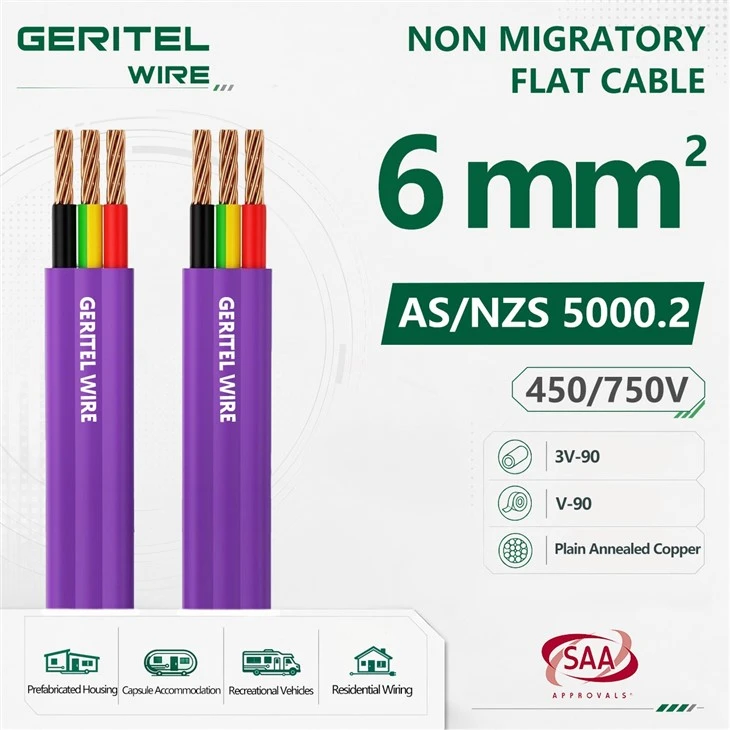

6mm purple non migratory TPS cable

PRODUCT REAL SHOT

16mm 3 core and earth cable

6 mm² Purple 2 Core and Earth Cable for Transportable Buildings

GERITEL WIRE manufactures the 6mm Non-Migratory Flat TPS Power Cable for engineered fixed circuits that need two working conductors and an earth conductor in a compact purple flat profile. Plain annealed copper cores, V-90 or approved V90HT insulation and a non-migratory 3V-90 PVC sheath support 450/750V building installations near specified polymer insulation. The page can address Purple 2 Core and Earth Cable for Transportable Buildings, Non-Migratory Cable for Worker Camp Accommodation and Purple TPS Cable for Insulated Roofing Panels. Buyers can request technical data, batch marking, samples and project-length packing. Route conditions, grouping, thermal insulation and voltage drop must be reviewed before final sizing.

PRODUCT SPECIFICATIONS

6mm² non migratory flat TPS cable

Application

Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

Application

SPECIFICATIONS
Approvals	AS/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Minimum bending radius	6x0D during install 4x0D once installed
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black,Green/Yellow Sheath: 3V-90PVC Colour: Purple
Installation conditions	In free air In conduit In trench In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40

CERTIFICATIONS

6 mm2 purple flat TPS cable

PACKAGING

Roll

Plastic Reel

6 mm2 non migratory twin and earth cable

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

6mm² purple cable wholesale

CUSTOMER PHOTOS

non migratory cable for insulation panels

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

non migratory thermoplastic sheathed cable

purple TPS cable for prefabricated houses

non migratory cable for prefab home wiring

purple twin and earth cable for modular homes

non migratory TPS cable for modular buildings

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

purple flat cable for integrated house wiring

FAQ

Can 10 mm² or 16 mm² Purple TPS cable be used for feeders?

10mm and 16mm Non-Migratory Flat Cable may be considered for engineered fixed feeders, submains or distribution routes when the required two-core-and-earth construction is approved. GERITEL WIRE can provide project drums and documentation for Heavy Duty Purple TPS Feeder Cable; designers must verify fault protection, earth size, current capacity and certificate scope.

Can non-migratory TPS cable be used in prefabricated or modular houses?

Non-Migratory TPS Cable for Prefabricated Houses can be routed through protected wall, ceiling and service zones where approved foam or polymer insulation is used. GERITEL WIRE supplies Purple Flat Cable for Modular Home Wiring with repeatable marking, project lengths and packing to support factory-built modules.

Is Purple TPS cable suitable for capsule houses and hotel pods?

Purple TPS Cable for Capsule House Wiring can support protected fixed lighting, power and control circuits where the approved non-migratory material is compatible with the pod's insulation system. GERITEL WIRE offers Non-Migratory Cable for Capsule Accommodation with sample approval and consistent batch identification for repeated units.

Can this cable be installed in container houses or tiny homes?

Non-Migratory Cable for Container House Wiring can be used in protected internal routes when sharp metal penetrations, condensation and mechanical damage are properly controlled. GERITEL WIRE supplies Purple TPS Cable for Tiny House Wiring by size and project length, while the installer selects suitable grommets, conduit and earthing arrangements.
