Name: China 10mm Purple Non-Migratory Flat Building Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 310337395

Description

Technical Parameters

Certification

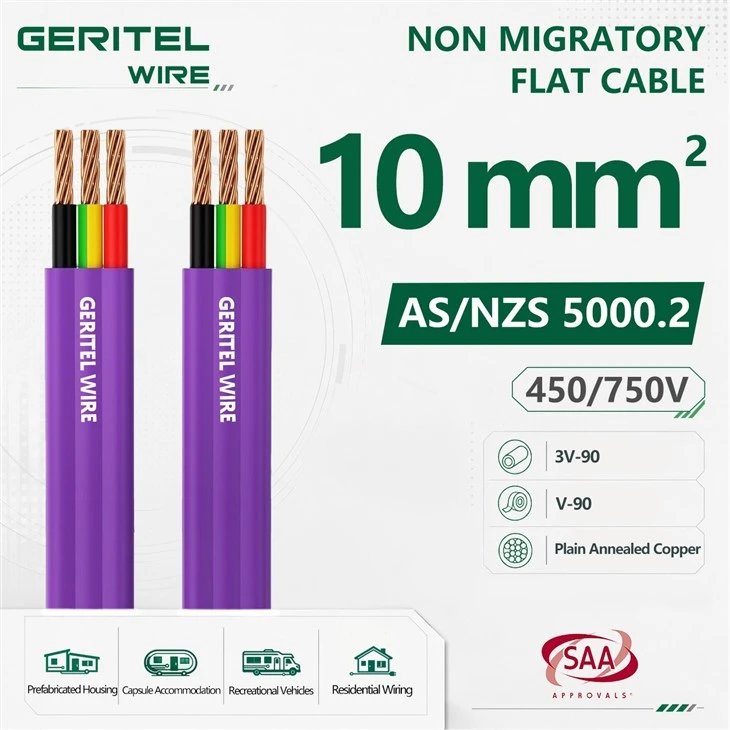

10mm purple non migratory TPS cable

PRODUCT REAL SHOT

16mm 3 core and earth cable

10 mm² Twin and Earth Cable for Modular Accommodation Feeders

The 10mm Purple Non-Migratory Flat Building Cable is positioned for engineered fixed feeders, submains and dedicated circuits where a flat two-core-and-earth construction is specified. Plain annealed copper conductors use V-90 or approved V90HT PVC insulation and a purple non-migratory 3V-90 sheath for 450/750V service. Application content can target Twin and Earth Cable for Modular Accommodation Feeders, Purple TPS Cable for Prefabricated Building Submains and Non-Migratory Cable for Commercial Insulated Panels. GERITEL WIRE supports custom drum lengths, printed identification, inspection documents and export schedules. Final selection requires verified certificate scope, fault protection, earth size and voltage-drop calculations.

PRODUCT SPECIFICATIONS

10mm² non migratory flat TPS cable

Application

Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

Application

SPECIFICATIONS
Approvals	AS/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Minimum bending radius	6x0D during install 4x0D once installed
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black,Green/Yellow Sheath: 3V-90PVC Colour: Purple
Installation conditions	In free air In conduit In trench In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40

CERTIFICATIONS

10 mm2 purple flat TPS cable

PACKAGING

Roll

Plastic Reel

10 mm2 non migratory twin and earth cable

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

10mm² purple cable wholesale

CUSTOMER PHOTOS

non migratory building cable for factory built homes

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

purple TPS cable for transportable buildings

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

non migratory cable for relocatable homes

non migratory TPS cable for modular classrooms

purple flat TPS cable for modular clinics

non migratory cable for worker camp accommodation

purple TPS cable for mining camp buildings

purple building cable for prefabricated dormitories

non migratory cable for modular retail kiosks

non migratory cable for capsule home wiring

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

purple twin and earth cable for capsule accommodation

FAQ

Why is non-migratory cable used in caravans and motorhomes?

Caravan walls and roofs often contain foam insulation, making Non-Migratory TPS Cable for Caravan Wiring relevant for compliant fixed AC circuits. GERITEL WIRE can provide product data for Purple Twin and Earth Cable for Motorhomes; the complete installation must still meet AS/NZS 3001 and be completed by a suitably qualified person.

Can Purple Flat TPS cable be used for 12V or 24V battery wiring?

Purple Non-Migratory Flat TPS Cable should not be promoted as flexible high-current battery or inverter cable. RV DC systems require cable chosen for current, voltage drop, flexibility and termination. GERITEL WIRE can supply Non-Migratory Cable for Fixed RV AC Wiring where approved and recommend a separate battery-cable product for the DC side.

Can non-migratory TPS cable be used in cold rooms or freezers?

Non-Migratory TPS Cable for Cold Rooms is a recognised application where polystyrene or polyurethane insulation may be present. GERITEL WIRE can supply Purple Cable for Freezer Room Wiring with the requested size, marking and packing, while the designer checks low-temperature conditions, condensation, protection and equipment requirements.

Can Purple TPS cable run through insulated wall and roof panels?

Purple TPS Cable for Insulated Wall Panels can be used where the approved cable is compatible with the panel core and is protected from screws, sharp edges and compression. GERITEL WIRE recommends reviewing panel drawings before supplying Non-Migratory Cable for Insulated Roofing Systems, especially for penetrations and concealed service routes..
