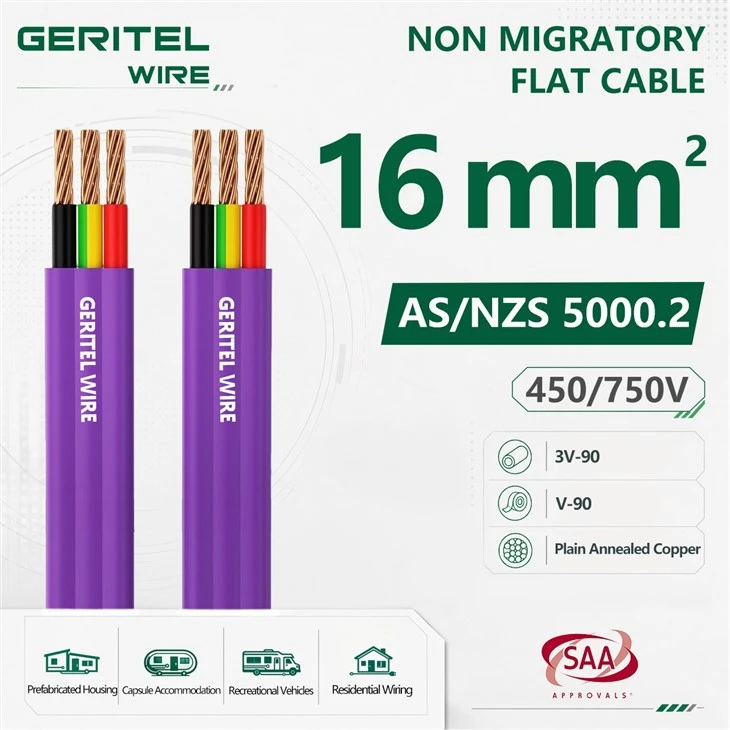

16mm purple non migratory TPS cable

PRODUCT REAL SHOT

16mm 3 core and earth cable

16 mm² 2C+E TPS Cable for Fixed Distribution in Prefabricated Buildings

The 16mm Violet Non-Migratory Flat Power Cable provides a larger copper cross-section for engineered fixed distribution routes that specify two working conductors plus earth. Its flat 450/750V construction uses plain annealed copper, V-90 or approved V90HT PVC insulation and a purple non-migratory 3V-90 sheath intended for approved contact with compatible polymer insulation. SEO applications include 16 mm² 2C+E TPS Cable for Prefabricated Building Distribution, Purple Cable for Large Modular Accommodation and Non-Migratory Flat Cable for Cold Storage Feeders. GERITEL WIRE can provide samples, customised marking, factory testing and export drum packing. Engineers must verify certificate coverage, earth continuity, current capacity and voltage drop.

PRODUCT SPECIFICATIONS

16mm² non migratory flat TPS cable

Application

Suitable for light to medium industrial use and all building internal wiring applications. Insulation & sheathing material is non-migratory and best to be used in cable that are in contact with polystyrene, acrylic, ABS and polycarbonate.This cable is suitable for installation of wall or roofing mate-rial, caravans, cold rooms, and transportable buildings.

Application

SPECIFICATIONS
Approvals	AS/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Minimum bending radius	6x0D during install 4x0D once installed
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation (see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black,Green/Yellow Sheath: 3V-90PVC Colour: Purple
Installation conditions	In free air In conduit In trench In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20

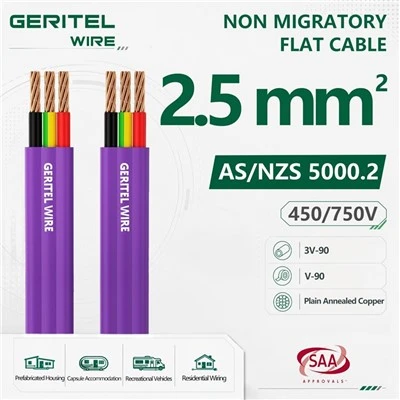

Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40

CERTIFICATIONS

16 mm2 purple flat TPS cable

PACKAGING

Roll

Plastic Reel

16 mm2 non migratory twin and earth cable

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

16mm² purple cable wholesale

CUSTOMER PHOTOS

non migratory TPS cable for capsule hotels

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

non migratory TPS cable for holiday cabins

non migratory cable for shipping container homes

purple twin and earth cable for container offices

non migratory TPS cable for container classrooms

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

non migratory cable for container accommodation

FAQ

Can Purple Non-Migratory TPS cable be buried directly underground?

Purple Non-Migratory TPS Cable should not be marketed as direct-burial cable unless the exact product approval says so. Soil, water and mechanical loads usually require another underground cable and installation method. GERITEL WIRE can supply Non-Migratory Flat Cable for Protected Indoor Wiring and help identify a separate product for buried feeders.

Is non-migratory TPS cable suitable for outdoor or UV-exposed use?

Purple Non-Migratory TPS Cable for Indoor Fixed Wiring is not automatically UV-resistant or weatherproof because the sheath is purple. GERITEL WIRE can review the route and determine whether Protected Non-Migratory Building Cable may be installed in conduit or whether an outdoor-rated cable is required.

Does Purple Flat TPS cable need conduit or mechanical protection?

The need for conduit depends on the route, panel structure and risk of damage. Purple Flat TPS Cable in Conduit may be appropriate through metal frames, exposed service zones or vulnerable penetrations. GERITEL WIRE supplies Protected Non-Migratory Twin and Earth Cable; the installer chooses the compliant support, bend and protection method.

What roll or drum lengths can GERITEL WIRE supply?

100m Roll Purple Non-Migratory Cable is a common market request for smaller sizes, while larger conductors or project quantities may be packed on drums. GERITEL WIRE can plan Non-Migratory TPS Cable Project Packaging according to size, metres, unloading method and container efficiency, with the final length and tolerance confirmed in the quotation.
