- Conductor: copper
- Insulation: PVC
- Sheath: PVC
- Voltage Rating:300/500 V
- Temperature Rating:-5℃ to +70°C

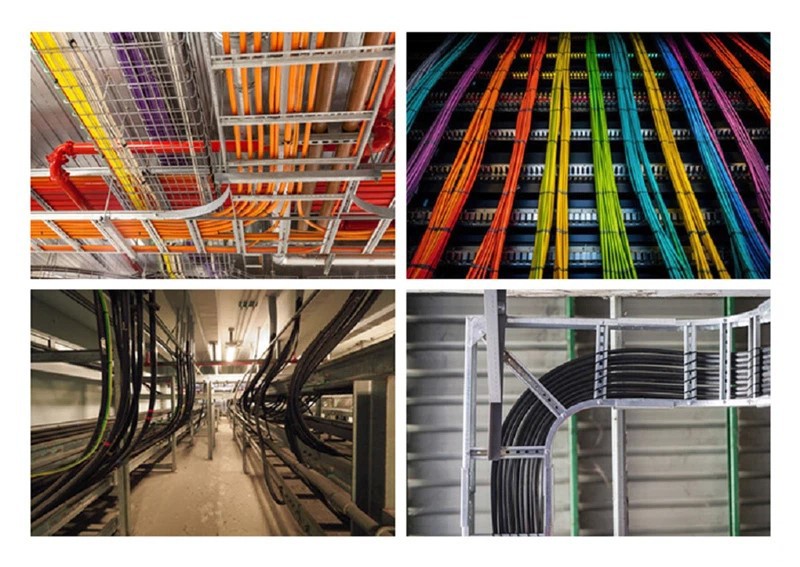

Application
ECC cable is a cable used for domestic electrical wiring, with an exposed protective conductor and available in 1, 2 or 3 core options, suitable for fixed installation in dry or wet environments. The cable can be fixed directly to the surface, laid on a cable tray or suspended in free air. For applications requiring mechanical protection, ECC cables can be placed in pipes or cable ducts to ensure the safety and stability of the cable.
Feature
ECC cable uses copper conductors with excellent conductivity, and the insulation layer and outer sheath are made of PVC material, which provides excellent wear resistance and corrosion resistance, ensuring the reliability of the cable in various environments. Its rated voltage is 300/500V, suitable for low-voltage electrical systems, and the operating temperature range is -5℃ to +70℃, which can meet the needs of power transmission in homes and industrial places.
Certification
ECC cables are CE certified and meet the safety and environmental standards of the European market, and can be widely used in Europe. ECC cables are made of high-quality materials, have excellent conductivity and durability, and are widely used in many fields such as industry, construction, and home appliances. Whether in low-voltage power transmission connections or internal electrical connections of equipment, ECC cables can provide stable and long-lasting performance and meet local strict electrical safety standards.
Package
Production Line
Greater Wire Manufacturer's state-of-the-art cable factory features an intelligent and digital manufacturing environment. The shift to digital manufacturing not only improves efficiency but also strives to provide customers with the highest reliability products. The smart factory framework ensures a streamlined and error-free production process, minimizes the possibility of human variance, and increases precision that was previously unattainable. The factory strictly adheres to quality control through precise and automated inspection mechanisms. From the beginning to the final stage of the manufacturing process, products are thoroughly inspected. The commitment to quality extends to our inspection accuracy, with automated production equipment achieving an accuracy of 0.002 mm.
customer
Partner
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, offering full control over your order from start to finish. From initial design to final delivery, we ensure every step meets the highest standards.
Q: How can I get a sample? Is it free?
Hot Tags: pvc ecc cable, China pvc ecc cable manufacturers, suppliers, factory, 0 6 1KV Single Core Building Cable, SAA Orange Circular Cable, USE 2 XHHW XHHW 2 XLPE Insulation Copper Wire, CUL Standard XLPE Copper RW75 RW9O RWU75 RWU90 Cable, 300V CSA VW 1 UL1007 Hook Up Wire, NM B Wire
| Conductor Structure | Conductor section mm |
Insulation thickness mm |
Insulation outer diameter mm | Sheath thickness mm | Nom O.D mm |
REFERENCE METHOD A(IN CONDUIT WALL) | REFERENCE METHO DC(CLIPPED DIRECT) | VOLTAGE DROP MV/A/M |
| 1 | 1/1.13 | 1 | 1 | 49 | 4.15x5.40 | 11.5 | 16 | 44 |
| 1.5 | 1/1.37 | 1 | 1 | 51 | 4.65x5.80 | 14.5 | 20 | 29 |
| 1 | 1/1.13 | 3 | 1 | 92 | 4.60x10.20 | 11.5 | 16 | 44 |
| 1 | 1/1.13 | 2 | 1 | 69 | 4.10x8.65 | 11.5 | 16 | 44 |
| 1.5 | 1/1.38 | 2 | 1 | 85 | 4.55x8.80 | 14.5 | 20 | 29 |
| 2.5 | 1/1.77 | 2 | 1.5 | 120 | 5.40x10.50 | 20 | 27 | 18 |
| 1.5 | 1/1.37 | 3 | 1 | 115 | 4.75x11.45 | 14.5 | 20 | 29 |
| 2.5 | 1/1.77 | 3 | 1.5 | 170 | 5.45x13.40 | 20 | 27 | 18 |
| 4 | 7/0.85 | 2 | 1.5 | 17 | 6.10x12.00 | 26 | 37 | 11 |
| 6 | 7/1.04 | 2 | 2.5 | 24 | 6.90x13.80 | 32 | 47 | 7.3 |
| 10 | 7/1.35 | 2 | 4 | 390 | 8.40x18.50 | 44 | 64 | 4.4 |
| 16 | 7/1.70 | 2 | 6 | 560 | 9.70x20.60 | 57 | 85 | 2.8 |
