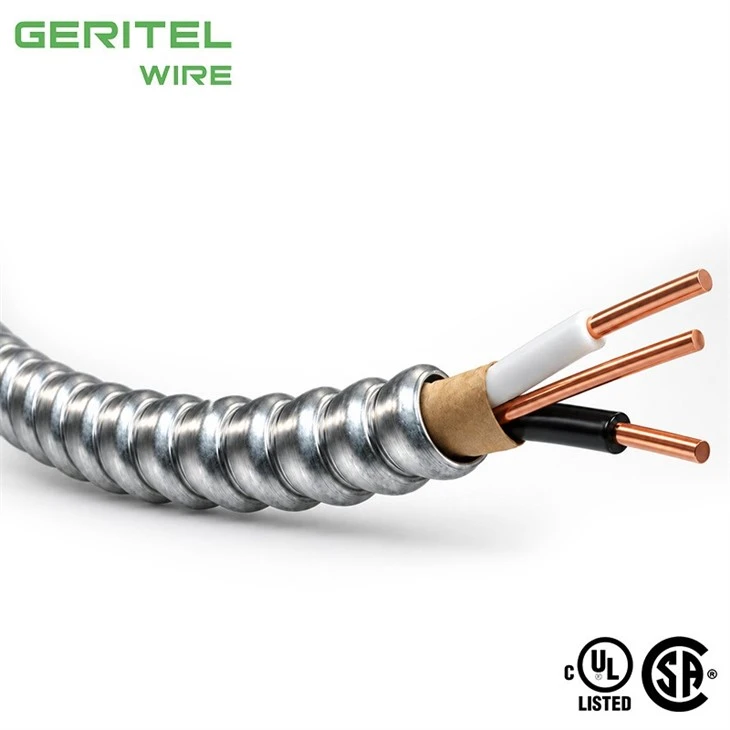

Name: China AC90 Branch Circuit Cable Copper 2 Conductor Black White 600V Manufacturers Suppliers Factory
Brand: Greater Wire
SKU: 318268481

Description

Technical Parameters

Certification

AC90 cable for service room wiring

PRODUCT REAL SHOT

AC90 cable for electrical room wiring

Purpose-built indoor wiring for lighting and receptacle homeruns

When branch circuits need a flexible armoured wiring method, AC90 branch circuit cable provides a compact solution for suitable dry indoor installations. Copper conductors carry current efficiently while RW90 XLPE insulation and interlocked aluminum armour provide electrical insulation and mechanical protection. The black/white 2 conductor configuration is useful for lighting, receptacle and general-purpose circuits from panelboards to building loads. GERITEL WIRE manufactures 2 conductor AC90 cable for contractors, panel-room installers, wholesalers and project procurement teams, with support for bulk orders, custom labeling, private-brand packaging and production scheduling for commercial, residential and institutional building projects.

PRODUCT SPECIFICATIONS

AC90 wire for electrical room wiring

APPLICATIONS

Manufactured, tested and certified in Canada, GERITEL WIRE AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance.

For use in ventilated, non-ventilated and ladder-type cable trays.

For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.

SPECIFICATIONS
Conductor	Solid Soft Copper, ASTM B3
Insulation	Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Colour Code	Black, White
Bonding Conductor	Solid ASTM B3 Soft Bare Copper
Armour	Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
Specifications and Compliance	CSA C22.2 No. 51, Armoured Cables (Type AC90) CSA C22.2 No. 38 Thermoset-insulated wires and cables (Type RW90) CSA C22.2 No. 2556 FT4-ST1/UL 1685 Vertical-Tray Flame Test IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated -40°C Cold Bend and -40°C Cold Impact Limited Smoke and Halogen Free

AC90 & ISO-AC90 600V CSA FT4-ST1 LSZH

AC90

Power Conductor		Ground Conductor	Insulation Thickness		Armour O.D		Cable Weight		Max Pulling Tension		Min Bend Radius		Ampacity
Count	AWG	AWG	in	mm	in	mm	lbs/Mft	kg/km	lbs	kg	in	mm	A
2	14	14	0.030	0.76	0.430	10.9	81	120	66	30	6.0	151	25
2	12	14	0.030	0.76	0.454	11.5	99	148	104	47	6.4	164	30
2	10	12	0.030	0.76	0.512	13.0	138	206	166	75	6.9	174	40
3	14	14	0.030	0.76	0.445	11.3	105	156	99	45	6.2	158	25
3	12	14	0.030	0.76	0.490	12.4	130	193	157	71	6.9	174	30
3	10	12	0.030	0.76	0.535	13.6	182	271	249	113	7.5	190	40
3	8/7	10	0.045	1.14	0.714	18.1	309	460	418	190	10.0	254	55
3	6/7	8/7	0.045	1.14	0.770	19.6	417	621	702	318	10.8	274	75
3	4/7	8/7	0.045	1.14	0.940	23.9	601	894	1193	541	13.2	334	95
3	3/7	6/7	0.045	1.14	0.990	25.1	721	1073	1622	736	13.9	352	115
3	2/7	6/7	0.045	1.14	1.040	26.4	891	1326	1922	872	14.6	370	130
4	14	14	0.030	0.76	0.490	12.4	130	193	131	60	6.9	174	20
4	12	14	0.030	0.76	0.535	13.6	166	247	209	95	7.5	190	24
4	10	12	0.030	0.76	0.630	16.0	232	345	332	150	8.8	224	32

ISO-AC90

Conductor Count	Power Conductor	Ins.Ground Conductor	Ground Conductor	Insulation Thickness		Armour O.D		Cable Weight		Max Pulling Tension		Min Bend Radius		Ampacity
Conductor Count	AWG	AWG	AWG	in	mm	in	mm	lbs/Mft	kg/km	lbs	kg	in	mm	A
2	14	14	14	0.030	0.76	0.440	11.2	105	156	66	30	6.2	157	25
2	12	12	14	0.030	0.76	0.485	12.3	138	206	104	47	6.8	173	30
2	10	10	12	0.030	0.76	0.533	13.5	186	277	166	75	7.5	190	40
3	12	12	14	0.030	0.76	0.535	13.6	165	245	157	71	7.5	190	24
3	10	10	12	0.030	0.76	0.591	15.0	232	346	249	113	8.3	210	32

CERTIFICATIONS

AC90 cable for equipment room wiring

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Apartment/Residential Building Electrical Distribution

Commercial Building Electrical Distribution

Industrial Factory Power Distribution

CASE

Calgary Alberta Multi Storey Apartment Construction Upgrade

AC90 cable for panelboard branch circuit wiring

Toronto Ontario Detached House Basement Panel Upgrade

AC90 wire for panelboard branch circuit wiring

Vancouver British Columbia Downtown Office Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

AC90 cable for distribution panel homeruns

AC90 wire for distribution panel homeruns

AC90 cable for electrical panel feeder wiring

AC90 wire for electrical panel feeder wiring

AC90 cable for switchboard room branch wiring

GLOBAL CERTIFICATIONS

AC90 wire for switchboard room branch wiring

CUSTOMER PHOTOS

AC90 cable for power distribution panel wiring

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

AC90 wire for power distribution panel wiring

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

AC90 cable for electrical cabinet supply wiring

AC90 wire for electrical cabinet supply wiring

AC90 cable for healthcare support space wiring

AC90 wire for healthcare support space wiring

AC90 cable for hospital branch circuit wiring

AC90 wire for hospital branch circuit wiring

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can AC90 be used in light industrial buildings?

Yes. AC90 industrial building cable can serve general dry-location building circuits in workshops, light manufacturing facilities and service areas. It should not be confused with heavy-duty process or hazardous-location cable unless the specific product is approved for that use.

Can AC90 be used in mechanical rooms?

Yes. AC90 cable for mechanical rooms can be used for appropriate dry-location branch and auxiliary circuits in mechanical rooms where the wiring method is permitted. Cable selection should consider heat, moisture, physical exposure and equipment connection requirements.

Can AC90 be used in electrical rooms?

Yes. AC90 cable for electrical rooms can be routed to and from panelboards and other distribution equipment for permitted building circuits. Proper connectors, bonding and termination methods are essential at electrical enclosures.

Can AC90 be used for lighting circuits?

Yes. AC90 lighting circuit cable is commonly used for suitable indoor lighting branch circuits. The 2 conductor black/white configuration can support many simple circuit layouts, but switching and control arrangements may require additional conductors.
