Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of bx 4 conductor aluminum wire for server room and telecom support power in China, also supports customized service. Please rest assured to wholesale durable bx 4 conductor aluminum wire for server room and telecom support power made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

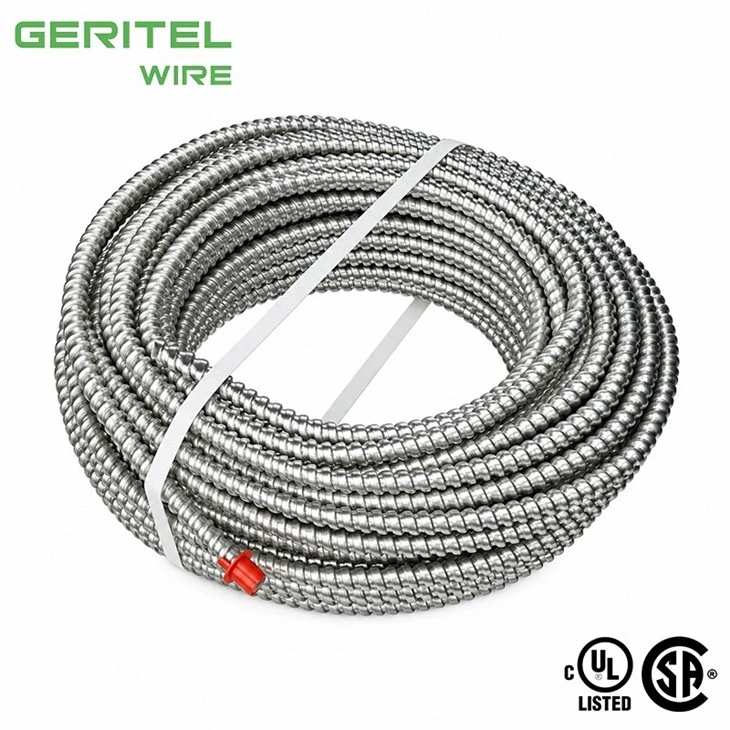

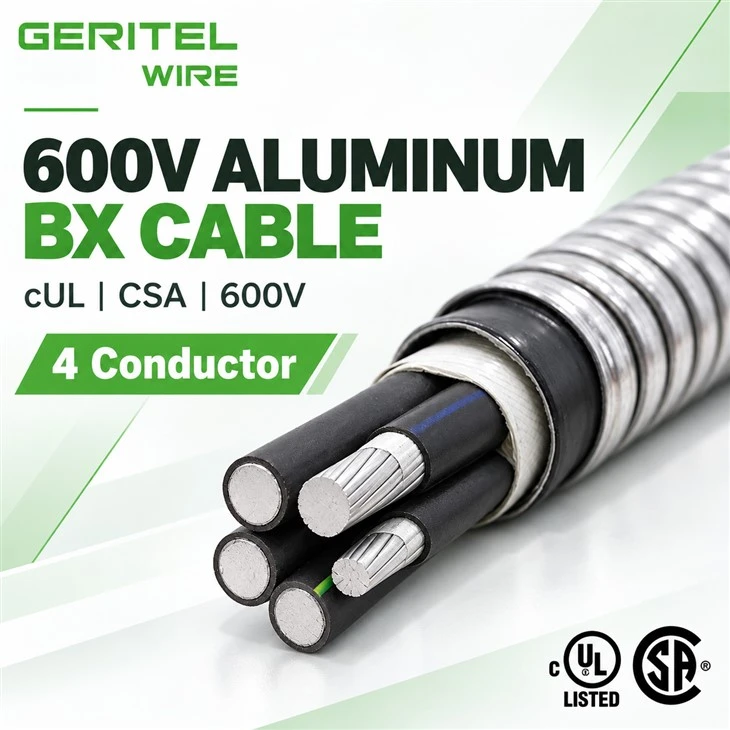

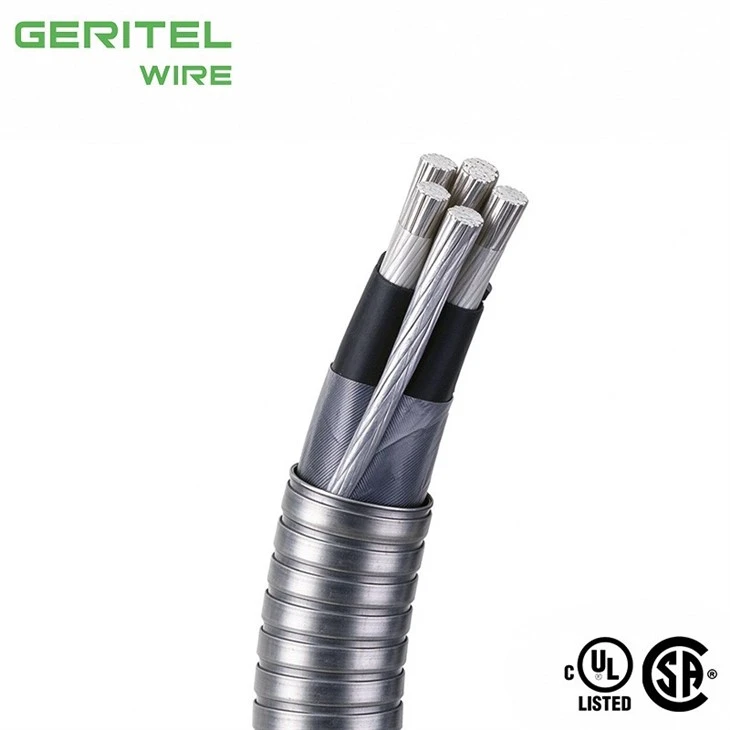

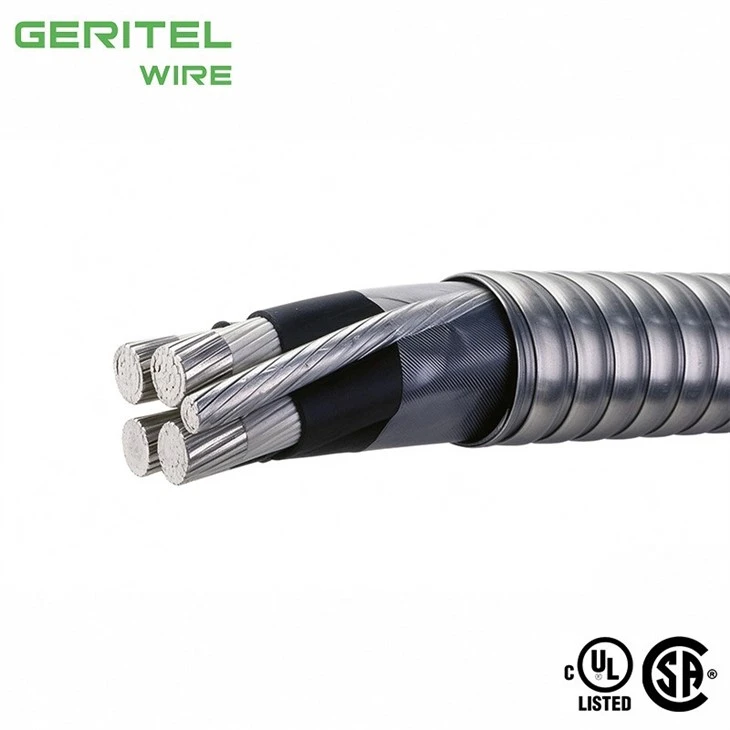

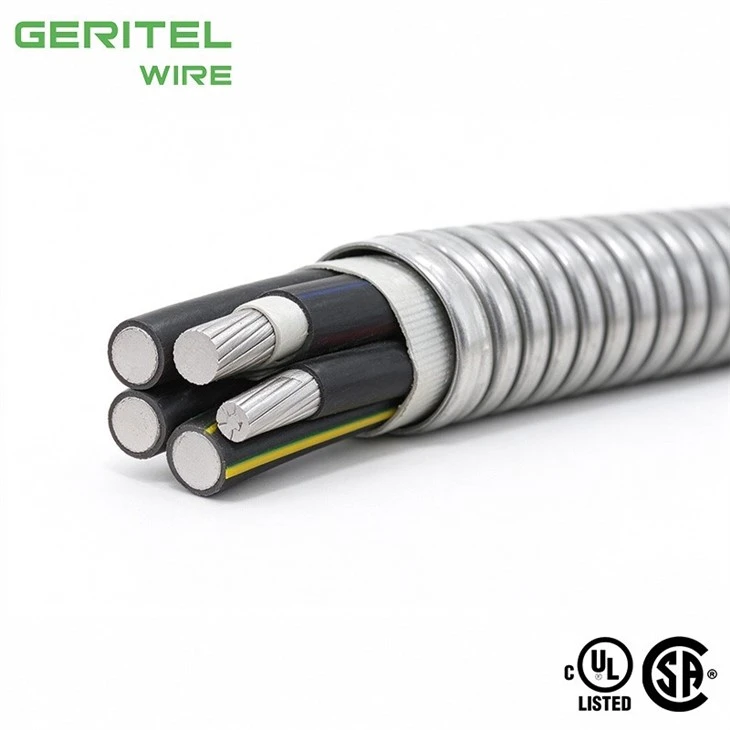

PRODUCT REAL SHOT
Armoured building cable for dry IT support spaces and general facility circuits
PRODUCT SPECIFICATIONS
AC90 Cable Overview
GERITEL WIRE AC90 cable with its interlocked aluminum armour is designed for aboveground applications. The distinctive features unique to GERITEL WIRE AC90 cable provide significant savings in installation cost and time. Engineered to replace conduit and wire applications, this all-in-one cable assembly offers fewer installation steps. GERITEL WIRE AC90 cable's interlocked aluminum armour protects the conductors from damage before, during and after installation and provides overall flexibility not available with a conduit.
GERITEL WIRE AC90 is a factory-produced 600-volt assembly of one to four insulated, phase-identified GERITEL WIRE conductors and one bare bonding conductor inside flexible interlocked aluminum armour. Cross-linked Polyethylene (XLPE) insulated conductors are rated for 90˚C.
Multi-conductor AC90 cables are available in sizes 6 AWG to 1500 kcmil. Single-conductor AC90 cables are available in sizes from 1 AWG to 750 kcmil but are not approved for use in hazardous locations. On single-conductor cables, the bonding conductor is applied concentrically around the phase conductor.
GERITEL WIRE AC90 cables meet or exceed the requirements of CSA C22.2 No. 38 and C22.2 No. 51 and are approved for use in accordance with the recommendations of the Canadian Electrical Code.
Product Features
- Maximum Conductivity – Compact aluminum alloy conductors carry twice the current per kilogram as equivalent copper conductors
- Reliable Termination – Conductors terminate safely with industry-standard dual-rated aluminum lugs
- Exceptional Insulation – The Cross-linked Polyethylene (XLPE) insulation is rated for operating temperatures of -40˚C to +90˚C and offers a higher maximum short-circuit temperature rating than thermoplastic insulation. It is sunlightand moisture-resistant
- Easy to Install – Lightweight for easier lifting and handling with 25% more flexibility and 40% less springback than copper conductors of equal ampacity
- Heavy Metals Free insulation is RoHS compliant and environmentally sustainable while providing excellent long-term performance
- Sequential meter marking
Applications
GERITEL WIRE AC90 armoured cable is designed for use in the following open and concealed wiring applications:
- Service entrance and feeders
- Power lighting and signal circuits
- Indoors
- Where exposed or concealed
- In cable tray
- In certain hazardous locations
- In dry locations and embedded in plaster finish on brick or other masonry except in damp or wet conditions
- Interior temporary power
| SPECIFICATIONS | |
| Conductor | Aluminum |
| Insulation | Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free |
| Armour | Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour |
| Specifications and Compliance |
CSA C22.2 No. 51, Armoured Cables (Type AC90) CSA C22.2 No. 38 Thermoset-insulated wires and cables (Type RW90) CSA C22.2 No. 2556 FT4-ST1/UL 1685 Vertical-Tray Flame Test IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated -40°C Cold Bend and -40°C Cold Impact Limited Smoke and Halogen Free |
AC90 Cable
600 V, CSA Type, -40⁰C to +90⁰C
| SIZE (AWG/kcmil) |
BOND SIZE (AWG/kcmil) |
UNDER ARMOUR (mm) |
OVER ARMOUR (mm) |
CONDUCTOR WEIGHT (kg/km) |
CABLE |
Min Bend Radius | |
| AMPACITY(1) 75°C |
AMPACITY(1) 90°C |
||||||
| SINGLE CONDUCTOR | |||||||
| 1 | 4 | 13.0 | 18.8 | 117 | 324 | 100 | 115 |
| 1/0 | 4 | 14.0 | 19.8 | 148 | 397 | 120 | 135 |
| 2/0 | 2 | 14.9 | 20.7 | 186 | 446 | 135 | 150 |
| 3/0 | 2 | 16.1 | 22.0 | 235 | 508 | 155 | 175 |
| 4/0 | 2 | 17.7 | 23.6 | 296 | 610 | 180 | 205 |
| 250 | 1 | 19.4 | 25.2 | 350 | 688 | 205 | 230 |
| 300 | 1 | 20.7 | 26.5 | 420 | 774 | 230 | 260 |
| 350 | 1/0 | 22.1 | 27.9 | 490 | 889 | 250 | 280 |
| 400 | 1/0 | 23.5 | 29.3 | 560 | 960 | 270 | 305 |
| 500 | 2/0 | 25.8 | 31.7 | 700 | 1161 | 310 | 350 |
| 600 | 2/0 | 28.3 | 34.1 | 840 | 1370 | 340 | 385 |
| 750 | 3/0 | 30.7 | 36.5 | 1050 | 1604 | 385 | 435 |
| THREE CONDUCTOR | |||||||
| 6 | 8 | 14.4 | 19.4 | 133 | 311 | 50 | 55 |
| 4 | 6 | 17.3 | 22.2 | 212 | 422 | 65 | 75 |
| 2 | 6 | 19.6 | 24.5 | 316 | 559 | 90 | 100 |
| 1 | 4 | 22.4 | 27.3 | 410 | 708 | 100 | 115 |
| 1/0 | 4 | 24.0 | 29.0 | 502 | 829 | 120 | 135 |
| 2/0 | 4 | 26.0 | 30.8 | 618 | 977 | 135 | 150 |
| 3/0 | 4 | 28.5 | 33.4 | 764 | 1164 | 155 | 175 |
| 4/0 | 4 | 31.2 | 36.1 | 948 | 1394 | 180 | 205 |
| 250 | 2 | 34.7 | 41.3 | 1143 | 1726 | 205 | 230 |
| 300 | 2 | 37.5 | 44.2 | 1354 | 1991 | 230 | 260 |
| 350 | 2 | 39.8 | 46.4 | 1564 | 2247 | 250 | 280 |
| 400 | 2 | 42.6 | 49.4 | 1774 | 2491 | 270 | 305 |
| 500 | 1 | 46.8 | 53.6 | 2218 | 3013 | 310 | 350 |
| 600 | 1 | 51.1 | 57.8 | 2638 | 3507 | 340 | 385 |
| 750 | 1/0 | 56.3 | 63.0 | 3299 | 4267 | 385 | 435 |
| 1000 | 1/0 | 64.6 | 71.3 | 4350 | 5478 | 445 | 500 |
| 1500† | 2/0 | 83.9 | 90.6 | 6489 | 8102 | 520 | 585 |
| FOUR CONDUCTOR | |||||||
| 6 | 8 | 16.6 | 21.5 | 170 | 382 | 50 | 55 |
| 4 | 6 | 19.7 | 24.6 | 271 | 521 | 65 | 75 |
| 2 | 6 | 22.5 | 27.4 | 409 | 701 | 90 | 100 |
| 1 | 4 | 25.6 | 30.6 | 527 | 904 | 100 | 115 |
| 1/0 | 4 | 27.6 | 32.5 | 650 | 1050 | 120 | 135 |
| 2/0 | 4 | 29.5 | 34.4 | 804 | 1242 | 135 | 150 |
| 3/0 | 4 | 32.0 | 36.9 | 999 | 1485 | 155 | 175 |
| 4/0 | 4 | 35.0 | 41.6 | 1244 | 1840 | 180 | 205 |
| 250 | 2 | 39.0 | 45.8 | 1949 | 2222 | 205 | 230 |
| 300 | 2 | 42.1 | 48.8 | 1774 | 2570 | 230 | 260 |
| 350 | 2 | 44.6 | 51.3 | 2054 | 2907 | 250 | 280 |
| 400 | 2 | 47.8 | 54.5 | 2334 | 3198 | 270 | 305 |
| 500 | 1 | 52.5 | 59.2 | 2919 | 3878 | 310 | 350 |
| 600 | 1 | 57.2 | 63.9 | 3479 | 4530 | 340 | 385 |
| 750 | 1/0 | 63.0 | 69.8 | 4350 | 5525 | 385 | 435 |
| 1000 | 1/0 | 72.3 | 79.1 | 5750 | 7125 | 445 | 500 |
| 1500† | 2/0 | 94.0 | 100.7 | 8590 | 10580 | 520 | 585 |
|
(1) Ampacity based on the 2015 Canadian Electrical Code Part 1 Table 4, Rule 4-004 and Rule 4-006 apply. † ASTM B231 and ASTM B801 Class B conventional stranding. |
|||||||
