Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of 4c 400 kcmil acwu90 armored wire for modular buildings in China, also supports customized service. Please rest assured to wholesale durable 4c 400 kcmil acwu90 armored wire for modular buildings made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

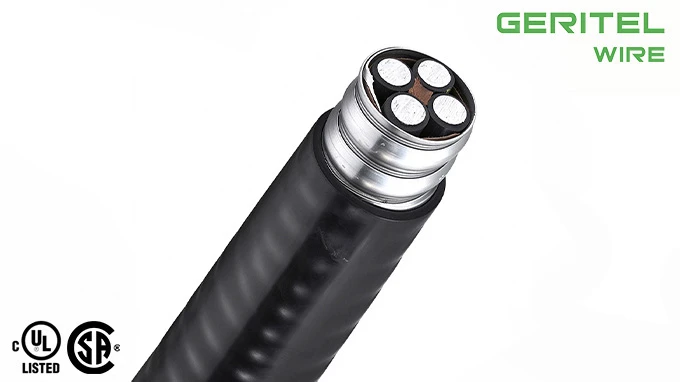

400/4 ACWU90 Cable

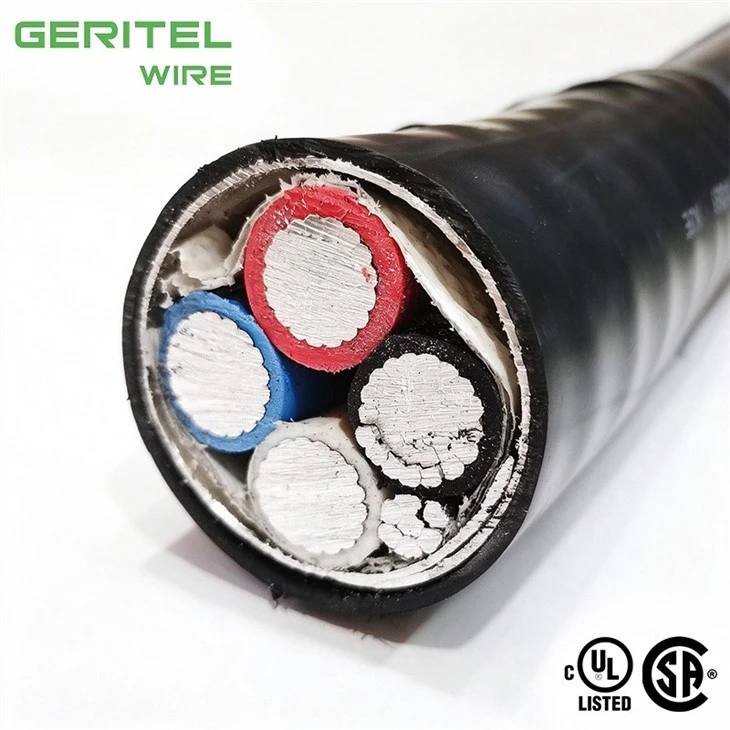

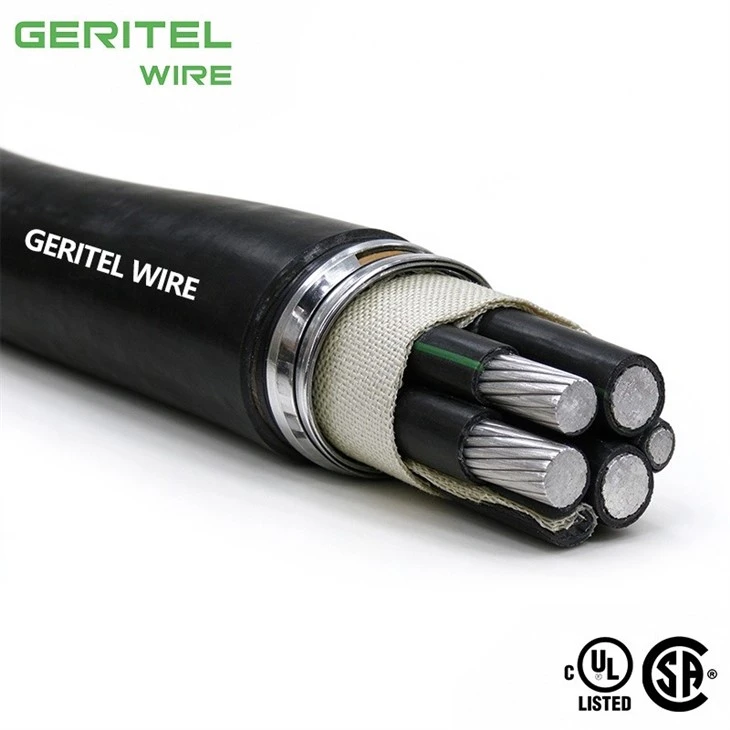

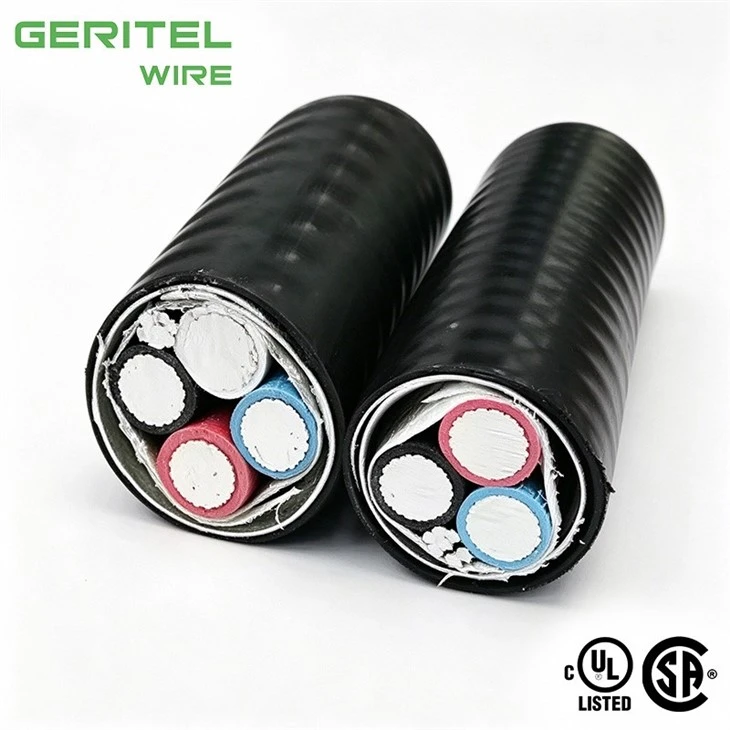

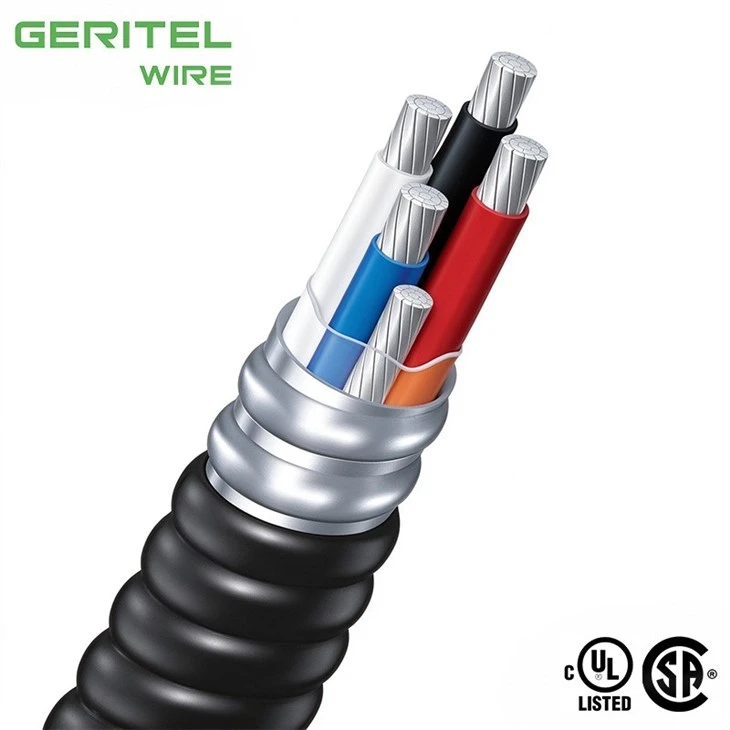

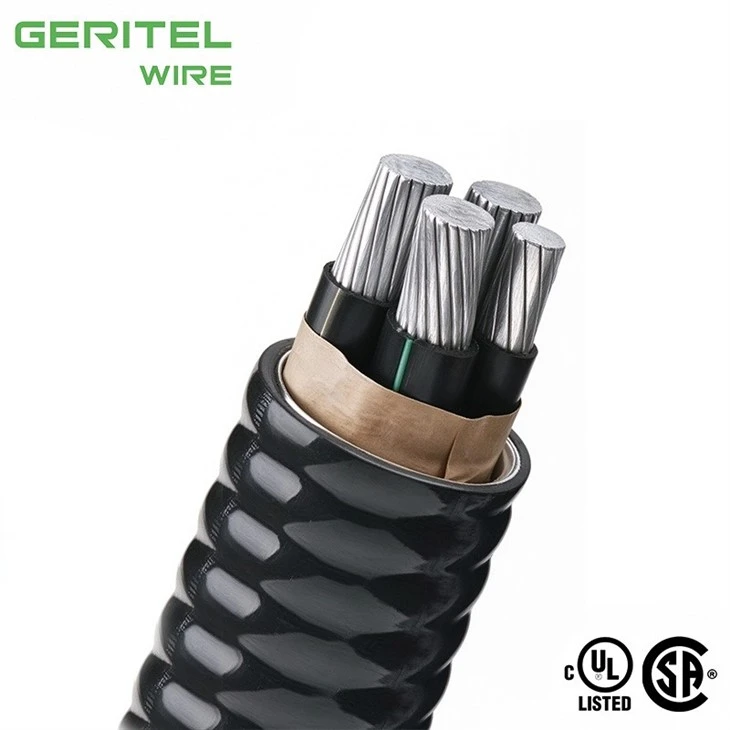

PRODUCT REAL SHOT

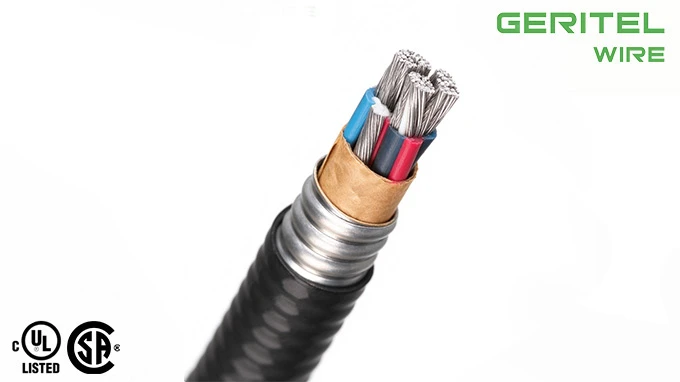

400 kcmil 4 Conductor ACWU90 Aluminum Wire

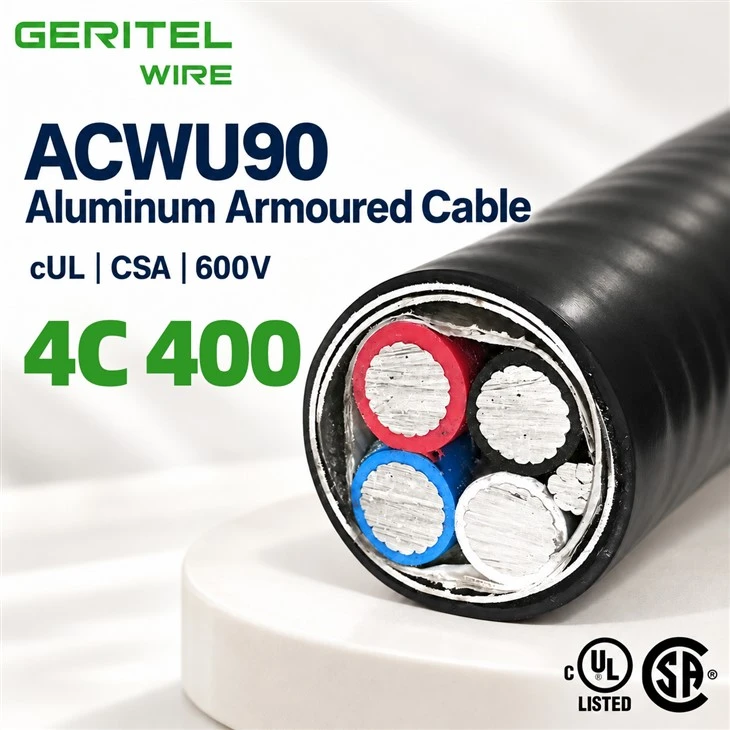

ACWU90 400 kcmil 4C Armoured Cable

Permanent Power Connections for Prefabricated Building Projects

Prefabricated buildings shorten site assembly time, yet permanent electrical connections still need careful planning. ACWU90 400 kcmil modular building wire may be assessed for approved fixed AC distribution between site service equipment and modular building infrastructure, rather than flexible internal module wiring. Four aluminum alloy conductors, RW90 XLPE insulation, interlocked aluminum armour and an external PVC jacket define the ACWU90 construction. GERITEL WIRE can review project sequences, drum identification and China factory export arrangements with modular project developers. Drawings must clarify the termination method, bonding and current rating of the 400 kcmil feeder before material is ordered.

PRODUCT SPECIFICATIONS

ACWU90 400 kcmil 4C Armored Wire

Scope

This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.

Application

Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.

SPECIFICATIONS
Conductor	8000 series compact-stranded aluminum alloy
Insulation	XLPE. Thickness per CSA C22.2 No. 51
Color Coding	For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor.
Bonding Conductor	One bare 8000 series compact-stranded aluminum alloy.
Cabling	Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape.
Armour	Aluminum interlocked armour(AIA)
Jacket	Flame retardant PVC jacket
Rated Voltage	600V
Rated Temperature	90°C
Low Temperatue Classification	-40°C
Flame Test Rating	FT4

Type ACWU90 Cable Data

(AA 8000 series alloy conductor)

SIZE (AWG/kcmil)	Strands No./O.D. (mm)	XLPE Insulation Average Thickness (mm)	PVC Jacket Average Thickness (mm)	Approx. O.D. (mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight (kg/km)
3 x 6+8	7/1.60 7/1.28	0.76	1.14	21.44	2.211/3.515	469.49
3 x 4+6	7/2.02 7/1.60	1.02	1.14	24.84	1.390/2.211	630.58
3 x 2+6	7/2.58 7/1.60	1.02	1.14	30.68	0.8745/2.211	805.92
3 x 1+4	18/1.82 7/2.02	1.27	1.14	33.61	0.6934/1.390	980.49
3 x 1/0+4	18/2.02 7/2.02	1.27	1.14	35.51	0.5498/1.390	1112.91
3 x 2/0+4	18/2.32 7/2.02	1.27	1.14	37.24	0.4361/1.390	1267.50
3 x 3/0+4	18/2.58 7/2.02	1.27	1.14	39.32	0.3459/1.390	1459.66
3 x 4/0+4	18/2.83 7/2.02	1.27	1.14	41.86	0.2743/1.390	1699.24
3 x 250+2	36/2.22 7/2.58	1.52	1.14	45.65	0.2322/0.8745	2008.08
3 x 300+2	36/2.42 7/2.58	1.52	1.14	47.92	0.1935/0.8745	2268.74
3 x 350+2	36/2.58 7/2.58	1.52	1.14	51.11	0.1659/0.8745	2623.71
3 x 400+2	36/2.74 7/2.58	1.52	1.14	53.29	0.1450/0.8745	2894.90
3 x 500+2	36/3.10 18/1.82	1.52	1.14	57.01	0.1161/0.6934	3420.76
3 x 600+2	58/2.65 18/1.82	1.52	1.50	61.40	0.09673/0.6934	4038.83
3 x 750+1/0	58/2.98 18/2.02	1.52	1.50	66.21	0.07738/0.5498	4823.16
4 x 6+8	7/1.60 7/1.28	0.76	1.14	23.29	2.211/3.515	549.68
4 x 4+6	7/2.02 7/1.60	1.02	1.14	27.15	1.390/2.211	749.09
4 x 2+6	7/2.58 7/1.60	1.02	1.14	33.48	0.8745/2.211	970.96
4 x 1+4	18/1.82 7/2.02	1.27	1.14	36.78	0.6934/1.390	1186.84
4 x 1/0+4	18/2.02 7/2.02	1.27	1.14	39.05	0.5498/1.390	1358.96
4 x 2/0+4	18/2.32 7/2.02	1.27	1.14	41.10	0.4361/1.390	1561.06
4 x 3/0+4	18/2.58 7/2.02	1.27	1.14	43.59	0.3459/1.390	1812.41
4 x 4/0+4	18/2.83 7/2.02	1.27	1.14	46.61	0.2743/1.390	2125.94
4 x 250+2	36/2.22 7/2.58	1.52	1.14	51.96	0.2322/0.8745	2615.19
4 x 300+2	36/2.42 7/2.58	1.52	1.14	54.66	0.1935/0.8745	2963.18
4 x 350+2	36/2.58 7/2.58	1.52	1.14	57.15	0.1659/0.8745	3303.61
4 x 400+2	36/2.74 7/2.58	1.52	1.14	60.50	0.1450/0.8745	3763.51
4 x 500+2	36/3.10 18/1.82	1.52	1.50	64.79	0.1161/0.6934	4451.79
4 x 600+2	58/2.65 18/1.82	1.52	1.50	69.11	0.09673/0.6934	5133.01
4 x 750+1/0	58/2.98 18/2.02	1.52	1.50	74.65	0.07738/0.5498	6151.02

CERTIFICATIONS

600V 400 kcmil 4 Conductor ACWU90 Cable

PACKAGING

Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Battery Energy Storage System (BESS) AC Power Distribution

Commercial Building Power Distribution

Industrial Manufacturing Plant Power Distribution

CASE

Garden Bay Water Treatment Plant Generator Replacement

ACWU90 Wire for low voltage power distribution

Sechelt Aquatic Centre Lighting Upgrade

ACWU90 Wire for outdoor electrical installations

Watson Lake Recreation Centre Change Room Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

ACWU90 Cable for EV charging depot fixed AC feeders

ACWU90 Cable for fleet charging facility power feeders

ACWU90 Cable for renewable energy project AC feeders

GLOBAL CERTIFICATIONS

ACWU90 Wire for motor control center feeders

CUSTOMER PHOTOS

ACWU90 Wire for electrical panel feeders

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

ACWU90 Wire for prefabricated building service feeders

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

ACWU90 Cable for motor control center feeders

ACWU90 Wire for modular building power feeders

ACWU90 Wire for integrated housing electrical feeders

ACWU90 Wire for industrial power feeders

ACWU90 Wire for data center low voltage AC feeders

ACWU90 Wire for commercial power feeders

ACWU90 Wire for server facility distribution feeders

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

ACWU90 Wire for battery energy storage site AC feeders

FAQ

What should accompany an ACWU90 compliance submittal?

A useful ACWU90 CSA certification submittal includes a current certificate, manufacturer identification, size-specific construction data and product markings. This lets consultants compare the offered cable with the project specification.

Can ACWU90 be installed in dry indoor locations?

ACWU90 indoor cable is commonly considered for appropriate exposed or concealed building wiring in dry locations. Confirm the intended wiring method, supports and equipment connectors under the local code.

Can ACWU90 be installed in wet locations?

Jacketed ACWU90 wet location cable is often specified for approved wet-location applications. The cable listing, termination fittings and moisture-sealing details must support the entire installation.

Is ACWU90 suitable for outside building walls?

ACWU90 outdoor cable may be suitable for weather-exposed fixed routes where the product has the necessary markings. Verify sunlight resistance, support and entry-point sealing for the site.
