Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of acwu90 500 kcmil 4 conductor cable china manufacturer in China, also supports customized service. Please rest assured to wholesale durable acwu90 500 kcmil 4 conductor cable china manufacturer made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

500/4 ACWU90 Cable

PRODUCT REAL SHOT

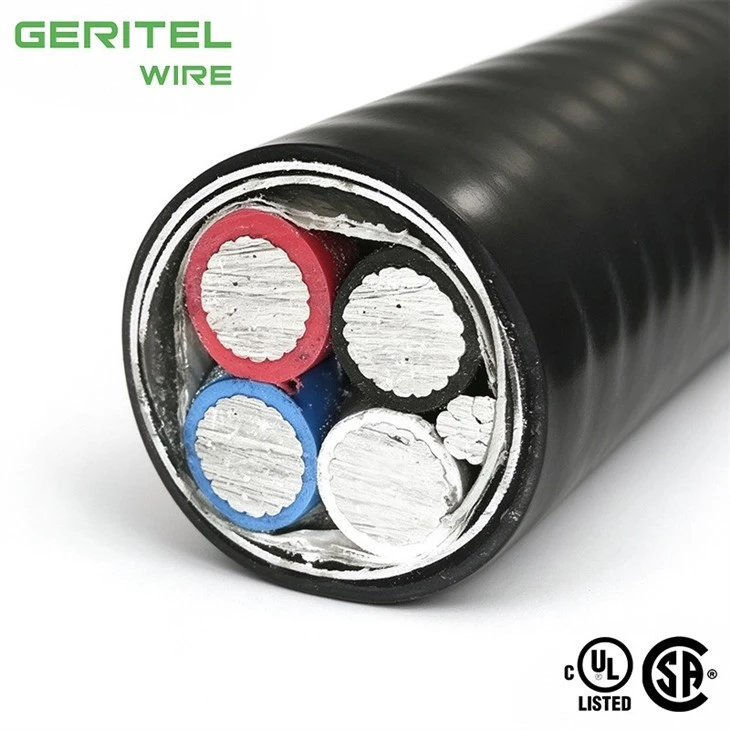

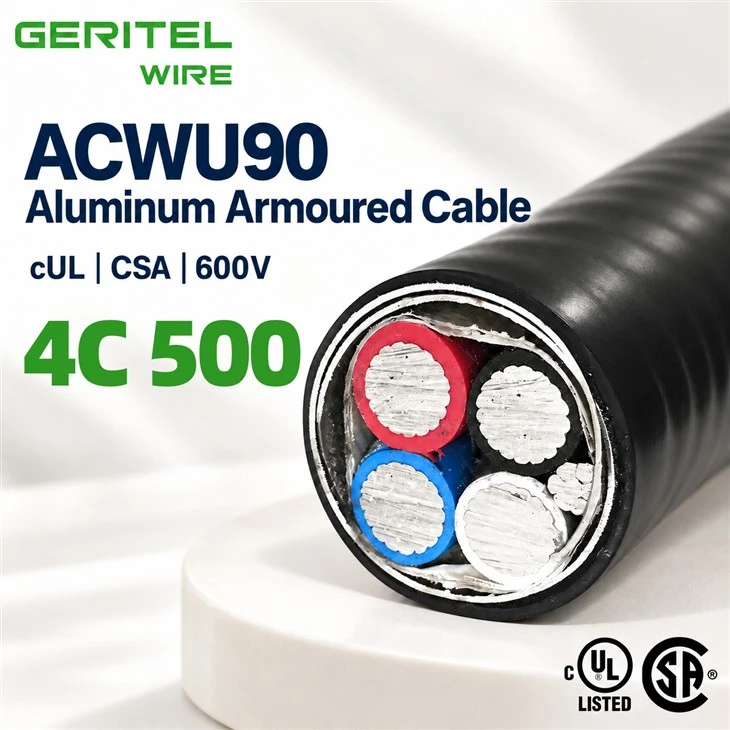

500 kcmil 4 Conductor ACWU90 Aluminum Wire

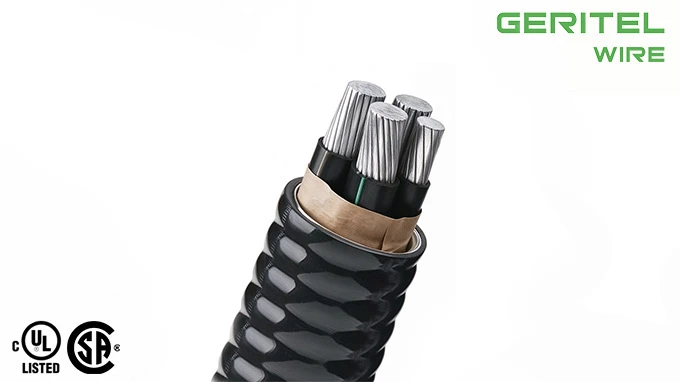

ACWU90 500 kcmil 4C Armoured Cable

China Factory Export Supply for High Capacity Feeders

Procurement teams sourcing heavier feeders often focus on repeatability, documented construction and shipment planning. For ACWU90 500 kcmil cable manufacturer, GERITEL WIRE can discuss production quantities, cable marking, reel lengths and export handling for qualified B2B orders. The ACWU90 design contains four XLPE-insulated aluminum conductors inside interlocked aluminium armour and a protective outer jacket. A 500 kcmil designation describes conductor size, not guaranteed ampacity in every location. Buyers should share their circuit drawings, termination ratings and desired certification scope before requesting a factory quote. Our team can then review the available construction and identify the information needed for a proper Canadian-market submittal.

PRODUCT SPECIFICATIONS

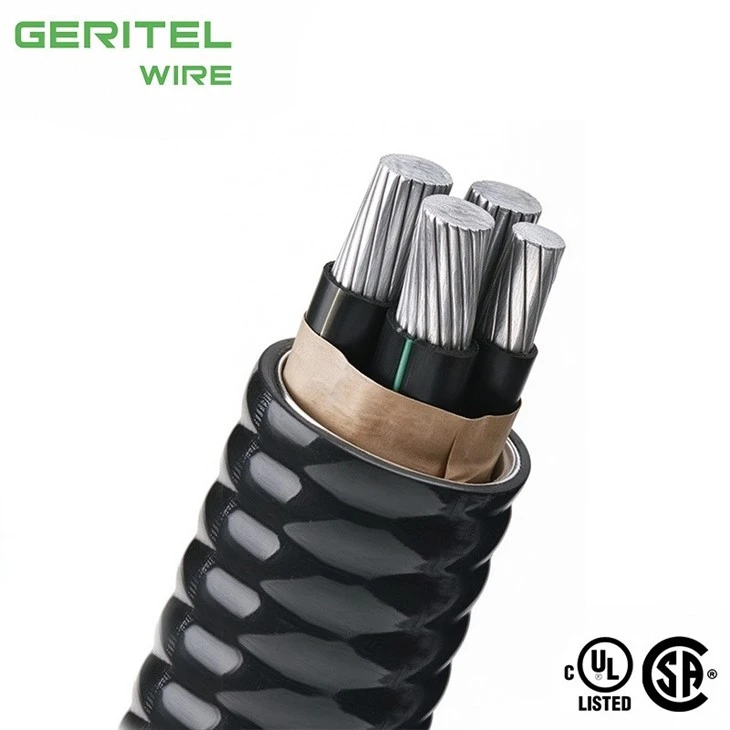

ACWU90 500 kcmil 4C Armored Wire

Scope

This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.

Application

Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.

SPECIFICATIONS
Conductor	8000 series compact-stranded aluminum alloy
Insulation	XLPE. Thickness per CSA C22.2 No. 51
Color Coding	For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor.
Bonding Conductor	One bare 8000 series compact-stranded aluminum alloy.
Cabling	Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape.
Armour	Aluminum interlocked armour(AIA)
Jacket	Flame retardant PVC jacket
Rated Voltage	600V
Rated Temperature	90°C
Low Temperatue Classification	-40°C
Flame Test Rating	FT4

Type ACWU90 Cable Data

(AA 8000 series alloy conductor)

SIZE (AWG/kcmil)	Strands No./O.D. (mm)	XLPE Insulation Average Thickness (mm)	PVC Jacket Average Thickness (mm)	Approx. O.D. (mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight (kg/km)
3 x 6+8	7/1.60 7/1.28	0.76	1.14	21.44	2.211/3.515	469.49
3 x 4+6	7/2.02 7/1.60	1.02	1.14	24.84	1.390/2.211	630.58
3 x 2+6	7/2.58 7/1.60	1.02	1.14	30.68	0.8745/2.211	805.92
3 x 1+4	18/1.82 7/2.02	1.27	1.14	33.61	0.6934/1.390	980.49
3 x 1/0+4	18/2.02 7/2.02	1.27	1.14	35.51	0.5498/1.390	1112.91
3 x 2/0+4	18/2.32 7/2.02	1.27	1.14	37.24	0.4361/1.390	1267.50
3 x 3/0+4	18/2.58 7/2.02	1.27	1.14	39.32	0.3459/1.390	1459.66
3 x 4/0+4	18/2.83 7/2.02	1.27	1.14	41.86	0.2743/1.390	1699.24
3 x 250+2	36/2.22 7/2.58	1.52	1.14	45.65	0.2322/0.8745	2008.08
3 x 300+2	36/2.42 7/2.58	1.52	1.14	47.92	0.1935/0.8745	2268.74
3 x 350+2	36/2.58 7/2.58	1.52	1.14	51.11	0.1659/0.8745	2623.71
3 x 400+2	36/2.74 7/2.58	1.52	1.14	53.29	0.1450/0.8745	2894.90
3 x 500+2	36/3.10 18/1.82	1.52	1.14	57.01	0.1161/0.6934	3420.76
3 x 600+2	58/2.65 18/1.82	1.52	1.50	61.40	0.09673/0.6934	4038.83
3 x 750+1/0	58/2.98 18/2.02	1.52	1.50	66.21	0.07738/0.5498	4823.16
4 x 6+8	7/1.60 7/1.28	0.76	1.14	23.29	2.211/3.515	549.68
4 x 4+6	7/2.02 7/1.60	1.02	1.14	27.15	1.390/2.211	749.09
4 x 2+6	7/2.58 7/1.60	1.02	1.14	33.48	0.8745/2.211	970.96
4 x 1+4	18/1.82 7/2.02	1.27	1.14	36.78	0.6934/1.390	1186.84
4 x 1/0+4	18/2.02 7/2.02	1.27	1.14	39.05	0.5498/1.390	1358.96
4 x 2/0+4	18/2.32 7/2.02	1.27	1.14	41.10	0.4361/1.390	1561.06
4 x 3/0+4	18/2.58 7/2.02	1.27	1.14	43.59	0.3459/1.390	1812.41
4 x 4/0+4	18/2.83 7/2.02	1.27	1.14	46.61	0.2743/1.390	2125.94
4 x 250+2	36/2.22 7/2.58	1.52	1.14	51.96	0.2322/0.8745	2615.19
4 x 300+2	36/2.42 7/2.58	1.52	1.14	54.66	0.1935/0.8745	2963.18
4 x 350+2	36/2.58 7/2.58	1.52	1.14	57.15	0.1659/0.8745	3303.61
4 x 400+2	36/2.74 7/2.58	1.52	1.14	60.50	0.1450/0.8745	3763.51
4 x 500+2	36/3.10 18/1.82	1.52	1.50	64.79	0.1161/0.6934	4451.79
4 x 600+2	58/2.65 18/1.82	1.52	1.50	69.11	0.09673/0.6934	5133.01
4 x 750+1/0	58/2.98 18/2.02	1.52	1.50	74.65	0.07738/0.5498	6151.02

CERTIFICATIONS

600V 500 kcmil 4 Conductor ACWU90 Cable

PACKAGING

Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Battery Energy Storage System (BESS) AC Power Distribution

Commercial Building Power Distribution

ACWU90 Wire for microgrid AC distribution feeders

Industrial Manufacturing Plant Power Distribution

CASE

Garden Bay Water Treatment Plant Generator Replacement

ACWU90 Wire for renewable energy project AC feeders

Sechelt Aquatic Centre Lighting Upgrade

ACWU90 Wire for energy infrastructure low voltage feeders

Watson Lake Recreation Centre Change Room Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

4 Conductor ACWU90 Cable for commercial buildings

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

4 Conductor ACWU90 Cable for apartment complexes

ACWU90 Cable for EV charging depot fixed AC feeders

ACWU90 Cable for fleet charging facility power feeders

4 Conductor ACWU90 Cable for multi residential buildings

ACWU90 Cable for renewable energy project AC feeders

GLOBAL CERTIFICATIONS

4 Conductor ACWU90 Cable for industrial plants

CUSTOMER PHOTOS

4 Conductor ACWU90 Cable for manufacturing facilities

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

4 Conductor ACWU90 Cable for distribution centers

4 Conductor ACWU90 Cable for shopping malls

4 Conductor ACWU90 Cable for hospital buildings

ACWU90 Wire for industrial power feeders

ACWU90 Wire for data center low voltage AC feeders

4 Conductor ACWU90 Cable for retail complexes

4 Conductor ACWU90 Cable for school buildings

ACWU90 Wire for server facility distribution feeders

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

4 Conductor ACWU90 Cable for university campuses

FAQ

Is ACWU90 permitted for direct burial?

Certain ACWU90 direct burial cable products are intended for direct-earth burial subject to the relevant listing and inspection authority. Burial depth and extra mechanical protection depend on the project.

Can ACWU90 be placed in concrete?

Some ACWU90 concrete encasement cable listings cover specified concrete-encased installation methods. Confirm the exact cable approval, routing details and protection required by the authority having jurisdiction.

Can ACWU90 be installed on a cable tray?

ACWU90 cable tray installation may be used in qualifying tray installations when the listing and electrical code permit it. Evaluate tray support, fill, separation, bending radius and derating.

Can ACWU90 be installed inside a raceway?

Routing ACWU90 raceway wiring within a raceway may be possible under the applicable installation rules. The design must account for dimensions, pulling forces, heat dissipation and suitable fittings.
