Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of geritel wire acwu90 600 kcmil industrial power cable in China, also supports customized service. Please rest assured to wholesale durable geritel wire acwu90 600 kcmil industrial power cable made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

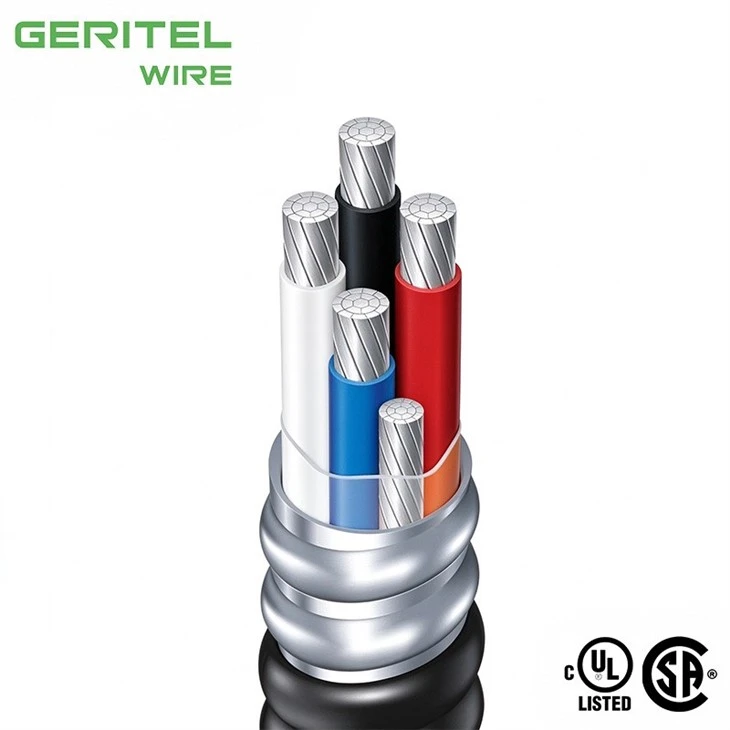

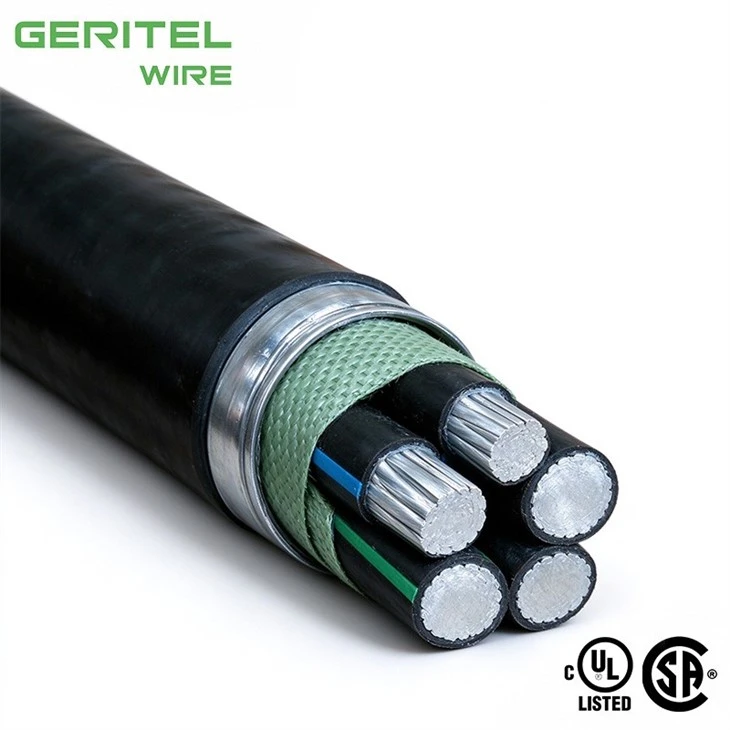

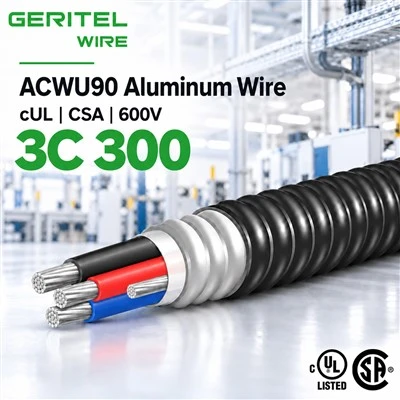

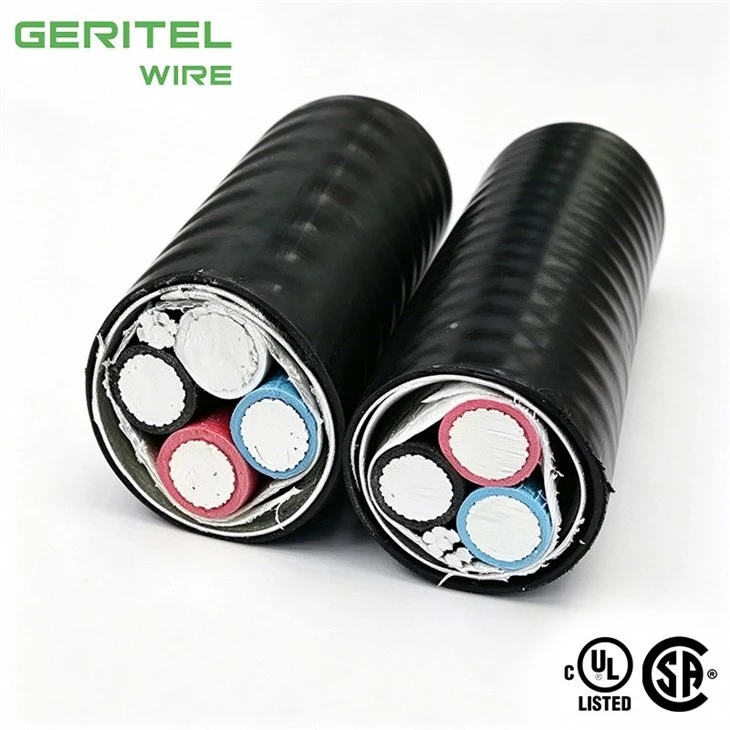

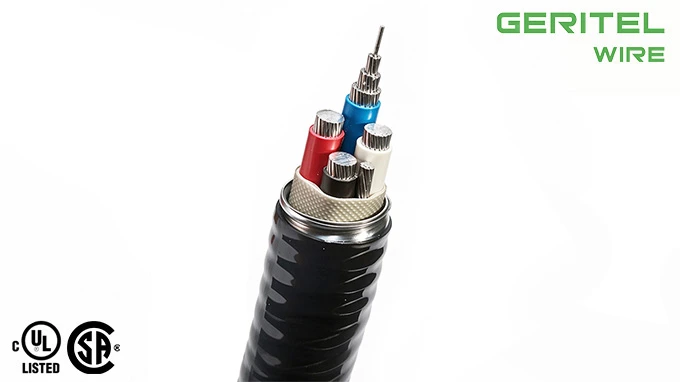

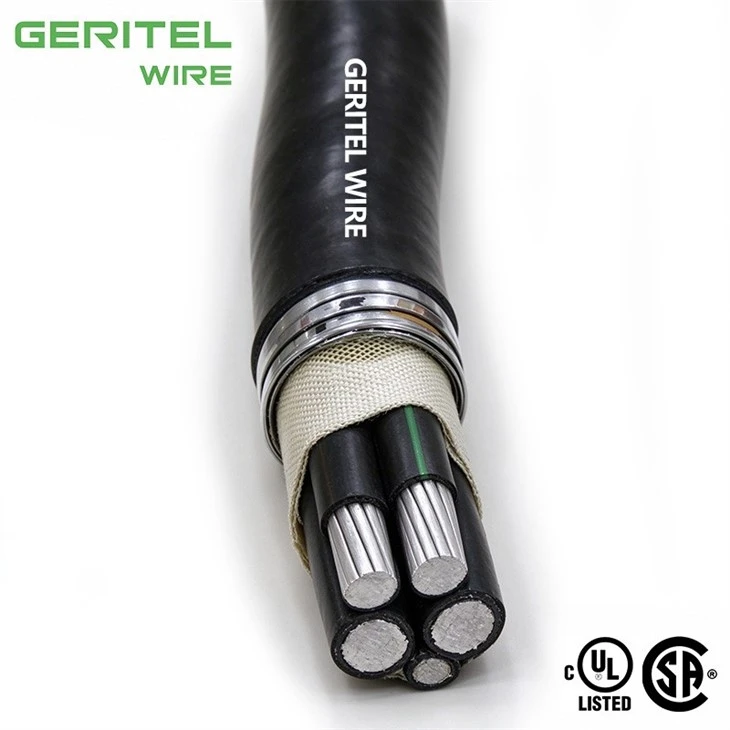

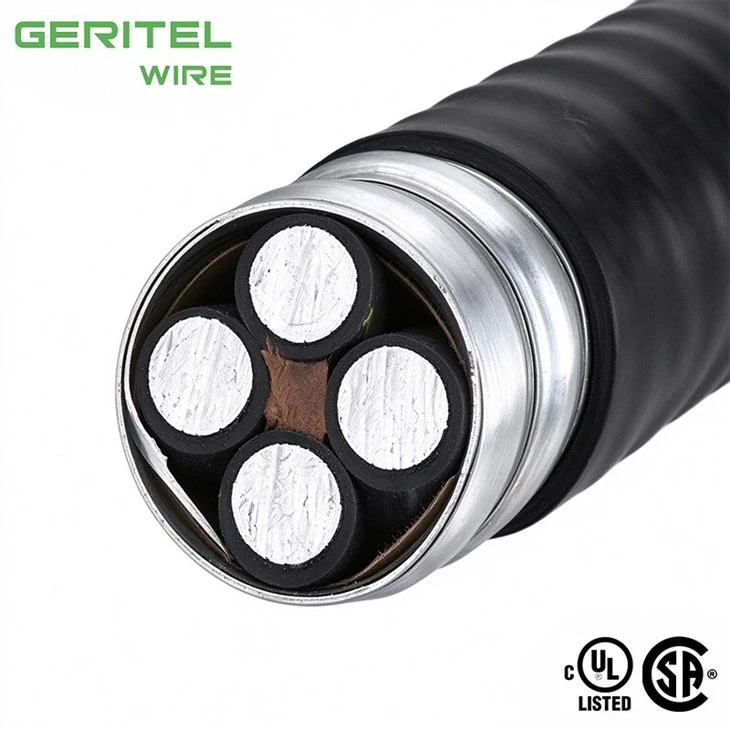

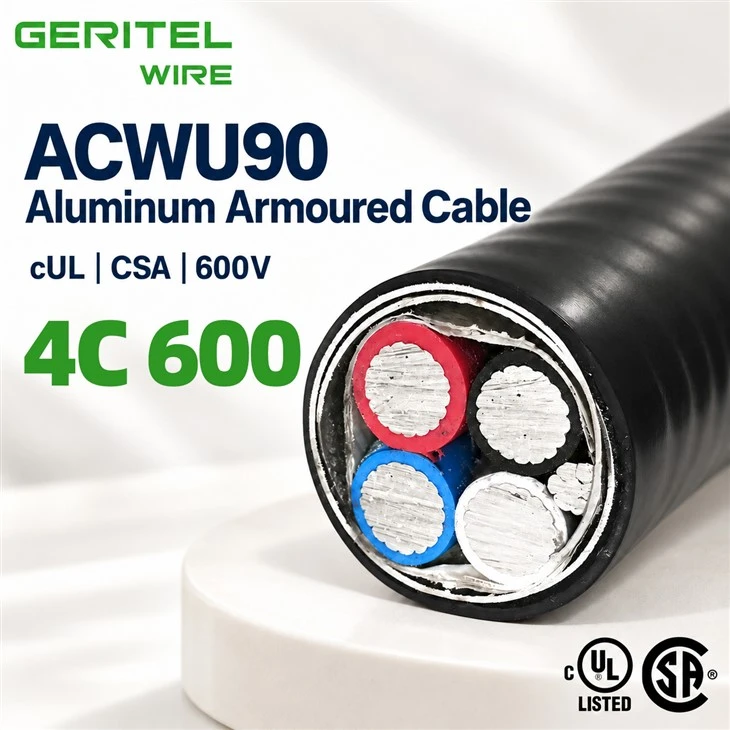

PRODUCT REAL SHOT
GERITEL WIRE Manufacturing Support for Factory Power Supply
PRODUCT SPECIFICATIONS
Scope
This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.
Application
Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.
| SPECIFICATIONS | |
| Conductor | 8000 series compact-stranded aluminum alloy |
| Insulation | XLPE. Thickness per CSA C22.2 No. 51 |
| Color Coding |
For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor. |
| Bonding Conductor | One bare 8000 series compact-stranded aluminum alloy. |
| Cabling |
Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape. |
| Armour | Aluminum interlocked armour(AIA) |
| Jacket | Flame retardant PVC jacket |
| Rated Voltage |
600V |
| Rated Temperature | 90°C |
| Low Temperatue Classification | -40°C |
| Flame Test Rating | FT4 |
Type ACWU90 Cable Data
(AA 8000 series alloy conductor)
| SIZE (AWG/kcmil) |
Strands No./O.D. (mm) |
XLPE Insulation Average Thickness (mm) |
PVC Jacket Average Thickness (mm) |
Approx. O.D. (mm) |
Max.DC Resistance (20°C,Ω/km) |
Approx. Weight (kg/km) |
| 3 x 6+8 |
7/1.60 7/1.28 |
0.76 | 1.14 | 21.44 | 2.211/3.515 | 469.49 |
| 3 x 4+6 |
7/2.02 7/1.60 |
1.02 | 1.14 | 24.84 | 1.390/2.211 | 630.58 |
| 3 x 2+6 |
7/2.58 7/1.60 |
1.02 | 1.14 | 30.68 | 0.8745/2.211 | 805.92 |
| 3 x 1+4 |
18/1.82 7/2.02 |
1.27 | 1.14 | 33.61 | 0.6934/1.390 | 980.49 |
| 3 x 1/0+4 |
18/2.02 7/2.02 |
1.27 | 1.14 | 35.51 | 0.5498/1.390 | 1112.91 |
| 3 x 2/0+4 |
18/2.32 7/2.02 |
1.27 | 1.14 | 37.24 | 0.4361/1.390 | 1267.50 |
| 3 x 3/0+4 |
18/2.58 7/2.02 |
1.27 | 1.14 | 39.32 | 0.3459/1.390 | 1459.66 |
| 3 x 4/0+4 |
18/2.83 7/2.02 |
1.27 | 1.14 | 41.86 | 0.2743/1.390 | 1699.24 |
| 3 x 250+2 |
36/2.22 7/2.58 |
1.52 | 1.14 | 45.65 | 0.2322/0.8745 | 2008.08 |
| 3 x 300+2 |
36/2.42 7/2.58 |
1.52 | 1.14 | 47.92 | 0.1935/0.8745 | 2268.74 |
| 3 x 350+2 |
36/2.58 7/2.58 |
1.52 | 1.14 | 51.11 | 0.1659/0.8745 | 2623.71 |
| 3 x 400+2 |
36/2.74 7/2.58 |
1.52 | 1.14 | 53.29 | 0.1450/0.8745 | 2894.90 |
| 3 x 500+2 |
36/3.10 18/1.82 |
1.52 | 1.14 | 57.01 | 0.1161/0.6934 | 3420.76 |
| 3 x 600+2 |
58/2.65 18/1.82 |
1.52 | 1.50 | 61.40 | 0.09673/0.6934 | 4038.83 |
| 3 x 750+1/0 |
58/2.98 18/2.02 |
1.52 | 1.50 | 66.21 | 0.07738/0.5498 | 4823.16 |
| 4 x 6+8 |
7/1.60 7/1.28 |
0.76 | 1.14 | 23.29 | 2.211/3.515 | 549.68 |
| 4 x 4+6 |
7/2.02 7/1.60 |
1.02 | 1.14 | 27.15 | 1.390/2.211 | 749.09 |
| 4 x 2+6 |
7/2.58 7/1.60 |
1.02 | 1.14 | 33.48 | 0.8745/2.211 | 970.96 |
| 4 x 1+4 |
18/1.82 7/2.02 |
1.27 | 1.14 | 36.78 | 0.6934/1.390 | 1186.84 |
| 4 x 1/0+4 |
18/2.02 7/2.02 |
1.27 | 1.14 | 39.05 | 0.5498/1.390 | 1358.96 |
| 4 x 2/0+4 |
18/2.32 7/2.02 |
1.27 | 1.14 | 41.10 | 0.4361/1.390 | 1561.06 |
| 4 x 3/0+4 |
18/2.58 7/2.02 |
1.27 | 1.14 | 43.59 | 0.3459/1.390 | 1812.41 |
| 4 x 4/0+4 |
18/2.83 7/2.02 |
1.27 | 1.14 | 46.61 | 0.2743/1.390 | 2125.94 |
| 4 x 250+2 |
36/2.22 7/2.58 |
1.52 | 1.14 | 51.96 | 0.2322/0.8745 | 2615.19 |
| 4 x 300+2 |
36/2.42 7/2.58 |
1.52 | 1.14 | 54.66 | 0.1935/0.8745 | 2963.18 |
| 4 x 350+2 |
36/2.58 7/2.58 |
1.52 | 1.14 | 57.15 | 0.1659/0.8745 | 3303.61 |
| 4 x 400+2 |
36/2.74 7/2.58 |
1.52 | 1.14 | 60.50 | 0.1450/0.8745 | 3763.51 |
| 4 x 500+2 |
36/3.10 18/1.82 |
1.52 | 1.50 | 64.79 | 0.1161/0.6934 | 4451.79 |
| 4 x 600+2 |
58/2.65 18/1.82 |
1.52 | 1.50 | 69.11 | 0.09673/0.6934 | 5133.01 |
| 4 x 750+1/0 |
58/2.98 18/2.02 |
1.52 | 1.50 | 74.65 | 0.07738/0.5498 | 6151.02 |
