Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of cul csa acwu90 750 kcmil 4 conductor aluminum cable in China, also supports customized service. Please rest assured to wholesale durable cul csa acwu90 750 kcmil 4 conductor aluminum cable made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

750/4 ACWU90 Cable

PRODUCT REAL SHOT

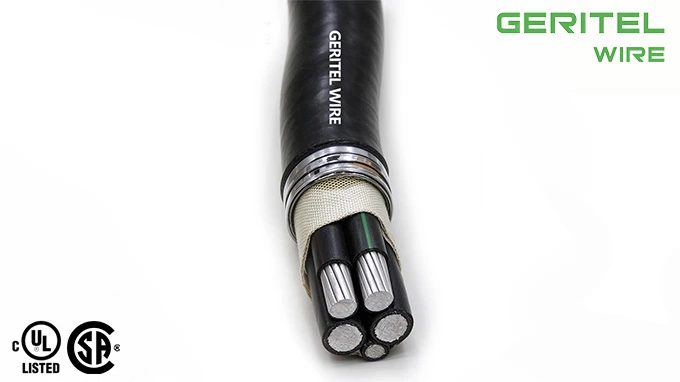

750 kcmil 4 Conductor ACWU90 Aluminum Wire

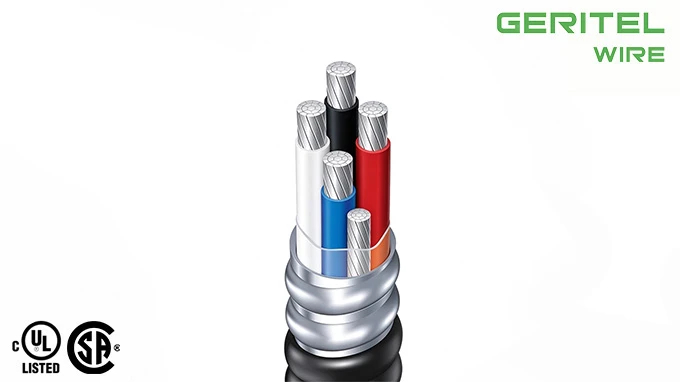

ACWU90 750 kcmil 4C Armoured Cable

Review the Exact Certification Scope Before Large Project Orders

When a project specifies a large four-conductor feeder, certification and termination details become early purchasing questions. ACWU90 750 kcmil cable identifies the 750 kcmil size within an ACWU90 armoured cable family, but the buyer must verify that the exact configuration appears within the manufacturer's current Canadian certification scope. Its four aluminum conductors use XLPE insulation beneath interlocked armour and an outer jacket. GERITEL WIRE supports contractor and importer enquiries with construction information, marking discussions and factory export arrangements. Please provide the full cable schedule, required cUL or CSA documentation, reel lengths and destination market. Cable ampacity and connection design require independent engineering approval.

PRODUCT SPECIFICATIONS

ACWU90 750 kcmil 4C Armored Wire

Scope

This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.

Application

Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.

SPECIFICATIONS
Conductor	8000 series compact-stranded aluminum alloy
Insulation	XLPE. Thickness per CSA C22.2 No. 51
Color Coding	For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor.
Bonding Conductor	One bare 8000 series compact-stranded aluminum alloy.
Cabling	Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape.
Armour	Aluminum interlocked armour(AIA)
Jacket	Flame retardant PVC jacket
Rated Voltage	600V
Rated Temperature	90°C
Low Temperatue Classification	-40°C
Flame Test Rating	FT4

Type ACWU90 Cable Data

(AA 8000 series alloy conductor)

SIZE (AWG/kcmil)	Strands No./O.D. (mm)	XLPE Insulation Average Thickness (mm)	PVC Jacket Average Thickness (mm)	Approx. O.D. (mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight (kg/km)
3 x 6+8	7/1.60 7/1.28	0.76	1.14	21.44	2.211/3.515	469.49
3 x 4+6	7/2.02 7/1.60	1.02	1.14	24.84	1.390/2.211	630.58
3 x 2+6	7/2.58 7/1.60	1.02	1.14	30.68	0.8745/2.211	805.92
3 x 1+4	18/1.82 7/2.02	1.27	1.14	33.61	0.6934/1.390	980.49
3 x 1/0+4	18/2.02 7/2.02	1.27	1.14	35.51	0.5498/1.390	1112.91
3 x 2/0+4	18/2.32 7/2.02	1.27	1.14	37.24	0.4361/1.390	1267.50
3 x 3/0+4	18/2.58 7/2.02	1.27	1.14	39.32	0.3459/1.390	1459.66
3 x 4/0+4	18/2.83 7/2.02	1.27	1.14	41.86	0.2743/1.390	1699.24
3 x 250+2	36/2.22 7/2.58	1.52	1.14	45.65	0.2322/0.8745	2008.08
3 x 300+2	36/2.42 7/2.58	1.52	1.14	47.92	0.1935/0.8745	2268.74
3 x 350+2	36/2.58 7/2.58	1.52	1.14	51.11	0.1659/0.8745	2623.71
3 x 400+2	36/2.74 7/2.58	1.52	1.14	53.29	0.1450/0.8745	2894.90
3 x 500+2	36/3.10 18/1.82	1.52	1.14	57.01	0.1161/0.6934	3420.76
3 x 600+2	58/2.65 18/1.82	1.52	1.50	61.40	0.09673/0.6934	4038.83
3 x 750+1/0	58/2.98 18/2.02	1.52	1.50	66.21	0.07738/0.5498	4823.16
4 x 6+8	7/1.60 7/1.28	0.76	1.14	23.29	2.211/3.515	549.68
4 x 4+6	7/2.02 7/1.60	1.02	1.14	27.15	1.390/2.211	749.09
4 x 2+6	7/2.58 7/1.60	1.02	1.14	33.48	0.8745/2.211	970.96
4 x 1+4	18/1.82 7/2.02	1.27	1.14	36.78	0.6934/1.390	1186.84
4 x 1/0+4	18/2.02 7/2.02	1.27	1.14	39.05	0.5498/1.390	1358.96
4 x 2/0+4	18/2.32 7/2.02	1.27	1.14	41.10	0.4361/1.390	1561.06
4 x 3/0+4	18/2.58 7/2.02	1.27	1.14	43.59	0.3459/1.390	1812.41
4 x 4/0+4	18/2.83 7/2.02	1.27	1.14	46.61	0.2743/1.390	2125.94
4 x 250+2	36/2.22 7/2.58	1.52	1.14	51.96	0.2322/0.8745	2615.19
4 x 300+2	36/2.42 7/2.58	1.52	1.14	54.66	0.1935/0.8745	2963.18
4 x 350+2	36/2.58 7/2.58	1.52	1.14	57.15	0.1659/0.8745	3303.61
4 x 400+2	36/2.74 7/2.58	1.52	1.14	60.50	0.1450/0.8745	3763.51
4 x 500+2	36/3.10 18/1.82	1.52	1.50	64.79	0.1161/0.6934	4451.79
4 x 600+2	58/2.65 18/1.82	1.52	1.50	69.11	0.09673/0.6934	5133.01
4 x 750+1/0	58/2.98 18/2.02	1.52	1.50	74.65	0.07738/0.5498	6151.02

CERTIFICATIONS

600V 750 kcmil 4 Conductor ACWU90 Cable

PACKAGING

Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Battery Energy Storage System (BESS) AC Power Distribution

Commercial Building Power Distribution

ACWU90 6 AWG 4C Cable for commercial building feeder circuits

Industrial Manufacturing Plant Power Distribution

CASE

6 AWG 4C ACWU90 Wire for industrial plant power feeders

Garden Bay Water Treatment Plant Generator Replacement

6/4 Aluminum ACWU90 Cable for building service entrance feeders

Sechelt Aquatic Centre Lighting Upgrade

600V ACWU90 6 AWG 4 Conductor Cable for warehouse electrical distribution feeders

Watson Lake Recreation Centre Change Room Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

ACWU90 6 AWG 4C Cable for multi residential building power distribution

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

4 Conductor ACWU90 Cable for food processing plants

4 Conductor ACWU90 Cable for cold storage facilities

ACWU90 Cable for EV charging depot fixed AC feeders

ACWU90 Cable for fleet charging facility power feeders

4 Conductor ACWU90 Cable for factory expansions

4 Conductor ACWU90 Cable for switchgear feeders

GLOBAL CERTIFICATIONS

4 Conductor ACWU90 Cable for motor control center feeders

CUSTOMER PHOTOS

4 Conductor ACWU90 Cable for electrical panel feeders

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

4 Conductor ACWU90 Cable for prefabricated building service feeders

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

4 Conductor ACWU90 Cable for distribution centers

4 Conductor ACWU90 Cable for shopping malls

4 Conductor ACWU90 Cable for modular building power feeders

4 Conductor ACWU90 Cable for integrated housing electrical feeders

4 Conductor ACWU90 Cable for manufactured housing service connections

ACWU90 Wire for data center low voltage AC feeders

4 Conductor ACWU90 Cable for retail complexes

4 Conductor ACWU90 Cable for school buildings

4 Conductor ACWU90 Cable for server facility distribution feeders

4 Conductor ACWU90 Cable for data center low voltage AC feeders

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

4 Conductor ACWU90 Cable for battery energy storage site AC feeders

FAQ

How should ACWU90 enter an electrical panel?

The ACWU90 panel entrance cable entry should use an approved connector and respect enclosure space, bend limits and equipment termination ratings. Follow the relevant fitting instructions.

How is bending radius determined for ACWU90?

For ACWU90 cable bend radius, use the minimum bending radius specified by the manufacturer and relevant wiring rules. Avoid sharp field bends that deform the interlocked armour or stress insulation.

Can ACWU90 be used for a moving cable application?

ACWU90 fixed installation cable is a fixed-wiring product, not a continuous-flex cable for moving robots or machinery. Select a purpose-designed flexible cable if repeated movement is required.

Should ACWU90 be inspected after delivery?

Before installing ACWU90 armoured cable inspection, inspect reel condition, jacket damage, printed identification and exposed cable ends. Follow the project quality plan for any required electrical testing.
