Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of csa acwu90 350 kcmil armoured cable in China, also supports customized service. Please rest assured to wholesale durable csa acwu90 350 kcmil armoured cable made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

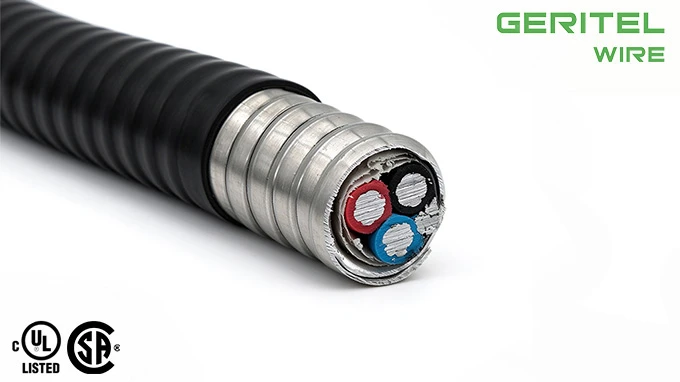

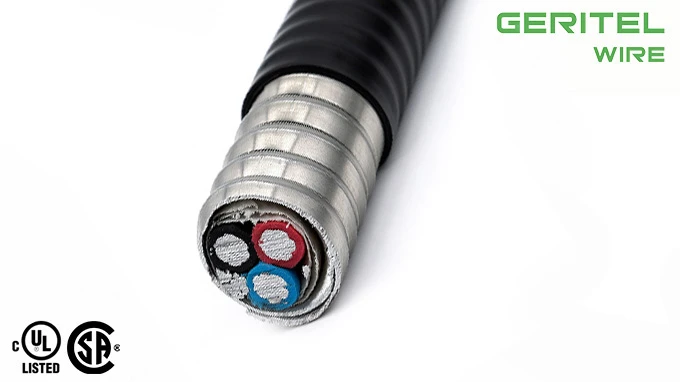

ACWU90 350/3C aluminum cable

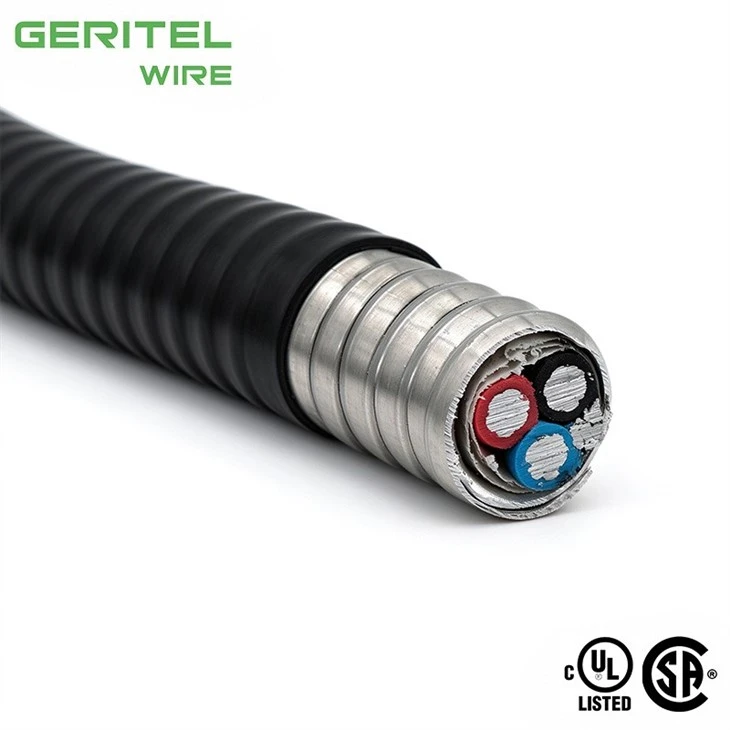

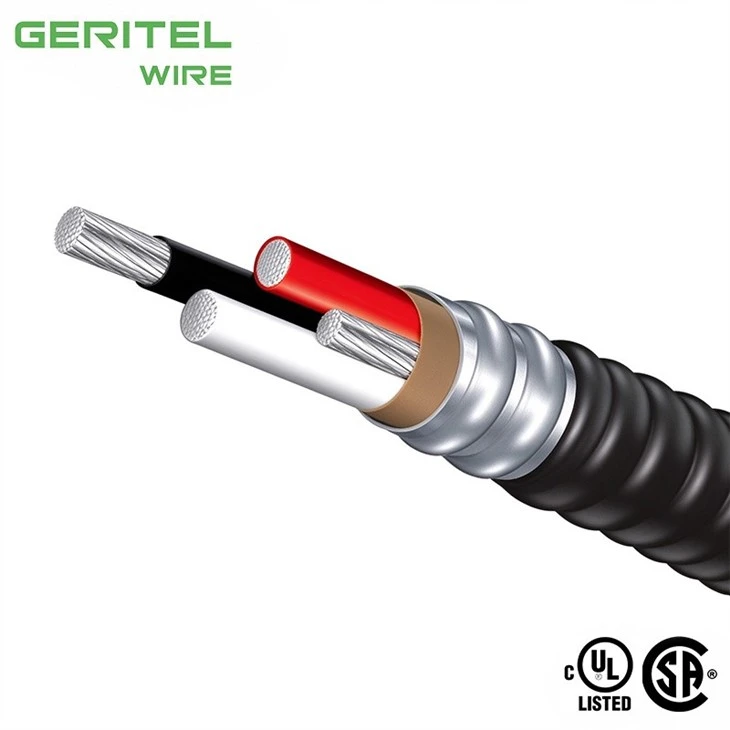

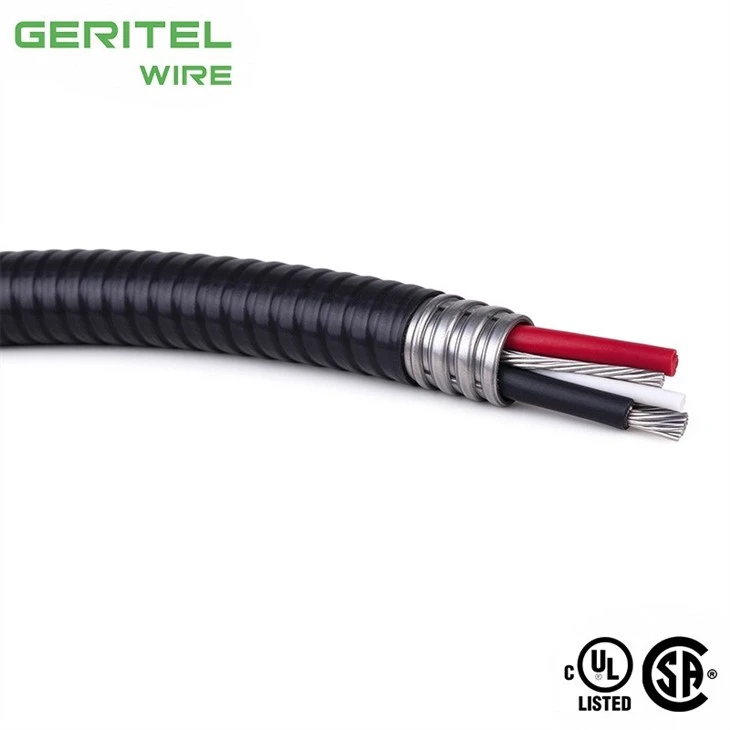

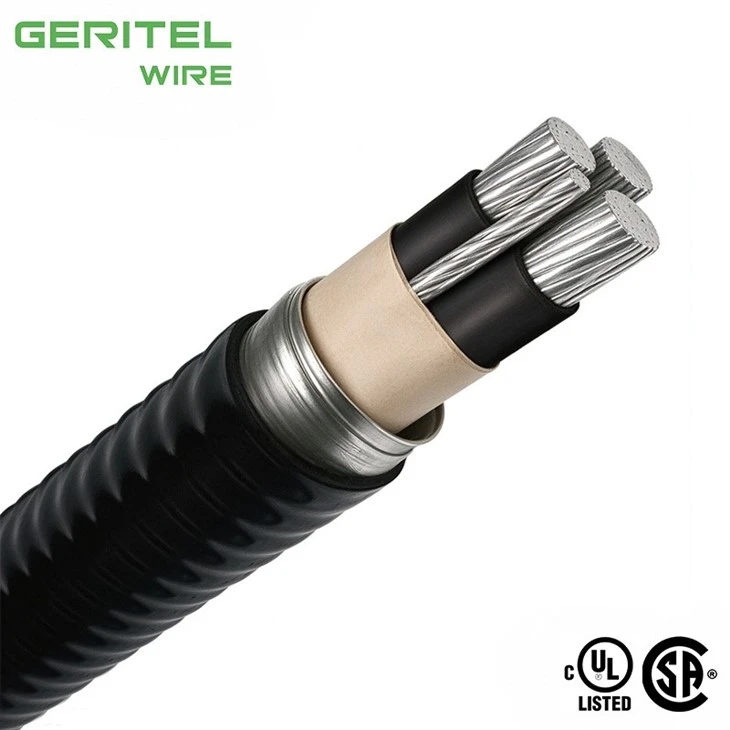

PRODUCT REAL SHOT

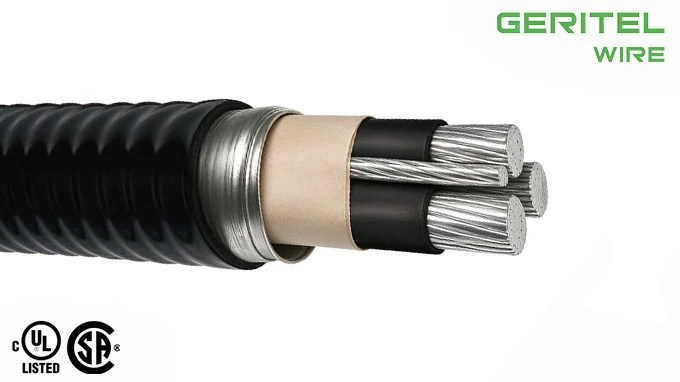

ACWU90 3C 350 cable

Building Side Power Feeder for Data Center Electrical Rooms

Data center electrical rooms depend on predictable facility-level distribution, yet not every cable near a server hall serves the same function. ACWU90 350 kcmil feeder cable can be assessed for appropriate fixed low-voltage AC feeder routes where approved by the design and Canadian requirements. It is distinct from server cords, data cables and UPS battery leads. Three XLPE-insulated aluminum conductors are protected by interlocked armour and an outer jacket. GERITEL WIRE supports data-center contractors with manufacturing information and 350 kcmil three-conductor quotations. Please specify the intended power route, termination ratings and current certification needs.

PRODUCT SPECIFICATIONS

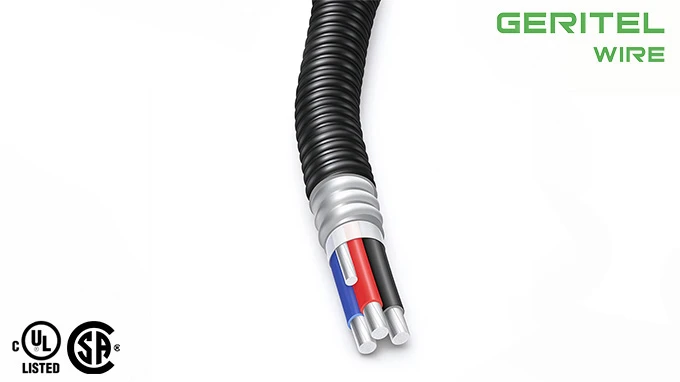

ACWU90 3C 350 wire

Scope

This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.

Application

Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.

SPECIFICATIONS
Conductor	8000 series compact-stranded aluminum alloy
Insulation	XLPE. Thickness per CSA C22.2 No. 51
Color Coding	For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor.
Bonding Conductor	One bare 8000 series compact-stranded aluminum alloy.
Cabling	Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape.
Armour	Aluminum interlocked armour(AIA)
Jacket	Flame retardant PVC jacket
Rated Voltage	600V
Rated Temperature	90°C
Low Temperatue Classification	-40°C
Flame Test Rating	FT4

Type ACWU90 Cable Data

(AA 8000 series alloy conductor)

SIZE (AWG/kcmil)	Strands No./O.D. (mm)	XLPE Insulation Average Thickness (mm)	PVC Jacket Average Thickness (mm)	Approx. O.D. (mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight (kg/km)
3 x 6+8	7/1.60 7/1.28	0.76	1.14	21.44	2.211/3.515	469.49
3 x 4+6	7/2.02 7/1.60	1.02	1.14	24.84	1.390/2.211	630.58
3 x 2+6	7/2.58 7/1.60	1.02	1.14	30.68	0.8745/2.211	805.92
3 x 1+4	18/1.82 7/2.02	1.27	1.14	33.61	0.6934/1.390	980.49
3 x 1/0+4	18/2.02 7/2.02	1.27	1.14	35.51	0.5498/1.390	1112.91
3 x 2/0+4	18/2.32 7/2.02	1.27	1.14	37.24	0.4361/1.390	1267.50
3 x 3/0+4	18/2.58 7/2.02	1.27	1.14	39.32	0.3459/1.390	1459.66
3 x 4/0+4	18/2.83 7/2.02	1.27	1.14	41.86	0.2743/1.390	1699.24
3 x 250+2	36/2.22 7/2.58	1.52	1.14	45.65	0.2322/0.8745	2008.08
3 x 300+2	36/2.42 7/2.58	1.52	1.14	47.92	0.1935/0.8745	2268.74
3 x 350+2	36/2.58 7/2.58	1.52	1.14	51.11	0.1659/0.8745	2623.71
3 x 400+2	36/2.74 7/2.58	1.52	1.14	53.29	0.1450/0.8745	2894.90
3 x 500+2	36/3.10 18/1.82	1.52	1.14	57.01	0.1161/0.6934	3420.76
3 x 600+2	58/2.65 18/1.82	1.52	1.50	61.40	0.09673/0.6934	4038.83
3 x 750+1/0	58/2.98 18/2.02	1.52	1.50	66.21	0.07738/0.5498	4823.16
4 x 6+8	7/1.60 7/1.28	0.76	1.14	23.29	2.211/3.515	549.68
4 x 4+6	7/2.02 7/1.60	1.02	1.14	27.15	1.390/2.211	749.09
4 x 2+6	7/2.58 7/1.60	1.02	1.14	33.48	0.8745/2.211	970.96
4 x 1+4	18/1.82 7/2.02	1.27	1.14	36.78	0.6934/1.390	1186.84
4 x 1/0+4	18/2.02 7/2.02	1.27	1.14	39.05	0.5498/1.390	1358.96
4 x 2/0+4	18/2.32 7/2.02	1.27	1.14	41.10	0.4361/1.390	1561.06
4 x 3/0+4	18/2.58 7/2.02	1.27	1.14	43.59	0.3459/1.390	1812.41
4 x 4/0+4	18/2.83 7/2.02	1.27	1.14	46.61	0.2743/1.390	2125.94
4 x 250+2	36/2.22 7/2.58	1.52	1.14	51.96	0.2322/0.8745	2615.19
4 x 300+2	36/2.42 7/2.58	1.52	1.14	54.66	0.1935/0.8745	2963.18
4 x 350+2	36/2.58 7/2.58	1.52	1.14	57.15	0.1659/0.8745	3303.61
4 x 400+2	36/2.74 7/2.58	1.52	1.14	60.50	0.1450/0.8745	3763.51
4 x 500+2	36/3.10 18/1.82	1.52	1.50	64.79	0.1161/0.6934	4451.79
4 x 600+2	58/2.65 18/1.82	1.52	1.50	69.11	0.09673/0.6934	5133.01
4 x 750+1/0	58/2.98 18/2.02	1.52	1.50	74.65	0.07738/0.5498	6151.02
