Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of 600v acwu90 wire for canadian electrical projects in China, also supports customized service. Please rest assured to wholesale durable 600v acwu90 wire for canadian electrical projects made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

ACWU90 feeder wire

PRODUCT REAL SHOT

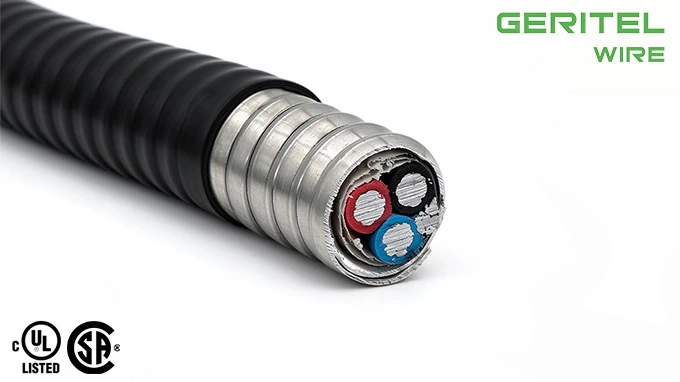

ACWU90 low voltage power cable

Cable selection starts with the real installation environment

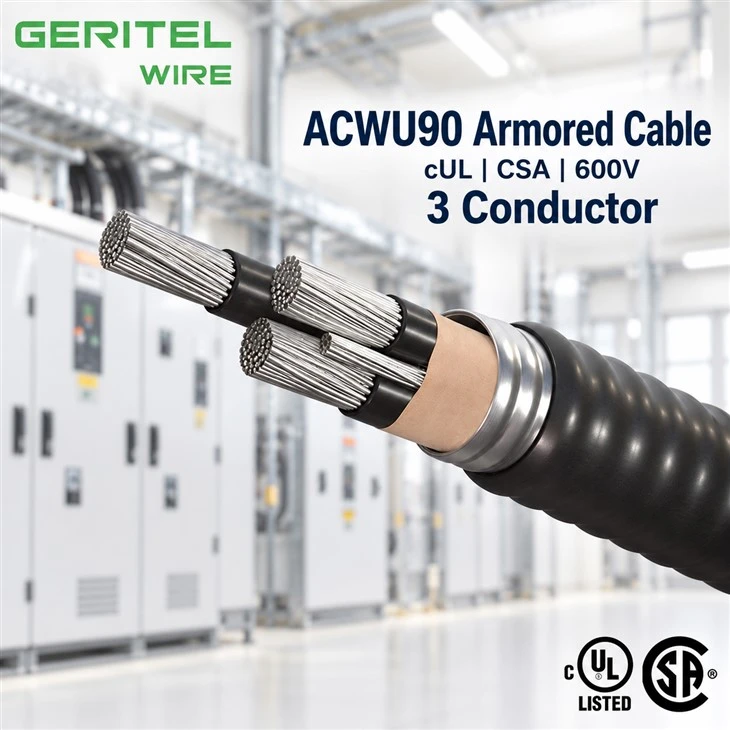

Choosing ACWU90 Wire involves more than matching a voltage rating. A Canadian electrical designer must also consider the installation route, possible moisture exposure, mechanical protection and local code requirements. This 600V armoured product brings XLPE-insulated aluminum conductors together with an interlocked aluminum armour and an overall PVC jacket. Those features make it relevant to several commercial and industrial distribution routes where the specified product listing permits use. At GERITEL WIRE, engineers and buyers can discuss application drawings, conductor arrangement and submittal needs with a manufacturing team rather than relying on generic catalogue descriptions.

PRODUCT SPECIFICATIONS

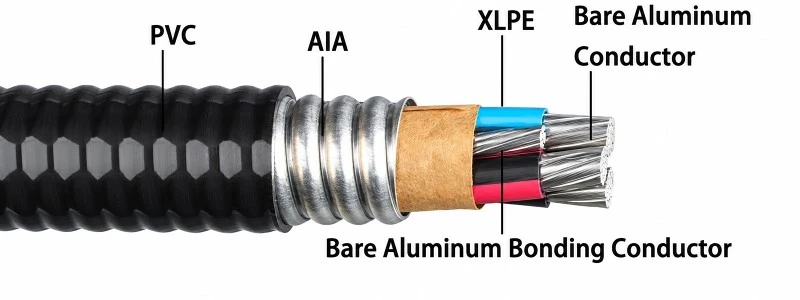

ACWU90 wet location cable

Scope

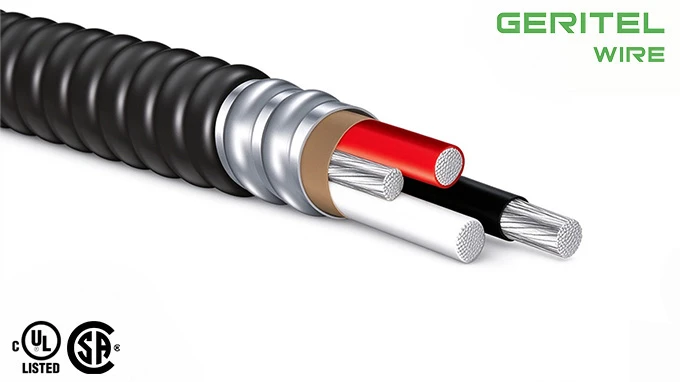

This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.

Application

Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.

SPECIFICATIONS
Conductor	8000 series compact-stranded aluminum alloy
Insulation	XLPE. Thickness per CSA C22.2 No. 51
Color Coding	For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor.
Bonding Conductor	One bare 8000 series compact-stranded aluminum alloy.
Cabling	Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape.
Armour	Aluminum interlocked armour(AIA)
Jacket	Flame retardant PVC jacket
Rated Voltage	600V
Rated Temperature	90°C
Low Temperatue Classification	-40°C
Flame Test Rating	FT4

Type ACWU90 Cable Data

(AA 8000 series alloy conductor)

SIZE (AWG/kcmil)	Strands No./O.D. (mm)	XLPE Insulation Average Thickness (mm)	PVC Jacket Average Thickness (mm)	Approx. O.D. (mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight (kg/km)
3 x 6+8	7/1.60 7/1.28	0.76	1.14	21.44	2.211/3.515	469.49
3 x 4+6	7/2.02 7/1.60	1.02	1.14	24.84	1.390/2.211	630.58
3 x 2+6	7/2.58 7/1.60	1.02	1.14	30.68	0.8745/2.211	805.92
3 x 1+4	18/1.82 7/2.02	1.27	1.14	33.61	0.6934/1.390	980.49
3 x 1/0+4	18/2.02 7/2.02	1.27	1.14	35.51	0.5498/1.390	1112.91
3 x 2/0+4	18/2.32 7/2.02	1.27	1.14	37.24	0.4361/1.390	1267.50
3 x 3/0+4	18/2.58 7/2.02	1.27	1.14	39.32	0.3459/1.390	1459.66
3 x 4/0+4	18/2.83 7/2.02	1.27	1.14	41.86	0.2743/1.390	1699.24
3 x 250+2	36/2.22 7/2.58	1.52	1.14	45.65	0.2322/0.8745	2008.08
3 x 300+2	36/2.42 7/2.58	1.52	1.14	47.92	0.1935/0.8745	2268.74
3 x 350+2	36/2.58 7/2.58	1.52	1.14	51.11	0.1659/0.8745	2623.71
3 x 400+2	36/2.74 7/2.58	1.52	1.14	53.29	0.1450/0.8745	2894.90
3 x 500+2	36/3.10 18/1.82	1.52	1.14	57.01	0.1161/0.6934	3420.76
3 x 600+2	58/2.65 18/1.82	1.52	1.50	61.40	0.09673/0.6934	4038.83
3 x 750+1/0	58/2.98 18/2.02	1.52	1.50	66.21	0.07738/0.5498	4823.16
4 x 6+8	7/1.60 7/1.28	0.76	1.14	23.29	2.211/3.515	549.68
4 x 4+6	7/2.02 7/1.60	1.02	1.14	27.15	1.390/2.211	749.09
4 x 2+6	7/2.58 7/1.60	1.02	1.14	33.48	0.8745/2.211	970.96
4 x 1+4	18/1.82 7/2.02	1.27	1.14	36.78	0.6934/1.390	1186.84
4 x 1/0+4	18/2.02 7/2.02	1.27	1.14	39.05	0.5498/1.390	1358.96
4 x 2/0+4	18/2.32 7/2.02	1.27	1.14	41.10	0.4361/1.390	1561.06
4 x 3/0+4	18/2.58 7/2.02	1.27	1.14	43.59	0.3459/1.390	1812.41
4 x 4/0+4	18/2.83 7/2.02	1.27	1.14	46.61	0.2743/1.390	2125.94
4 x 250+2	36/2.22 7/2.58	1.52	1.14	51.96	0.2322/0.8745	2615.19
4 x 300+2	36/2.42 7/2.58	1.52	1.14	54.66	0.1935/0.8745	2963.18
4 x 350+2	36/2.58 7/2.58	1.52	1.14	57.15	0.1659/0.8745	3303.61
4 x 400+2	36/2.74 7/2.58	1.52	1.14	60.50	0.1450/0.8745	3763.51
4 x 500+2	36/3.10 18/1.82	1.52	1.50	64.79	0.1161/0.6934	4451.79
4 x 600+2	58/2.65 18/1.82	1.52	1.50	69.11	0.09673/0.6934	5133.01
4 x 750+1/0	58/2.98 18/2.02	1.52	1.50	74.65	0.07738/0.5498	6151.02

CERTIFICATIONS

ACWU90 direct burial cable

PACKAGING

Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Battery Energy Storage System (BESS) AC Power Distribution

Commercial Building Power Distribution

Industrial Manufacturing Plant Power Distribution

CASE

Garden Bay Water Treatment Plant Generator Replacement

Sechelt Aquatic Centre Lighting Upgrade

Watson Lake Recreation Centre Change Room Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

ACWU90 three conductor cable

CUSTOMER PHOTOS

ACWU90 aluminum interlocked armor cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

ACWU90 aluminum interlocked armour cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Does ACWU90 contain aluminum or copper conductors?

The product family discussed here is ACWU90 aluminum conductor cable, using aluminum alloy power conductors rather than copper. Never substitute sizes based on a copper-cable schedule without an electrical design review.

What is the standard voltage rating of ACWU90?

600V ACWU90 cable is a common Canadian low-voltage building cable designation. Confirm the 600V marking on the offered product and verify that the circuit voltage and installation conditions are within its listing.

Can ACWU90 be supplied with three insulated conductors?

Yes, 3 conductor ACWU90 cable is a common arrangement for three-insulated-conductor feeder designs. The bonding conductor and circuit assignment should be verified from the exact drawing and cable construction.

Is three-core ACWU90 the same search term as three-conductor ACWU90?

Buyers may search for 3 core ACWU90 cable or three-conductor cable to describe similar configurations. For a purchase order, use the exact conductor count and marking accepted by the Canadian project specification.
