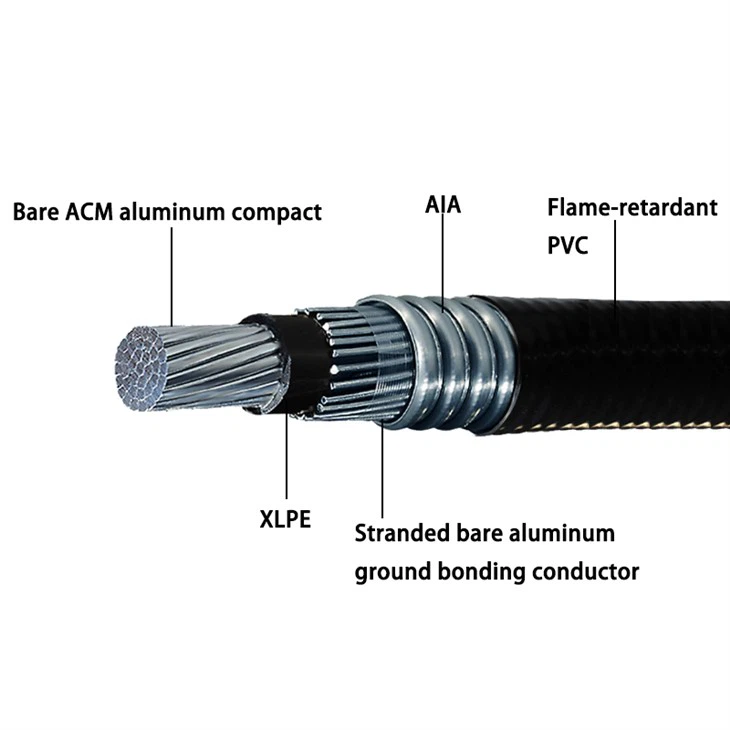

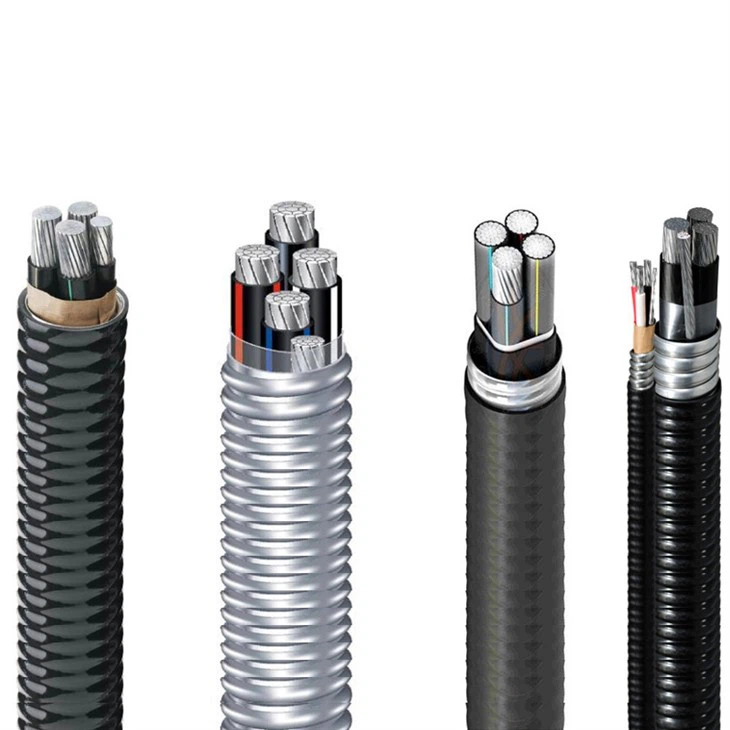

ACWU90 is an armored distribution cable with a rated voltage of 600V. It adopts compressed or compacted bare aluminum ACM conductor (Class B stranding). The main insulation material is RW90 grade cross-linked polyethylene (XLPE), which has excellent thermal stability, breakdown voltage and long-term electrical insulation performance. The rated operating temperature is up to 90°C (dry environment).
The grounding conductor adopts a bare aluminum stranding structure and is arranged in parallel with the main core, which effectively improves the overall grounding capacity of the system. The outer layer of the cable adopts an aluminum interlocking armor (AIA) structure, which provides high-strength impact protection for the cable. It also has lightweight and corrosion-resistant properties, suitable for direct laying applications without conduits. The outermost layer is a black flame-retardant polyvinyl chloride (FR PVC) sheath, which is not only UV-resistant, moisture-resistant, and chemical-resistant, but also meets the CSA FT4 flame-retardant test requirements. It can be used in high-density installation scenarios such as public spaces, trunk walkways and cable trays.
Application
ACWU90 cable is suitable for electrical systems with high requirements for protection and flame retardancy. It adopts cross-linked polyethylene (XLPE) insulation and aluminum interlaced armor (AIA) structure, which can provide reliable power transmission and physical protection in harsh environments. This cable is suitable for the following typical applications:
- Fixed wiring system: used for power distribution and trunk lines, including lighting, power, and control circuits
- Direct underground installation: meets the underground use standards and does not require additional conduit protection
- Exposed installation environment: suitable for humid, dusty, corrosive, or high mechanical stress areas, such as workshops, mechanical equipment areas, basements, and underground passages
- Indoor and outdoor open or concealed: The flame-retardant PVC outer sheath is UV-resistant and moisture-resistant, suitable for the perimeter of the building, the roof or the cable tray system
- Factory automation and power distribution equipment: used for connections between motors, control cabinets, transformers and switchgear
Certification
ACWU90 armored cable has obtained UL certification and meets the strict standards of the North American market in terms of safety, reliability, and manufacturing quality. UL certification not only verifies the cable's excellent performance in flame retardancy, electrical stability, and structural integrity, but also ensures that the product can be successfully applied to construction and industrial projects in major markets such as the United States and Canada.
Package
Factory
Greater Wire is an ACWU90 cable manufacturer with more than 30 years of industry experience. It is committed to providing high-performance and high-quality cable solutions for various construction, industrial, power and infrastructure projects. The ACWU90 cables produced by Greater Wire not only strictly follow North American standards such as CSA C22.2 No.51 & 174, UL 1581, IEEE 1202, ICEA T-30-520, but also have passed a number of international certifications such as UL and CSA, fully meeting the safety and regulatory requirements for cable products in North America.
In terms of manufacturing technology, Greater Wire has a modern production line and a complete quality control system. From conductor stranding, insulation extrusion to armor molding and sheath processing, it adheres to high standards and strict testing to ensure that every meter of cable has excellent performance and consistent quality. We provide a variety of cable specifications, ranging from 8 AWG to 1000 kcmil, supporting customized colors, lengths and packaging to meet customers' diverse engineering needs.
Case
Partner
FAQ
Q: Are you a manufacturer?
Q: Can we customize our wires and cables?
Q: What payment methods do you accept for wire and cable orders?
A: We accept T/T (bank transfer), Visa, Mastercard, PayPal, and PANPAY for your convenience.
Q: What types of packaging can you provide?
A: We provide roll-type, wooden reel, and pallet packaging. If you have special packaging requirements, we're happy to customize the solution for you.
Q: What delivery options are available for cable shipments?
A: We can arrange delivery via express services, air transport, truck freight, or ocean shipping. Contact us to choose the best logistics option for your order.
Hot Tags: acwu90 cable xlpe insulation aia flame-retardant pvc 600v, China acwu90 cable xlpe insulation aia flame-retardant pvc 600v manufacturers, suppliers, factory, rubber welding cable, xlpe power cable, ul1007 hook up wire, HO7V-K, h05vv-f, ul standard xhhw xhhw 2 cable
| No. of Conductors |
AWG Size | Insulation Thickness | Approximate Diameter (Over) |
Aluminum Weight | Net Weight | |||||||||
| Cond. | Bond Wire | Insulation | Armour | Cable | ||||||||||
| in. | mm. | in. | mm. | in. | mm. | in. | mm. | LB/MFT | KG/KM | LB/MFT | KG/KM | |||
| 1 | 4/0 | 2 | 0.055 | 1.400 | 0.591 | 15.010 | 0.940 | 23.880 | 1.036 | 26.310 | 197 | 388 | 504 | 750 |
| 1 | 250 | 1 | 0.065 | 1.650 | 0.658 | 16.710 | 1.007 | 25.580 | 1.103 | 28.020 | 233 | 346 | 600 | 893 |
| 1 | 350 | 1/0 | 0.065 | 1.650 | 0.754 | 19.150 | 1.103 | 28.020 | 1.199 | 30.450 | 326 | 485 | 745 | 1107 |
| 1 | 500 | 2/0 | 0.065 | 1.650 | 0.872 | 22.150 | 1.221 | 31.010 | 1.317 | 33.450 | 467 | 395 | 952 | 1417 |
| 1 | 600 | 2/0 | 0.080 | 2.030 | 0.985 | 25.020 | 1.334 | 33.880 | 1.430 | 36.320 | 560 | 833 | 1099 | 1635 |
| 1 | 750 | 3/0 | 0.080 | 2.030 | 1.080 | 27.430 | 1.429 | 36.300 | 1.525 | 38.740 | 700 | 1042 | 1305 | 1942 |
| 1 | 1000 | 3/0 | 0.080 | 2.030 | 1.230 | 31.420 | 1.667 | 42.340 | 1.779 | 45.190 | 935 | 1392 | 1704 | 2536 |
