Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of acwu90 600v power wire oem factory in China, also supports customized service. Please rest assured to wholesale durable acwu90 600v power wire oem factory made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

what information is needed to order ACWU90 cable

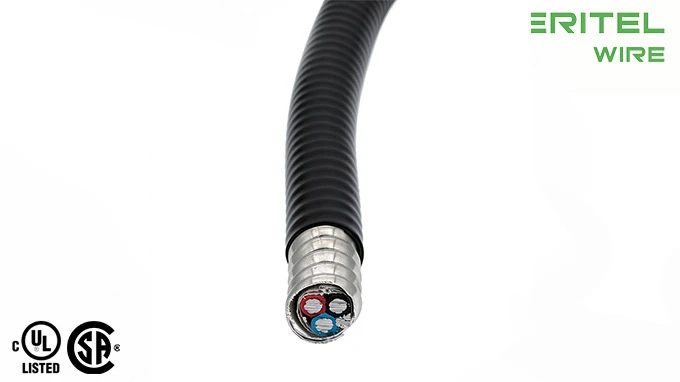

PRODUCT REAL SHOT

can ACWU90 cable be used in hazardous locations

what are ACWU90 cable tray installation rules

what cable glands are used with ACWU90

Factory-backed communication from enquiry to site delivery

Electrical contractors need a supplier that understands what happens after a quotation is accepted. With GERITEL WIRE ACWU90 Cable, our manufacturing team can discuss the intended installation, requested Canadian approval, 600V XLPE-insulated aluminum conductor configuration and protective armoured PVC-jacketed construction at the enquiry stage. We also coordinate commercially important details such as reel length, labelling, packing protection and shipment sequencing. This project-oriented approach helps buyers plan deliveries against real installation milestones. Share the specification section and quantity schedule with GERITEL WIRE, and we will work through the available supply options without assuming a cable is suitable for every site condition.

PRODUCT SPECIFICATIONS

what is compact stranded aluminum conductor

Scope

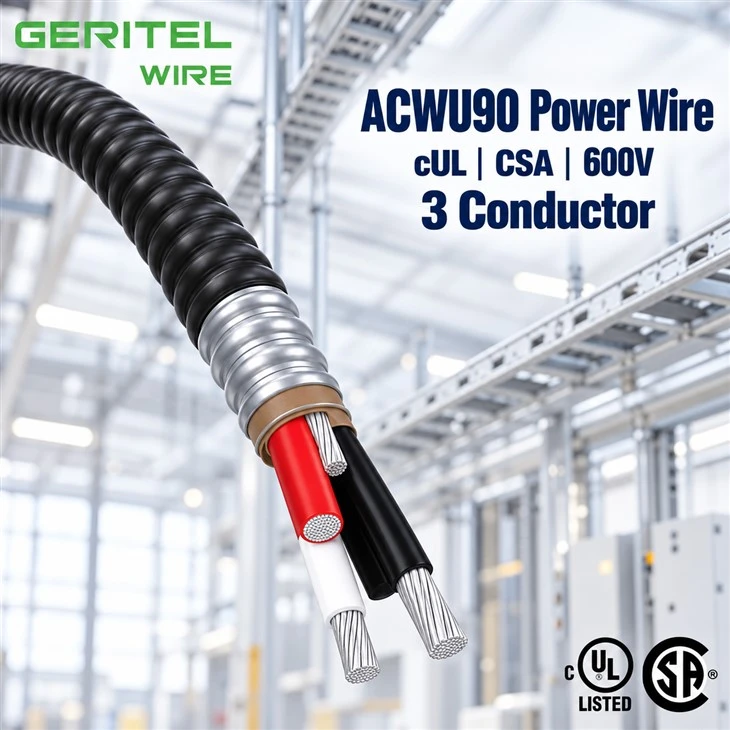

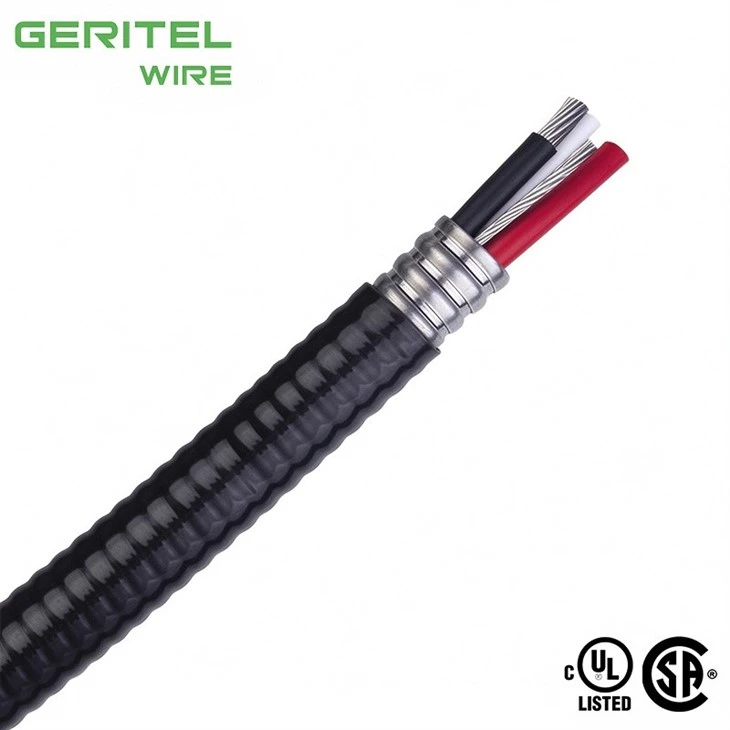

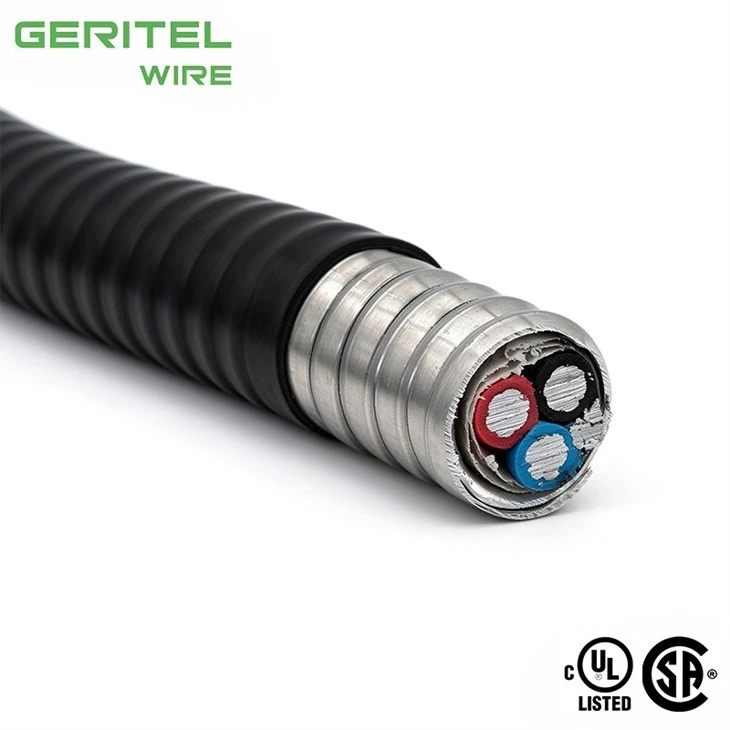

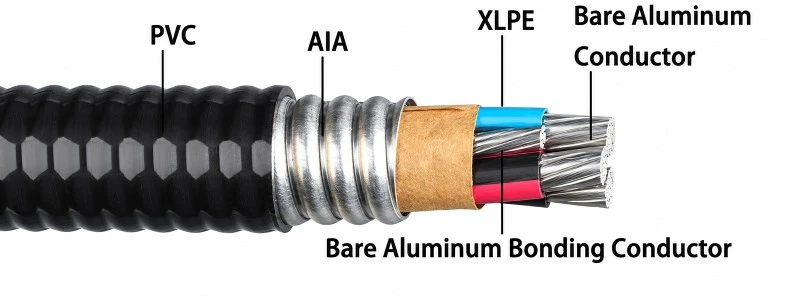

This specification covers three or four compact-stranded 8000 series aluminum alloy conductors with cross-linked polyethylene (XLPE) insulation plus one bare aluminum alloy bonding conductor in multi-conductor cables. Conductor assembly is wrapped and enclosed in interlocked aluminum armour with flame retardant PVC jacket.Type ACWU90 cable is conforming to CSA C22.2 No. 51 standard .cUL file No.E544860.

Application

Type ACWU90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather. For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations; direct earth burial; service entrance above or below ground.

SPECIFICATIONS
Conductor	8000 series compact-stranded aluminum alloy
Insulation	XLPE. Thickness per CSA C22.2 No. 51
Color Coding	For 3 conductors construction: Black, red and blue plus bare bonding conductor.Or black, red and white plus bare bonding conductor. For 4 conductors construction: Black, red, blue and white plus bare bonding conductor.
Bonding Conductor	One bare 8000 series compact-stranded aluminum alloy.
Cabling	Three or four insulated conductors plus one bare bonding conductor are assembled without fillers and wrapped by a PP tape.
Armour	Aluminum interlocked armour(AIA)
Jacket	Flame retardant PVC jacket
Rated Voltage	600V
Rated Temperature	90°C
Low Temperatue Classification	-40°C
Flame Test Rating	FT4

Type ACWU90 Cable Data

(AA 8000 series alloy conductor)

SIZE (AWG/kcmil)	Strands No./O.D. (mm)	XLPE Insulation Average Thickness (mm)	PVC Jacket Average Thickness (mm)	Approx. O.D. (mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight (kg/km)
3 x 6+8	7/1.60 7/1.28	0.76	1.14	21.44	2.211/3.515	469.49
3 x 4+6	7/2.02 7/1.60	1.02	1.14	24.84	1.390/2.211	630.58
3 x 2+6	7/2.58 7/1.60	1.02	1.14	30.68	0.8745/2.211	805.92
3 x 1+4	18/1.82 7/2.02	1.27	1.14	33.61	0.6934/1.390	980.49
3 x 1/0+4	18/2.02 7/2.02	1.27	1.14	35.51	0.5498/1.390	1112.91
3 x 2/0+4	18/2.32 7/2.02	1.27	1.14	37.24	0.4361/1.390	1267.50
3 x 3/0+4	18/2.58 7/2.02	1.27	1.14	39.32	0.3459/1.390	1459.66
3 x 4/0+4	18/2.83 7/2.02	1.27	1.14	41.86	0.2743/1.390	1699.24
3 x 250+2	36/2.22 7/2.58	1.52	1.14	45.65	0.2322/0.8745	2008.08
3 x 300+2	36/2.42 7/2.58	1.52	1.14	47.92	0.1935/0.8745	2268.74
3 x 350+2	36/2.58 7/2.58	1.52	1.14	51.11	0.1659/0.8745	2623.71
3 x 400+2	36/2.74 7/2.58	1.52	1.14	53.29	0.1450/0.8745	2894.90
3 x 500+2	36/3.10 18/1.82	1.52	1.14	57.01	0.1161/0.6934	3420.76
3 x 600+2	58/2.65 18/1.82	1.52	1.50	61.40	0.09673/0.6934	4038.83
3 x 750+1/0	58/2.98 18/2.02	1.52	1.50	66.21	0.07738/0.5498	4823.16
4 x 6+8	7/1.60 7/1.28	0.76	1.14	23.29	2.211/3.515	549.68
4 x 4+6	7/2.02 7/1.60	1.02	1.14	27.15	1.390/2.211	749.09
4 x 2+6	7/2.58 7/1.60	1.02	1.14	33.48	0.8745/2.211	970.96
4 x 1+4	18/1.82 7/2.02	1.27	1.14	36.78	0.6934/1.390	1186.84
4 x 1/0+4	18/2.02 7/2.02	1.27	1.14	39.05	0.5498/1.390	1358.96
4 x 2/0+4	18/2.32 7/2.02	1.27	1.14	41.10	0.4361/1.390	1561.06
4 x 3/0+4	18/2.58 7/2.02	1.27	1.14	43.59	0.3459/1.390	1812.41
4 x 4/0+4	18/2.83 7/2.02	1.27	1.14	46.61	0.2743/1.390	2125.94
4 x 250+2	36/2.22 7/2.58	1.52	1.14	51.96	0.2322/0.8745	2615.19
4 x 300+2	36/2.42 7/2.58	1.52	1.14	54.66	0.1935/0.8745	2963.18
4 x 350+2	36/2.58 7/2.58	1.52	1.14	57.15	0.1659/0.8745	3303.61
4 x 400+2	36/2.74 7/2.58	1.52	1.14	60.50	0.1450/0.8745	3763.51
4 x 500+2	36/3.10 18/1.82	1.52	1.50	64.79	0.1161/0.6934	4451.79
4 x 600+2	58/2.65 18/1.82	1.52	1.50	69.11	0.09673/0.6934	5133.01
4 x 750+1/0	58/2.98 18/2.02	1.52	1.50	74.65	0.07738/0.5498	6151.02

CERTIFICATIONS

is ACWU90 a copper or aluminum conductor cable

PACKAGING

what is the meaning of 3 conductor ACWU90

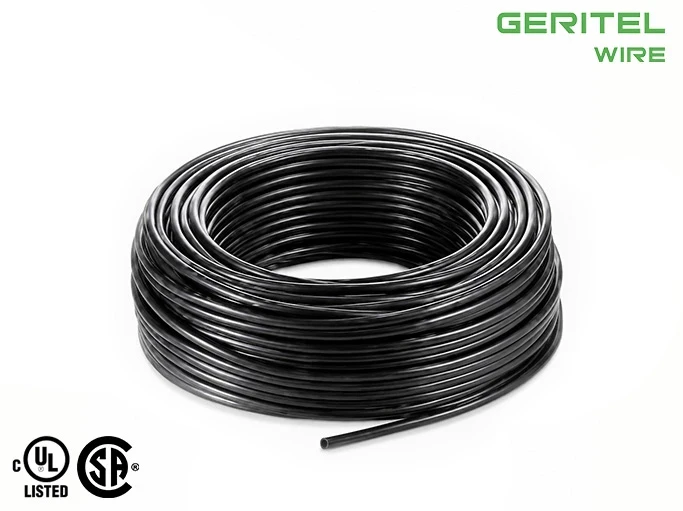

Roll

can a China factory supply CSA certified ACWU90 cable

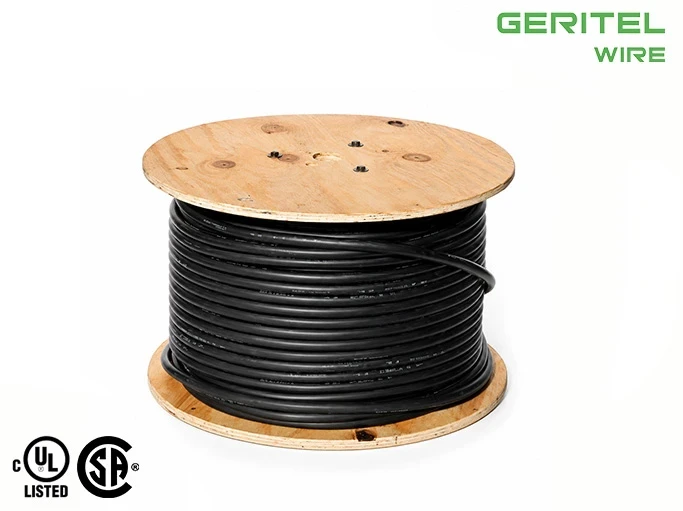

Small Wooden Reel

how to request an ACWU90 cable quotation

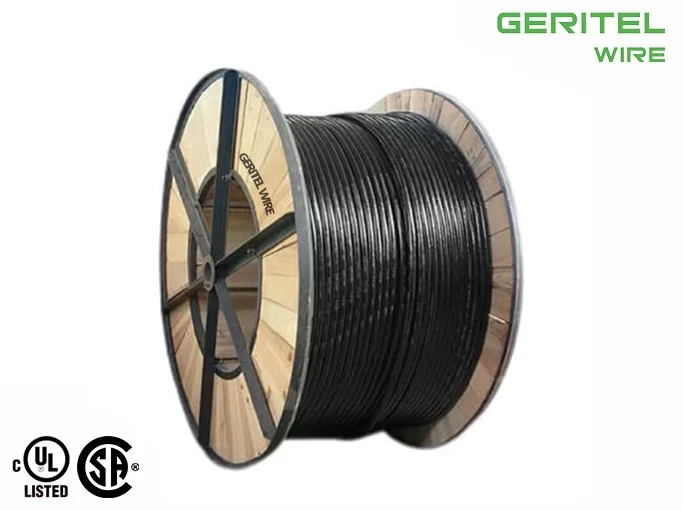

Large Wooden Reel

APPLICATION

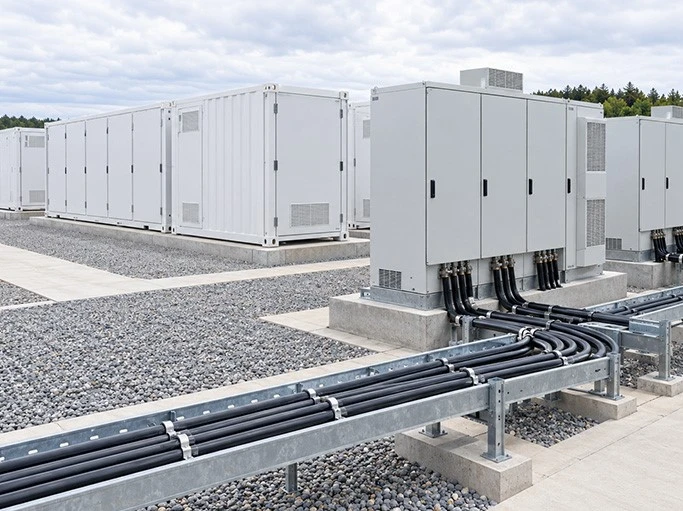

Battery Energy Storage System (BESS) AC Power Distribution

where can electrical contractors buy ACWU90 cable

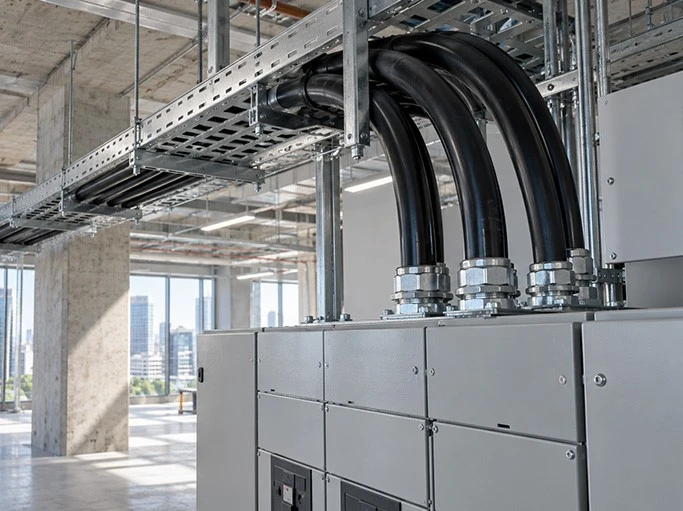

Commercial Building Power Distribution

what is the difference between ACWU90 and MC cable

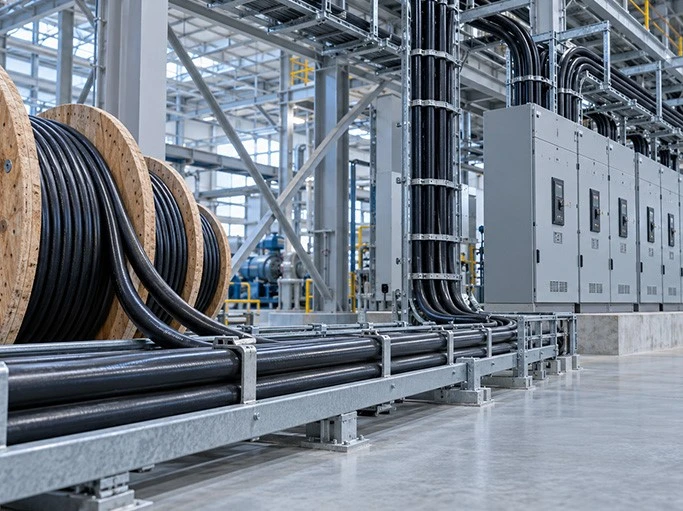

Industrial Manufacturing Plant Power Distribution

CASE

what are ACWU90 cable installation requirements

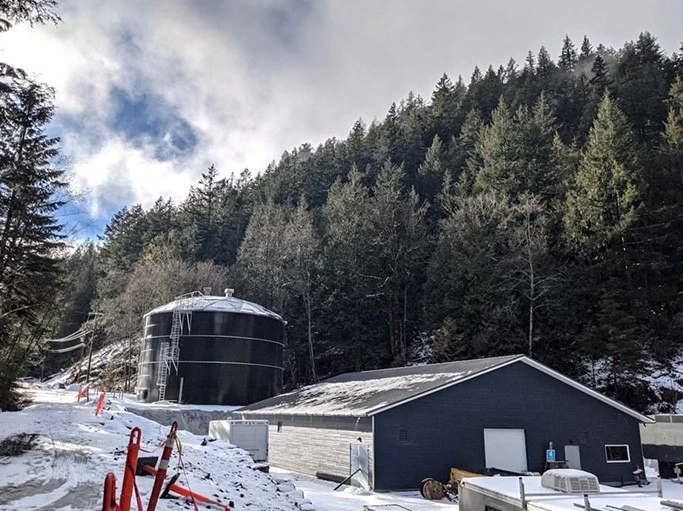

Garden Bay Water Treatment Plant Generator Replacement

does ACWU90 cable have sunlight resistant jacket

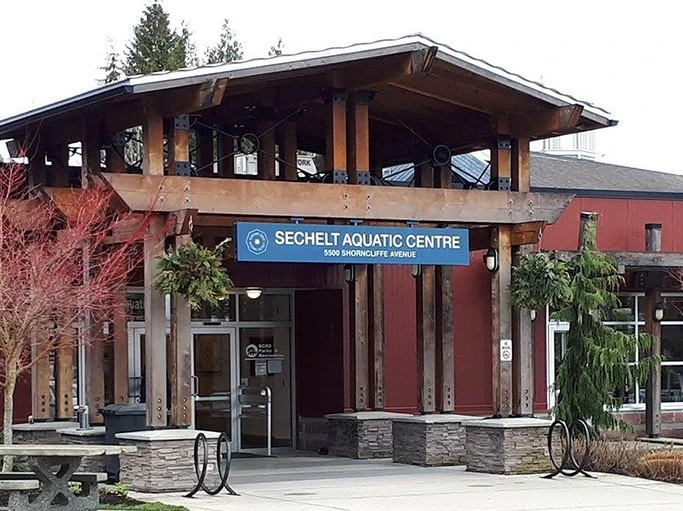

Sechelt Aquatic Centre Lighting Upgrade

can ACWU90 be used in BESS AC power distribution

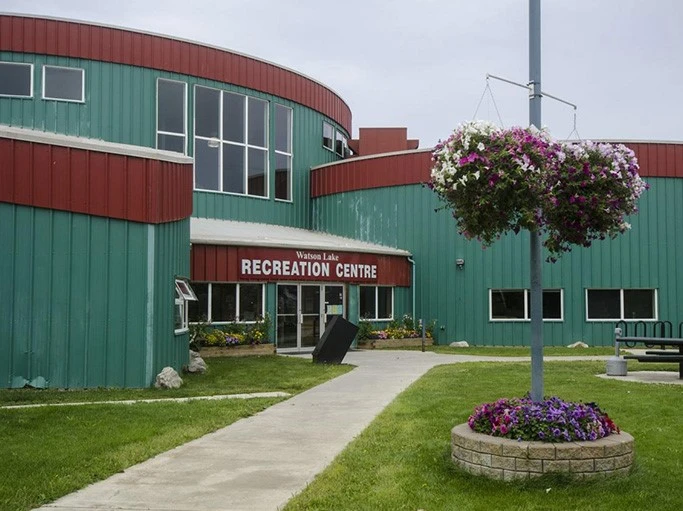

Watson Lake Recreation Centre Change Room Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

is ACWU90 suitable for a data center building feeder

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

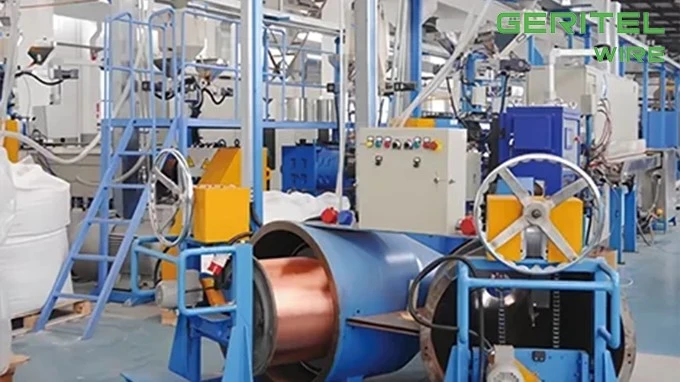

PLANT EQUIPMENT

can ACWU90 serve a modular building feeder

what is the difference between ACWU90 and TECK90

what is the difference between ACWU90 and AC90

how to specify ACWU90 for a Canadian project

how to select ACWU90 cable for a building feeder

GLOBAL CERTIFICATIONS

what is the voltage rating of ACWU90 cable

CUSTOMER PHOTOS

what is the temperature rating of ACWU90 cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

can ACWU90 cable be installed in cable trays

how many conductors does ACWU90 cable have

can ACWU90 cable be used in wet locations

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

is ACWU90 cable suitable for direct burial

FAQ

What is the best way to prevent order substitutions?

Define the ACWU90 specification compliance conductor arrangement, rating, required certificates, markings and acceptable alternatives before issuing a purchase order. Review deviations in writing.

Should an ACWU90 specification include the destination country?

Yes. Identifying Canada as the destination helps clarify the applicable listing and documentation for ACWU90 Canada market cable. Do not assume a product label from another country meets Canadian rules.

Why request a final packing list?

An itemized packing list helps confirm ACWU90 cable packaging reel identifiers, size, quantity and shipping allocation. It supports receiving checks across different site deliveries.

What should be verified on an OEM order?

For ACWU90 OEM cable production, OEM buyers should confirm that requested markings and construction remain inside the certified scope. An altered appearance is not itself proof of a new approval.
